Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

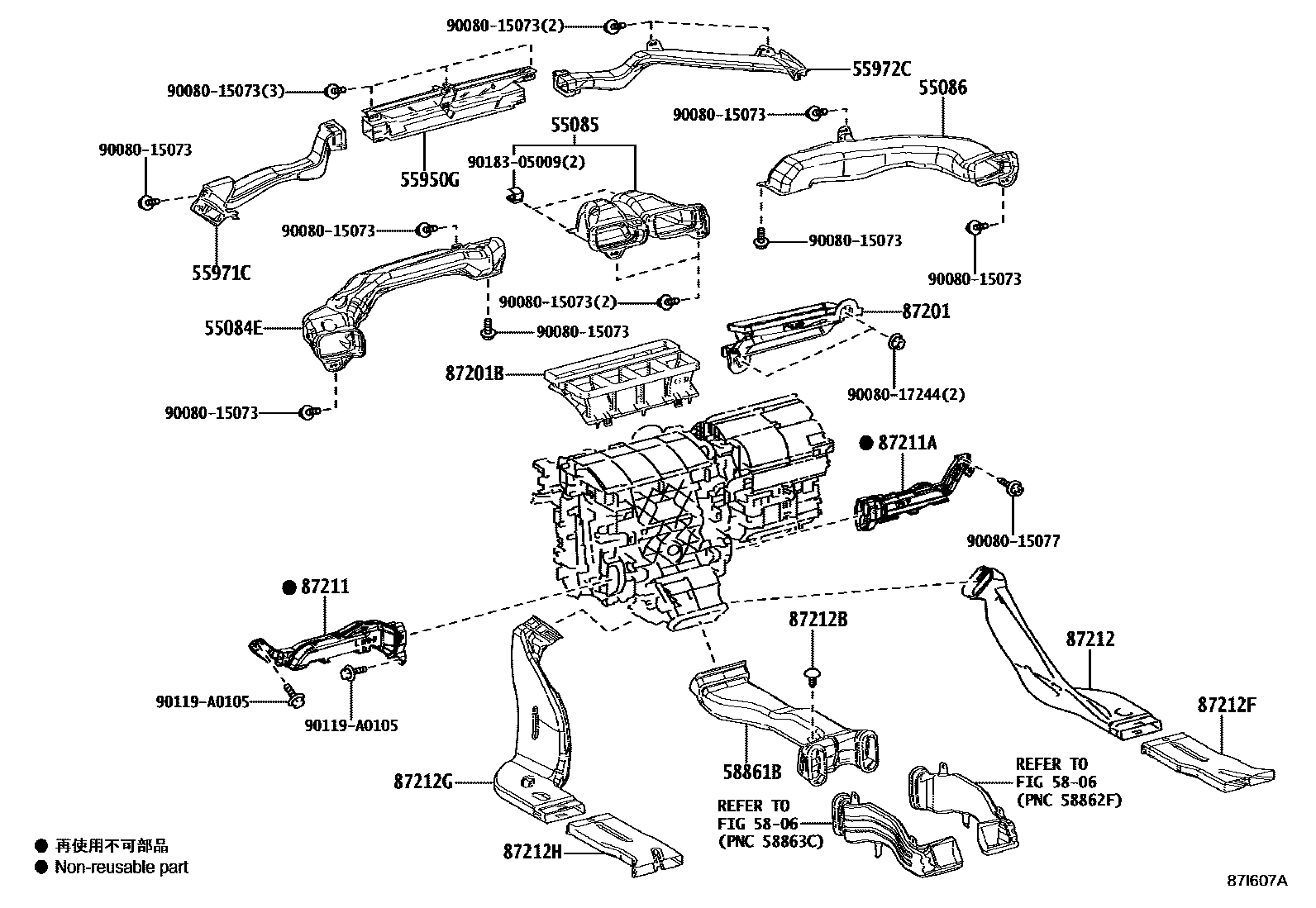

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 9 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

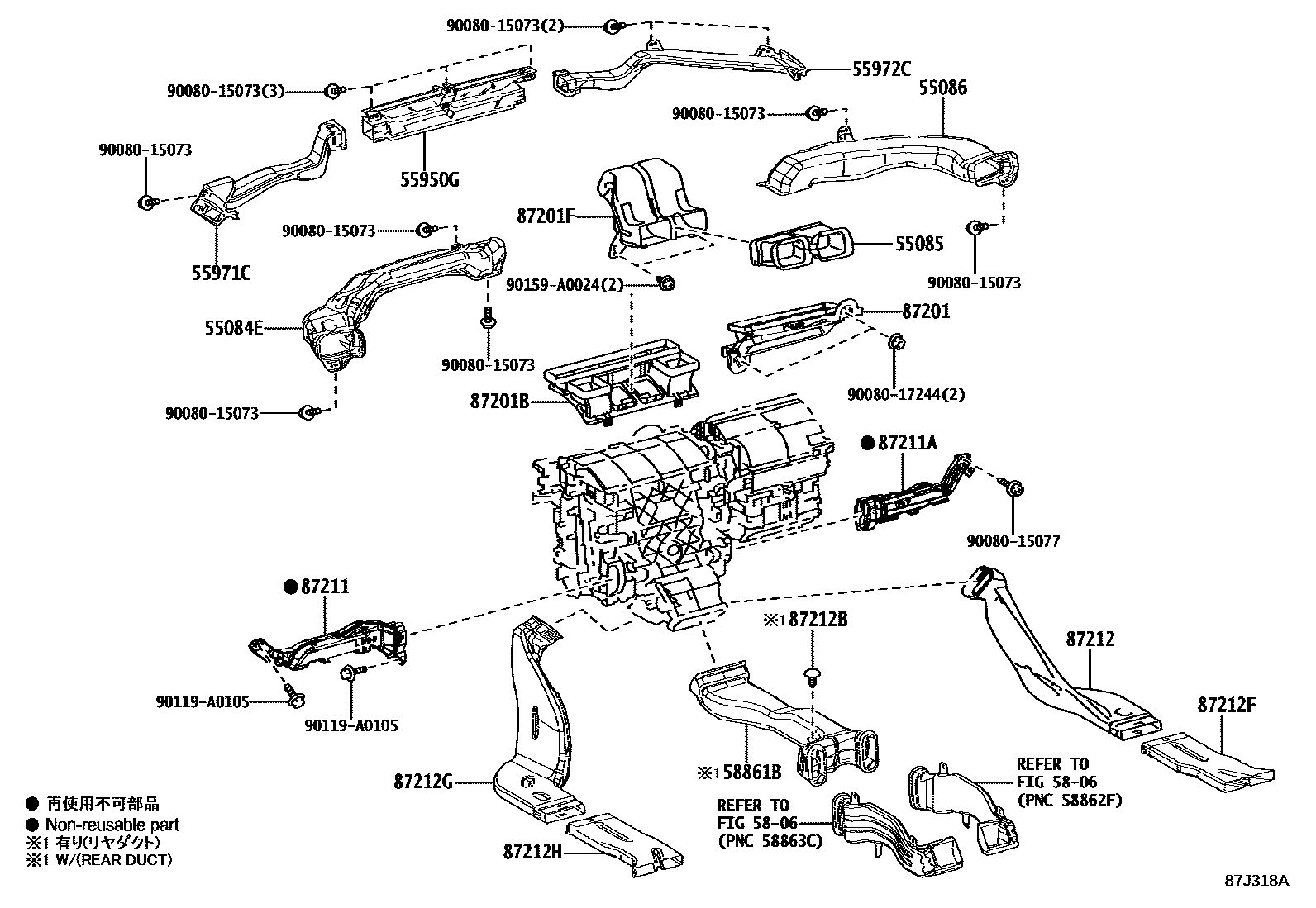

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-06320 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-06190 · 55844-06300 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-06160 |

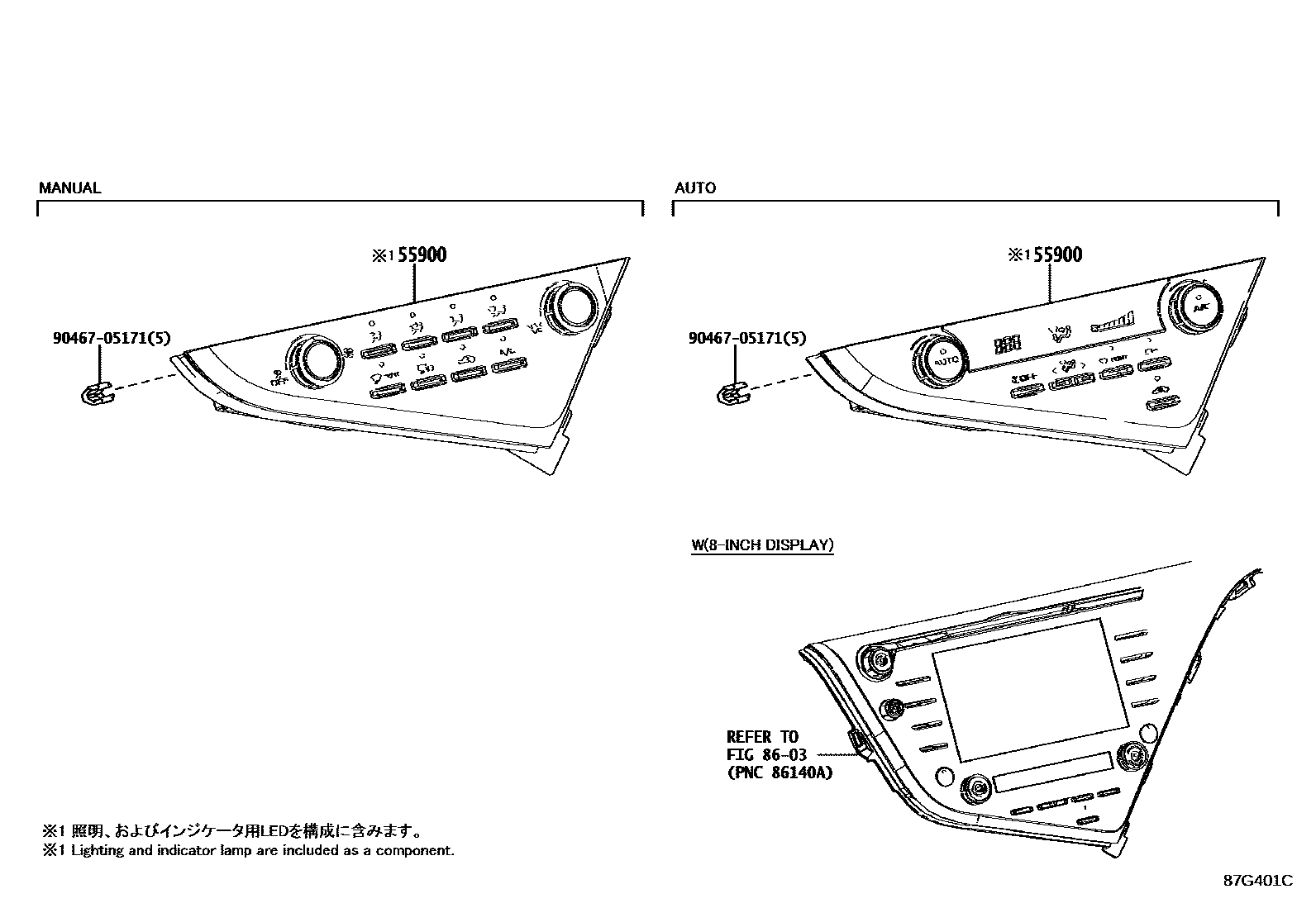

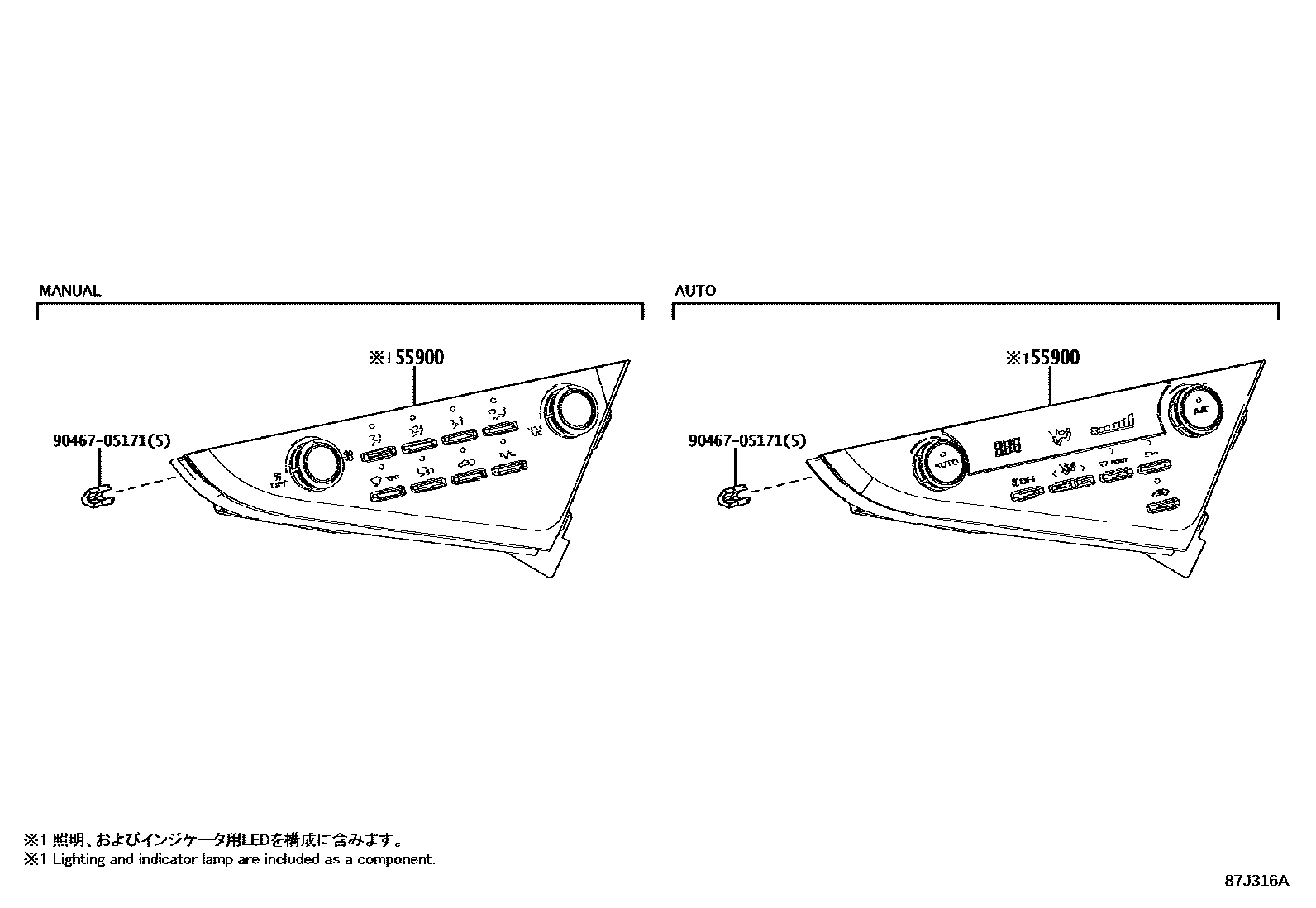

| 55900 | Air conditioning control assembly | 55900-06470 · 55900-06480 · 55900-06490 · 55900-06500 · 55900-06510 · 55900-06520 · 55900-06730 · 55900-06740 |
| 55950G | Defroster nozzle assembly | 55950-06160 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06150 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06150 |
| 58861B | Air duct No. 1 for armrest box | 58861-06200 |
| 87201 | No. 1 air duct sub-assembly | 87201-06760 |
| 87201B | No. 2 air duct sub-assembly | 87201-06A90 · 87201-06C00 |
| 87201F | No. 3 air duct sub-assembly | 87201-06B90 |
| 87211 | No. 1 air duct | 87201-06740 |
| 87211A | Duct No. 2 | 87201-06750 |
| 87212 | No. 1 rear air duct | 87212-06090 · 87212-06140 |
| 87212F | No. 2 rear air duct | 87215-06050 |
| 87212G | No. 3 rear air duct | 87213-06090 · 87213-06091 |
| 87212H | No. 4 rear air duct | 87216-06050 |

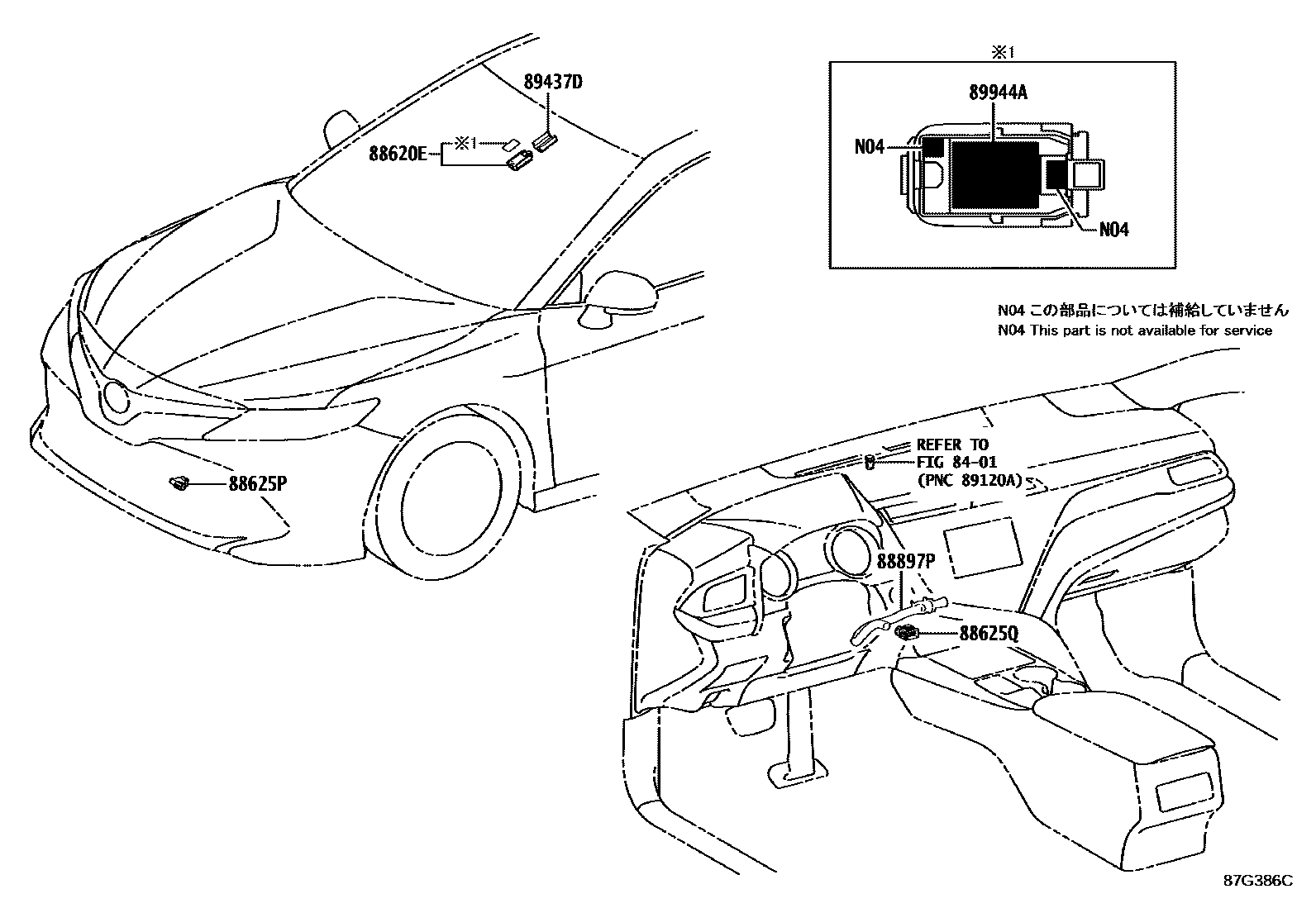

| 88620E | Air conditioning thermistor assembly | 89941-33070 |

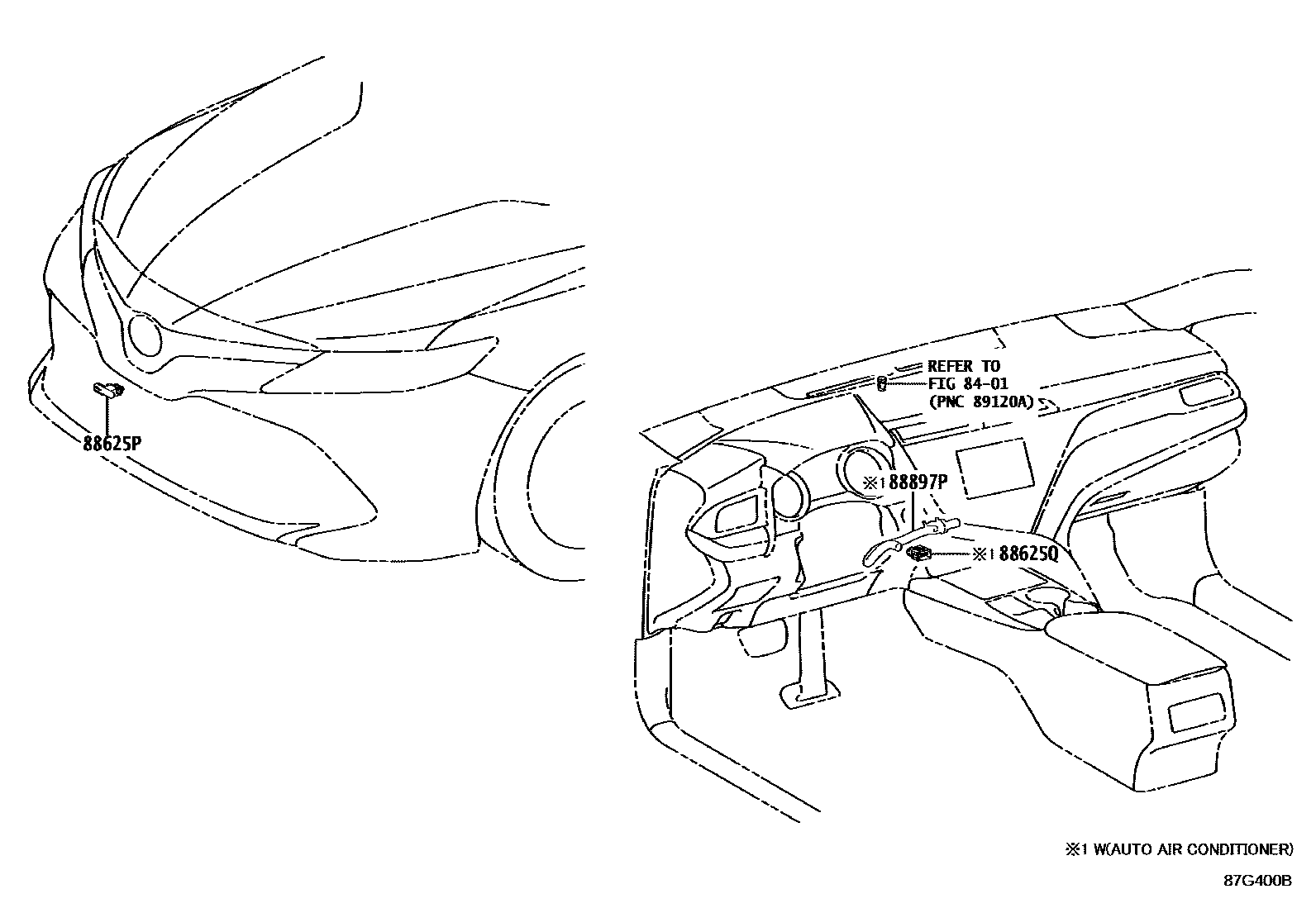

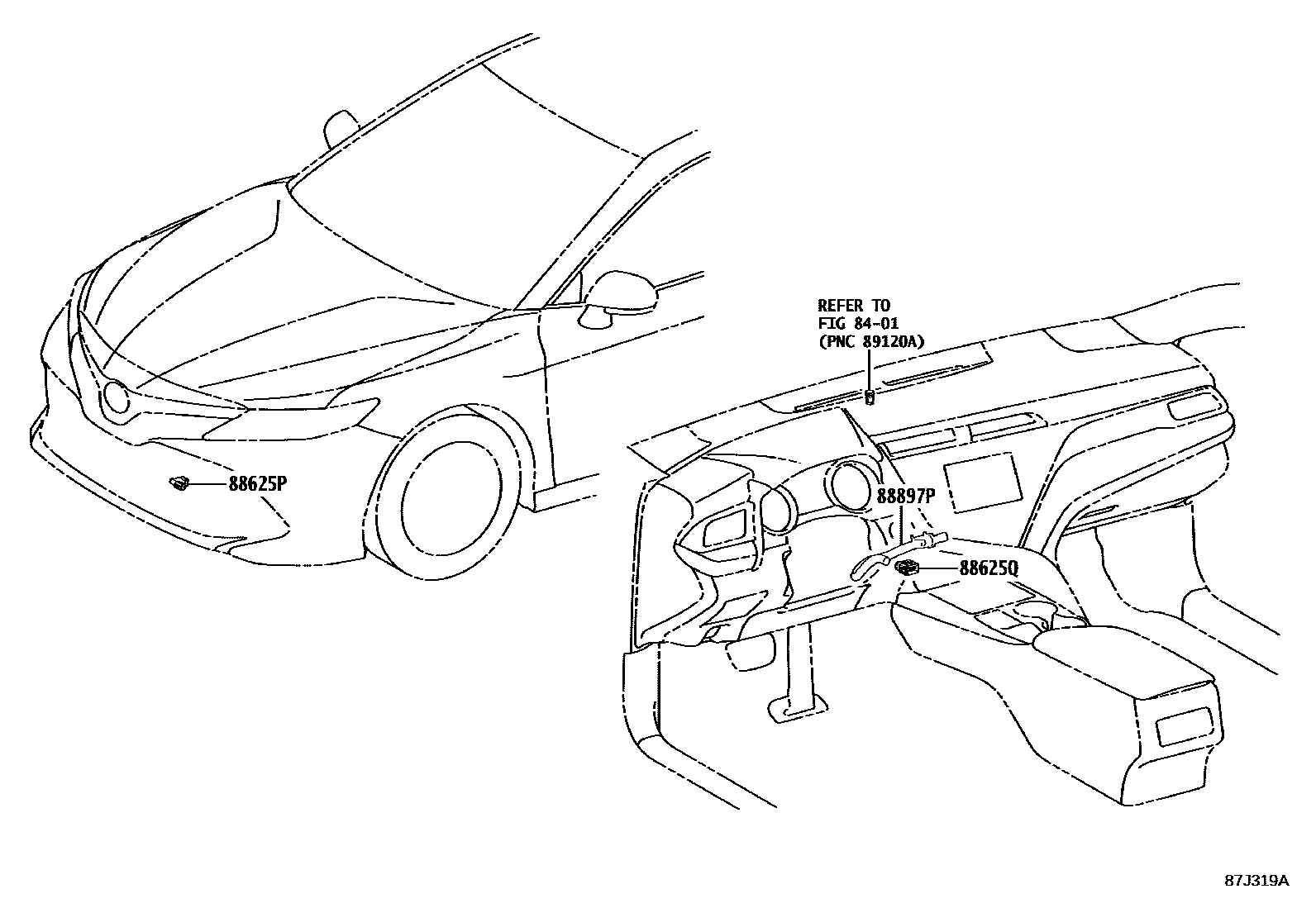

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-06020 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88897P | aspirator | 87201-06770 |
| 89437D | sensor cover | 89943-33060 |
| 89944A | RUBAN(POUR THERMISTANCE CLIMATISATION) | 89944-42020 |
