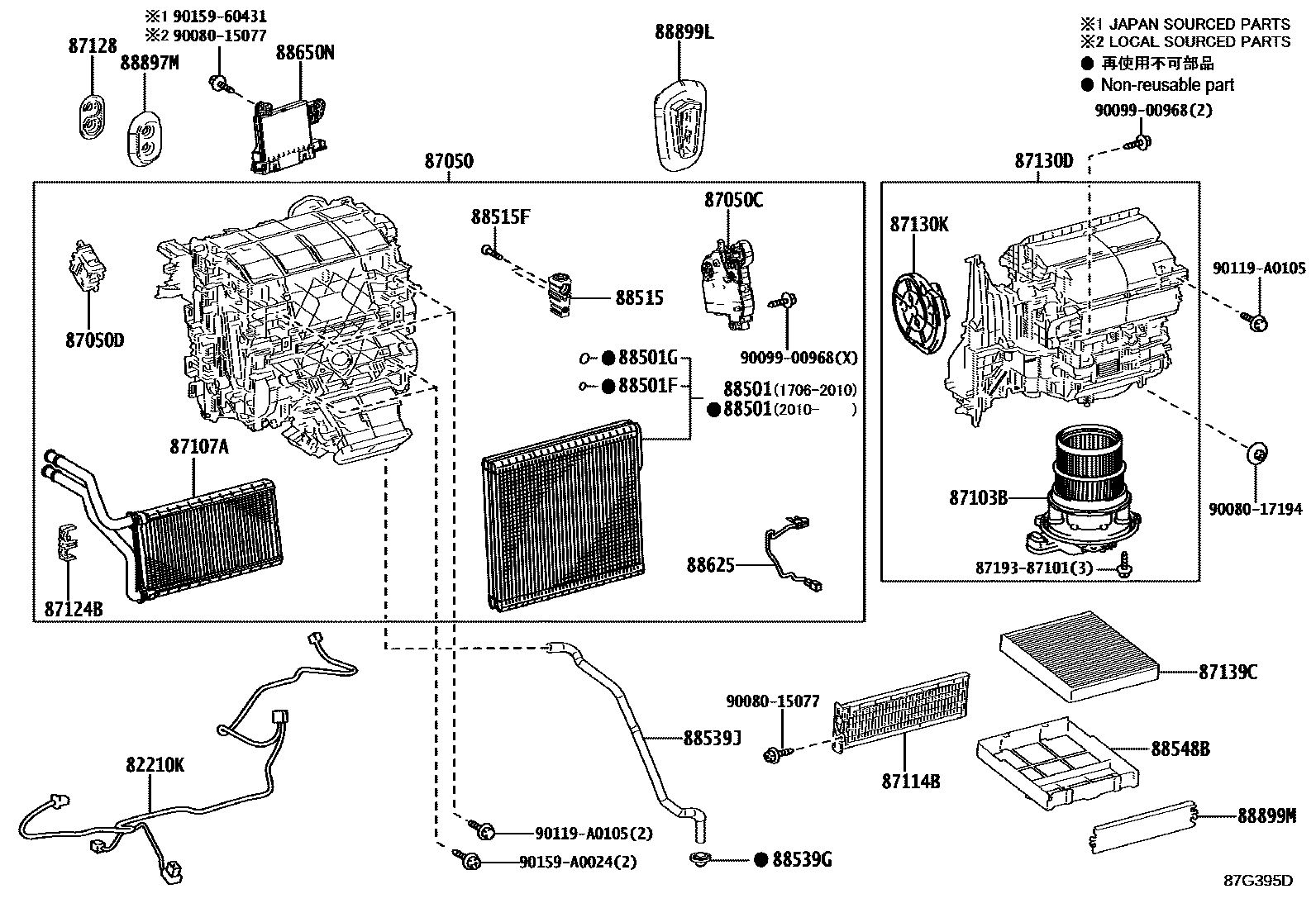

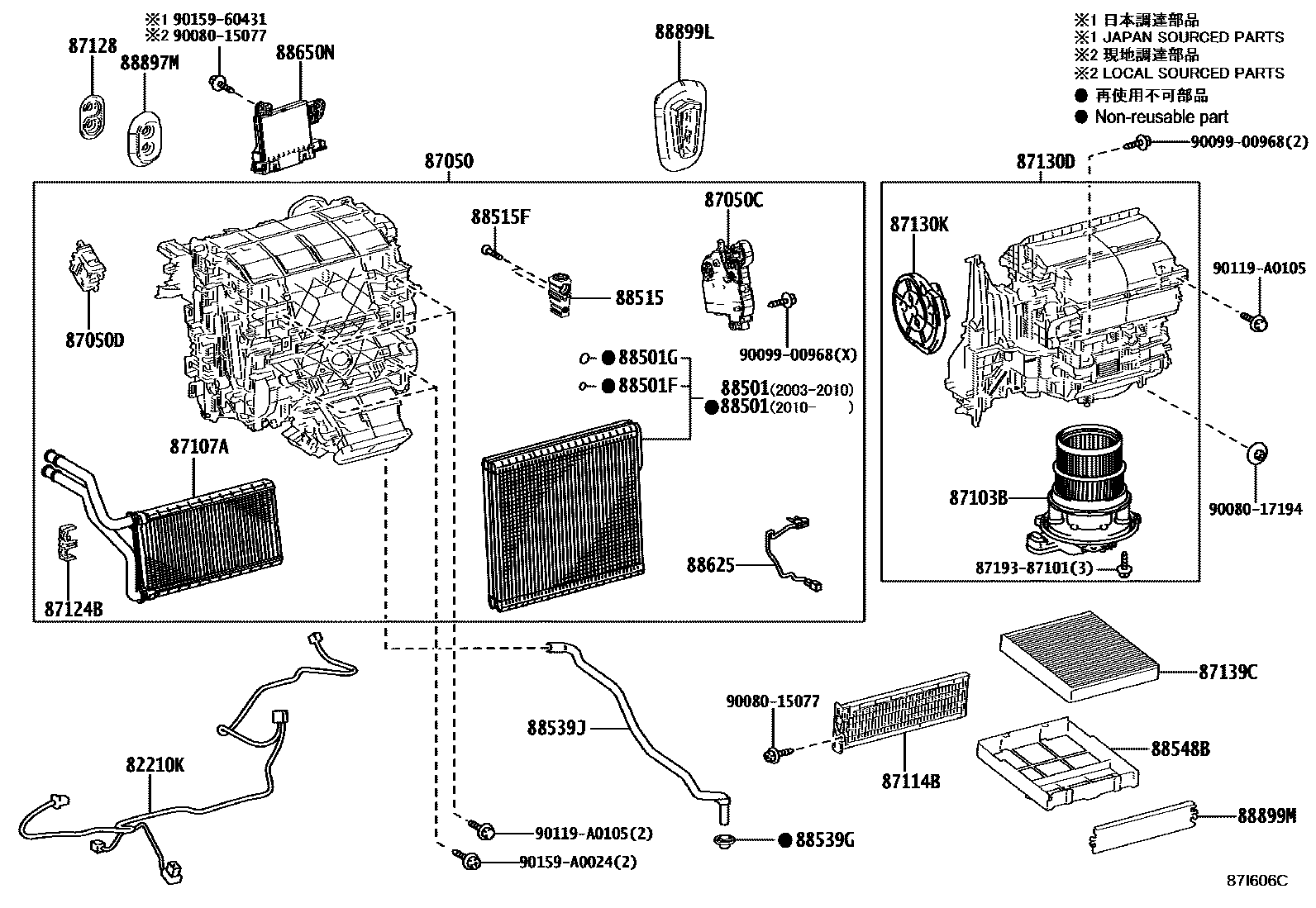

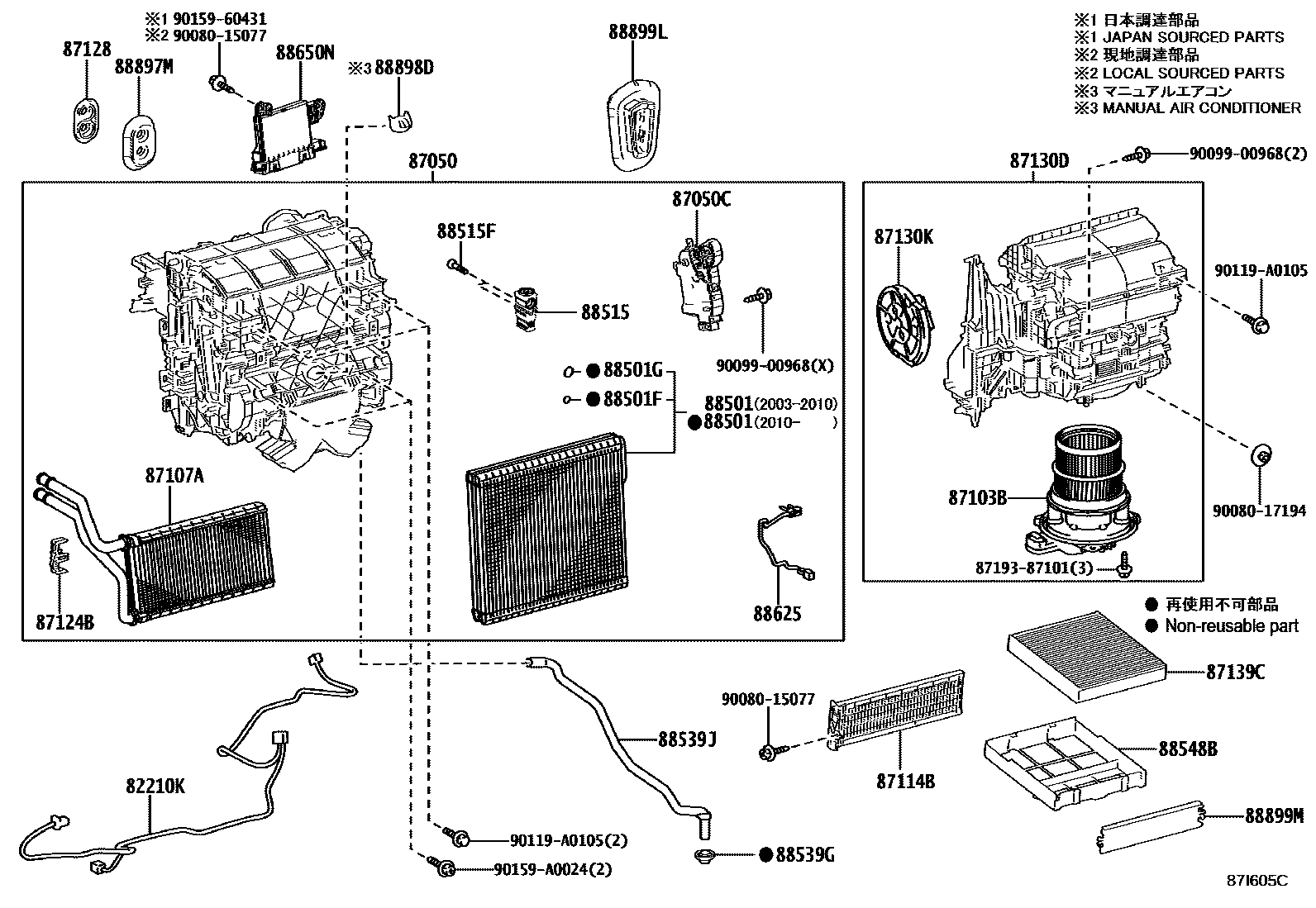

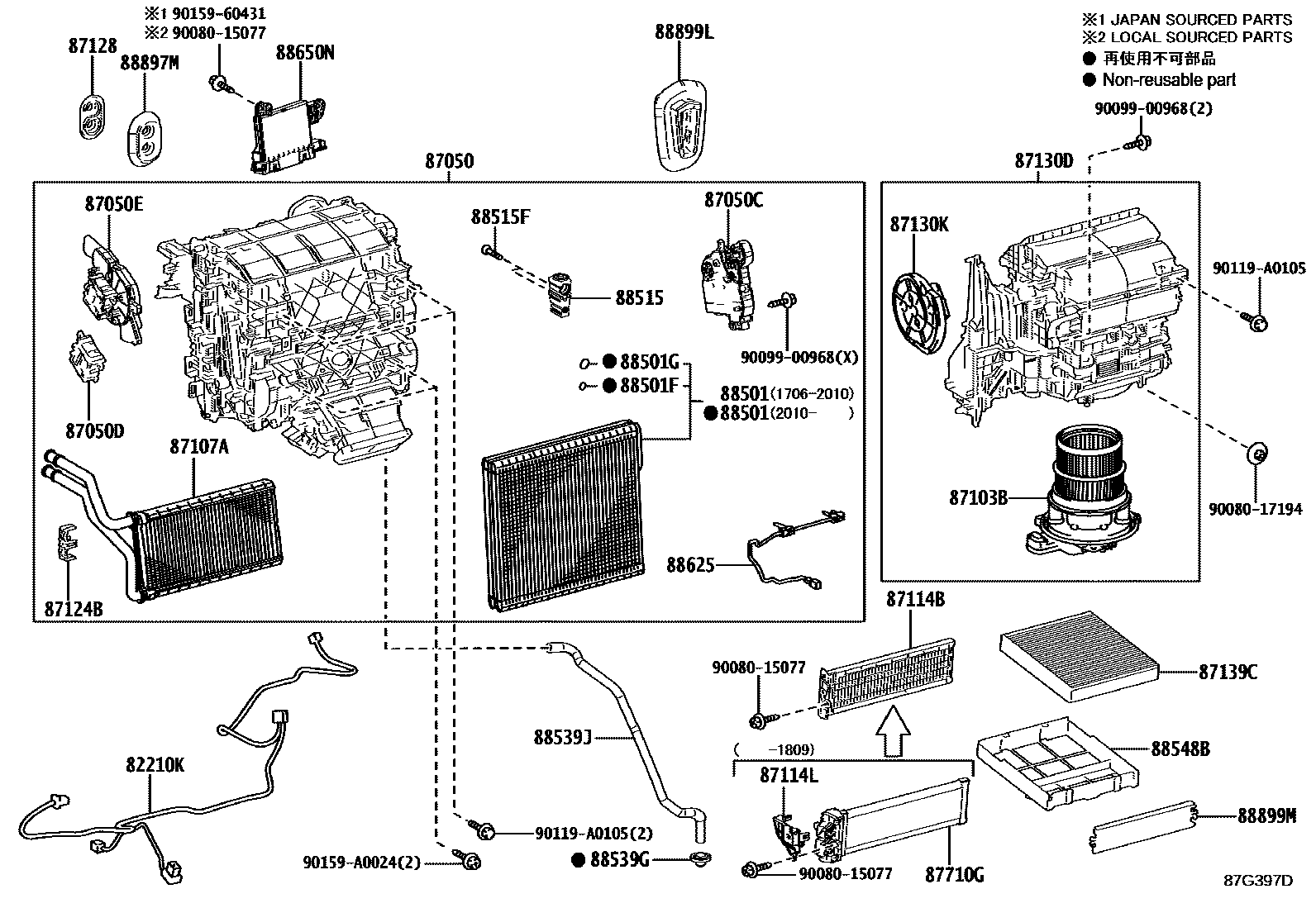

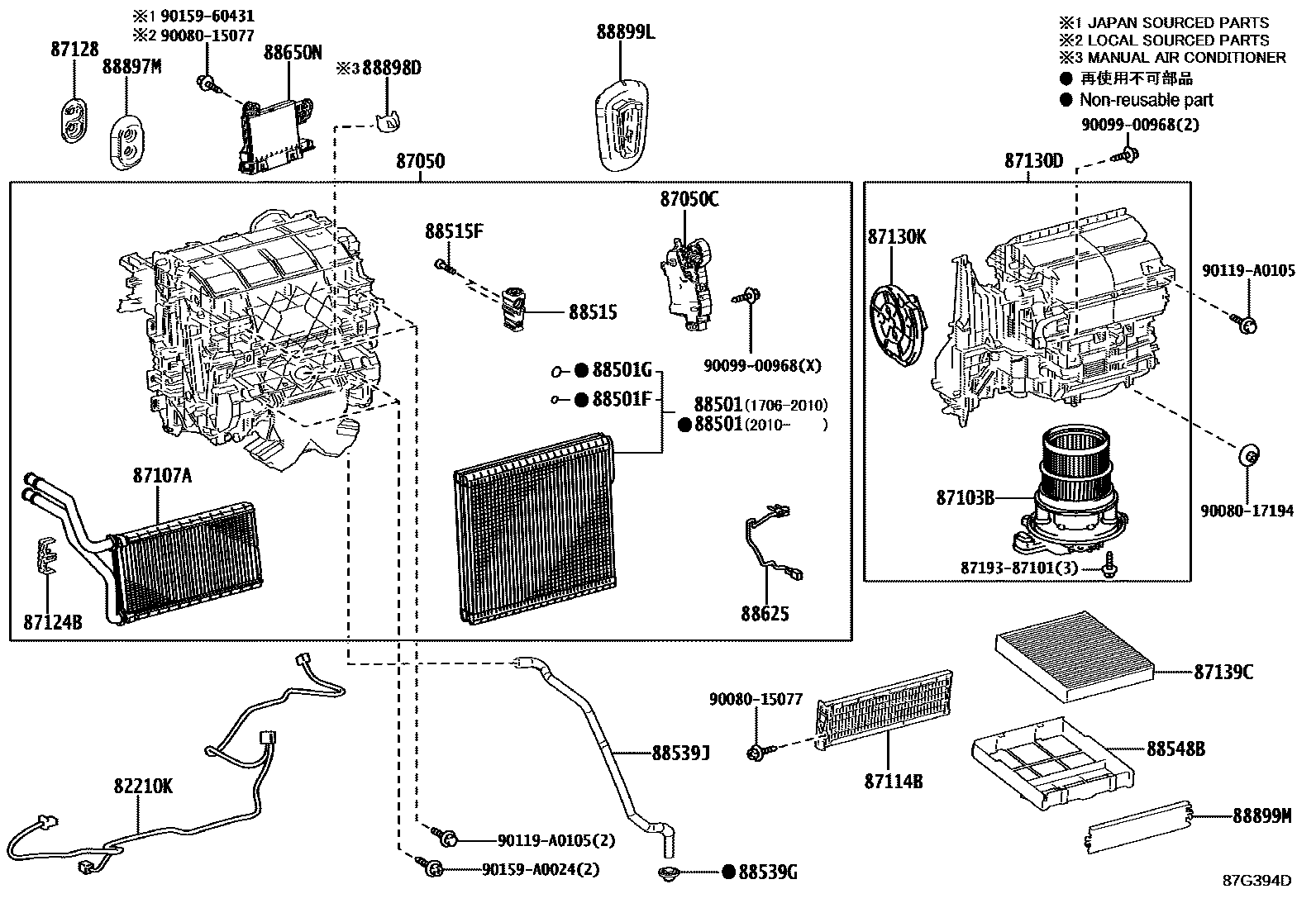

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06190 · 82212-06200 · 82212-06230 · 82212-06240 · 82212-0R040 · 82212-0R050 |
| 87050 | Air conditioning radiator assembly | 87050-06730 · 87050-06850 · 87050-06860 · 87050-06870 · 87050-06880 · 87050-06890 · 87050-06A00 · 87050-06B00 · 87050-06C10 · 87050-06C20 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06360 · 87106-06420 · 87106-0E100 · 87106-47180 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0E120 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0E110 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E090 |
| 87107A | Heater radiator device sub-assembly | 87107-06100 |
| 87114B | heater cover | 87114-06090 |
| 87114L | COUVERCLE CHAUFFAGE, NO.2 | 87114-0E070 |
| 87124B | heater clip | 87124-07030 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-06410 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0E130 |
| 87139C | air purification filter | 87139-0E040 |
| 87710G | Rapid heater assembly | 87710-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06410 · 88501-06420 · 88501-06430 · 88501-06490 · 88501-0E190 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90069-08007 · 90099-14120 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90069-08009 · 90099-14121 |
| 88515 | Cooler expansion valve | 88515-06140 · 88515-06160 · 88515-06170 · 88515-0E130 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06020 |
| 88539J | Cooler drain hose | 88539-06130 · 88539-06230 · 88539-06231 |
| 88548B | air filter housing | 88899-0E030 |
| 88625 | Cooler No. 1 Thermistor | 88620-06060 · 88620-0E050 |
| 88650N | Air conditioning amplifier assembly | 88650-06B00 · 88650-06B01 · 88650-06B02 · 88650-06B20 · 88650-06B21 · 88650-06B22 · 88650-06E60 · 88650-06F00 · 88650-06F01 · 88650-06F02 · 88650-06F10 · 88650-06F11 · 88650-06F12 · 88650-06F20 · 88650-06F21 · 88650-06F22 |
| 88897M | Seals (for heater tubes) | 87128-06010 |
| 88898D | gasket | 88899-06260 |
| 88899L | Cooling unit parts | 88899-06280 · 88899-06300 |
| 88899M | cover (for air cleaner) | 88899-06310 · 88899-0E010 |
