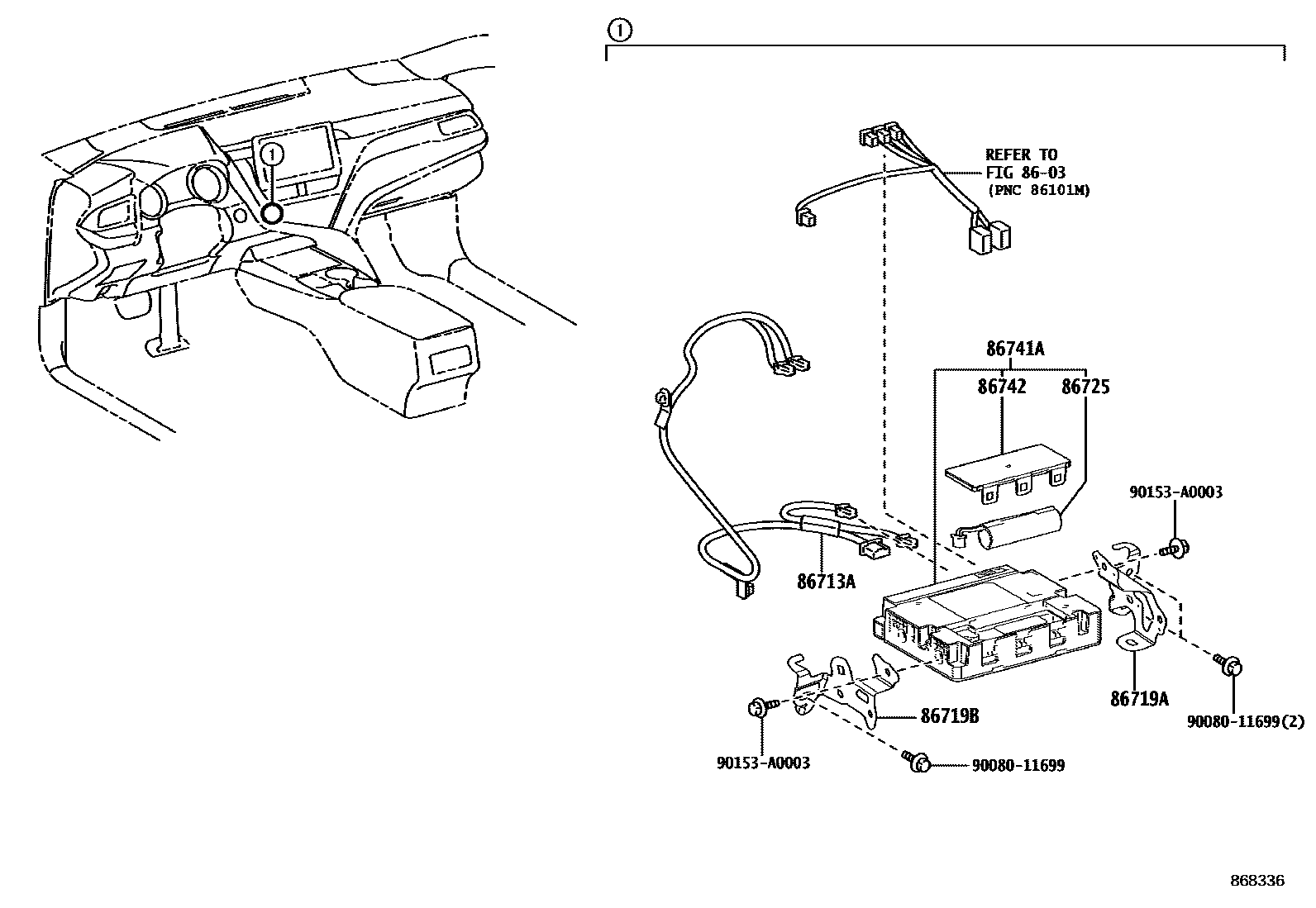

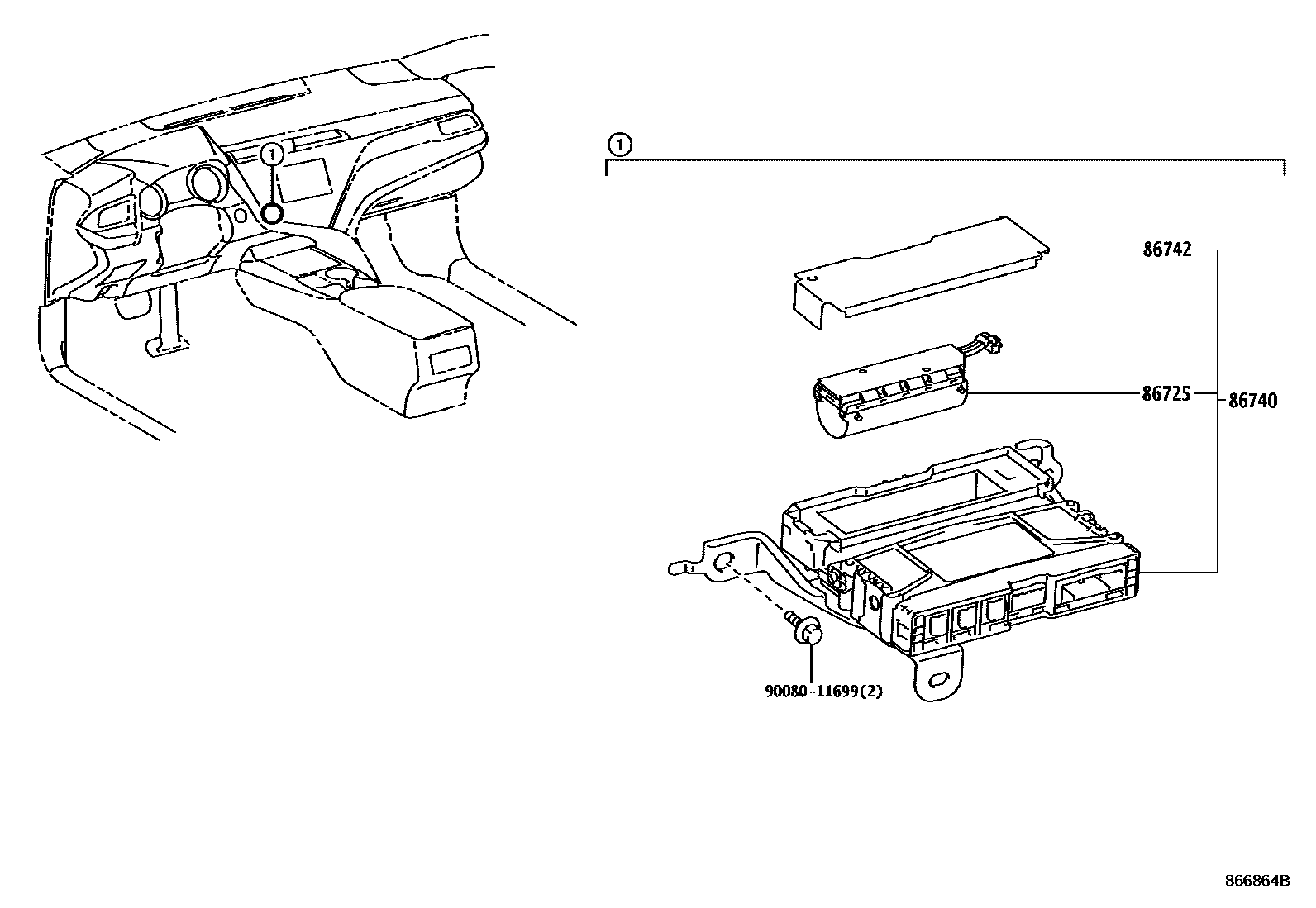

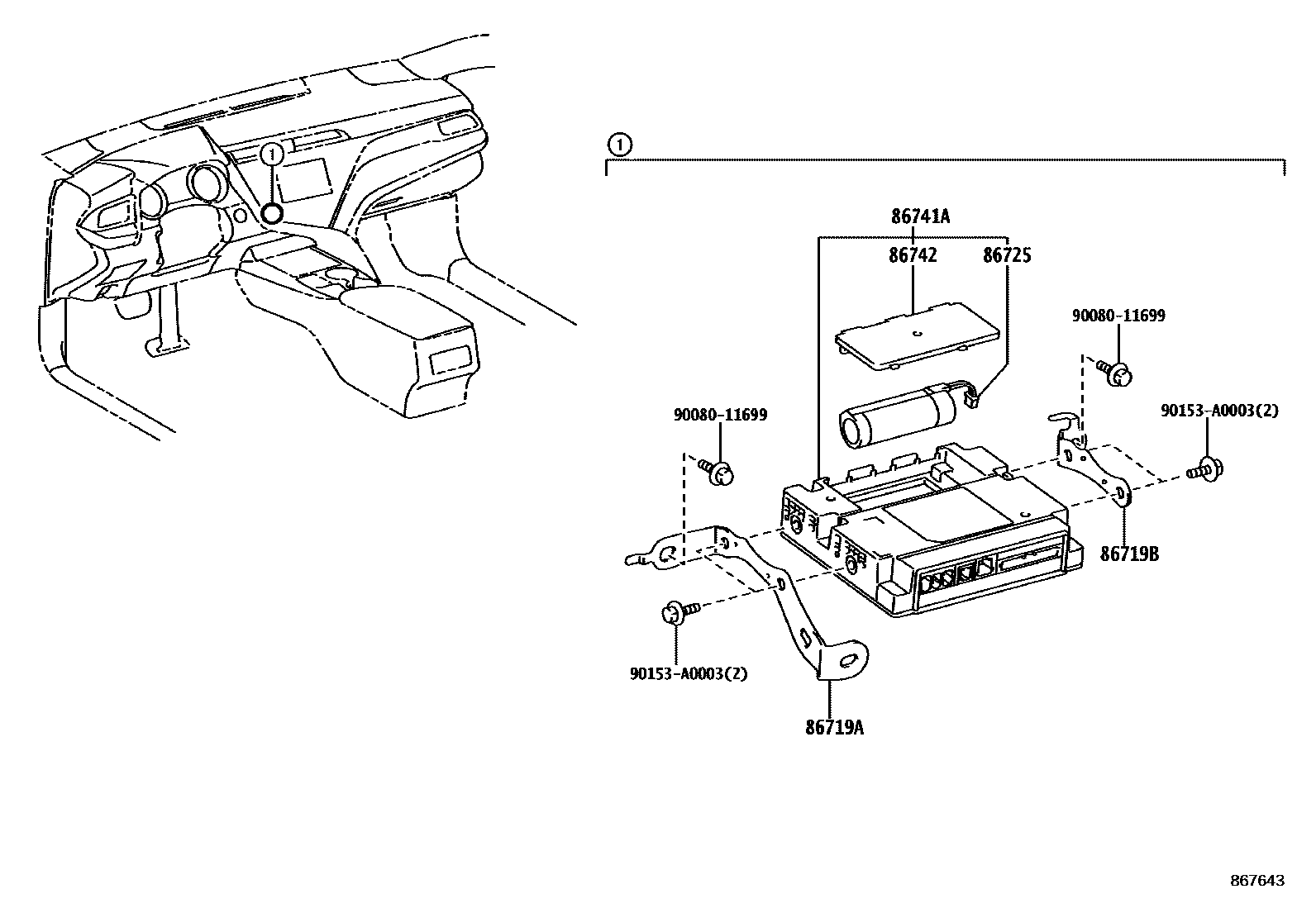

Toyota CAMRY 车载电话和呼救装置 — Figure 8615
Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713A | Telephone ECU harness (to transceiver) | 86713-06030 · 86713-06050 |
| 86719A | Phone holder No. 1 | 86719-06130 · 86719-06150 |
| 86719B | Phone holder No. 2 | 86719-06140 · 86719-06160 |
| 86725 | mobile phone battery | 86725-06010 · 86725-06020 |
| 86740 | Telephone transceiver assembly | 86740-06060 |
| 86741A | Telecommunications transceiver | 86741-06091 · 86741-06092 |
| 86742 | transceiver cover | 86742-06010 · 86742-06020 |
