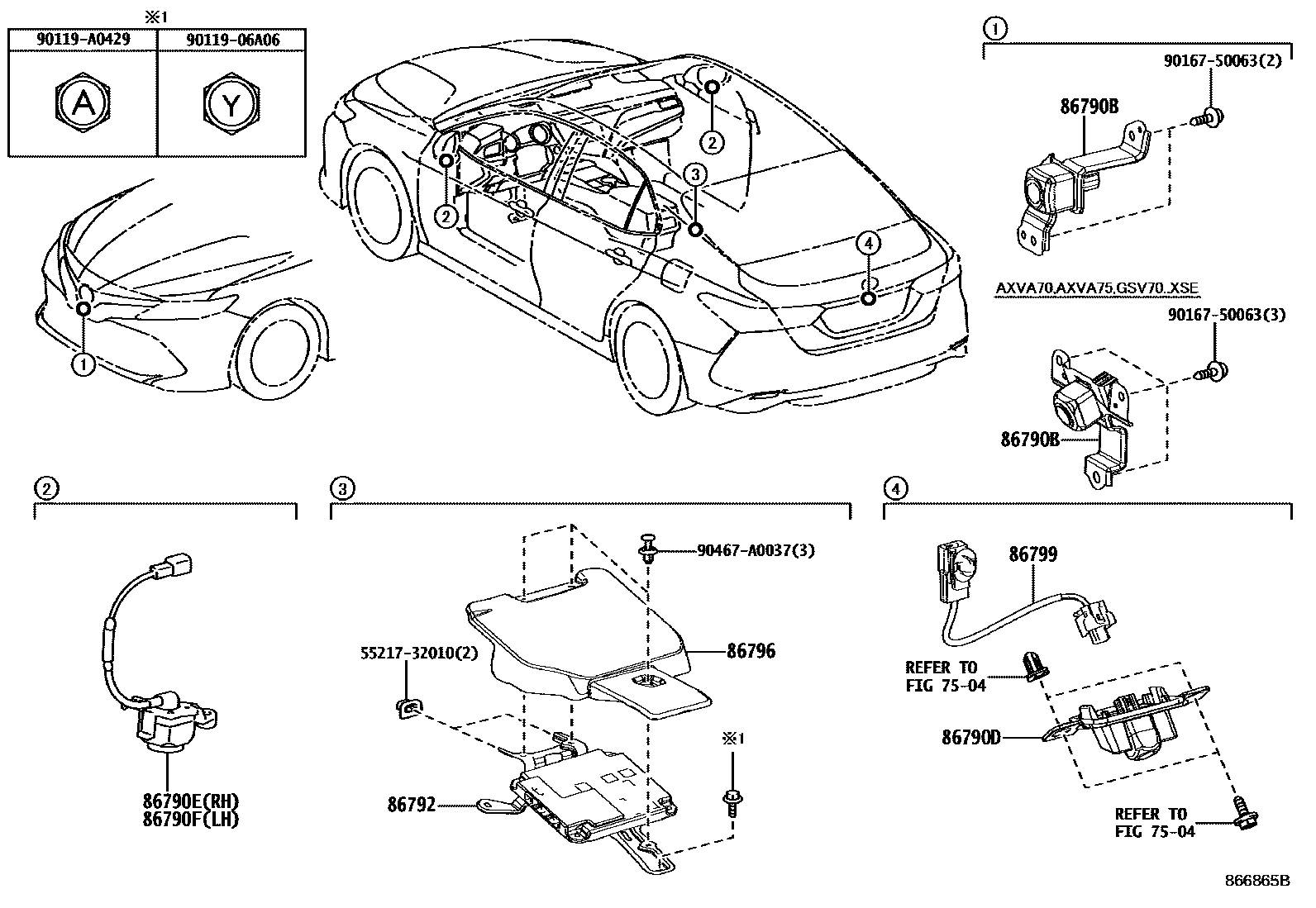

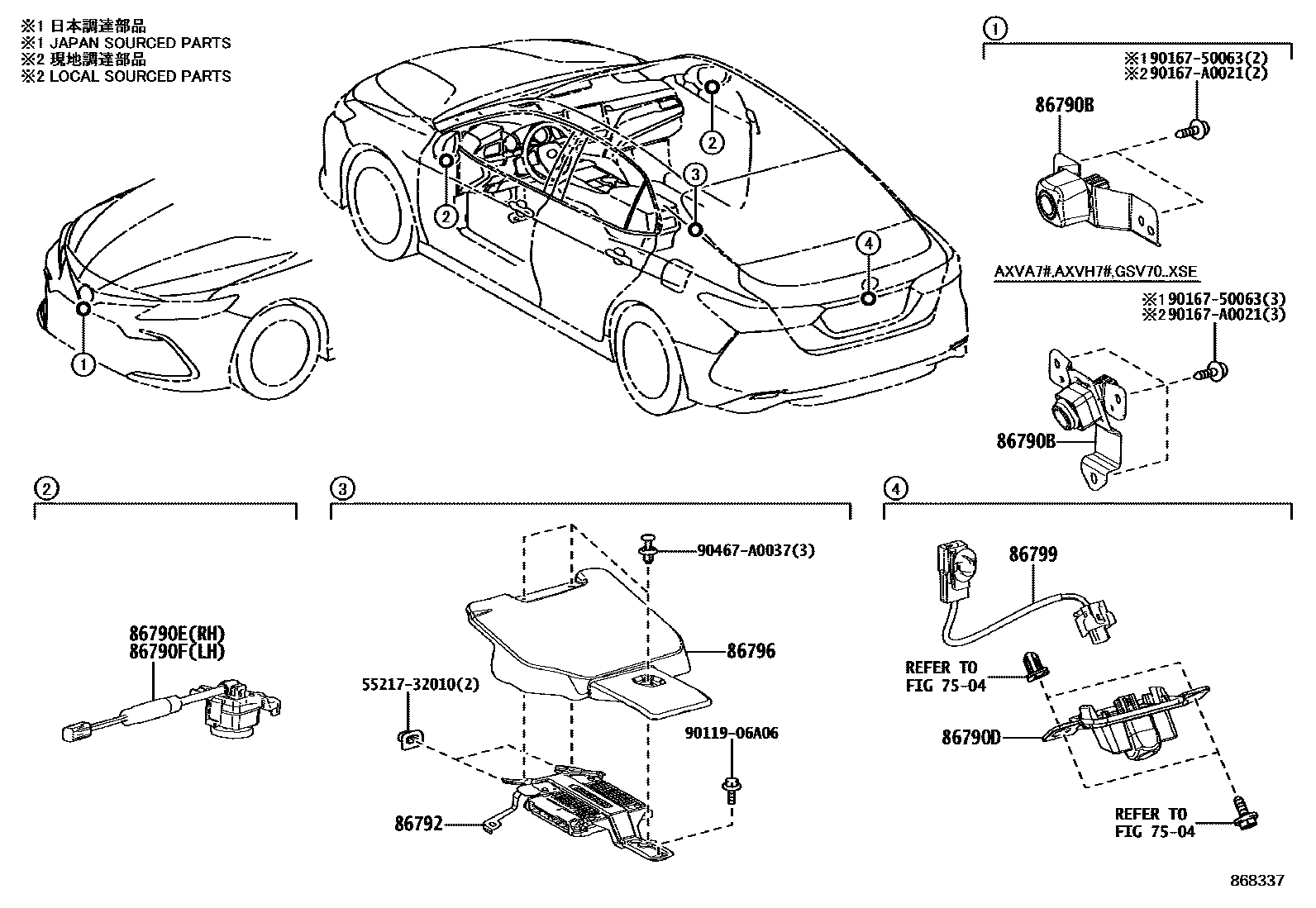

Toyota CAMRY 倒车影像和摄像头 — Figure 8606
Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-06060 · 86790-06140 · 86790-06200 · 86790-06210 |
| 86790D | Rear reversing image camera assembly | 86790-06090 · 86790-06170 · 867B0-06040 · 867B0-06150 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-06080 · 86790-06190 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-06070 · 86790-06180 |
| 86792 | Reversing camera controller | 86792-33041 · 86792-33071 · 86792-33210 · 86792-33220 |
| 86799 | Reversing image camera wiring harness | 86799-06010 · 86799-06020 |
