Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601

Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 7 PNC and OE references.

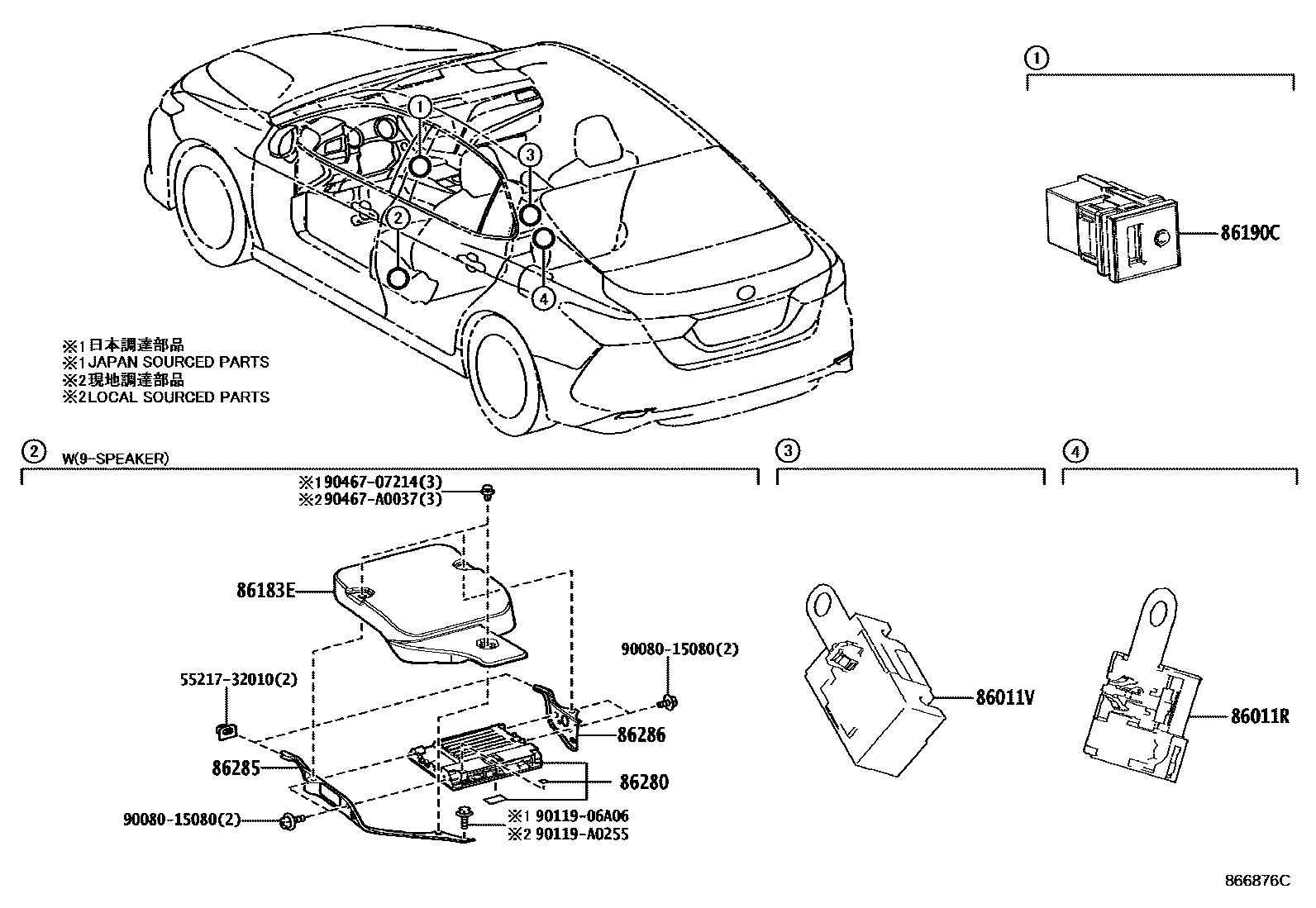

Toyota CAMRY 收音机、放大器和冷凝器 EPC diagram — 866876C
收音机、放大器和冷凝器 — 866876C (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Rradio settings phase modulator90980-04189
86011Vradio settings phase modulator90980-04204
86183Eaudio amplifier cover86183-06100
86190CStereo socket connector assembly No. 186190-06060 · 86190-12070
86280Stereo parts amplifier assembly86280-06170 · 86280-06171
86285Amplifier Stand No. 186285-06080 · 86285-33170
86286Amplifier Stand No. 286286-06070 · 86286-33160
