Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 11 PNC and OE references.

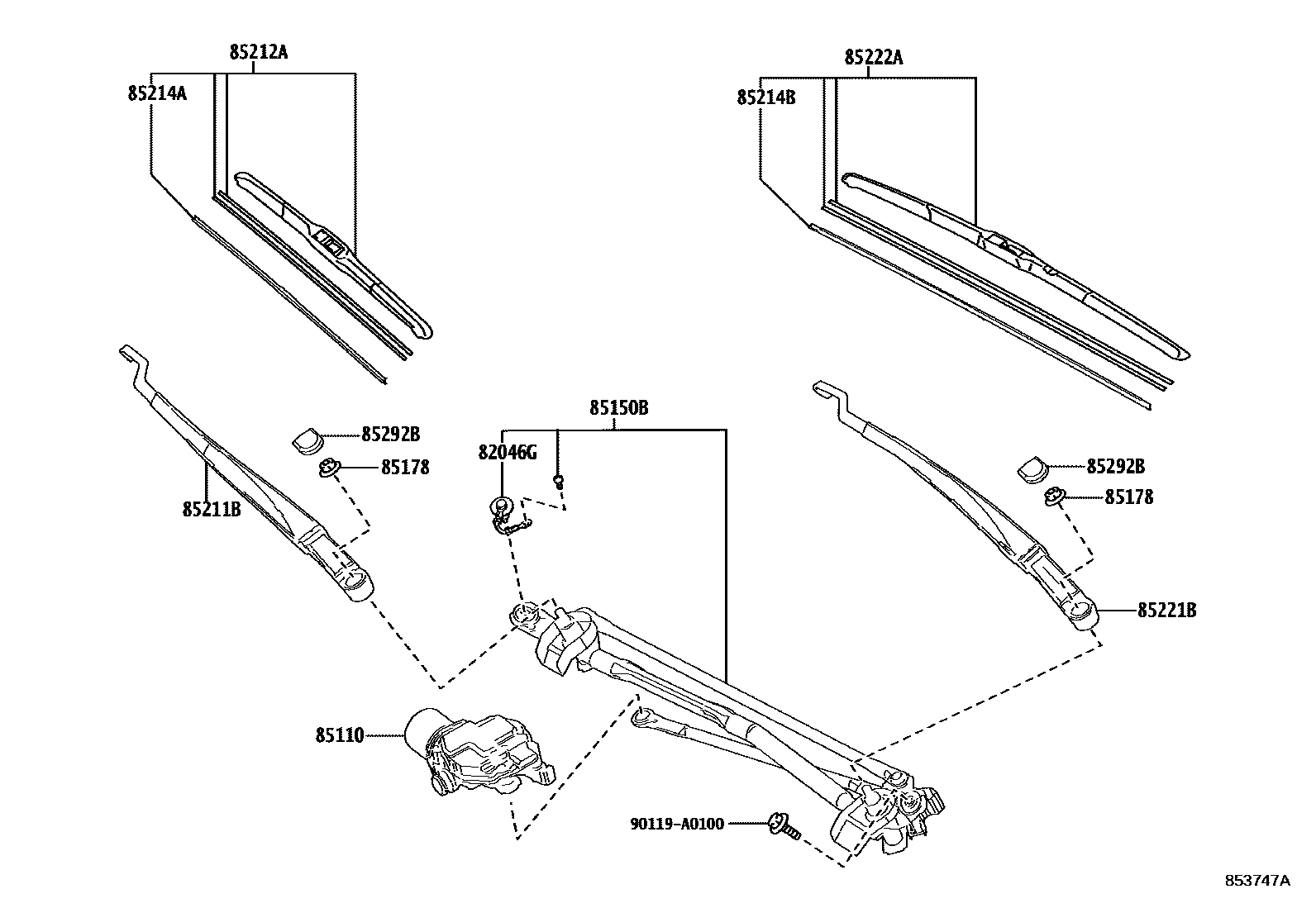

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 853747A
挡风玻璃刮水器 — 853747A (201706 – 202010)

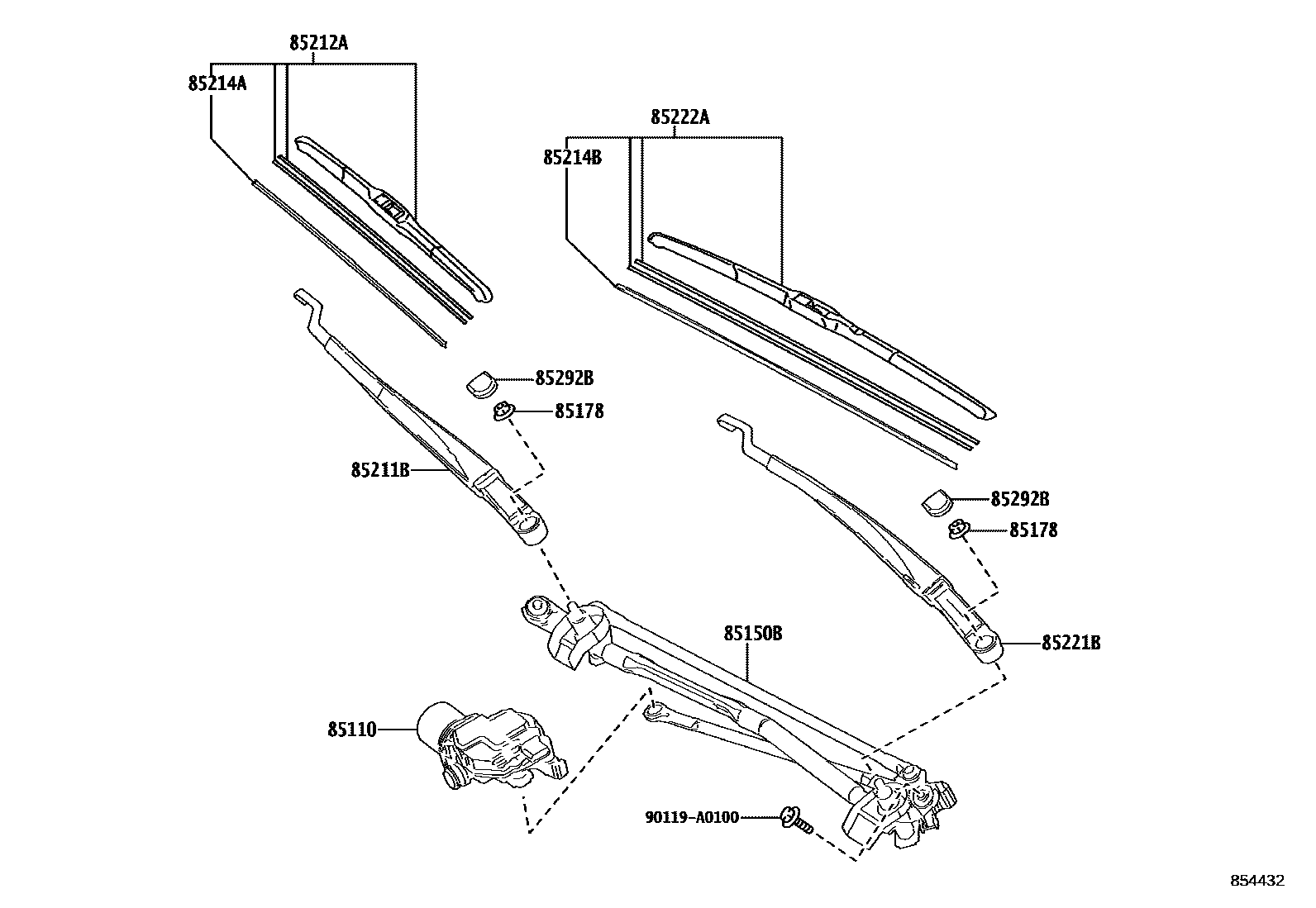

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 854432
挡风玻璃刮水器 — 854432 (202010 – 999999)

PNC and OE references

PNCPart nameOE numbers
82046GSOUS-ENSEMBLE CABLE MASSE CARROSSERIE82046-06080
85110Windshield wiper motor assembly85110-33430 · 85110-33432
85150BWiper connecting rod assembly85150-06200 · 85150-06201 · 85150-06202
85178Nut (for securing front wiper arm)90182-A0017
85211BRight front wiper arm85211-06250
85212ARight front wiper blade85212-06250
85214ARight wiper rubber strip85214-0E140
85214BLeft wiper rubber strip85214-0E151
85221BLeft front wiper arm85221-06250
85222ALeft front wiper blade85222-06250
85292BFront wiper arm cap85292-AA010
