Toyota CAMRY 逆变器冷却系统 — Figure 8432

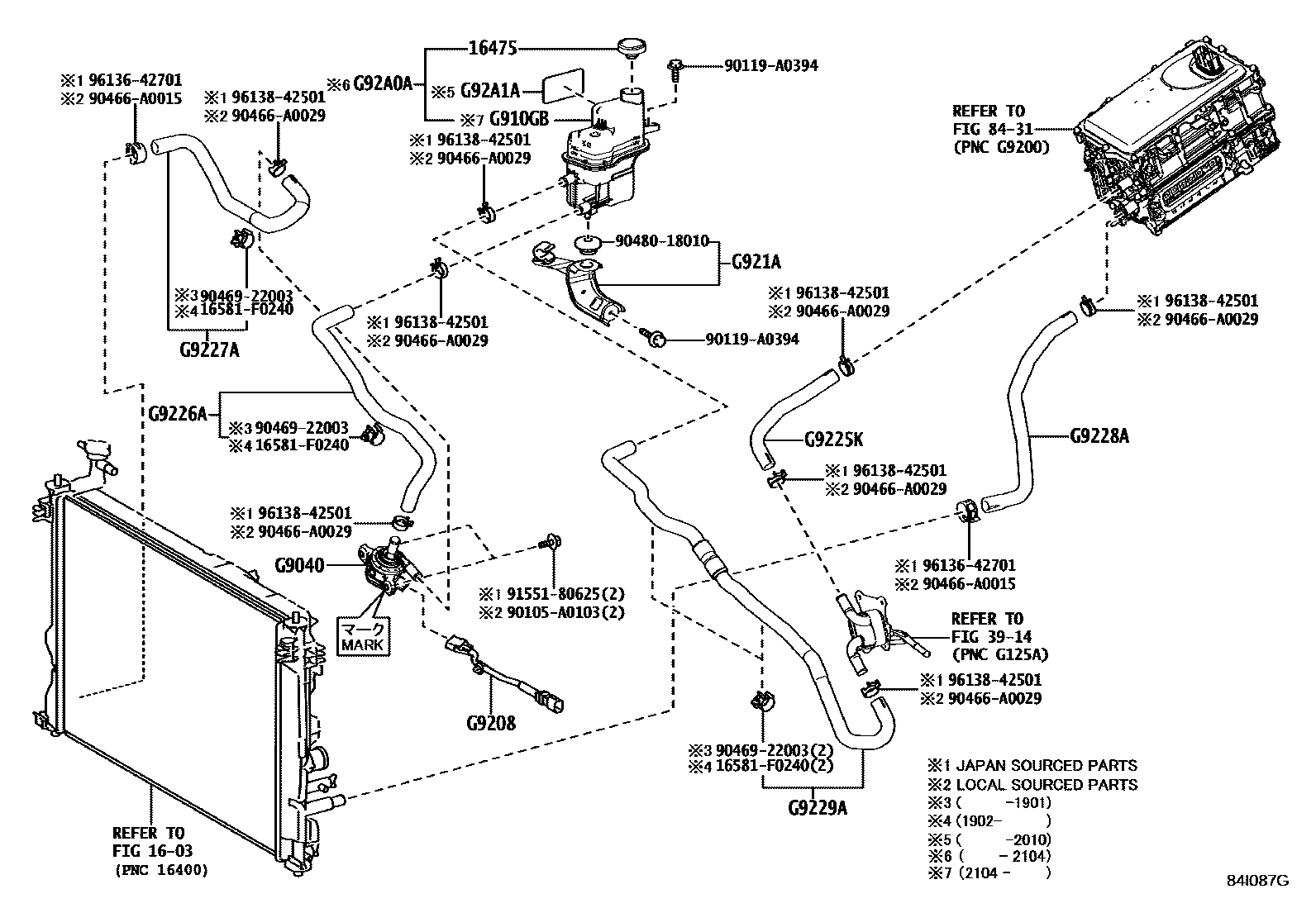

Toyota CAMRY EPC diagram 8432, 逆变器冷却系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 |
| G9040 | Inverter water pump assembly (with motor) | G9040-28020 · G9040-33050 · G9040-48060 |
| G910GB | SOUS-ENS. RESERVOIR, EXPANSION INVERSEUR SANS BOUCHON | G910G-06010 |
| G9208 | Inverter wiring harness sub-assembly | G9208-06010 |
| G921A | No. 1 inverter tank bracket | G91H2-06010 · G91H2-06011 |
| G9225K | No. 1 inverter cooling hose | G9225-06080 |
| G9226A | No. 2 inverter cooling hose | G9226-06041 · G9226-06042 |
| G9227A | No. 3 inverter cooling hose | G9227-06040 · G9227-06041 |
| G9228A | No. 4 inverter cooling hose | G9228-06090 |
| G9229A | No. 5 inverter cooling hose | G9229-06051 · G9229-06052 |
| G92A0A | Inverter liquid tank assembly | G91H0-06010 |
| G92A1A | HV coolant system information label | G92A1-76010 |
