Toyota CAMRY 遥控门锁 — Figure 8420

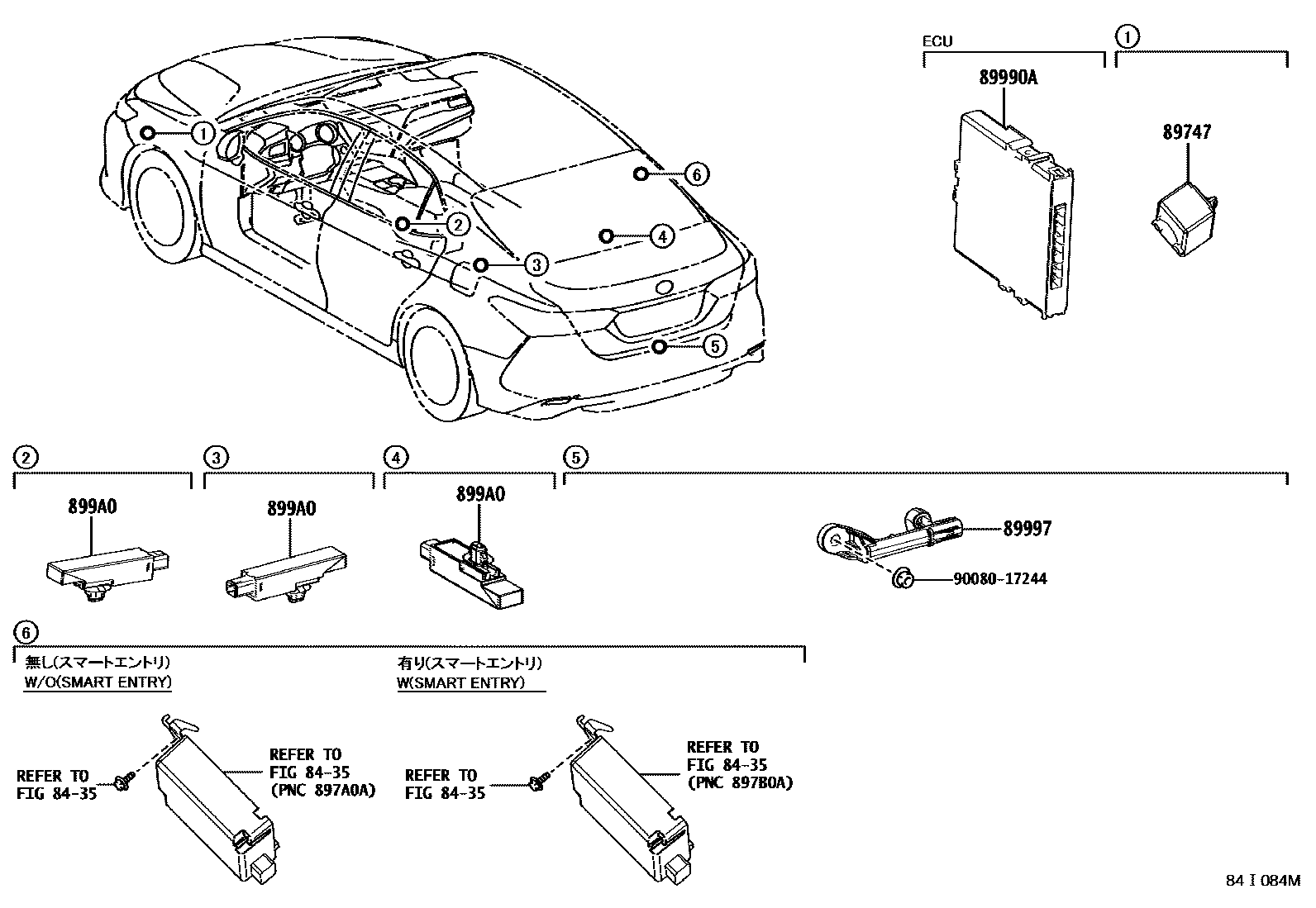

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-0R020 |
| 89990A | Smart key ECU assembly | 89990-06190 · 89990-06200 · 89990-06310 · 89990-06330 · 89990-06390 · 89990-06400 |
| 89997 | electronic key antenna | 89997-0E050 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-06030 |
