Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

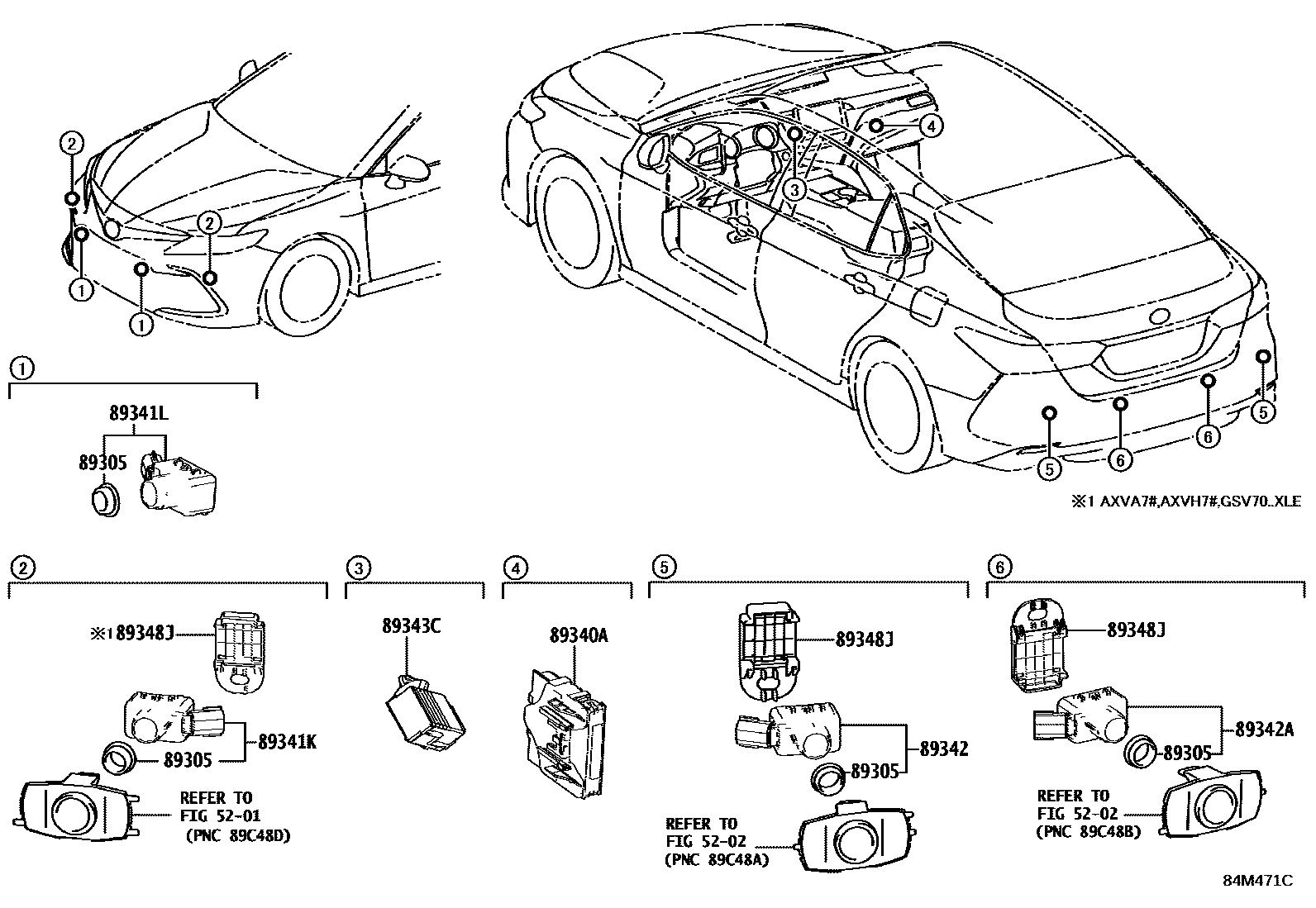

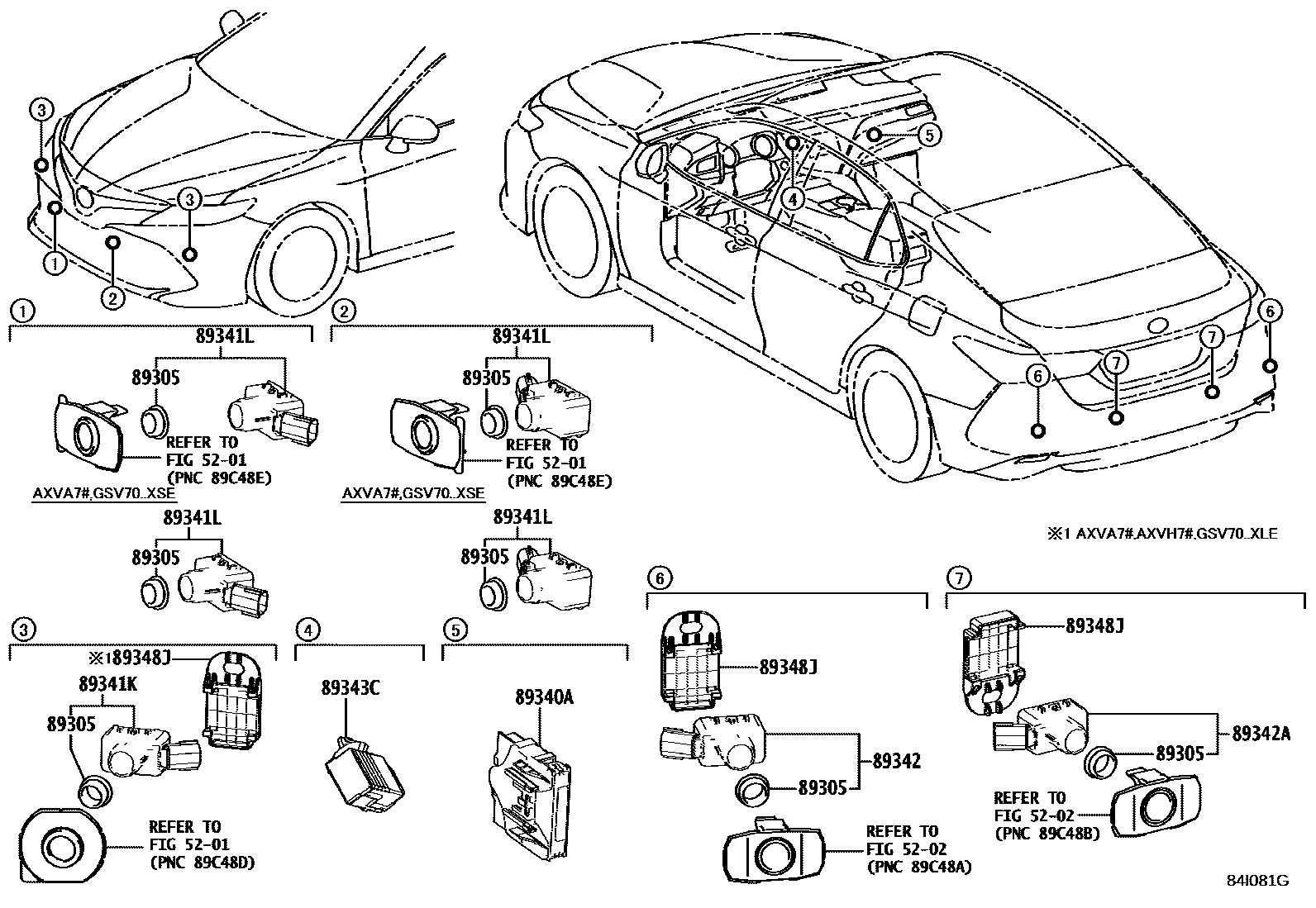

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | JEU COUSSIN, CAPTEUR ULTRASONS | 89305-47010 · 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-06060 · 89340-06061 · 89340-06160 · 89340-06170 · 89340-06180 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89348J | Ultrasonic sensor clip | 89348-06100 · 89348-58130 |
