Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

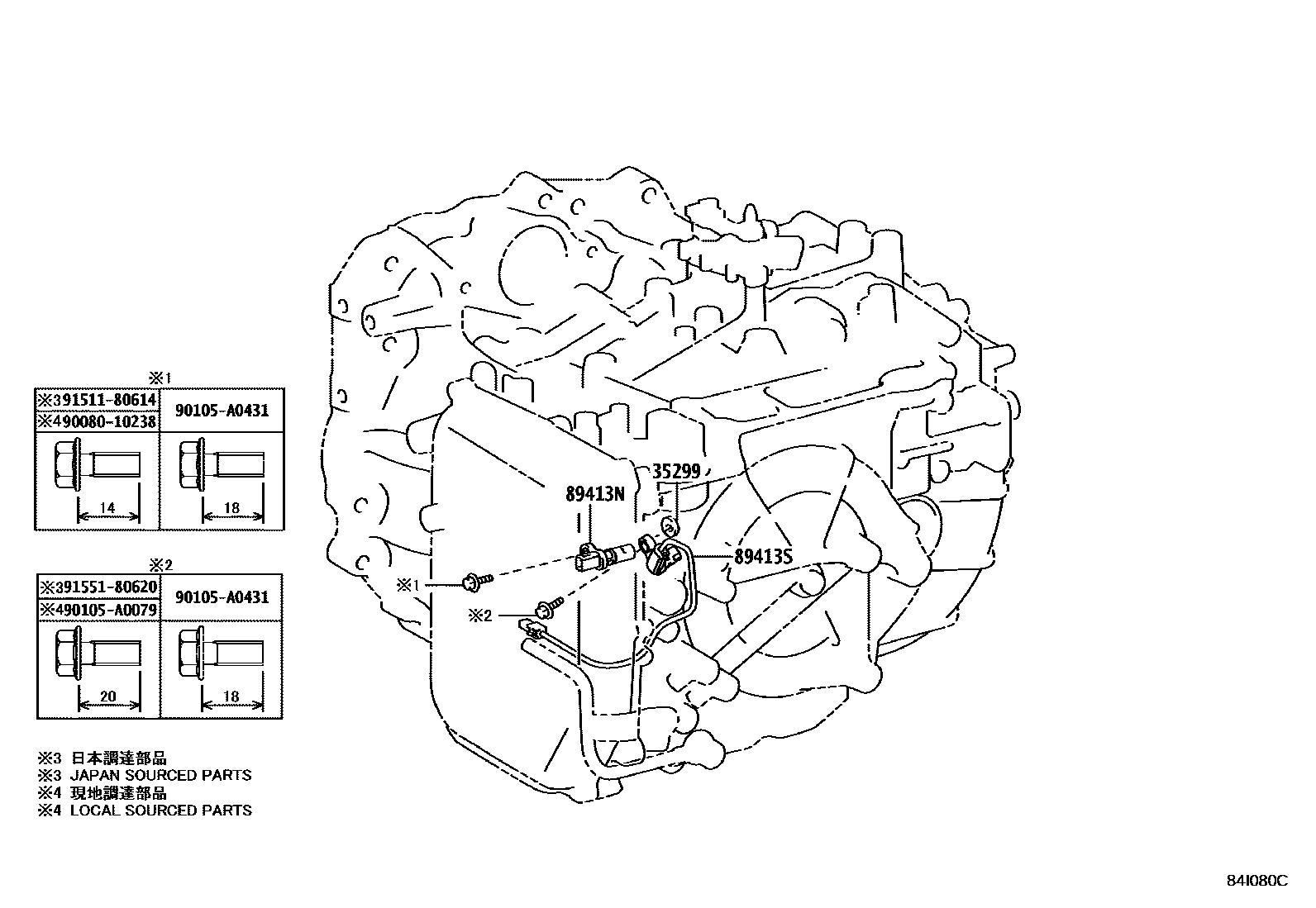

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35299 | Transmission speed sensor spacer | 35469-33020 · 35469-48010 |
| 89413N | CAPTEUR, REVOLUTION DE LA TRANSMISSION, (NT) | 89413-06020 · 89413-06021 · 89413-33040 · 89413-33041 |
| 89413S | CAPTEUR, REVOLUTION DE LA TRANSMISSION, (NC) | 89413-06030 · 89413-06031 · 89413-33050 · 89413-33051 |
