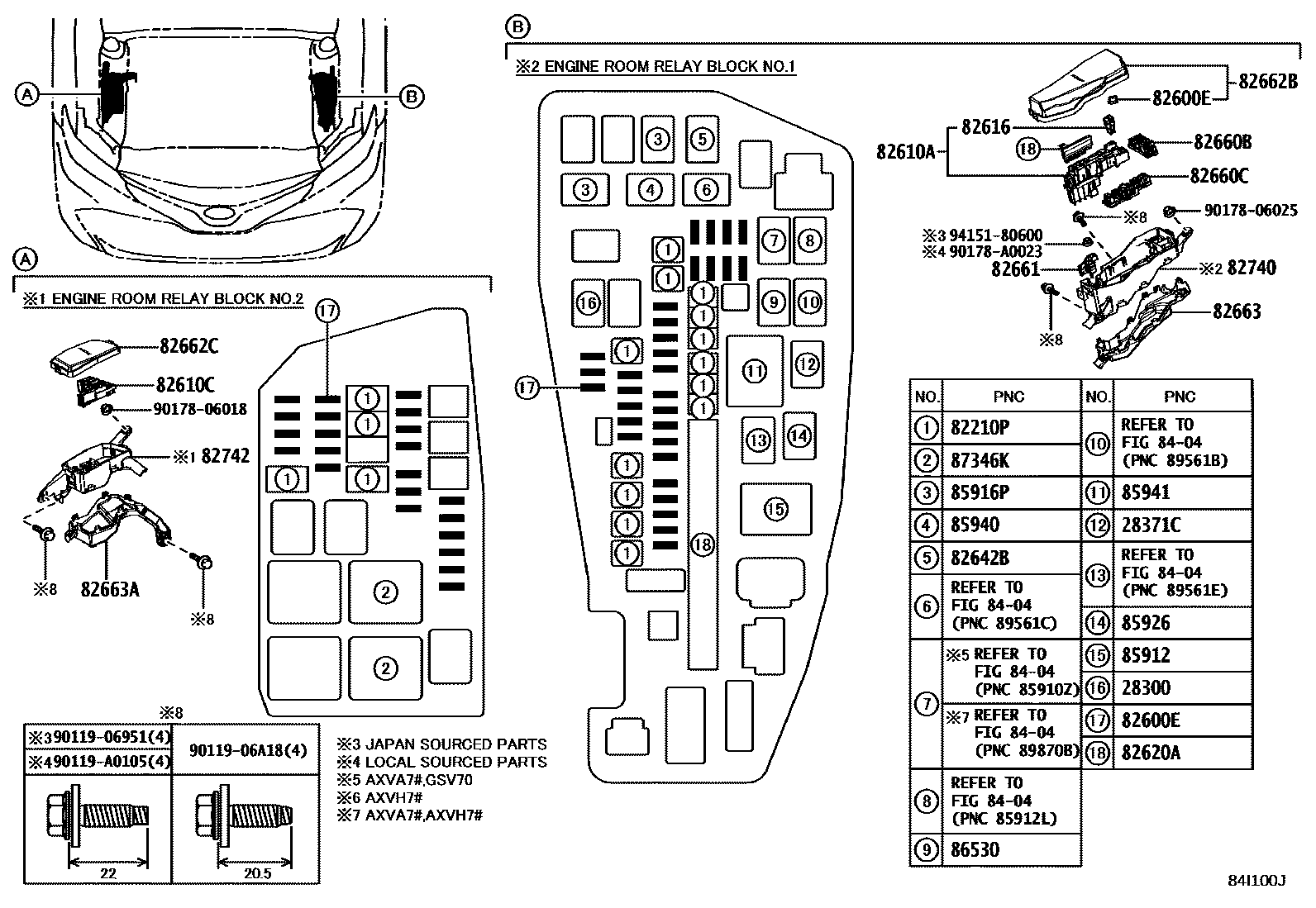

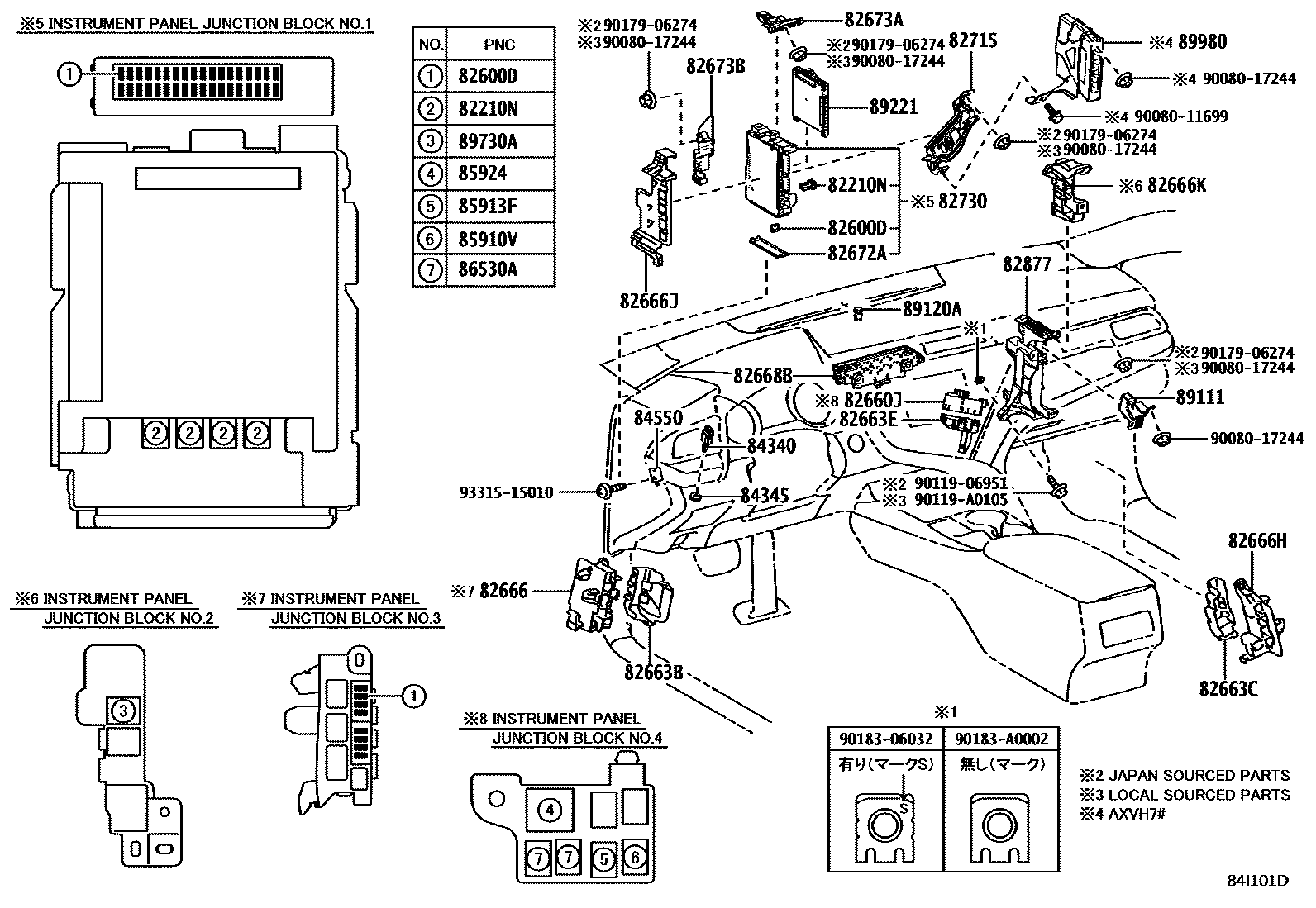

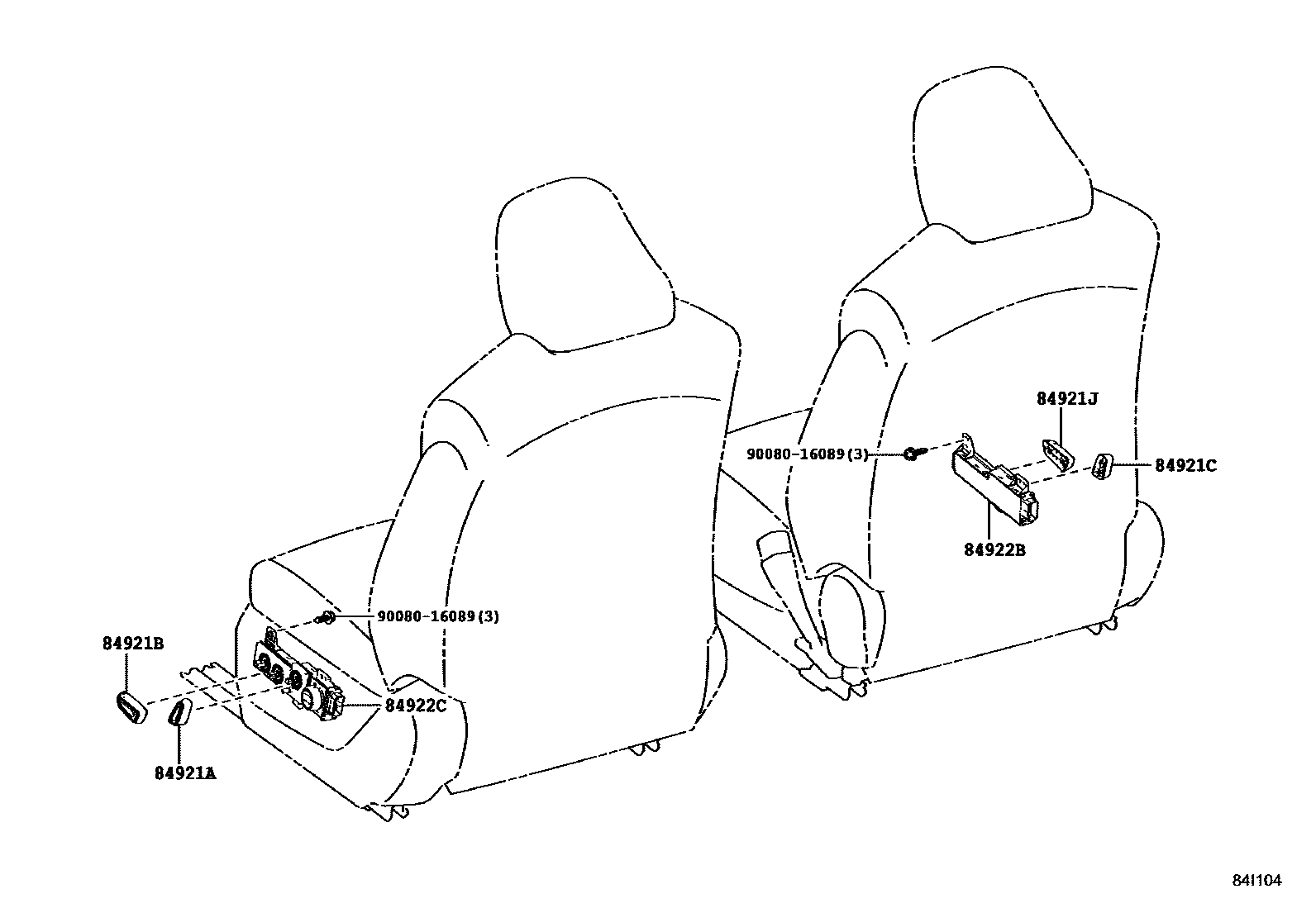

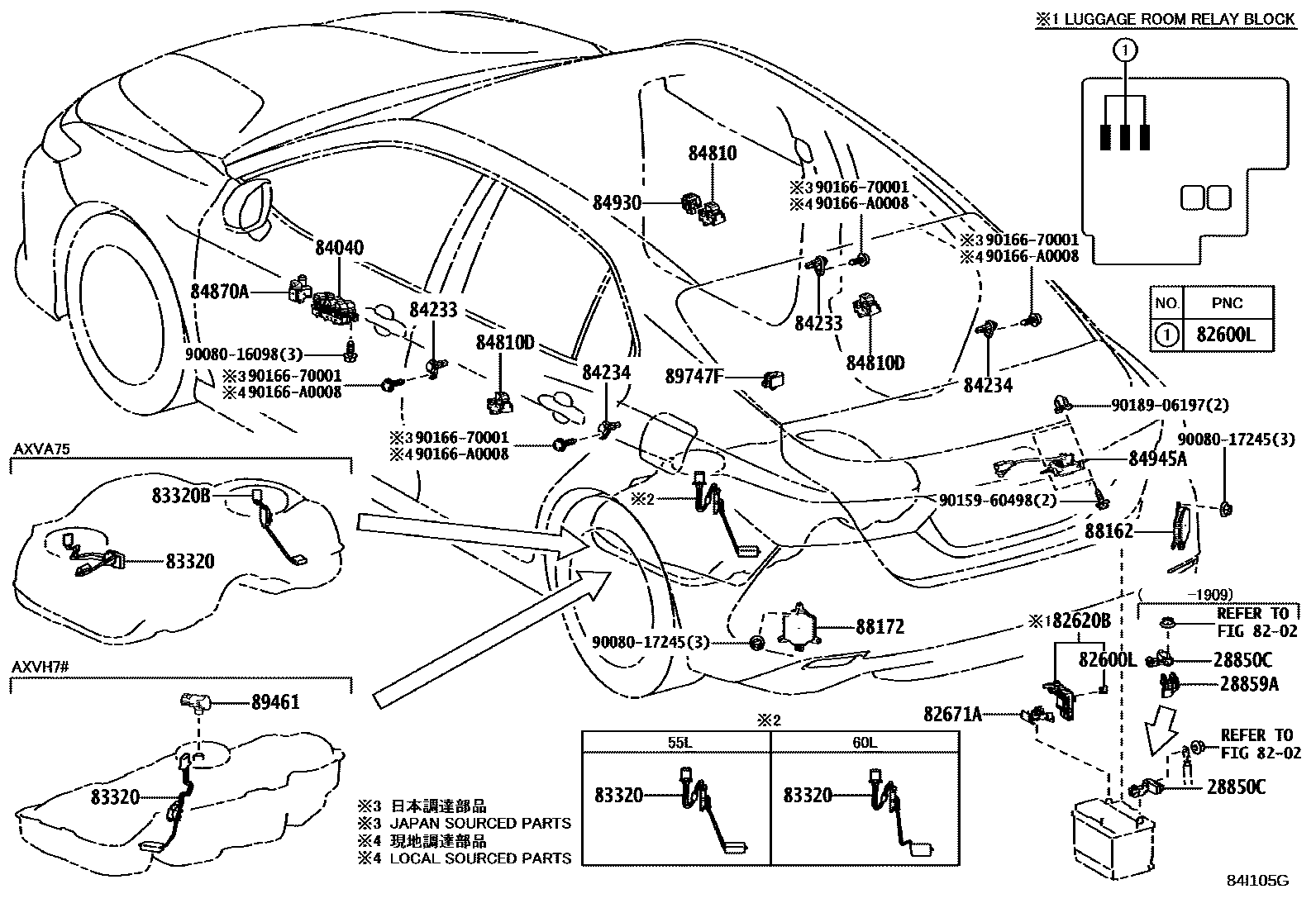

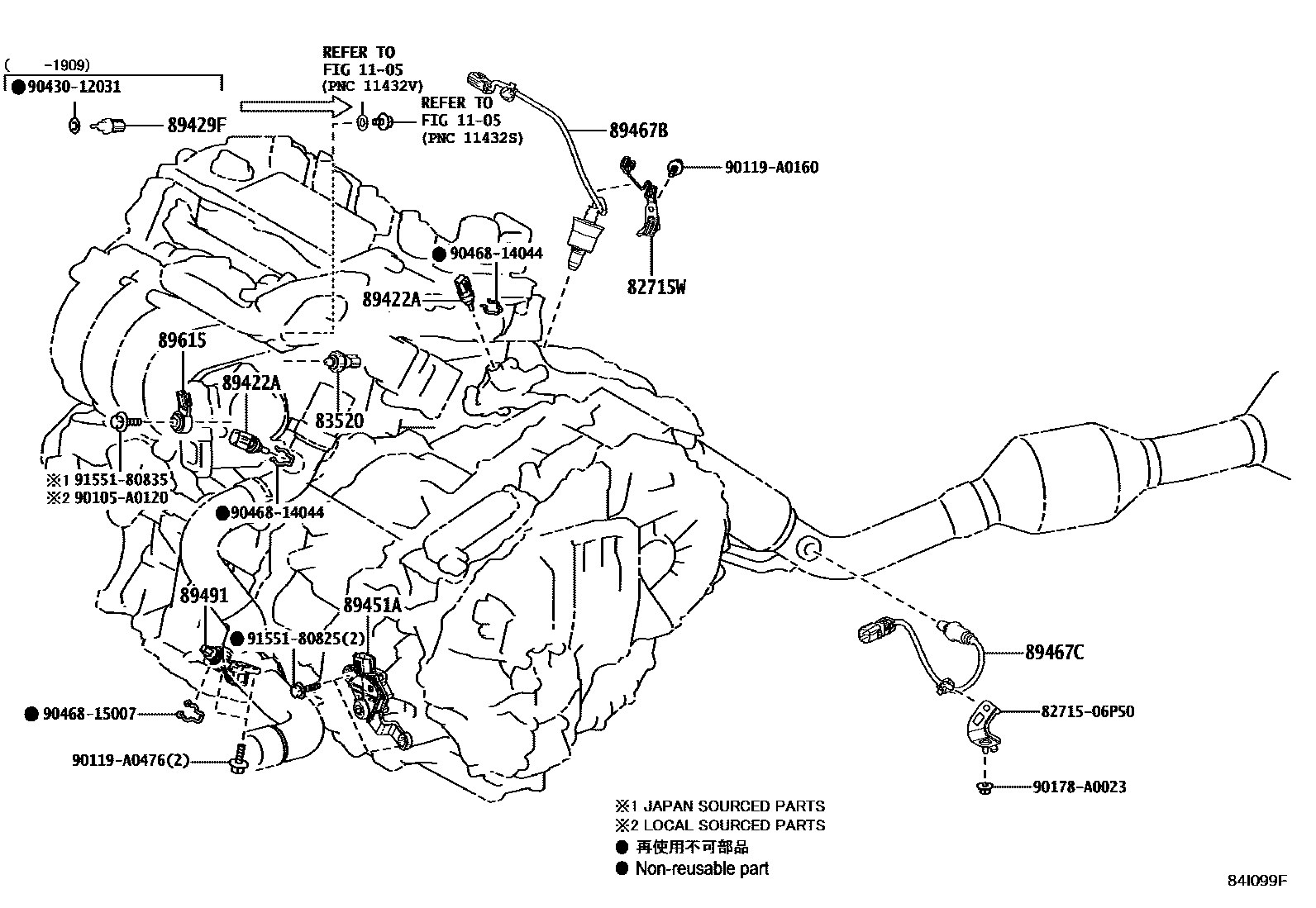

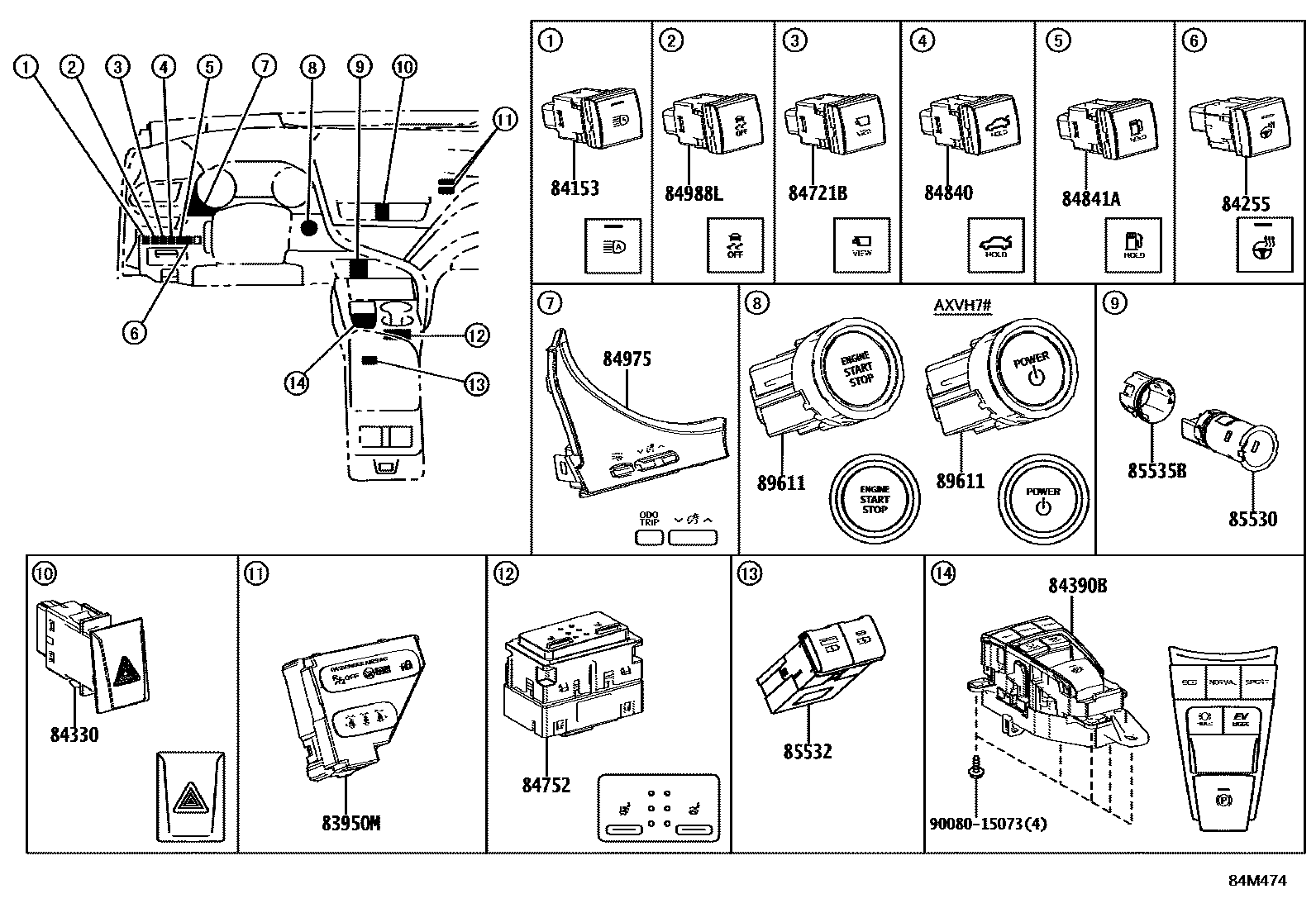

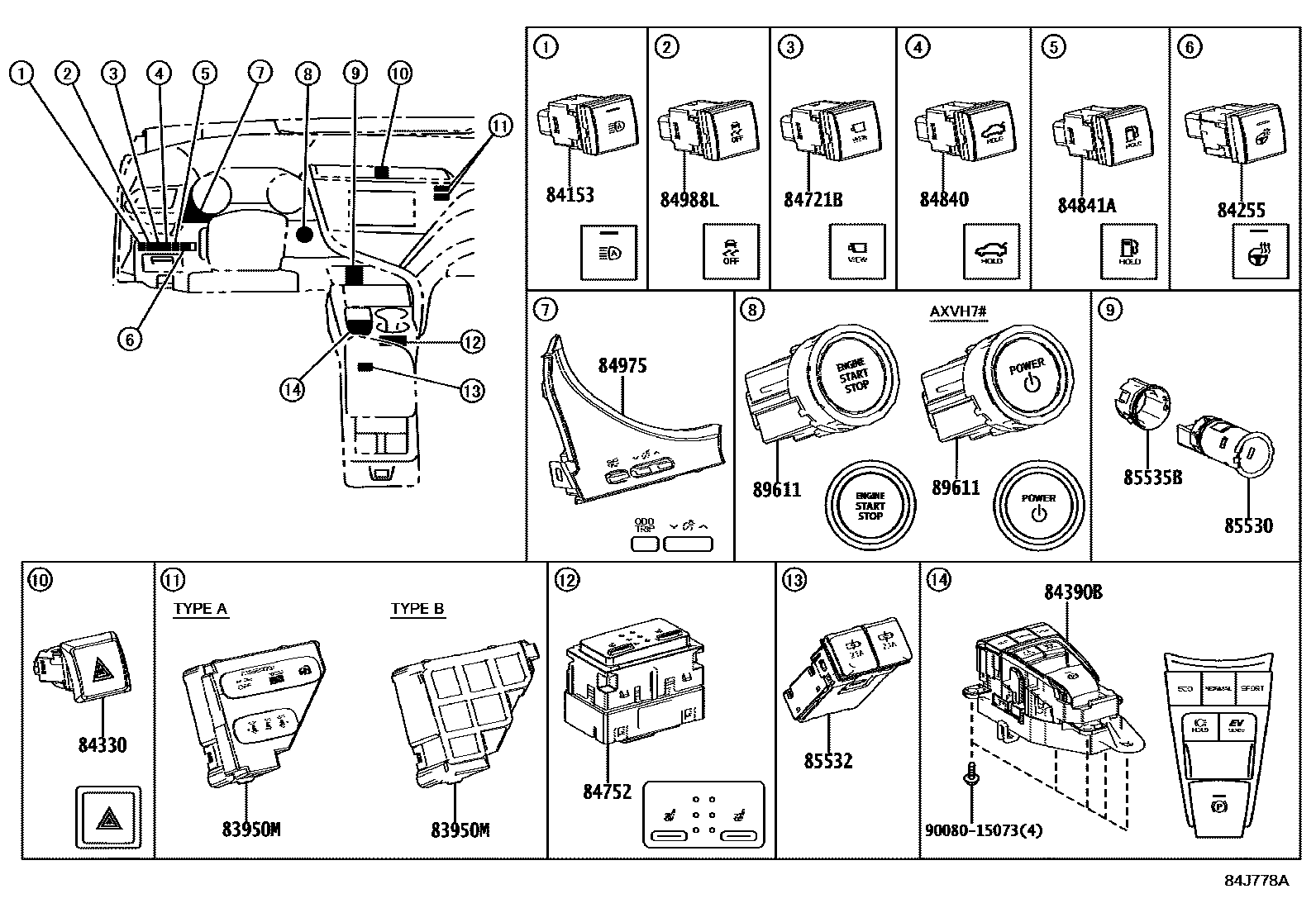

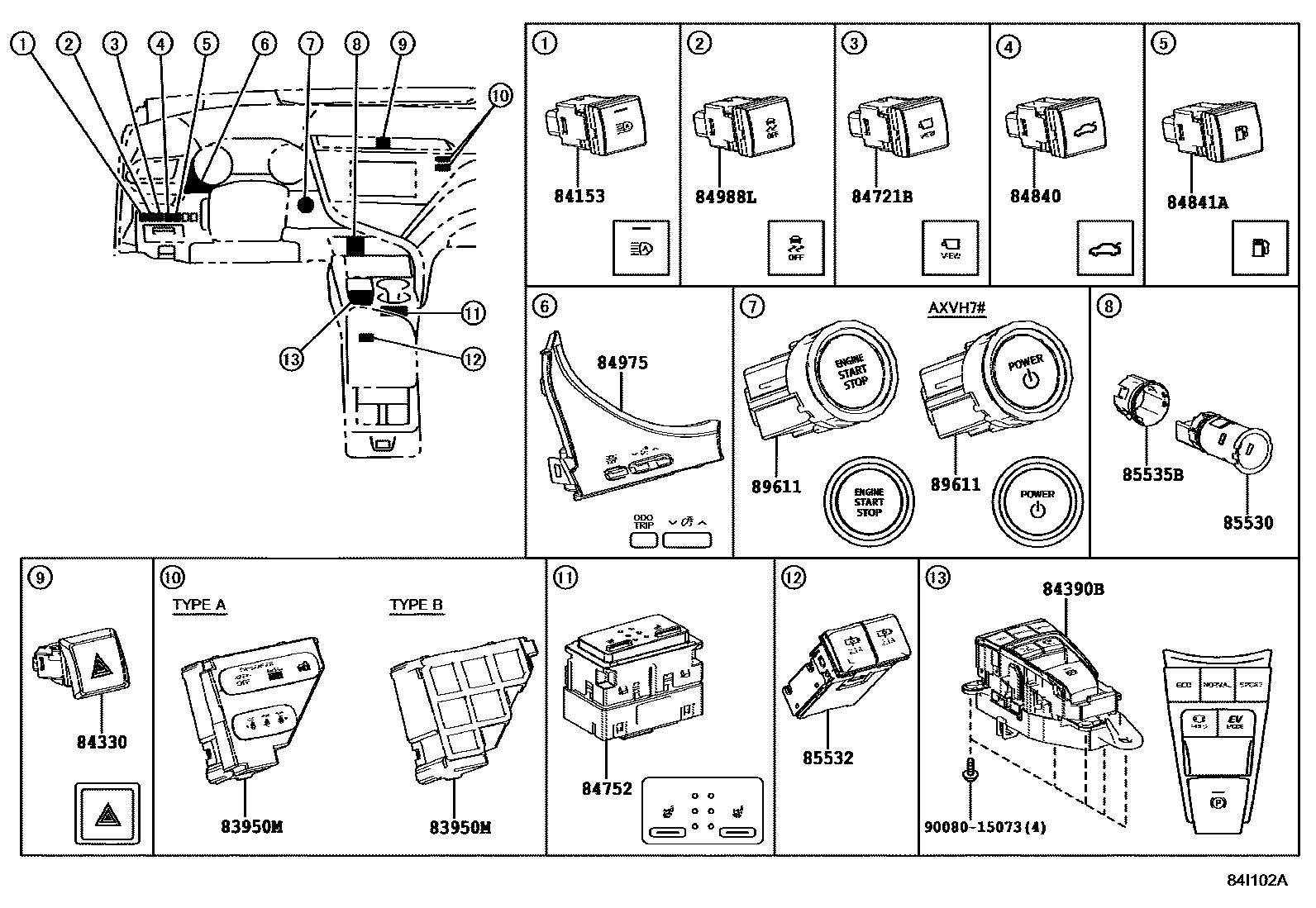

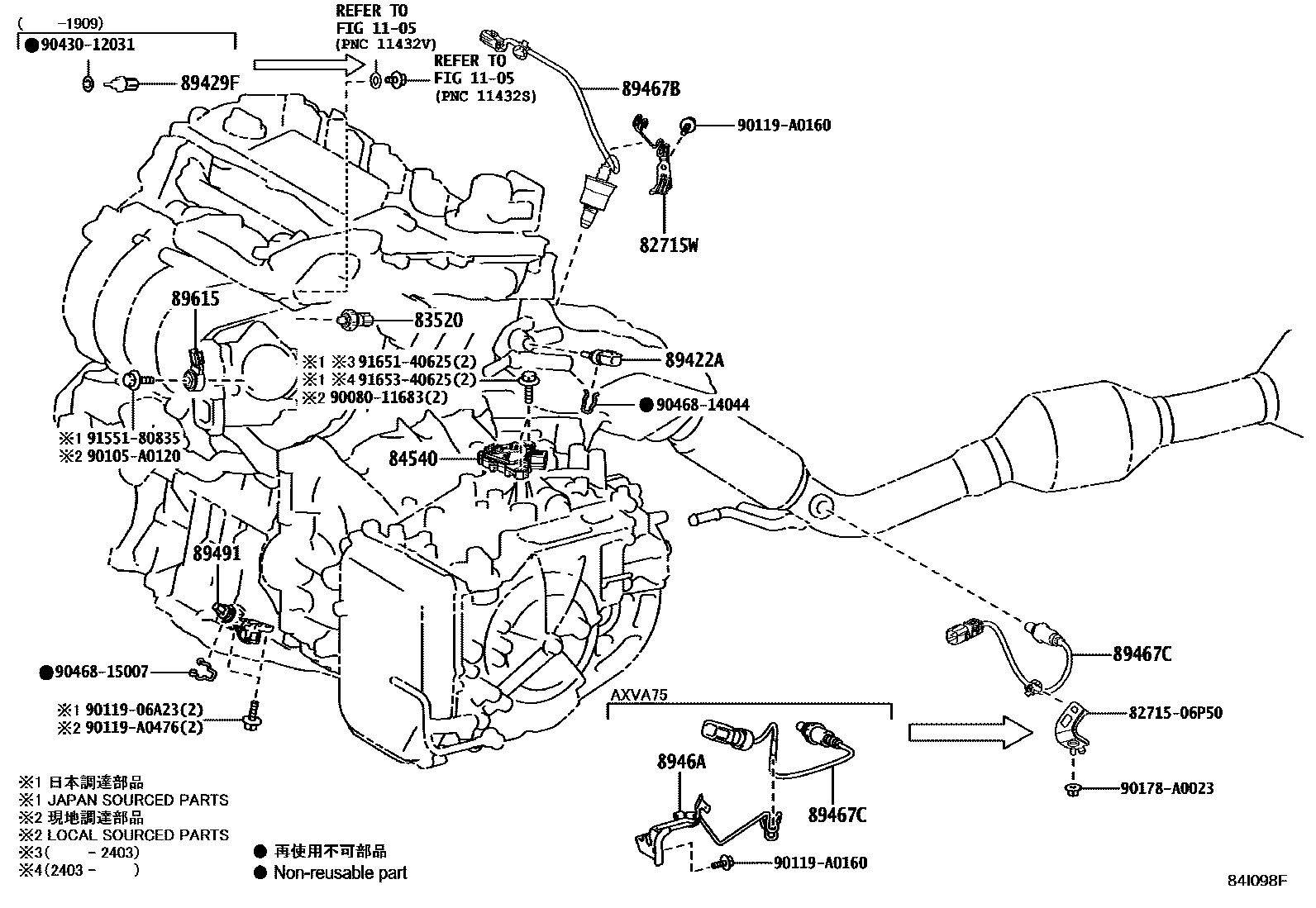

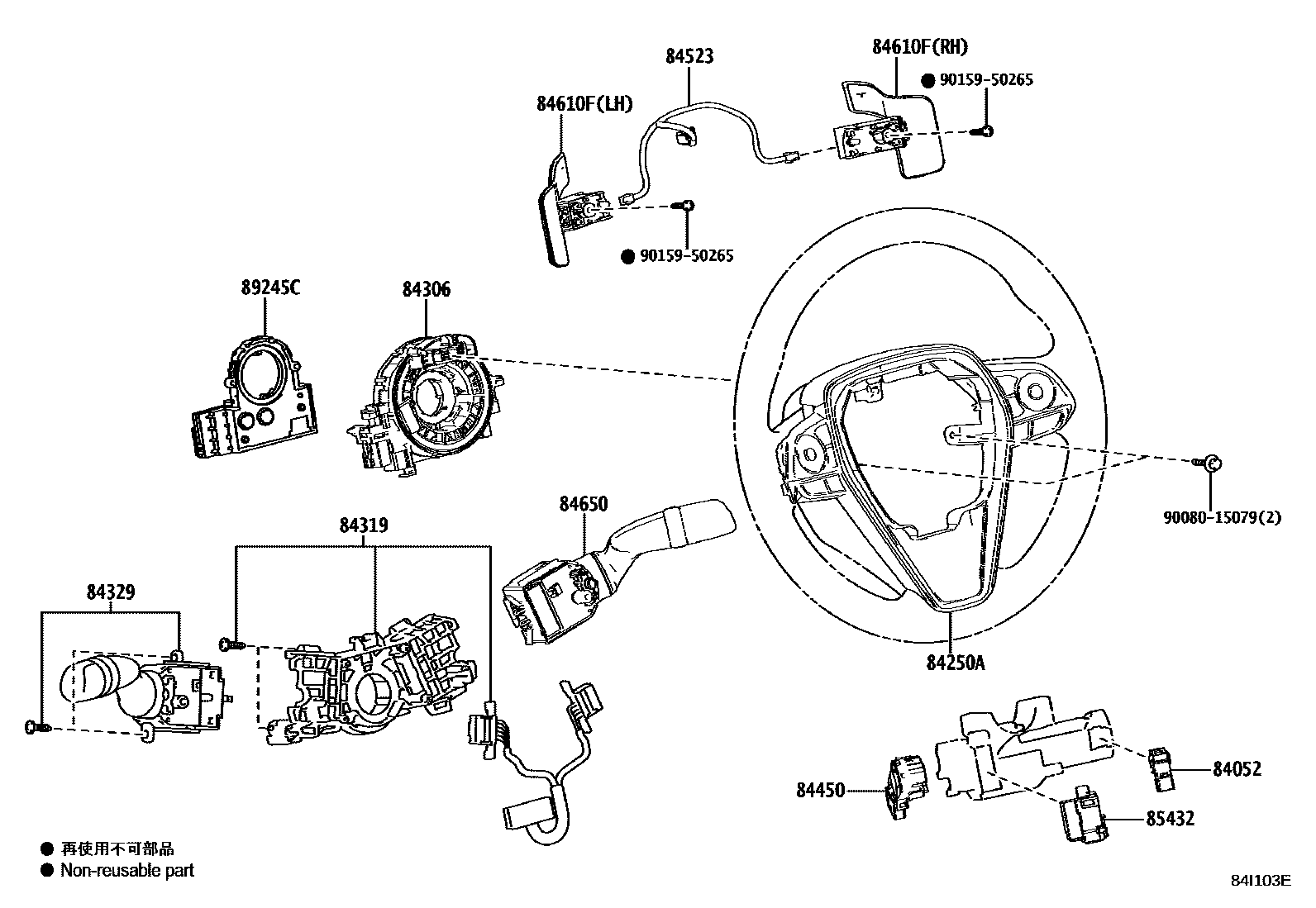

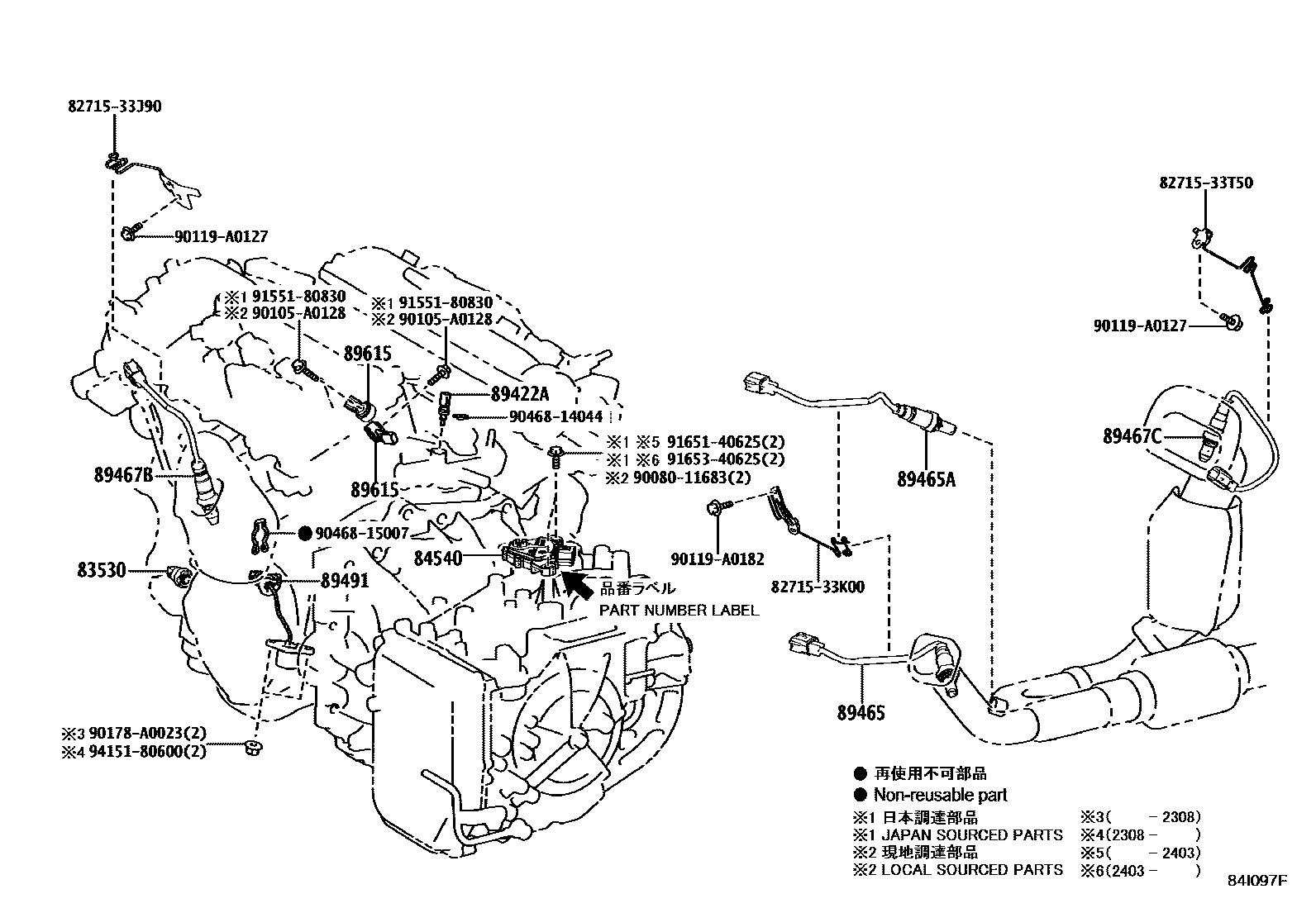

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 114 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A011 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-0P020 · 28850-F0080 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-25010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09019 · 90982-09020 |
| 82610A | Fuse box assembly | 82610-33130 · 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 |
| 82620B | Fuse box assembly | 82620-33160 |
| 82642B | No. 1 daytime running light relay | 90080-87026 · 90987-02027 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | ENS. BLOC RELAIS | 82660-33060 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-06480 · 82662-06490 · 82662-06550 · 82662-06730 · 82662-06731 · 82662-06760 · 82662-06761 · 82662-06770 · 82662-06771 |
| 82662C | No. 3 relay box upper cover | 82662-06780 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82663E | No. 7 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82668B | SUPPORT, CONNECTEUR, NO.5 | 82666-33590 |
| 82671A | junction box | 82671-33100 |
| 82672A | Junction box cover | 82672-06260 · 82672-06261 |
| 82673A | Junction box bracket | 82673-06070 |
| 82673B | Junction box bracket | 82673-06080 |
| 82715 | Wire harness clamp bracket | 82715-06P40 · 82715-06Z40 · 82715-33Q20 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-33K10 · 82715-33K11 |
| 82730 | Instrument panel junction box assembly | 82730-06880 · 82730-06890 · 82730-06A80 · 82730-06A81 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-06030 |
| 83320 | Fuel gauge sensor assembly | 83320-06140 · 83320-06180 · 83320-06190 · 83320-06210 · 83320-33160 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-06200 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-06020 · 83950-06070 · 83950-06080 |
| 84040 | Multi-channel network main switch assembly | 84040-06070 · 84040-06080 · 84040-0E120 · 84040-0E130 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84153 | Automatic high beam switch | 84153-06010 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06A50 · 84250-06A60 · 84250-06A70 · 84250-06A80 |
| 84255 | Steering heater switch | 84255-0R020 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-06040 · 84308-0R030 |
| 84319 | Steering wheel switch housing | 84319-02020 · 84319-06010 |
| 84329 | turn signal switch | 84329-06010 · 84329-06020 · 84329-0E020 |
| 84330 | Hazard warning signal switch assembly | 84332-06110 · 84332-06120 |
| 84340 | brake light switch assembly | 84340-09280 · 84340-09291 · 84340-09300 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84390B | Electric parking brake switch assembly | 84390-06010 · 84390-06060 · 84390-06080 · 84390-33010 · 84390-33030 · 84390-33050 |
| 84450 | Ignition or starter switch assembly | 84450-06050 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-06020 · 84540-06021 · 84540-33020 · 84540-33021 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84610F | Transmission shift switch assembly | 84610-33010 · 84610-33011 · 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-06400 · 84652-06410 |
| 84721B | COMM., MONITEUR VUE PANORAMIQUE | 84721-06020 |
| 84752 | Relax seat switch | 84752-06030 · 84752-06070 · 84752-06090 · 84752-06100 |
| 84810 | Electric window lift switch assembly | 84810-0E040 · 84810-0E060 · 84810-0E110 · 84810-0E120 |
| 84810D | Rear electric window lift switch assembly | 84810-0E040 · 84810-0E060 · 84810-0E110 · 84810-0E120 |
| 84840 | Trunk door opening switch assembly | 84840-06020 · 84840-06021 |
| 84841A | Fuel filler cap opener switch | 84841-06020 · 84841-06021 |
| 84870A | Exterior rearview mirror switch assembly | 84872-08020 · 84872-08030 · 84872-0E020 · 84872-0E110 |
| 84922B | Front right electric seat switch | 84922-06190 |
| 84930 | Door control switch assembly | 84930-0E160 |
| 84945A | COMMANDE, CLE ELECTRIQUE COMP BAGAGES | 84945-06020 |
| 84975 | trip odometer switch | 84975-06010 |
| 84988L | VSC off switch | 84988-06090 |
| 85432 | Key interlock solenoid valve | 85432-06040 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532 | PRISE, CHARGEUR USB | 85532-06010 · 85532-08040 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85910V | seat heater relay | 90080-87026 |
| 85912 | defogger relay | 90080-87025 |
| 85913F | Steering heater relay | 90080-87026 · 90987-02027 |
| 85916P | headlight relay | 90080-87026 |
| 85924 | Ignition control relay | 90987-02031 |
| 85926 | Headlight dimmer relay | 90080-87026 |
| 85940 | Windshield wiper relay assembly | 90080-87026 · 90987-02027 |
| 85941 | windshield washer relay | 90080-87024 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 86530A | Horn relay | 90084-98032 |
| 87346K | PTC heater relay | 90080-87024 · 90080-87026 |
| 88162 | Blind spot monitor right sensor | 88162-06050 · 88162-06080 · 88162-06090 · 88162-06091 · 88162-06092 |
| 88172 | Blind spot monitor left sensor | 88162-06050 · 88162-06080 · 88162-06090 · 88162-06091 · 88162-06092 |
| 89111 | Network gateway ECU | 89100-06010 · 89100-06011 · 89100-06030 · 89111-06070 · 89111-06071 · 89111-06080 · 89111-06081 · 89111-06170 · 89111-06180 |
| 89120A | Automatic light control sensor | 89121-0E060 |
| 89221 | Multi-channel network body ECU | 89220-06450 · 89220-06460 · 89220-06470 · 89220-06480 · 89220-06490 · 89220-06500 · 89220-06510 · 89220-06520 · 89220-06530 · 89220-06540 · 89220-06550 · 89220-06560 · 89220-06570 · 89220-06580 · 89220-06590 · 89220-06600 · 89220-06610 · 89220-06620 · 89220-06630 · 89220-06640 · 89220-06650 · 89220-06660 · 89220-06670 · 89220-06680 · 89220-06790 · 89220-06800 · 89220-06810 · 89220-06820 · 89220-06830 · 89220-06840 · 89220-06850 · 89220-06860 · 89220-06870 · 89220-06880 · 89220-06890 · 89220-06A00 · 89220-06A10 · 89220-06A20 · 89220-06A30 · 89220-06A40 · 89220-06A50 · 89220-06A60 · 89220-06A70 · 89220-06A80 · 89220-06A90 · 89220-06B00 · 89220-06B10 · 89220-06B50 · 89220-06B70 · 89220-06B80 · 89220-06B90 · 89220-06C00 · 89220-06C10 · 89220-06C20 · 89220-06C30 · 89220-06C40 · 89220-06C50 · 89220-06C60 · 89220-06C70 · 89220-06C80 · 89220-06D50 · 89220-06D60 · 89220-06D70 · 89220-06D80 · 89220-06D90 · 89220-06E00 · 89220-06E10 · 89220-06F80 · 89220-06F90 · 89220-06G00 · 89220-06G10 · 89220-06G20 · 89220-06G30 · 89220-06G40 · 89220-06G50 · 89220-06G60 · 89220-06G70 · 89220-06G80 · 89220-06G90 · 89220-06J00 · 89220-06J10 · 89220-06J20 · 89220-06J30 · 89220-06J40 · 89220-06J50 |
| 89245C | steering sensor | 8924B-02190 · 8924B-06040 |
| 89422A | water temperature sensor | 89422-33040 · 89422-47010 |
| 89429F | temperature sensor | 89429-12010 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-06370 |
| 89465A | Oxygen sensor No. 2 | 89465-06380 |
| 89467B | air fuel ratio sensor | 89467-06230 · 89467-06250 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-06210 · 89467-06280 · 89467-0E250 · 89467-33210 |
| 8946A | SUPPORT, COLLIER CAPTEUR ECHAPE | 8946A-33010 |
| 89491 | Engine oil level sensor | 89491-33050 · 89491-33051 · 89491-33052 · 89491-48020 · 89491-48021 · 89491-48040 · 89491-48041 |
| 89611 | push button start switch | 89611-0E022 · 89611-0R022 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 · 89615-78010 · 89615-F6010 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| 89747F | Blind spot monitor buzzer | 89747-02010 · 89747-08010 · 89747-52010 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-06010 · 89980-06020 · 89980-06030 · 89980-06031 · 89980-06041 · 89980-06042 · 89980-06043 · 89980-06050 · 89980-06060 · 89980-06080 · 89980-06090 |
