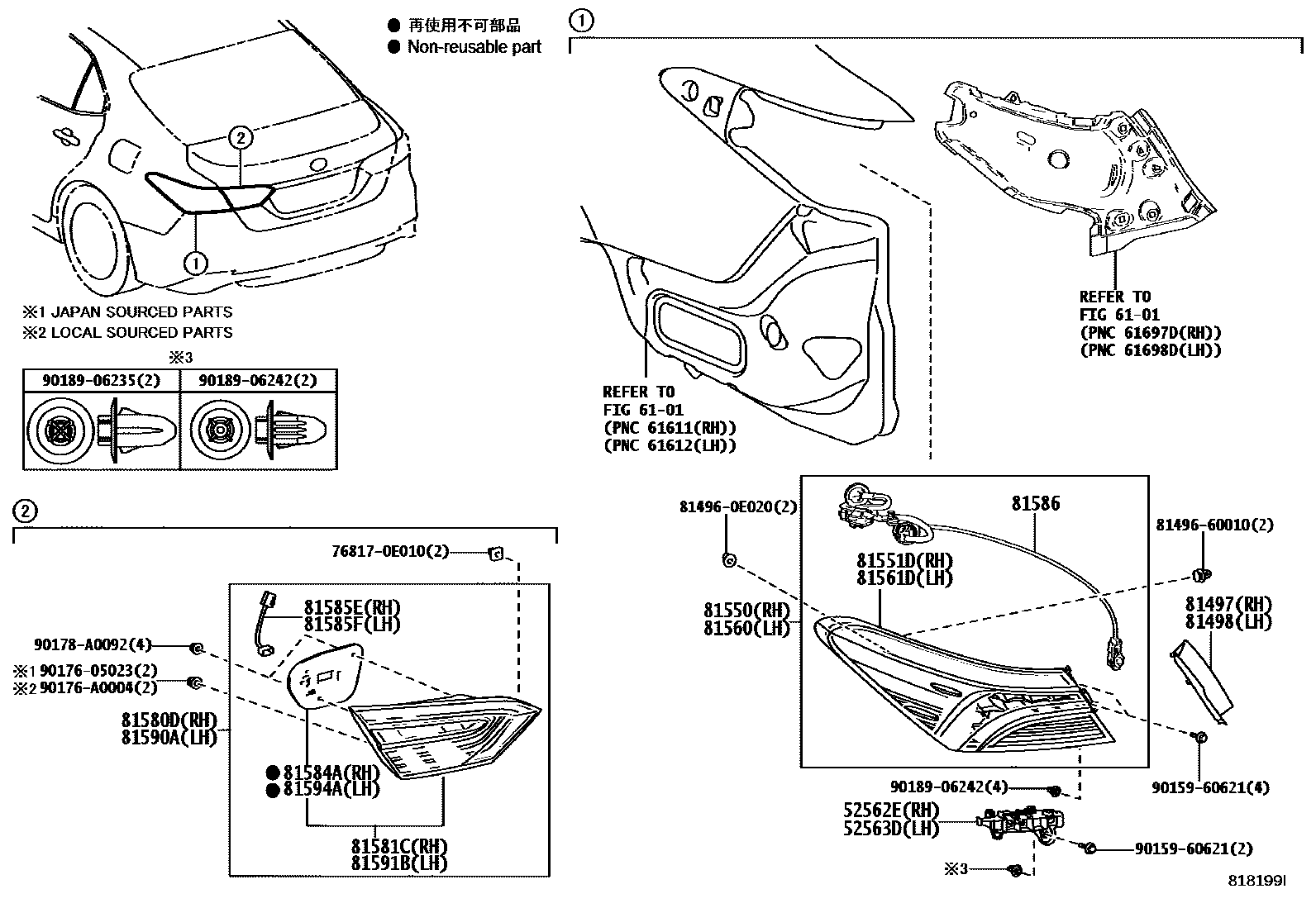

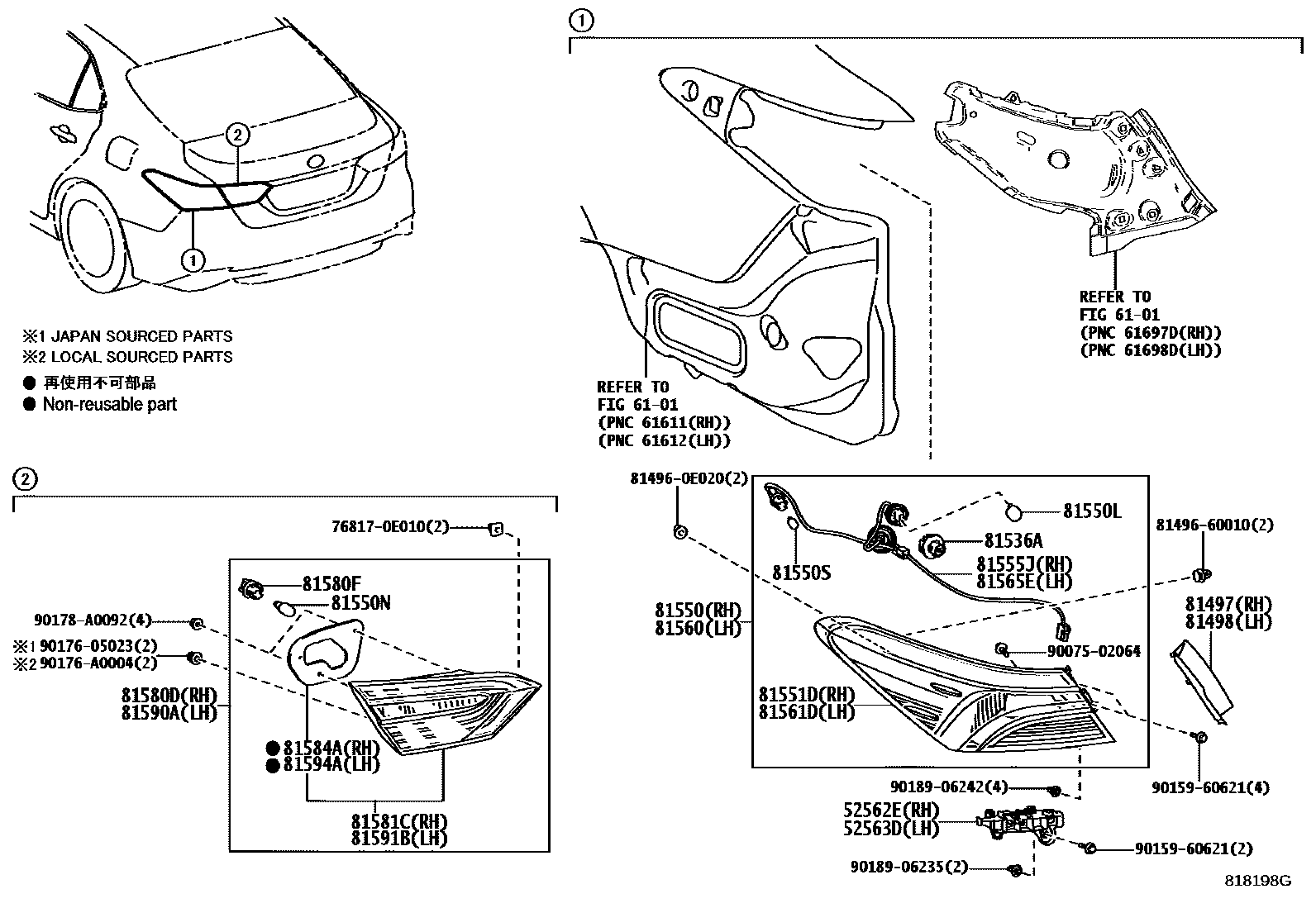

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-06090 |
| 52563D | Rear bumper upper left fixing bracket | 52563-06080 |
| 81497 | Right rear combination lamp cover | 81497-06010 · 81497-06070 |
| 81498 | Left rear combination lamp cover | 81498-06010 · 81498-06070 |
| 81536A | Rear LED combination light | 81536-52C80 |
| 81550 | Right rear combination light assembly | 81550-06720 · 81550-06730 · 81550-06840 · 81550-06850 · 81550-06A20 · 81550-06A30 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550S | Rear width light bulb | 90981-11069 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06720 · 81551-06840 · 81551-06850 · 81551-06A20 |
| 81555J | PRISE & CABLE, BLOC OPTIQUE ARRIERE, MD | 81555-06720 |
| 81560 | Left rear combination light assembly | 81560-06720 · 81560-06730 · 81560-06840 · 81560-06850 · 81560-06A20 · 81560-06A30 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06720 · 81561-06840 · 81561-06850 · 81561-06A20 |
| 81565E | PRISE & CABLE, BLOC OPTIQUE ARRIERE, MG | 81555-06720 |
| 81580D | Right rear light assembly | 81580-06620 · 81580-06630 · 81580-06770 · 81580-06780 · 81580-06870 · 81580-06880 |
| 81580F | Rear light lamp holder plug | 90075-60037 |
| 81581C | Right rear light lampshade and lamp body | 81581-06620 · 81581-06630 · 81581-06770 · 81581-06780 |
| 81584A | Right rear light gasket | 81584-06620 · 81584-06630 |
| 81585E | CABLE, FEU ARRIERE, MD | 81585-06630 |
| 81585F | CABLE, FEU ARRIERE, MG | 81585-06630 |
| 81586 | Rear light wire | 81555-06730 |
| 81590A | Left rear light assembly | 81590-06620 · 81590-06630 · 81590-06770 · 81590-06780 · 81590-06870 · 81590-06880 |
| 81591B | Left rear light shade and body | 81591-06620 · 81591-06630 · 81591-06770 · 81591-06780 |
| 81594A | Left rear light gasket | 81594-06620 · 81594-06630 |
