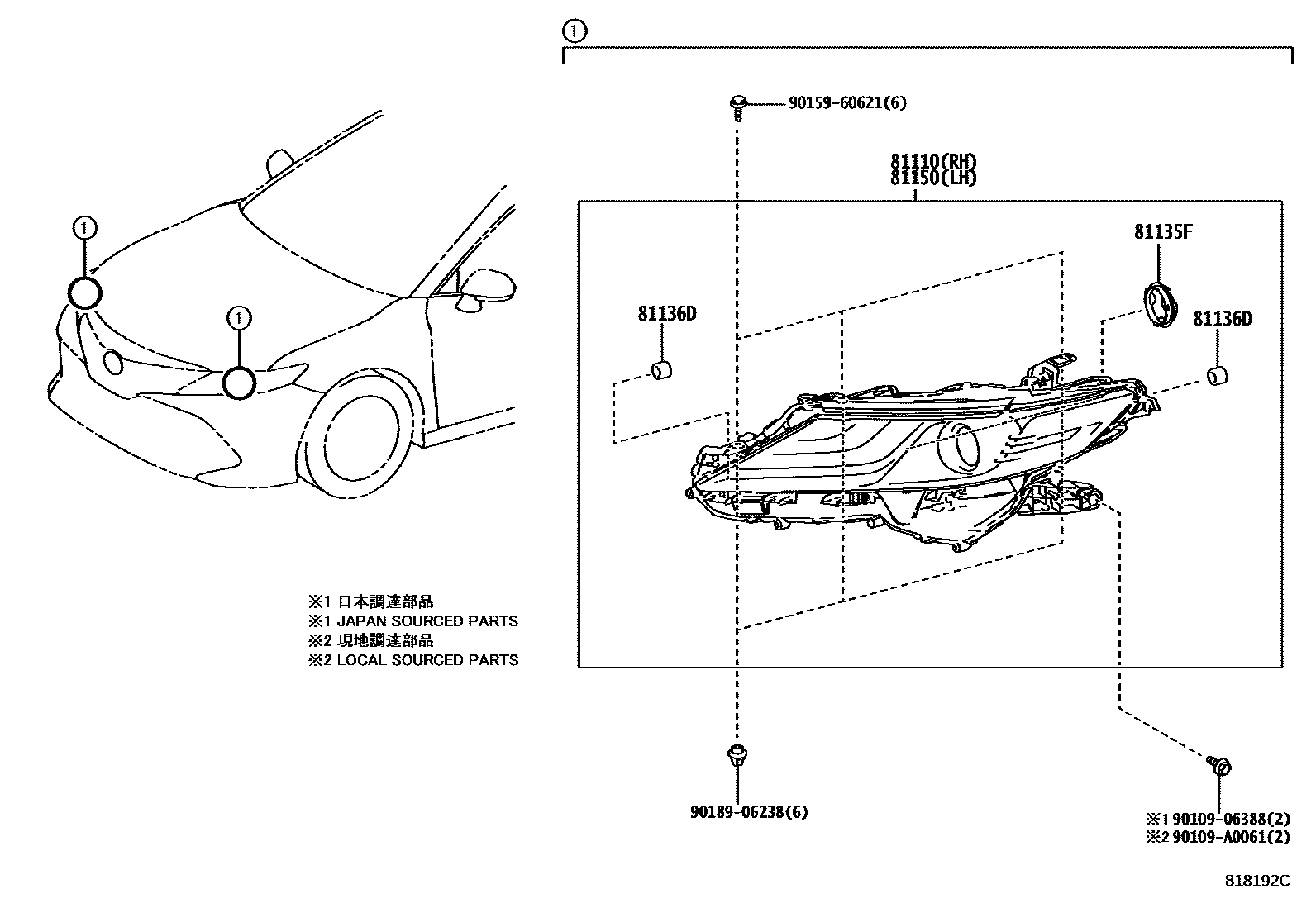

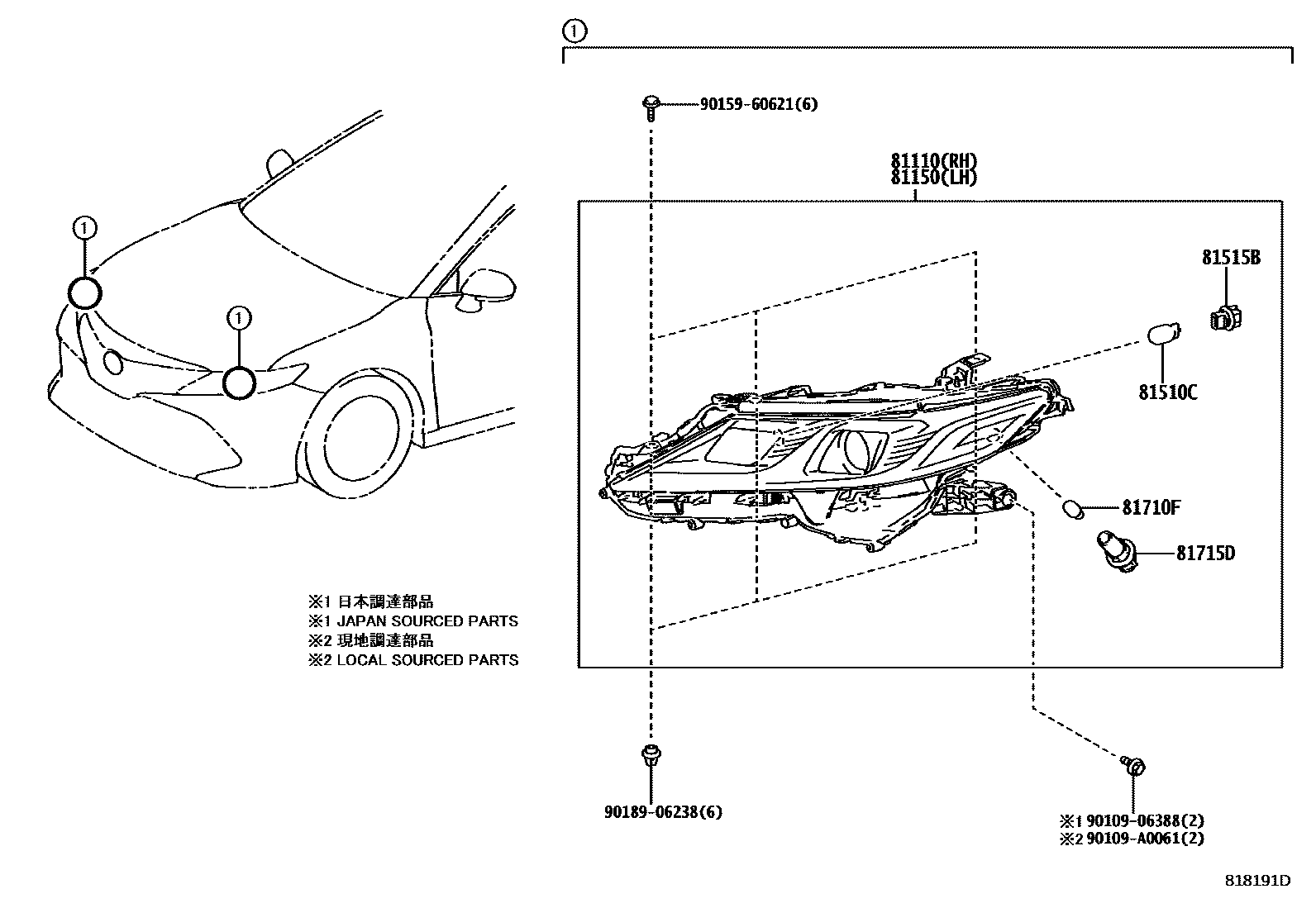

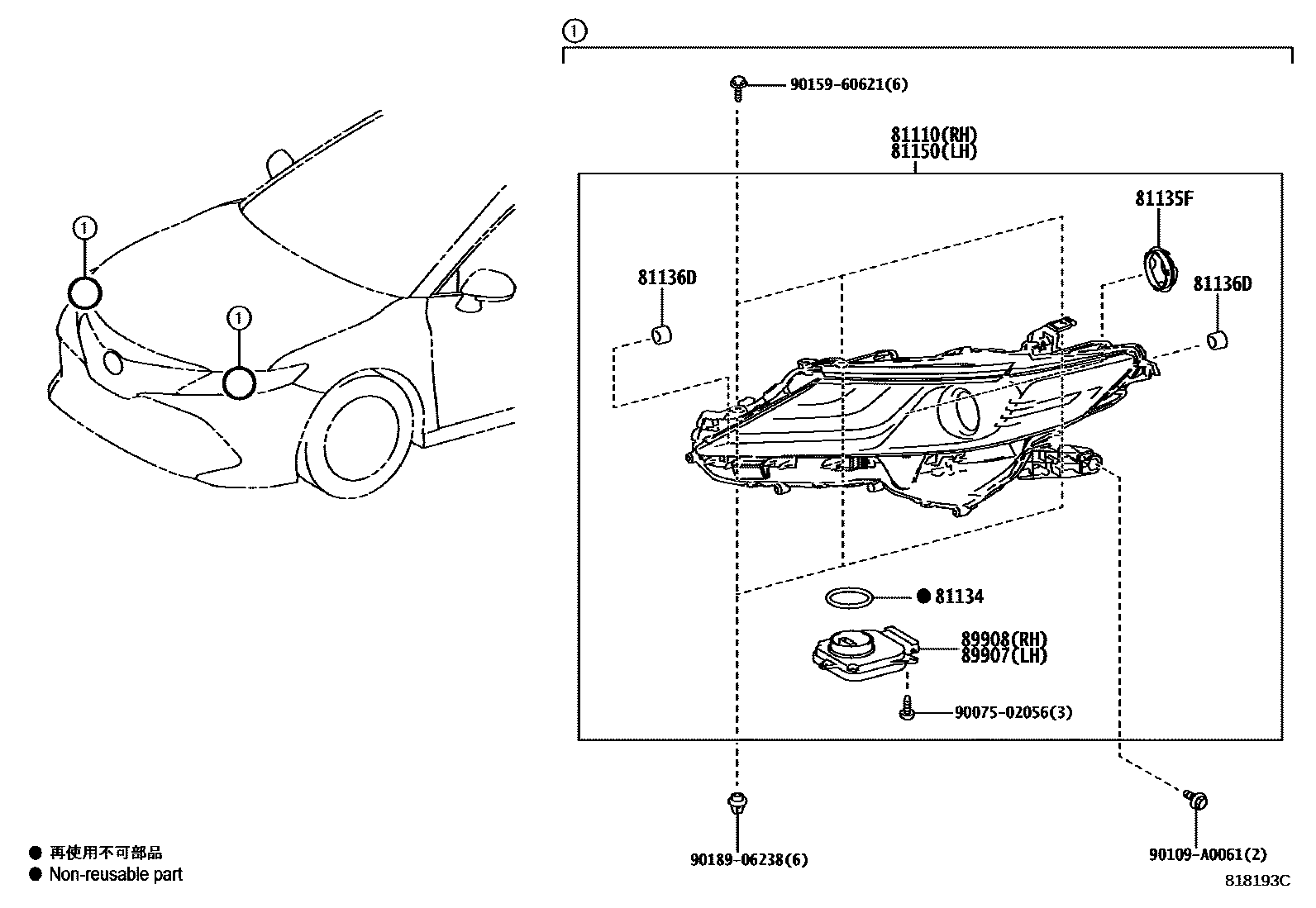

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-06C40 · 81110-06C41 · 81110-06D70 · 81110-06D71 · 81110-06D72 · 81110-06D80 · 81110-06D81 · 81110-06F40 · 81110-06F41 · 81110-06F60 · 81110-06G10 · 81110-06G30 |
| 81134 | headlight gasket | 90075-23003 |
| 81135F | COUVERCLE, DOS PROJECTEUR AVANT | 90075-66016 |
| 81136D | headlight cover | 90075-15505 |
| 81150 | Left headlight assembly | 81150-06C20 · 81150-06C40 · 81150-06C41 · 81150-06D70 · 81150-06D71 · 81150-06D72 · 81150-06D80 · 81150-06D81 · 81150-06F40 · 81150-06F41 · 81150-06G10 · 81150-06G30 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15024 |
| 81515B | Front turn signal lamp holder | 81128-06470 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715D | PRISE, FEUX GABARIT AVANT | 90075-60089 |
| 89907 | SOUS-ENS. ORDINATEUR, PHARE, MG | 89907-33040 |
| 89908 | SOUS-ENS. ORDINATEUR, PHARE, MD | 89908-33040 |
