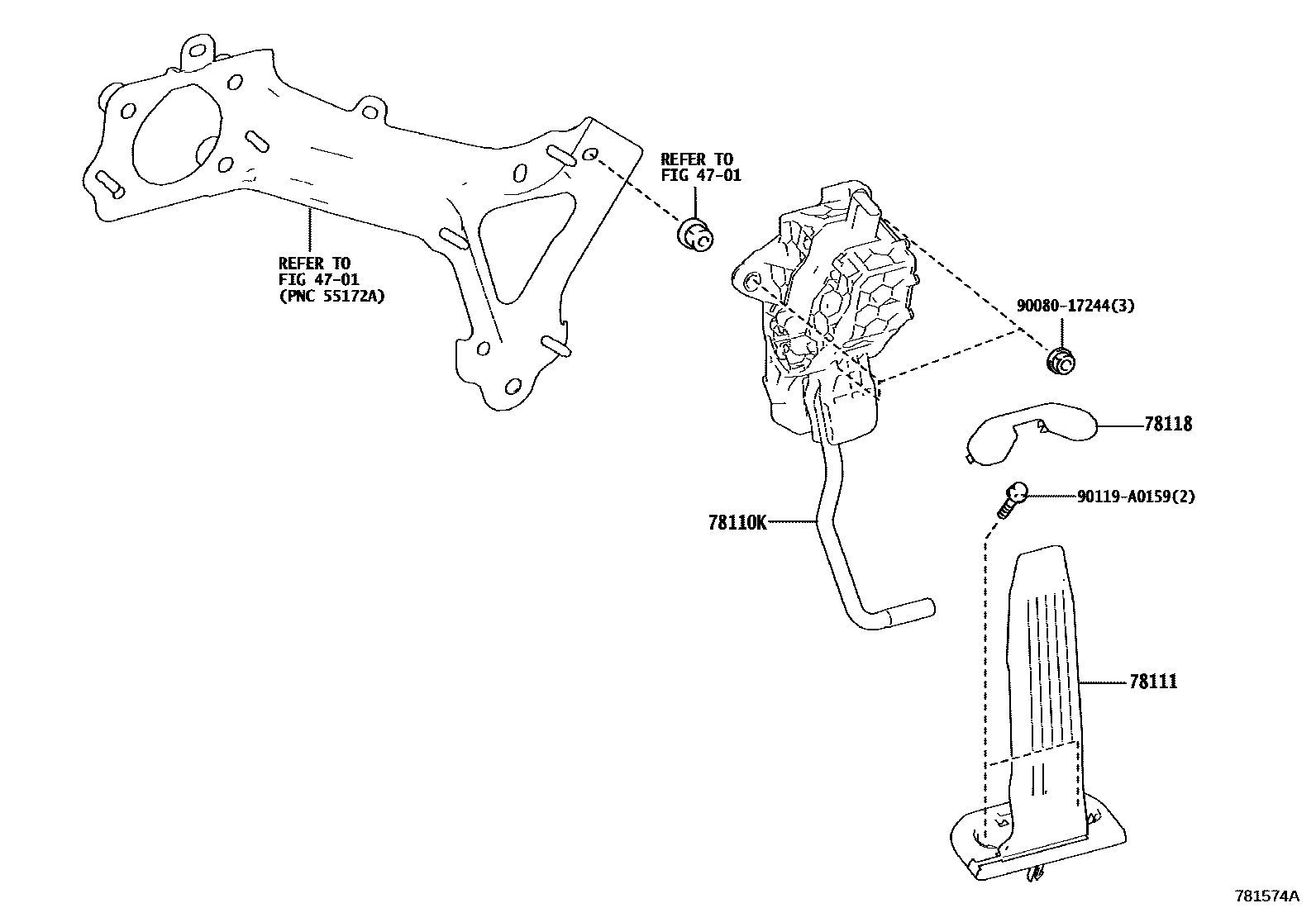

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal sensor assembly | 78110-06060 · 78110-06061 |
| 78111 | accelerator pedal | 78101-06010 · 78101-06011 · 78101-33080 |
| 78118 | accelerator pedal pad | 78117-06010 |
