Toyota CAMRY 燃油箱和燃油管 — Figure 7701

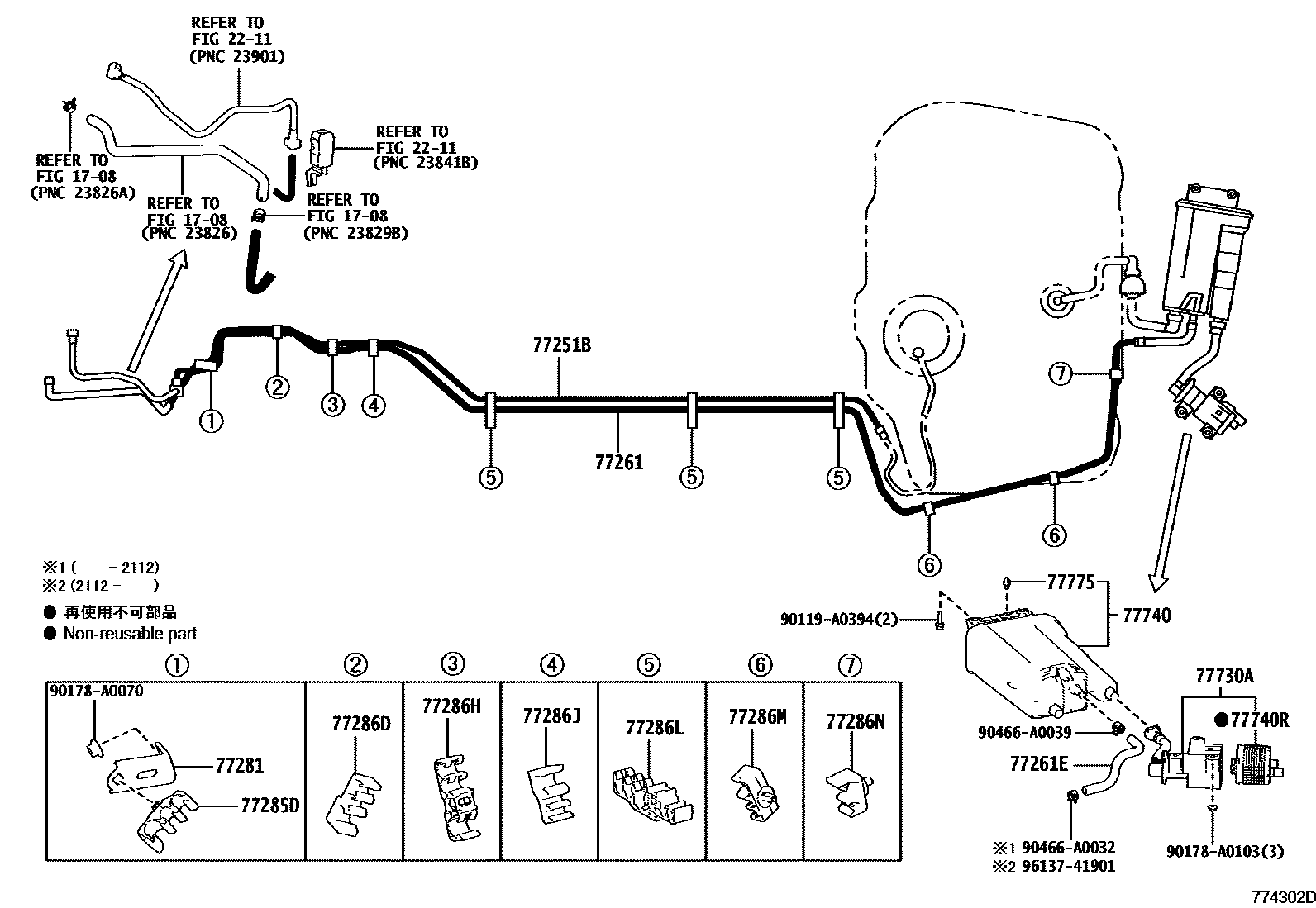

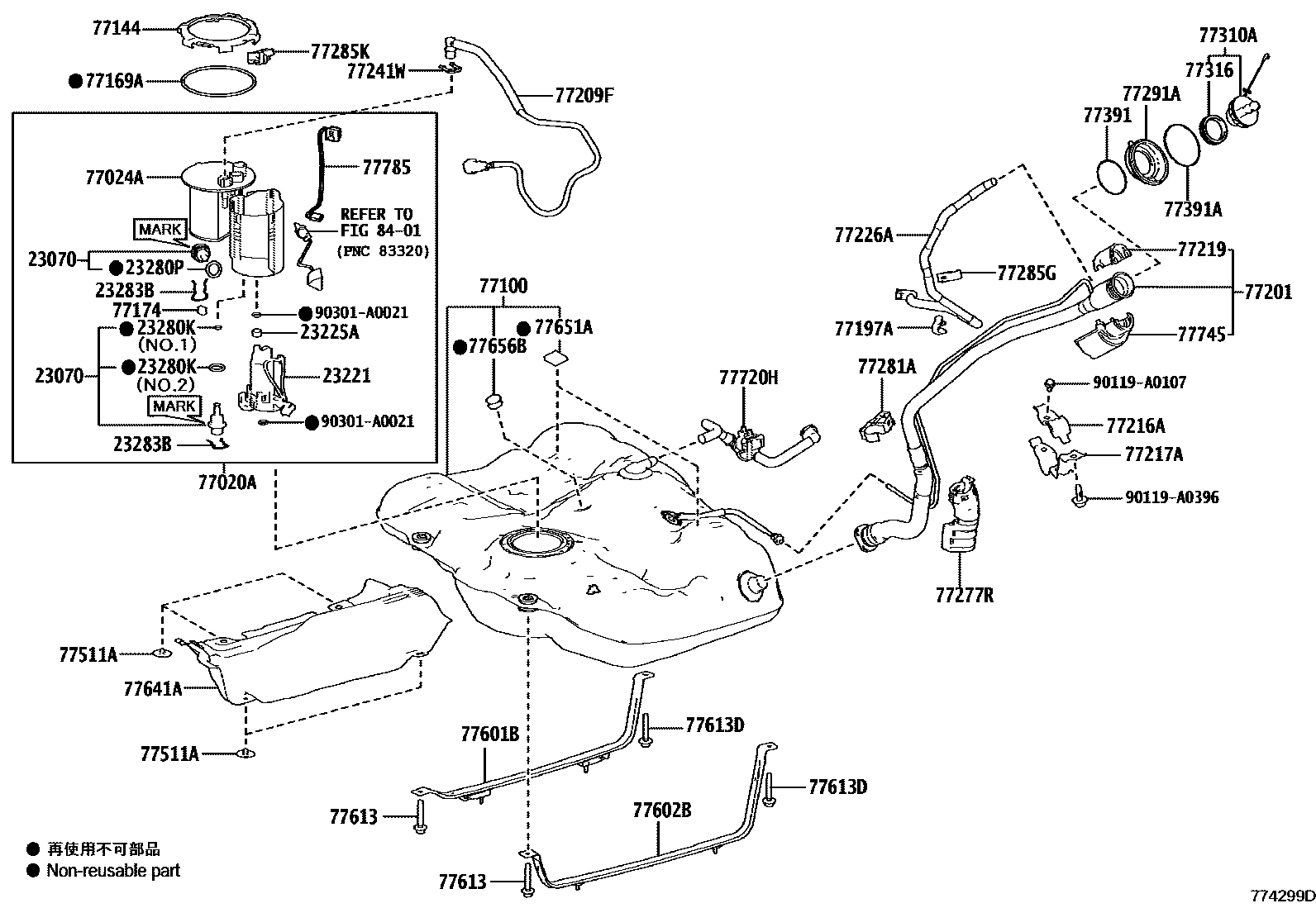

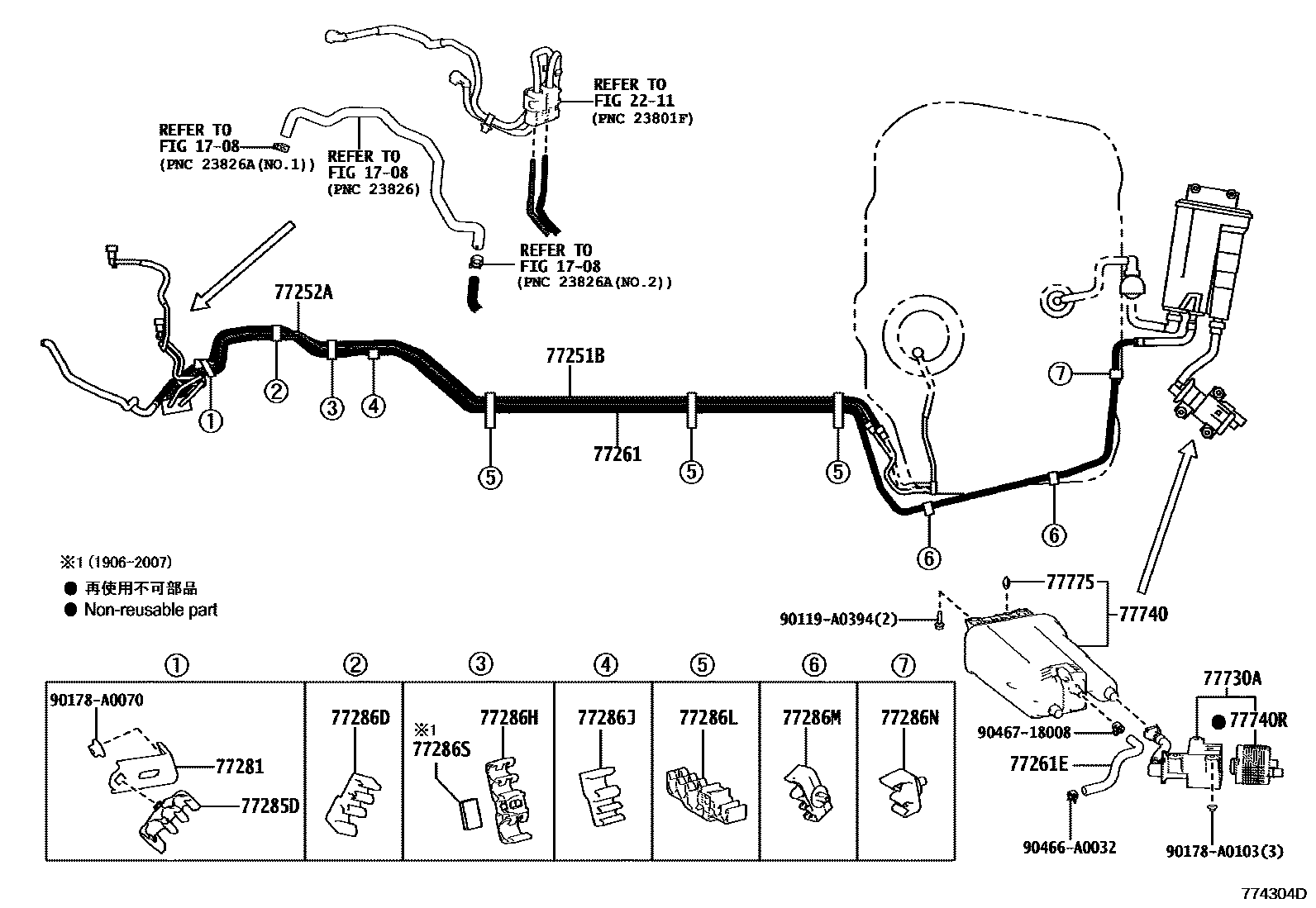

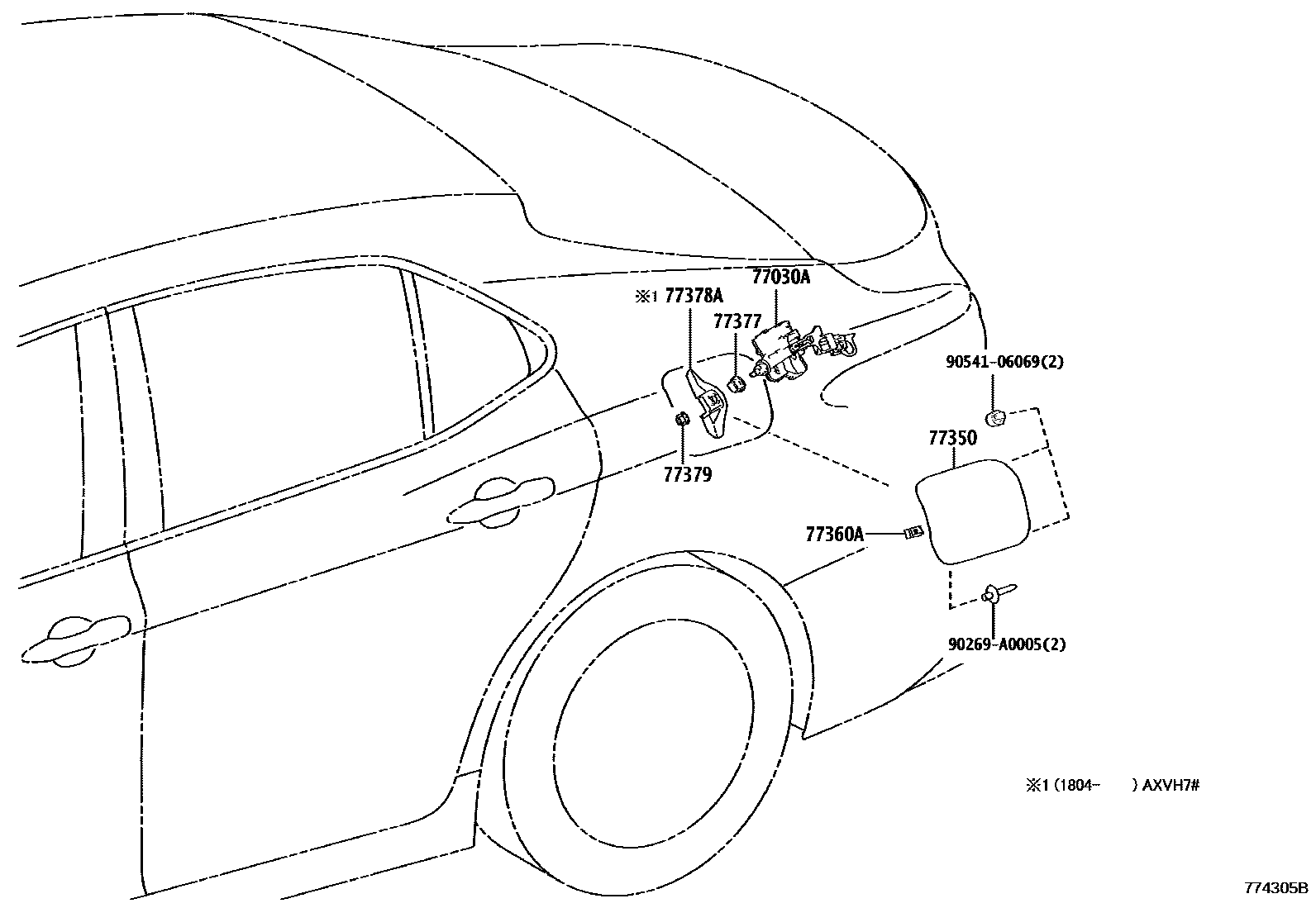

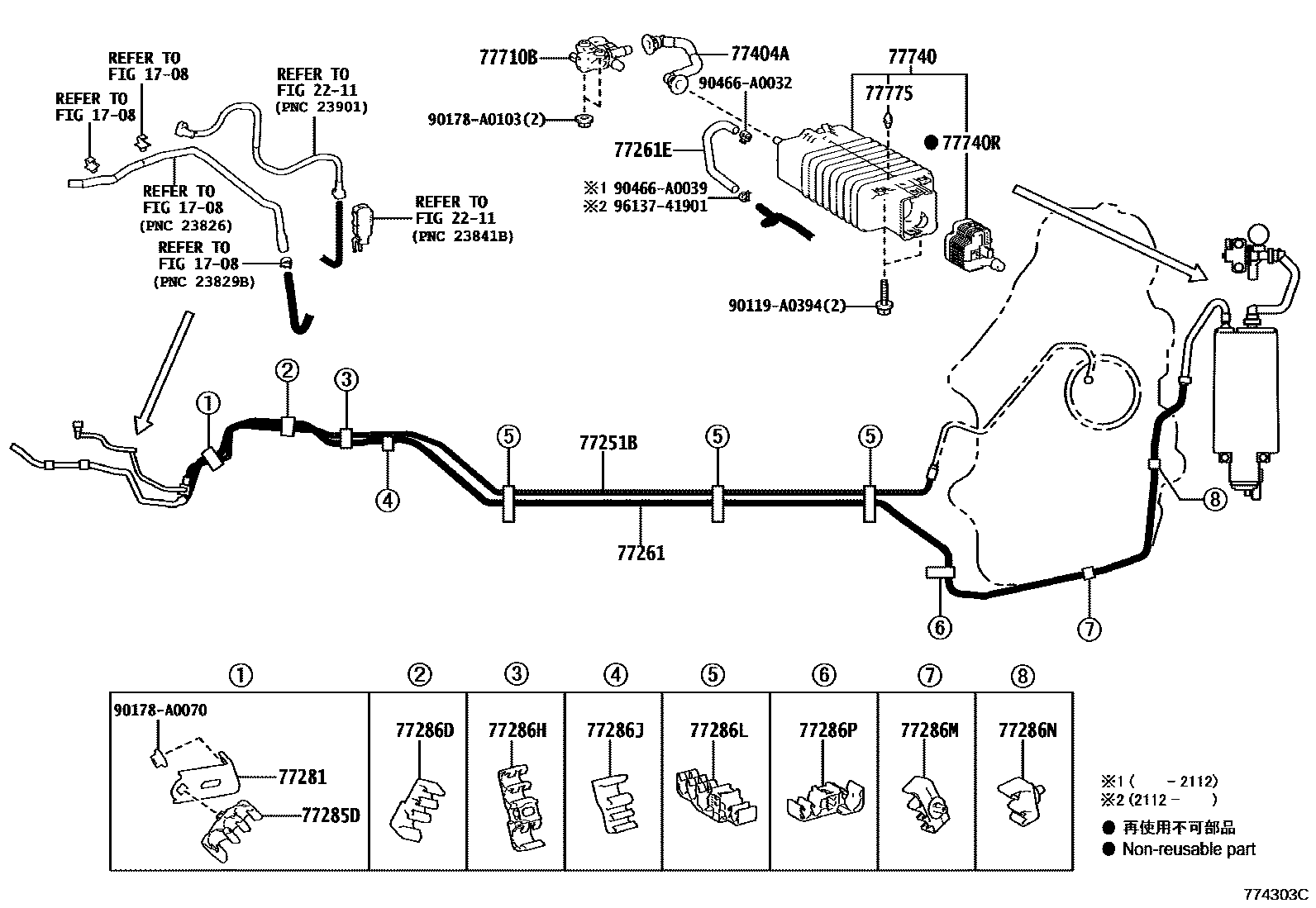

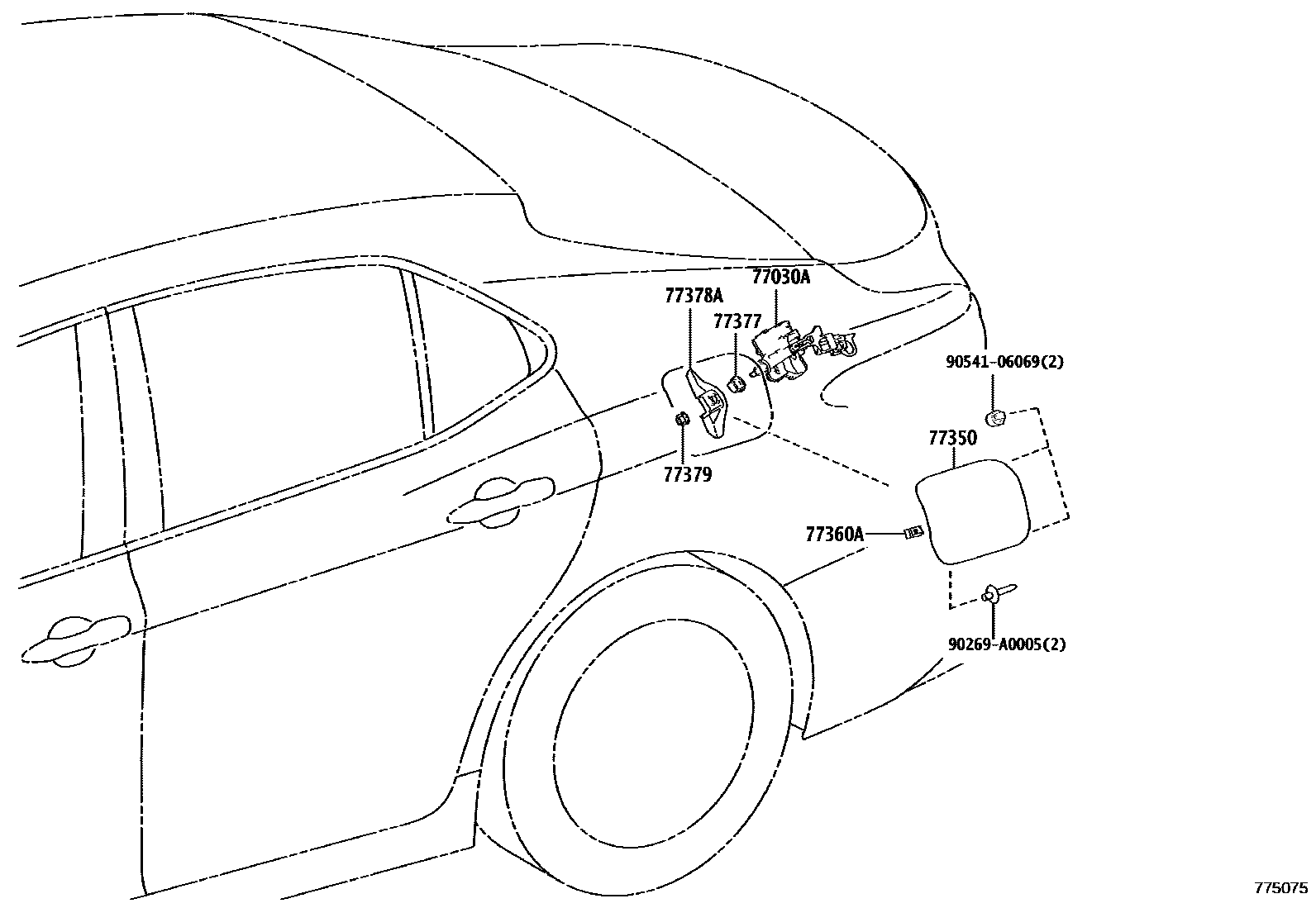

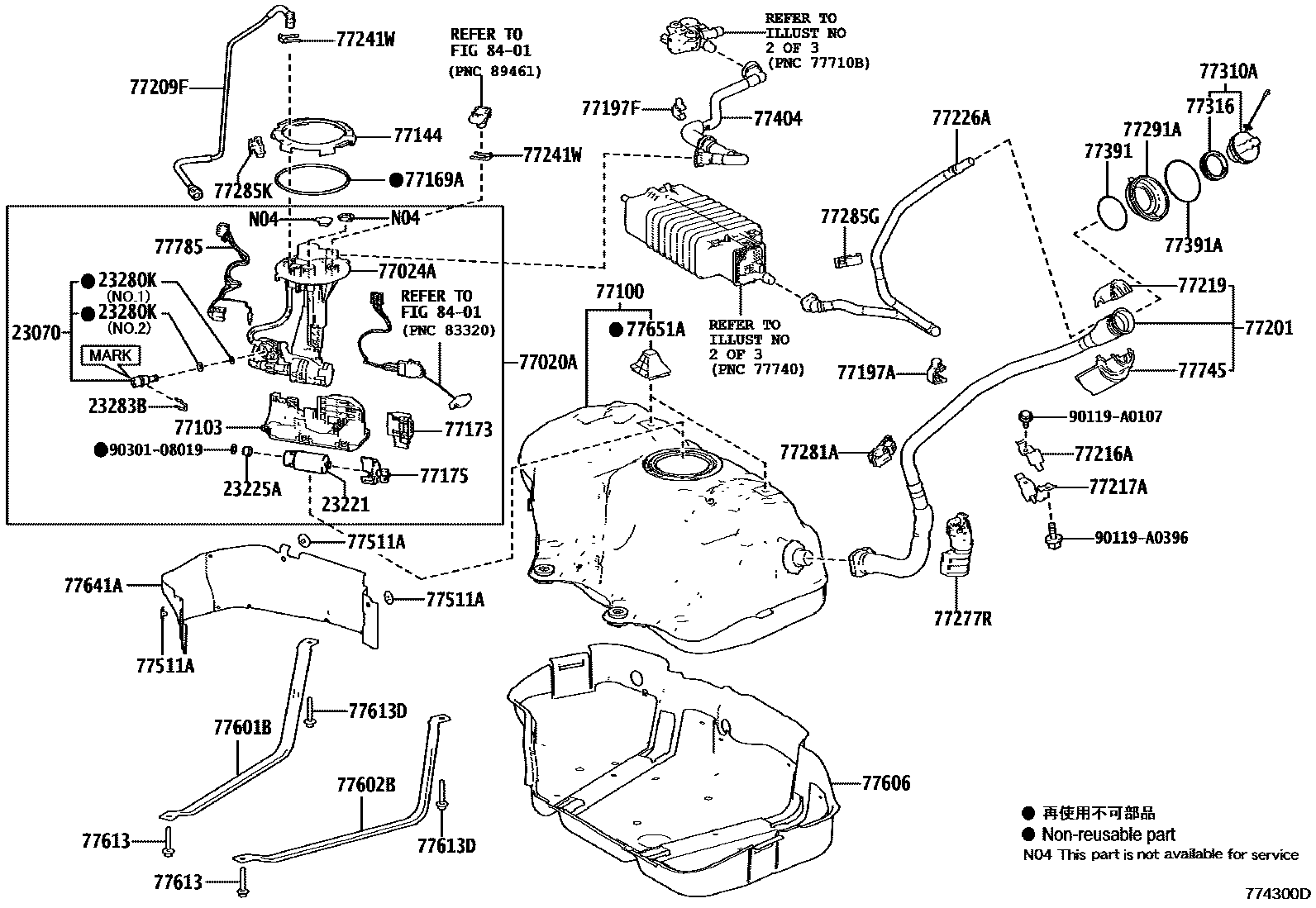

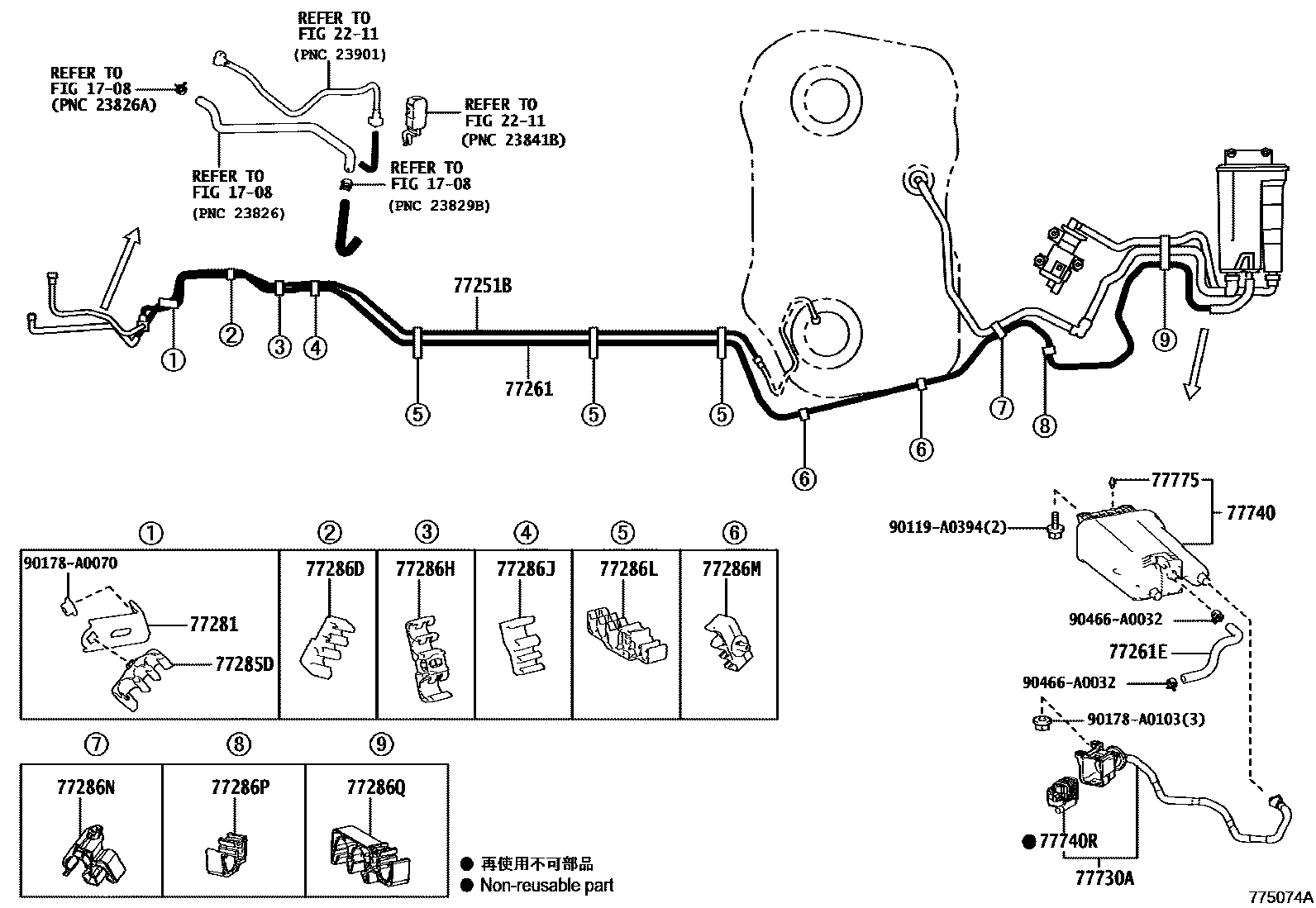

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 11 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31030 · 23070-36010 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23220-0P240 · 23220-F0020 · 23221-25030 |
| 23225A | fuel pump septum | 23225-0P010 · 23225-31020 · 23225-F0010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 23280P | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.3 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-0P010 · 23283-24010 · 23283-36010 · 23283-F0010 |
| 77010 | Fuel tank vent pipe assembly | 77010-06010 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-06040 |

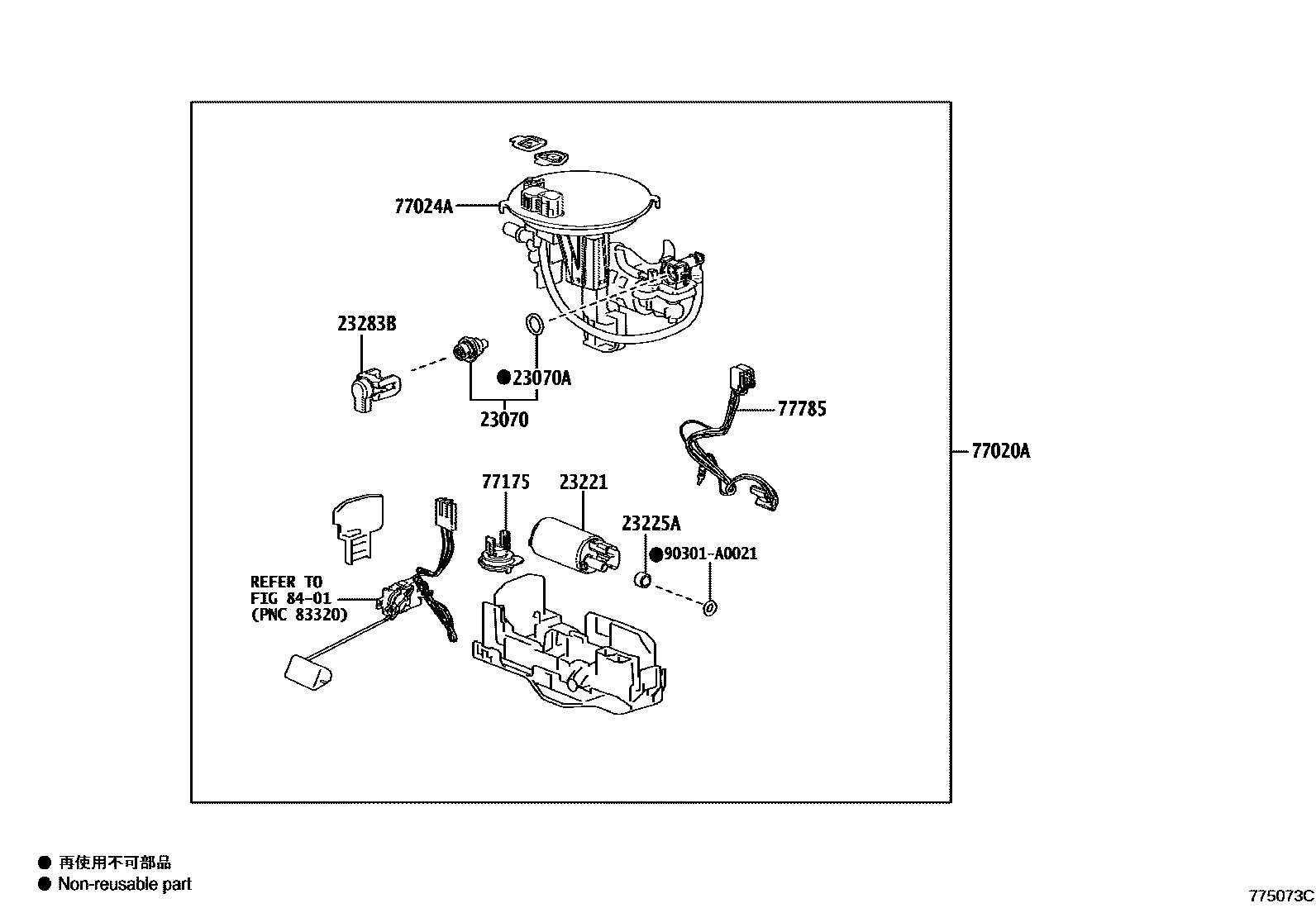

| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06510 · 77020-06511 · 77020-06520 · 77020-06530 · 77020-06660 · 77020-06661 · 77020-06700 · 77020-06740 |
| 77024A | Fuel absorber sub-assembly | 77024-06300 · 77024-06310 · 77024-06320 · 77024-06330 · 77024-33310 · 77024-33410 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-06020 · 77030-07010 |

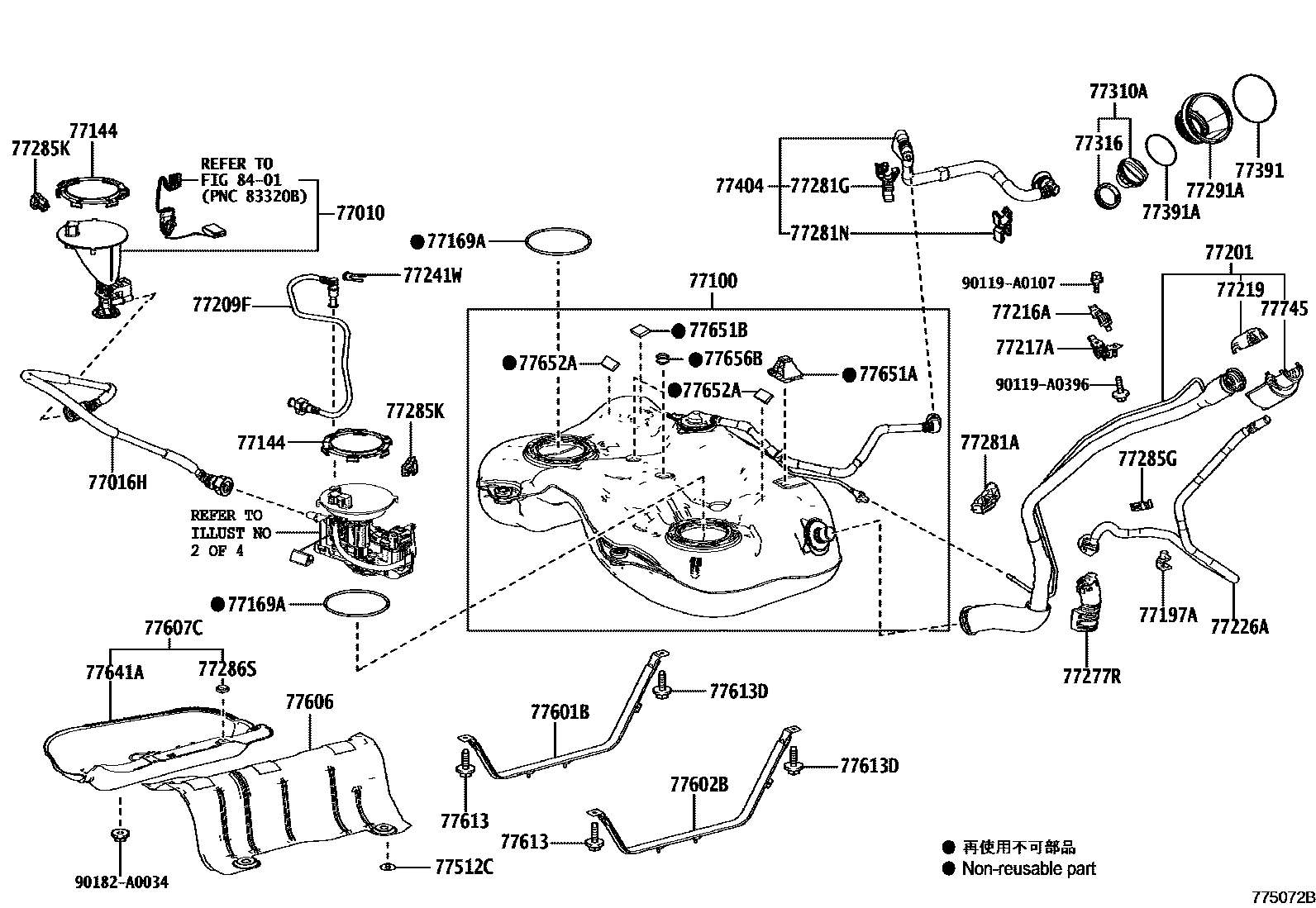

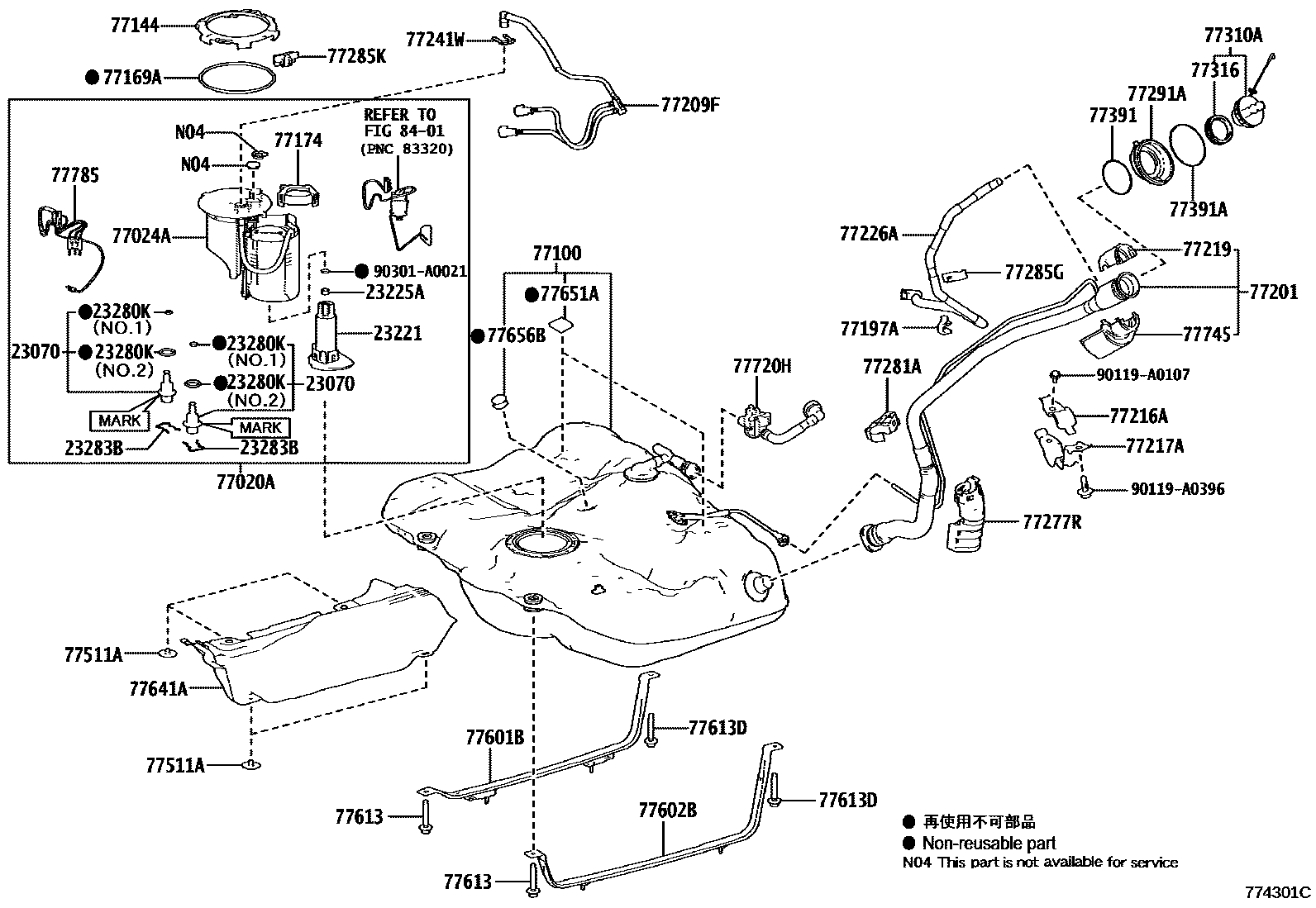

| 77100 | fuel tank assembly | 77001-06250 · 77001-06280 · 77001-06290 · 77001-06340 · 77001-06360 · 77001-06400 · 77001-33420 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-0R020 · 77103-12150 · 77103-33060 |
| 77144 | Fuel pump instrument fixture | 77144-06040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-06060 |
| 77173 | SUPPORT, JAUGE CARB | 77173-02010 · 77173-12010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-06090 · 77174-06100 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0R010 · 77175-12030 · 77175-33030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-06090 · 77197-06110 · 77197-47010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-33080 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-06200 · 77201-06210 · 77201-06300 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06100 · 77209-06101 · 77209-06110 · 77209-06111 · 77209-06170 · 77209-06171 · 77209-06201 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06140 · 77216-06200 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06130 · 77217-06190 |
| 77219 | Fuel tank filler pipe cap | 77219-07010 · 77219-0E010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06160 · 77226-06170 · 77226-06180 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77251B | main fuel pipe | 77251-06340 · 77251-06350 · 77251-06360 · 77251-06490 |
| 77252A | No. 2 main fuel pipe | 77252-06090 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06400 · 77261-06410 · 77261-06530 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77249-06090 · 77249-06100 · 77249-06140 · 77249-33120 · 77249-33180 |
| 77277R | Fuel tank filler pipe protection device | 77277-06070 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06160 |
| 77281A | Fuel filler pipe clamp | 77281-06170 · 77281-06361 |
| 77281G | fuel hose clamp | 77281-06180 |
| 77281N | fuel hose clamp | 77281-47130 |
| 77285D | No. 1 fuel pipe clamp | 77285-06160 |
| 77285G | No. 1 fuel pipe clamp | 77285-06510 |
| 77285K | No. 1 fuel pipe clamp | 77285-06240 |
| 77286D | No. 2 fuel pipe clamp | 77286-0E080 |
| 77286H | No. 3 fuel pipe clamp | 77298-06290 · 77298-33110 |
| 77286J | No. 4 fuel pipe clamp | 77298-0E160 |
| 77286L | No. 5 fuel pipe clamp | 77298-06140 · 77298-33040 |
| 77286M | No. 6 fuel pipe clamp | 77285-06180 |
| 77286N | No. 7 fuel pipe clamp | 77286-06120 · 77286-06220 |
| 77286P | No. 8 fuel pipe clamp | 77298-06160 · 77299-0E040 |
| 77286Q | No. 9 fuel pipe clamp | 77286-06230 |
| 77286S | Fuel tank protective shell cushion | 77286-06240 · 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-06200 |
| 77310A | Fuel tank cap assembly | 77300-06090 · 77300-06120 · 77300-07040 · 77300-53040 |
| 77316 | fuel tank cap gasket | 77316-06090 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-06180 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-02020 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 · 77377-78010 |
| 77378A | Fuel filler cap lock cover | 77378-33010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-06010 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-20040 · 77391-33060 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-06160 · 77404-06290 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-06200 |
| 77511A | fuel tank bracket | 77512-06060 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-06060 · 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06180 · 77601-06190 · 77601-06210 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06180 · 77602-06190 · 77602-06220 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-06020 · 77641-06160 |
| 77607C | SOUS-ENS. DE PROTECTEUR DE RESERVOIR DE COMBUSTIBLE NO. 2 | 77606-06070 |
| 77613 | Fuel tank strap fixing bolts | 90119-10992 · 90119-A0430 |
| 77613D | BOULON, JEU COLLIER FIX RESERV CARB, NO.2 | 90119-10992 · 90119-A0430 · 90119-A0509 |
| 77641A | No. 1 fuel tank protective shell | 77606-06010 · 77641-06030 · 77641-06090 |
| 77651A | No. 1 fuel tank liner | 77651-06060 · 77651-06130 · 77651-33060 · 77652-33060 |
| 77651B | fuel tank liner | 77651-06130 |
| 77652A | No. 2 fuel tank liner | 77652-02100 |
| 77656B | No. 6 fuel tank liner | 77656-06030 · 77656-33010 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77720H | Fuel delivery valve assembly | 77720-06030 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-06040 · 77730-06070 |
| 77740 | Carbon canister assembly | 77740-06230 · 77740-06240 |
| 77740R | Leak detection pump sub-assembly | 90910-AF006 |
| 77745 | No. 1 carbon canister filter | 77745-0E010 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-06130 · 77785-06150 · 77785-06180 · 77785-0R040 · 77785-33190 · 77785-42070 |
