Toyota CAMRY 侧防护条 — Figure 7503

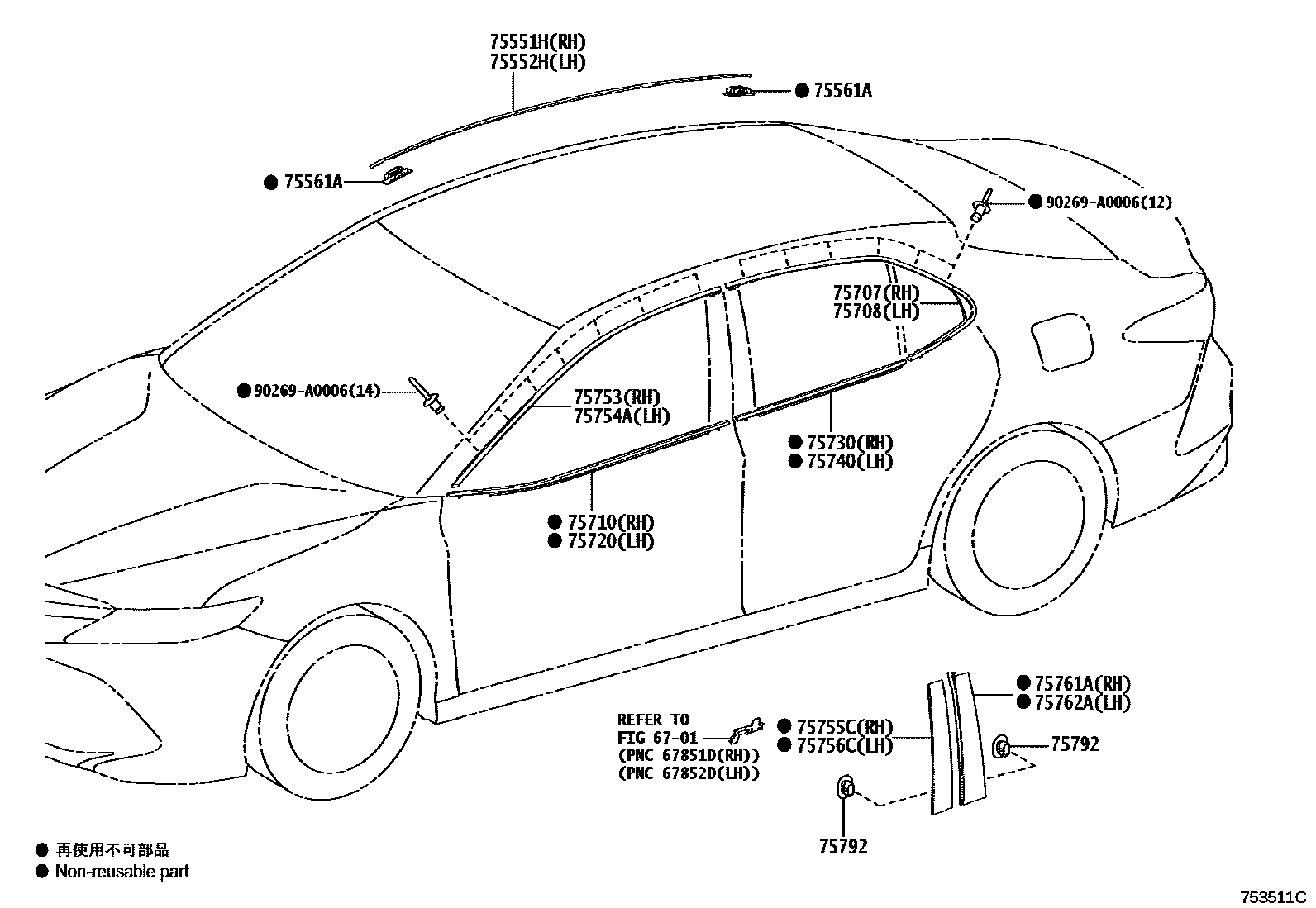

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551H | Drainage groove side on the right side of the roof | 75555-06090 · 75555-33090 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-06090 · 75556-33090 |
| 75561A | Roof drain channel side decorative strip clip | 75561-08040 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-06030 · 75707-06110 · 75707-06112 · 75707-33070 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-06030 · 75708-06110 · 75708-06112 · 75708-33070 |
| 75710 | Right front door waistline protection strip assembly | 75710-06210 · 75710-06290 · 75710-06291 · 75710-33180 |
| 75720 | Left front door waistline protection strip assembly | 75720-06210 · 75720-06290 · 75720-06291 · 75720-33180 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06190 · 75730-06270 · 75730-06271 · 75730-33180 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06190 · 75740-06270 · 75740-06271 · 75740-33180 |
| 75753 | Protective strip on right front door window frame | 75753-06140 · 75753-06220 · 75753-06221 · 75753-33110 |
| 75754A | Protective strip on left front door window frame | 75754-06140 · 75754-06220 · 75754-06221 · 75754-33110 |
| 75755C | Right front door window frame rear protective strip | 75755-06160 · 75755-06200 |
| 75756C | Left front door window frame rear protective strip | 75756-06160 · 75756-06200 |
| 75761A | Right rear door window frame front protective strip | 75761-06160 · 75761-06200 |
| 75762A | Left rear door window frame front protective strip | 75762-06160 · 75762-06200 |
| 75792 | Car door window frame protective strip clip | 75792-0R010 |
| 75850C | OEILLET, NO.1 | 90189-06237 |
| 75851 | Right side door sill panel protective strip | 75851-06941 · 75851-06942 |
| 75851C | VIS(POUR MOULURE BAS DE CAISSE CARROSSERIE) | 90162-40035 · 90162-A0001 |
| 75851F | OEILLET(MOULURE BAS DE CAISSE CARROSSERIE) | 90189-06157 |
| 75852 | Left side door sill panel protective strip | 75852-06941 · 75852-06942 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06240 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06210 |
| 75867A | Door sill panel protective strip clip | 75867-AA010 |
