Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

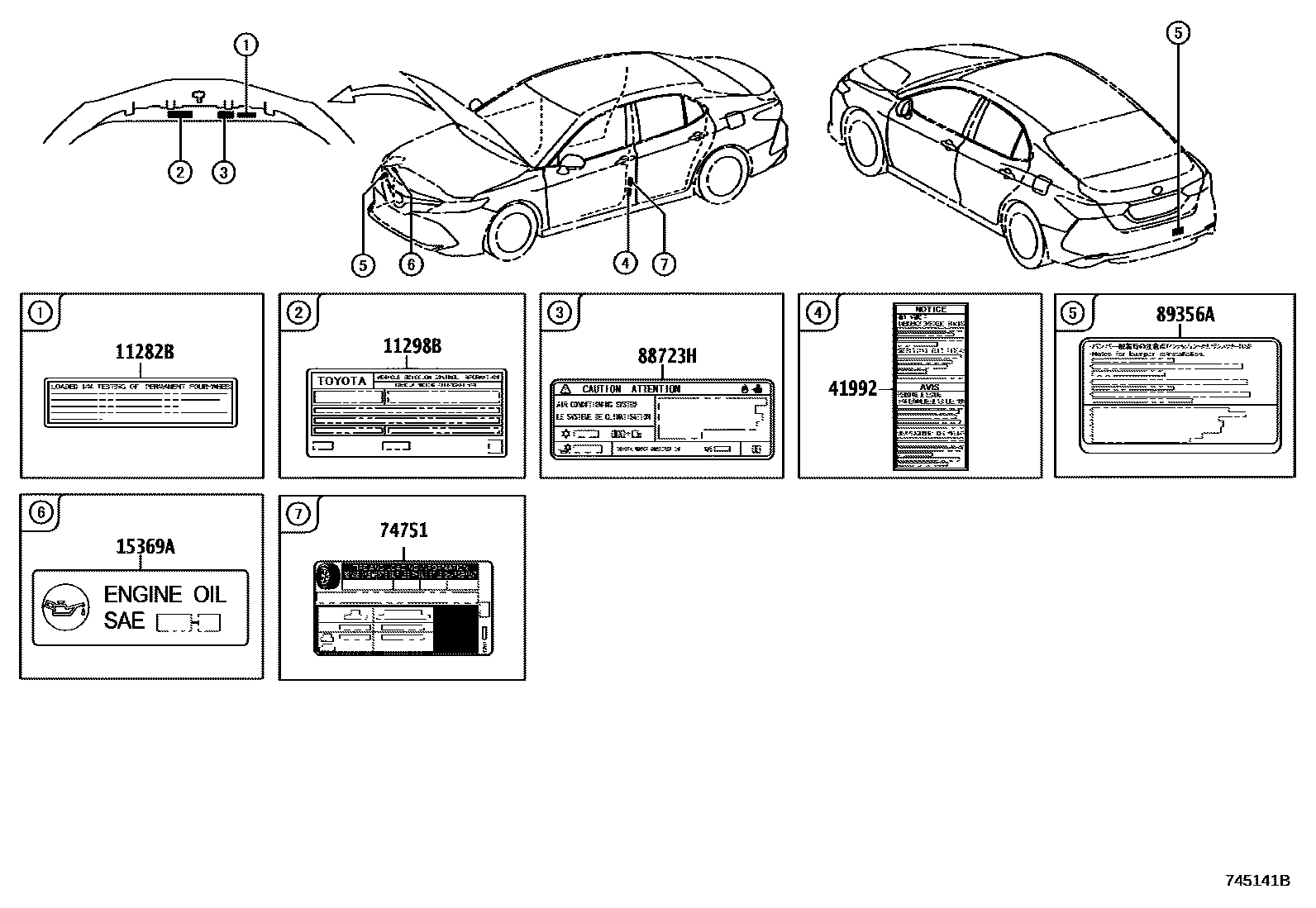

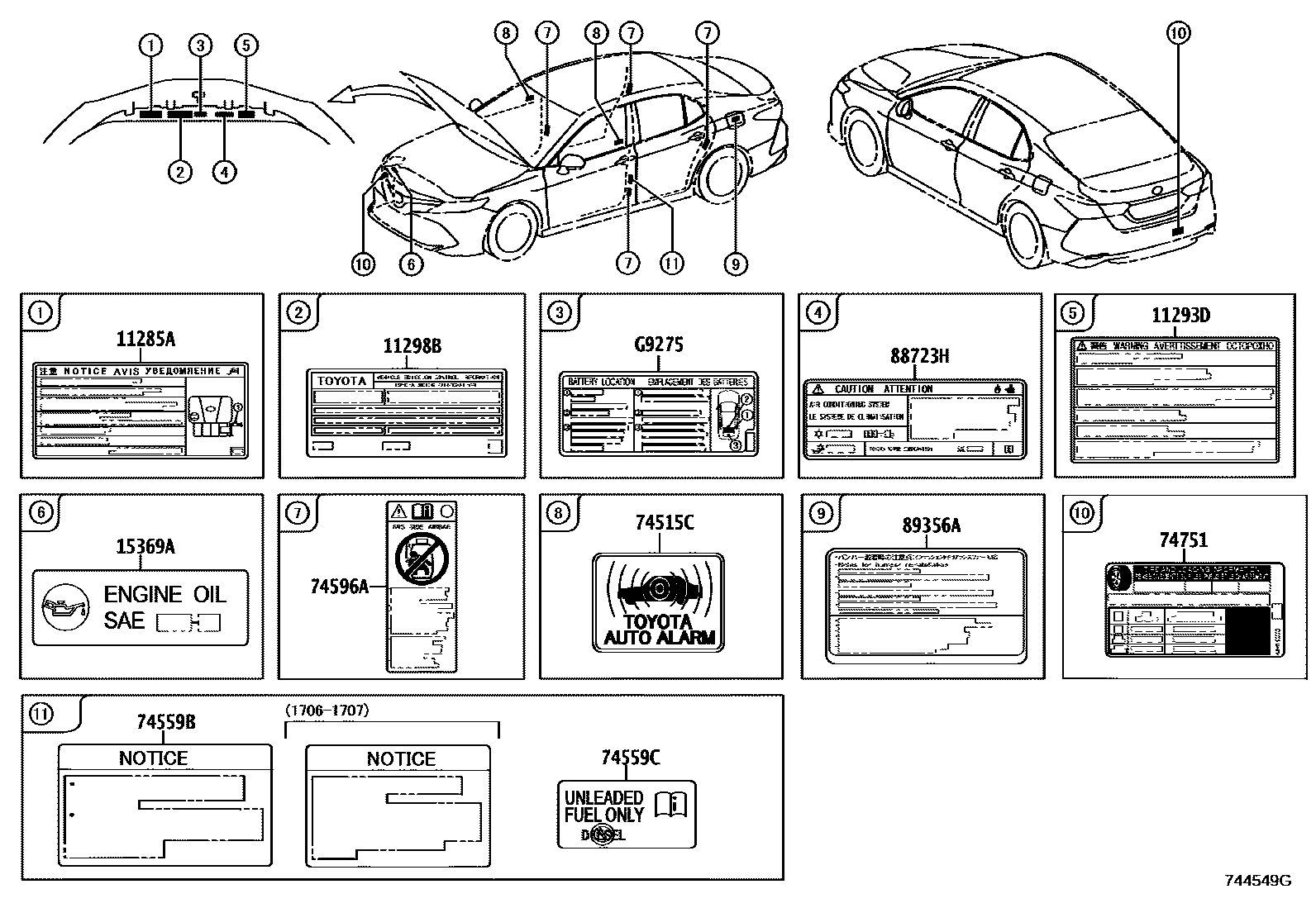

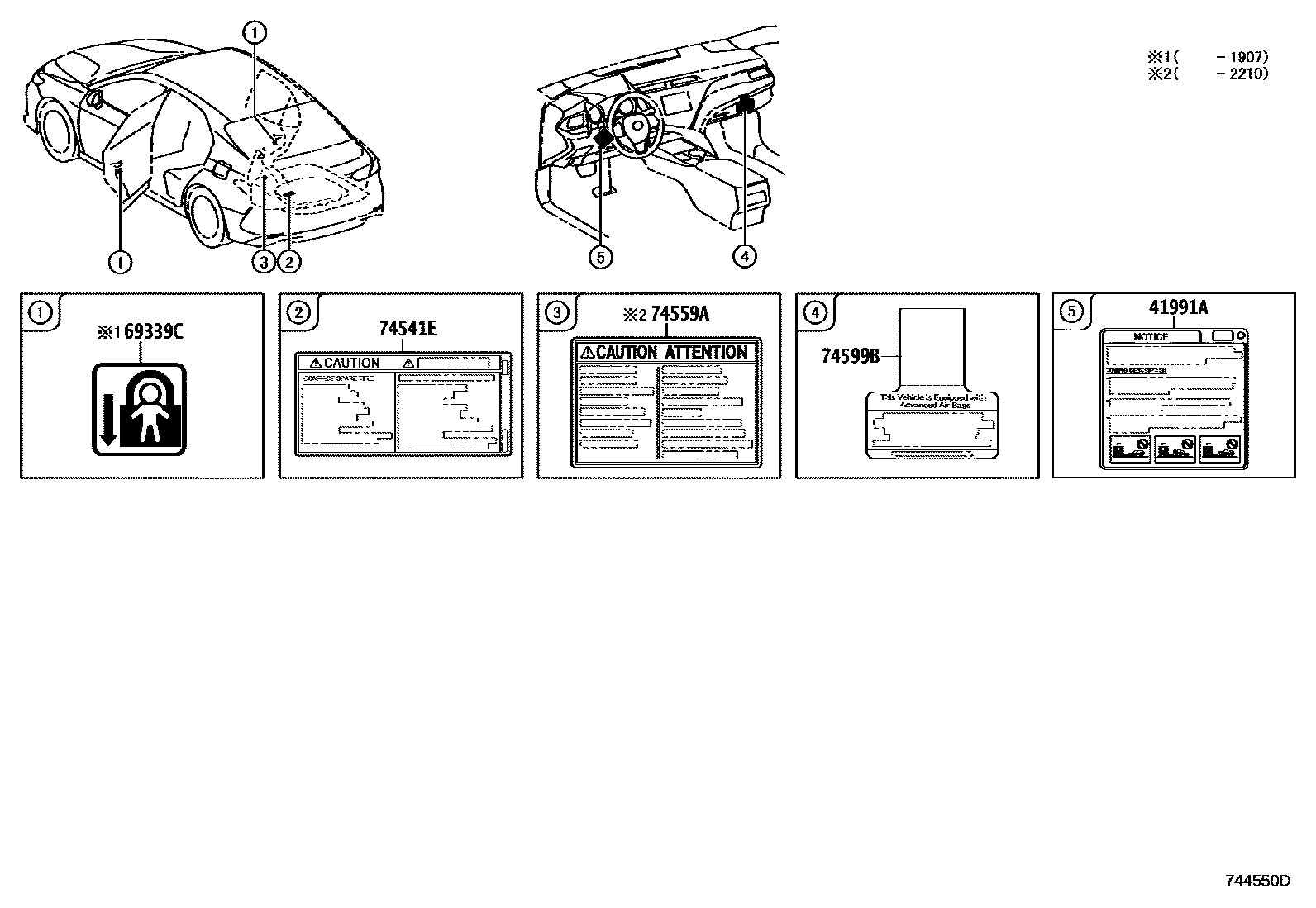

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11285A | Coolant System Caution Labels | 11285-F0010 |
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-0P310 · 11298-0P630 · 11298-0P700 · 11298-0P740 · 11298-0P741 · 11298-0P742 · 11298-0P743 · 11298-F0020 · 11298-F0021 · 11298-F0022 · 11298-F0031 · 11298-F0032 · 11298-F0033 · 11298-F0041 · 11298-F0110 · 11298-F0111 · 11298-F0120 · 11298-F0140 · 11298-F0141 · 11298-F0142 · 11298-F0143 · 11298-F0150 · 11298-F0151 · 11298-F0152 · 11298-F0153 · 11298-F0210 · 11298-F0211 · 11298-F0212 · 11298-F0213 |
| 15369A | Engine oil information label | 15369-0P010 · 15369-F0010 |

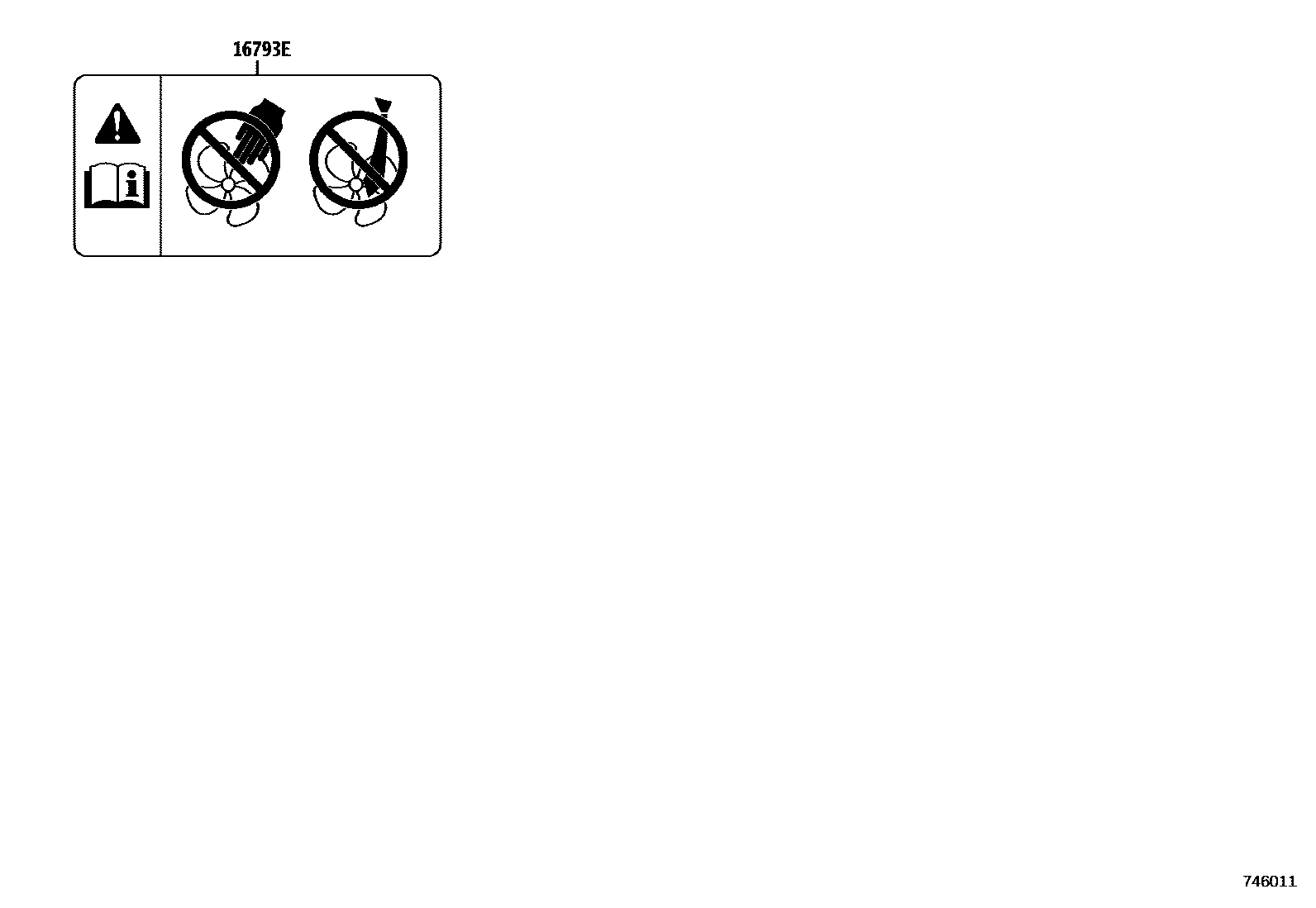

| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-0P030 · 16793-0P040 · 16793-36030 |
| 41991A | warning nameplate | 41992-42030 |
| 41992 | Differential attention label | 41992-08010 · 41992-48020 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74515C | Anti-theft warning information label | 74515-06010 |
| 74541E | Small spare tire warning plate | 42668-0E010 |
| 74559A | Fuel warning plate | 74559-30070 |
| 74559B | fuel information label | 74559-47030 · 74559-48010 |
| 74559C | ETIQUETTE, INFORMATIONS CARB, NO.2 | 74559-20140 |
| 74596A | Side air bag warning label | 74596-78010 |
| 74599B | Driver and passenger air bag information labels | 74599-0E020 |
| 74751 | tire pressure information label | 42661-06B20 · 42661-06B30 · 42661-06B40 · 42661-06B50 · 42661-06B60 · 42661-06B70 · 42661-06D00 · 42661-06D10 · 42661-06D20 · 42661-06D30 |
| 88723H | Cooler maintenance warning label | 88723-06130 · 88723-06140 · 88723-06220 · 88723-06260 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-06040 · G9275-12010 |
