Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

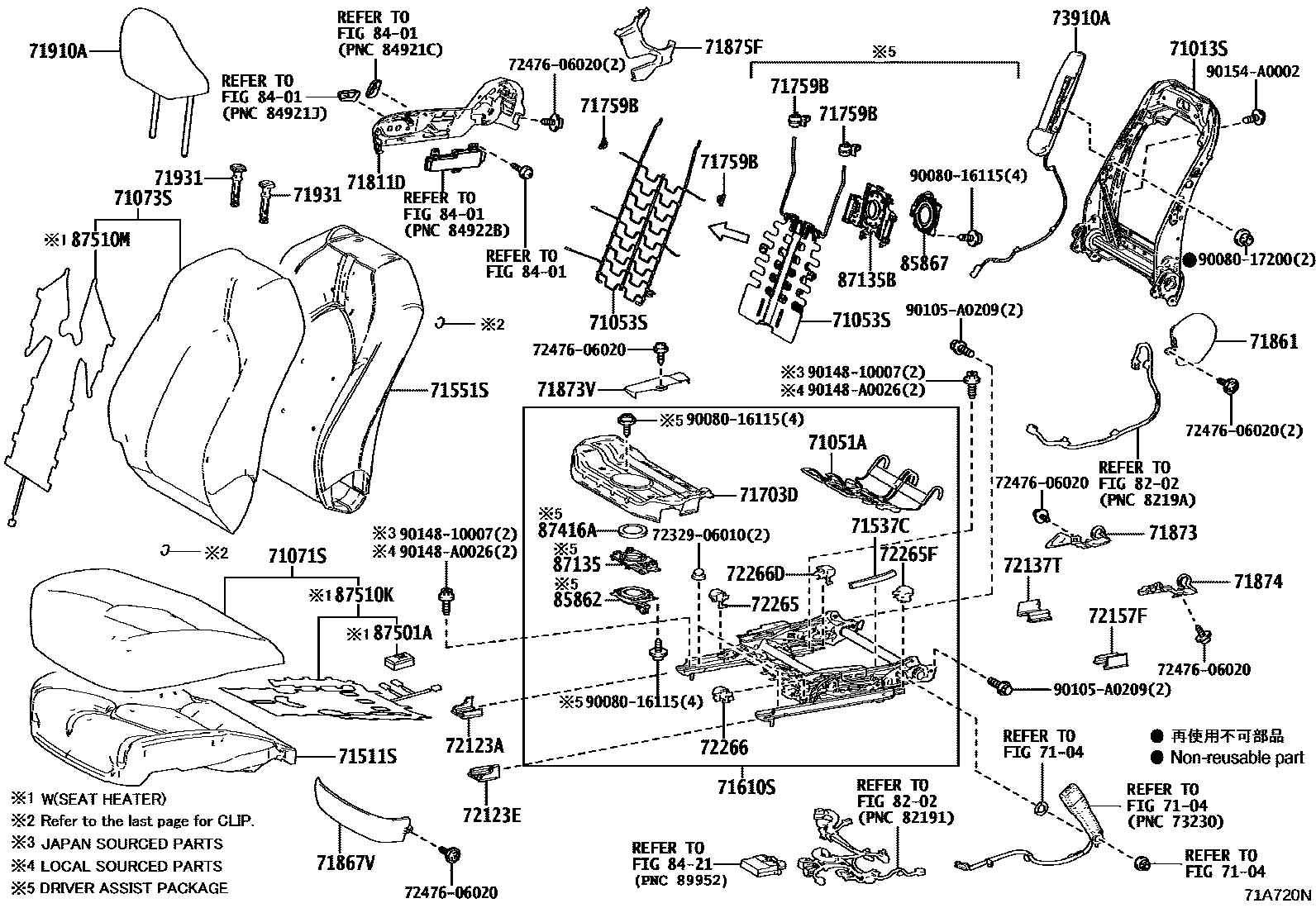

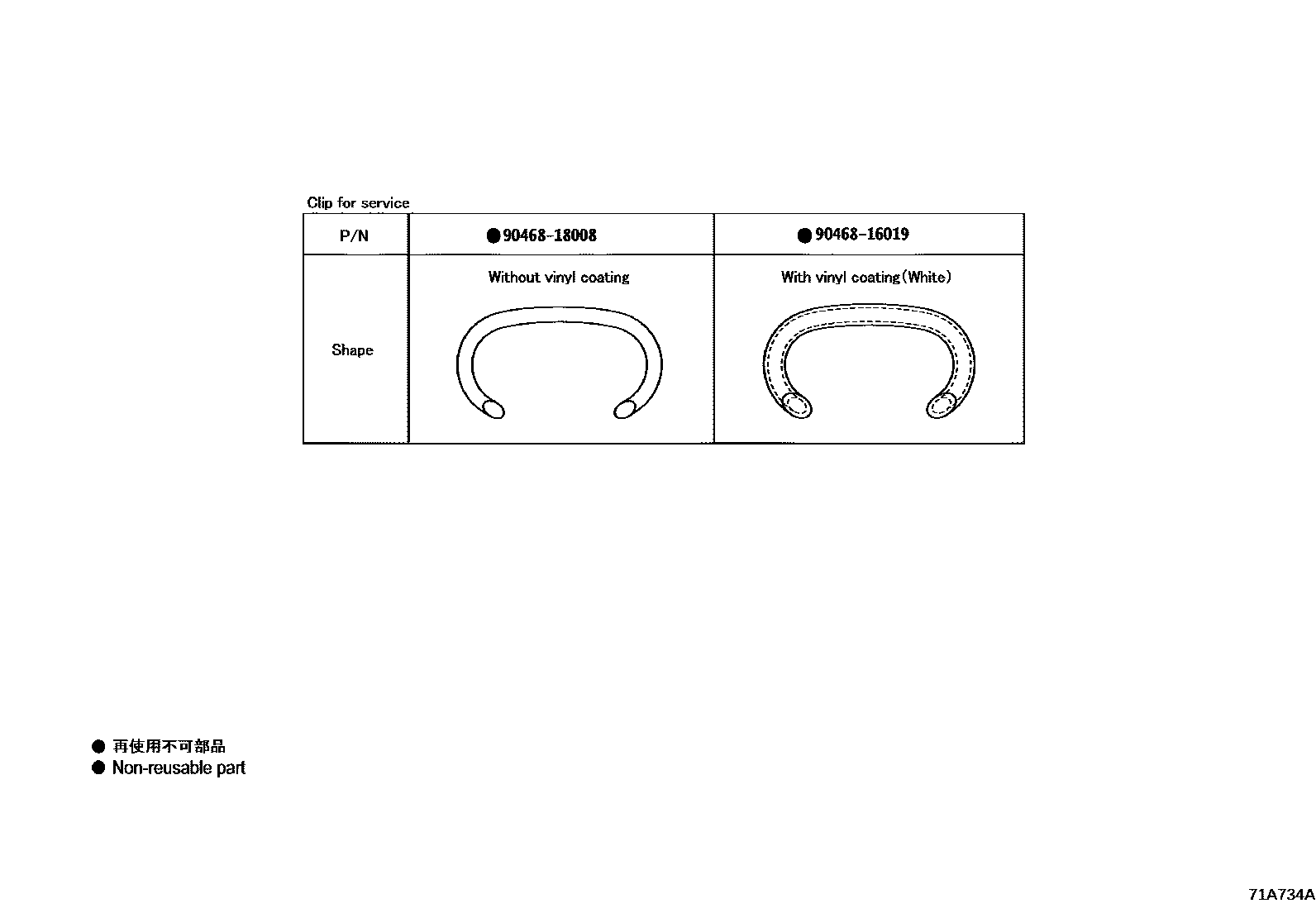

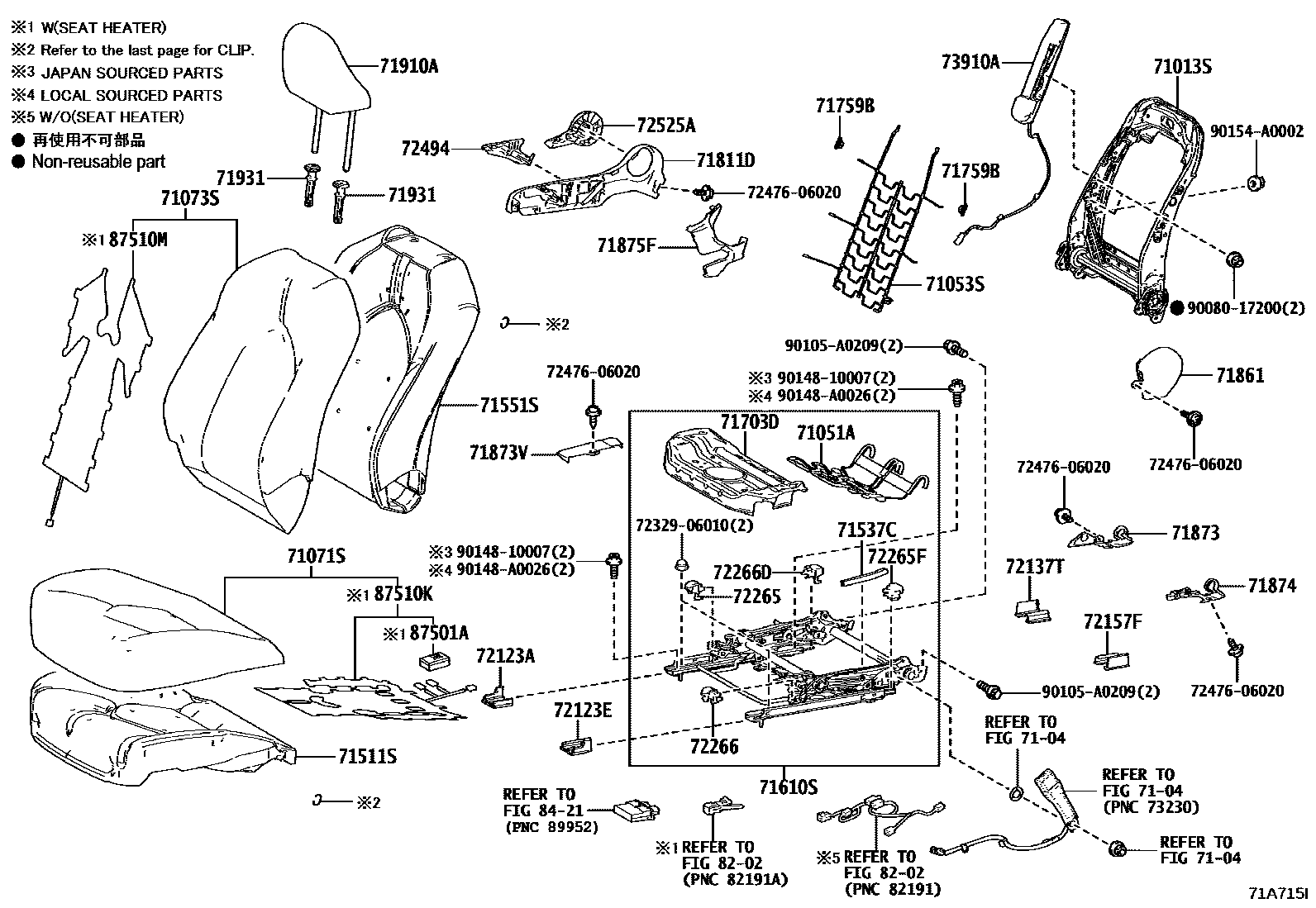

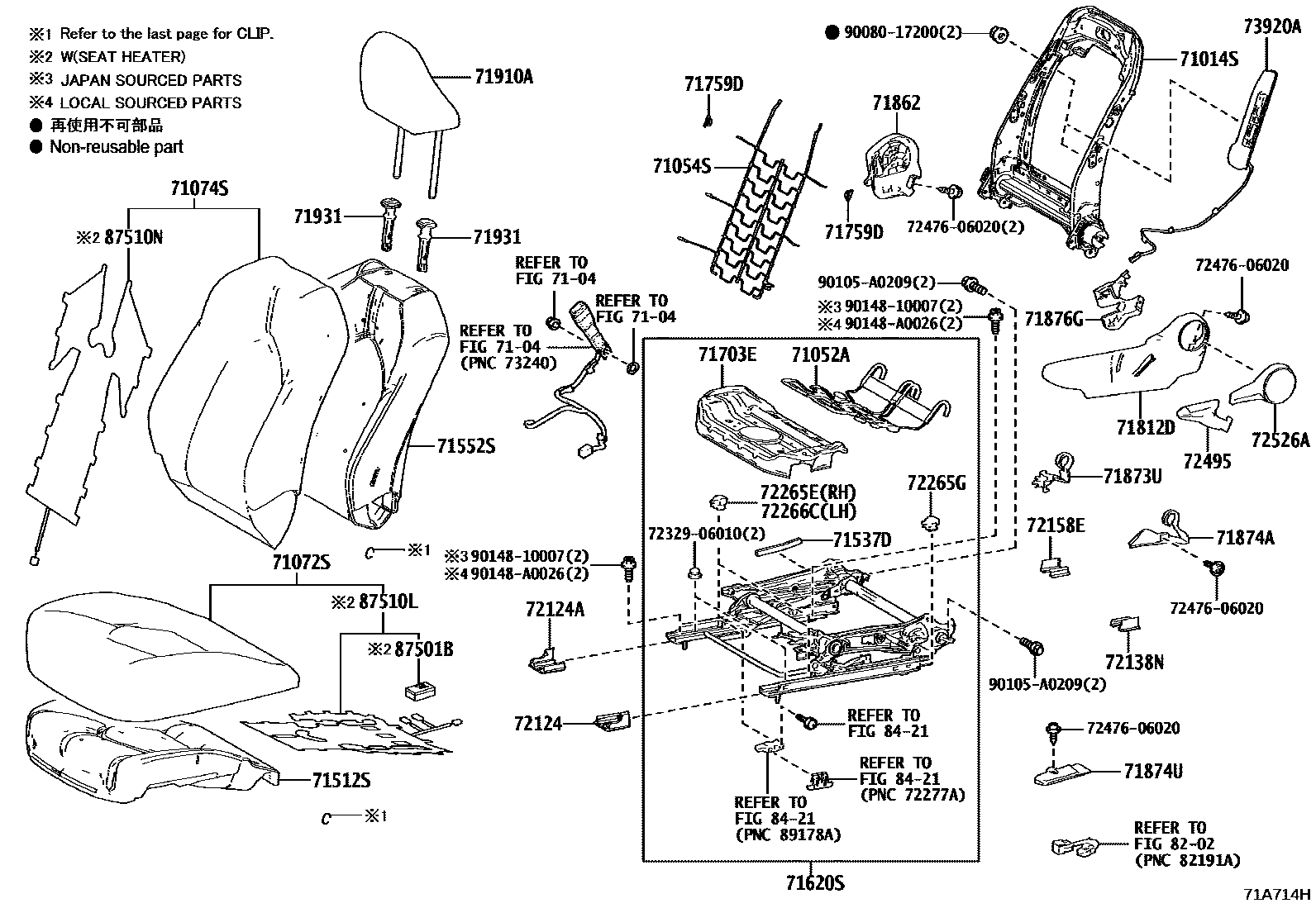

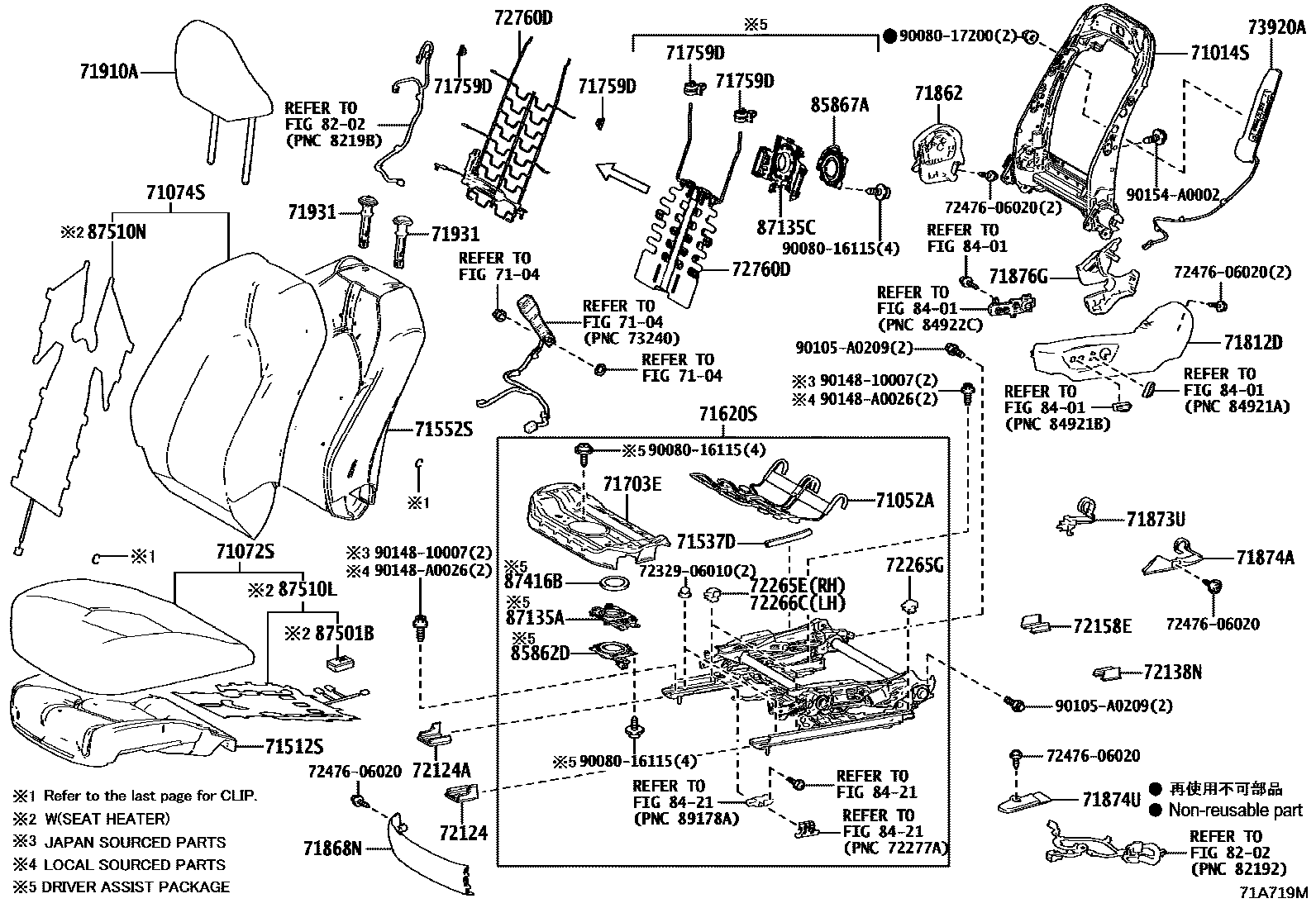

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06520 · 71013-06521 · 71013-06530 · 71013-06531 |
| 71014S | Front left seat back frame sub-assembly | 71014-06410 · 71014-06411 · 71014-06460 · 71014-06461 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06030 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06030 |
| 71053S | Front right seat back spring sub-assembly | 71053-06080 · 71053-06230 |
| 71054S | Front left seat back spring sub-assembly | 71053-06080 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-06830 · 71511-06840 · 71511-06A40 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06700 · 71512-06710 · 71512-06A80 |
| 71537C | Front right seat cushion edge protective cover | 71537-06210 |
| 71537D | Front left seat cushion edge protective cover | 71537-06210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06720 · 71551-06A80 · 71551-06A81 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06610 · 71552-06880 · 71552-06881 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06620 · 71610-06630 · 71610-06650 · 71610-06890 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06570 · 71620-06580 · 71620-06840 · 71620-06A00 |
| 71703D | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MD | 71703-06040 · 71703-07020 |
| 71703E | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MG | 71703-06040 · 71703-07020 |
| 71759B | Front seat back hook | 71759-06020 · 71759-06050 |
| 71759D | Front seat back hook 2 | 71759-06020 · 71759-06050 |
| 71873V | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71873-06660 |
| 71874U | PROTECTION, COUSSIN SIEGE AVANT, INF MG | 71874-06690 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06100 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72127-06100 |
| 72124 | Front left seat outer slide rail bracket cover | 72127-06100 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-06100 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-06120 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72138-06110 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-06190 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-06190 |
| 72265 | Right seat rail upper rail cover | 72265-06010 |
| 72265E | COUVERCLE, RAIL SUPERIEUR DE PISTE DE SIEGE, DR | 72265-06010 |
| 72265F | CACHE, RAIL SUPERIEUR GLISSIERE SIEGE, MG(POUR SIEGE MD) | 72265-06010 |
| 72265G | CACHE, RAIL SUPERIEUR GLISSIERE SIEGE, MG(POUR SIEGE MG) | 72265-06010 |
| 72266 | Left seat rail upper rail cover | 72266-06010 |
| 72266C | COUVERCLE, RAIL SUPERIEUR DE PISTE DE SIEGE, GA | 72266-06010 |
| 72266D | CACHE, RAIL SUPERIEUR GLISSIERE SIEGE, MD(POUR SIEGE MD) | 72266-06010 |
| 72760D | Left lumbar support adjuster assembly | 72750-06130 · 72760-06190 |
| 73910A | Front right seat airbag assembly | 73910-06190 · 73910-06191 |
| 73920A | Front left seat airbag assembly | 73920-06200 · 73920-06201 |
| 85862 | Right seat temperature control blower | 85862-07020 · 85862-07030 |
| 85862D | SOUFFLERIE, REGULATION TEMP COUSSIN SIEGE, MG | 85862-07020 · 85862-07030 |
| 85867 | Right seat back temperature control blower | 85867-07020 · 85867-07030 |
| 85867A | Left-hand seat back temperature control blower | 85867-07020 · 85867-07030 |
| 87135 | ADAPTATEUR, VENT SOUFFLERIE, MD(POUR COUSSIN SIEGE) | 87135-07020 |
| 87135A | ADAPTATEUR, VENT SOUFFLERIE, MG(POUR COUSSIN SIEGE) | 87135-07020 |
| 87135B | ADAPTATEUR, VENT SOUFFLERIE, MD(POUR DOSSIER SIEGE) | 87135-07011 |
| 87135C | ADAPTATEUR, VENT SOUFFLERIE, MG(POUR DOSSIER SIEGE) | 87135-07011 |
| 87416A | JOINT, CONDUIT AIR, MD | 87416-07010 |
| 87416B | JOINT, CONDUIT AIR, MG | 87416-07010 |
| 87501A | Right seat heater control sub-assembly | 87501-07010 |
| 87501B | Left side seat heater control sub-assembly | 87501-07010 |
| 87510K | Front right seat cushion heater assembly | 87510-06110 |
| 87510L | Front left seat cushion heater assembly | 87510-06110 |
| 87510M | Front right seat back heater assembly | 87530-06060 |
| 87510N | Front left seat back heater assembly | 87530-06060 |
