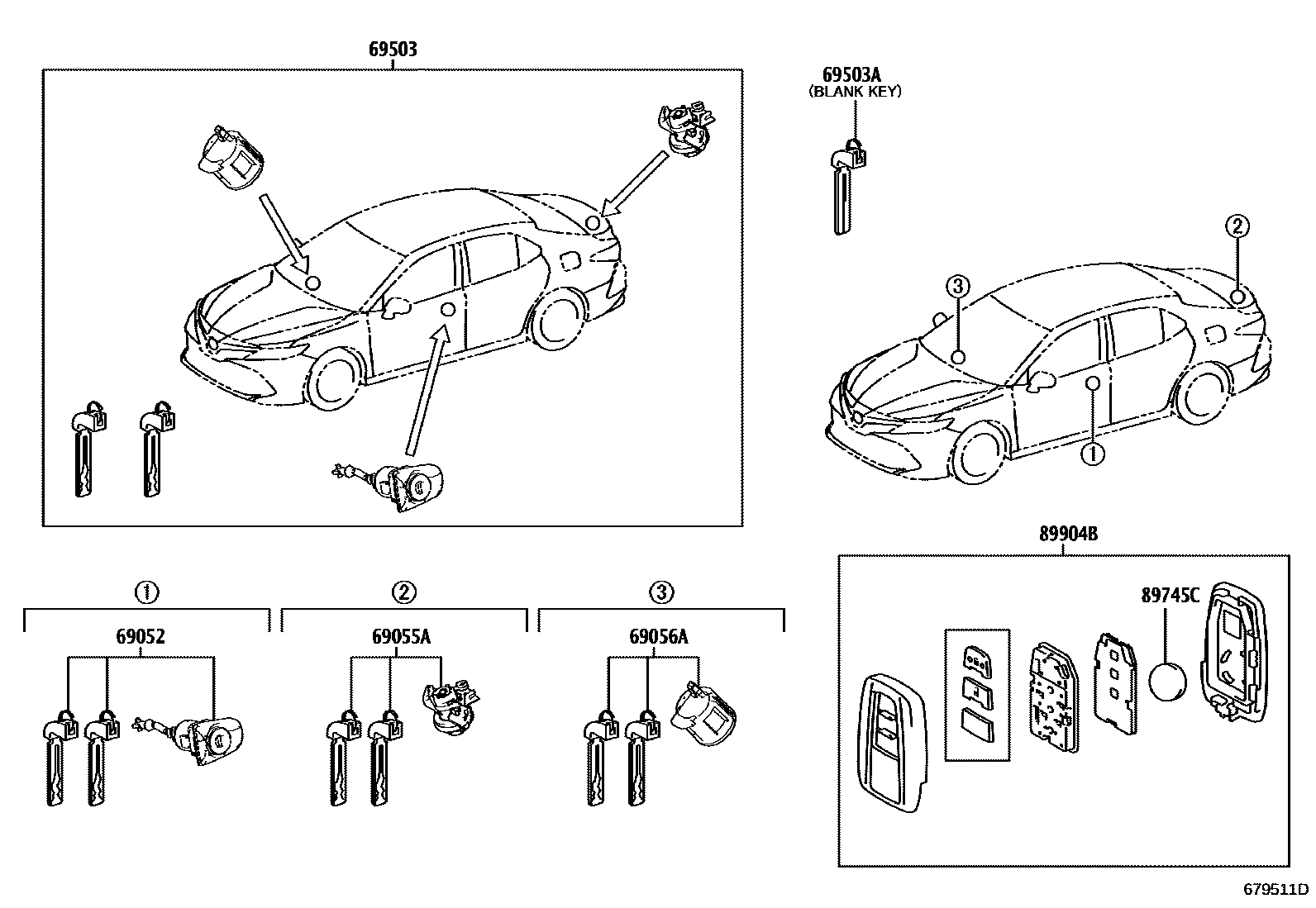

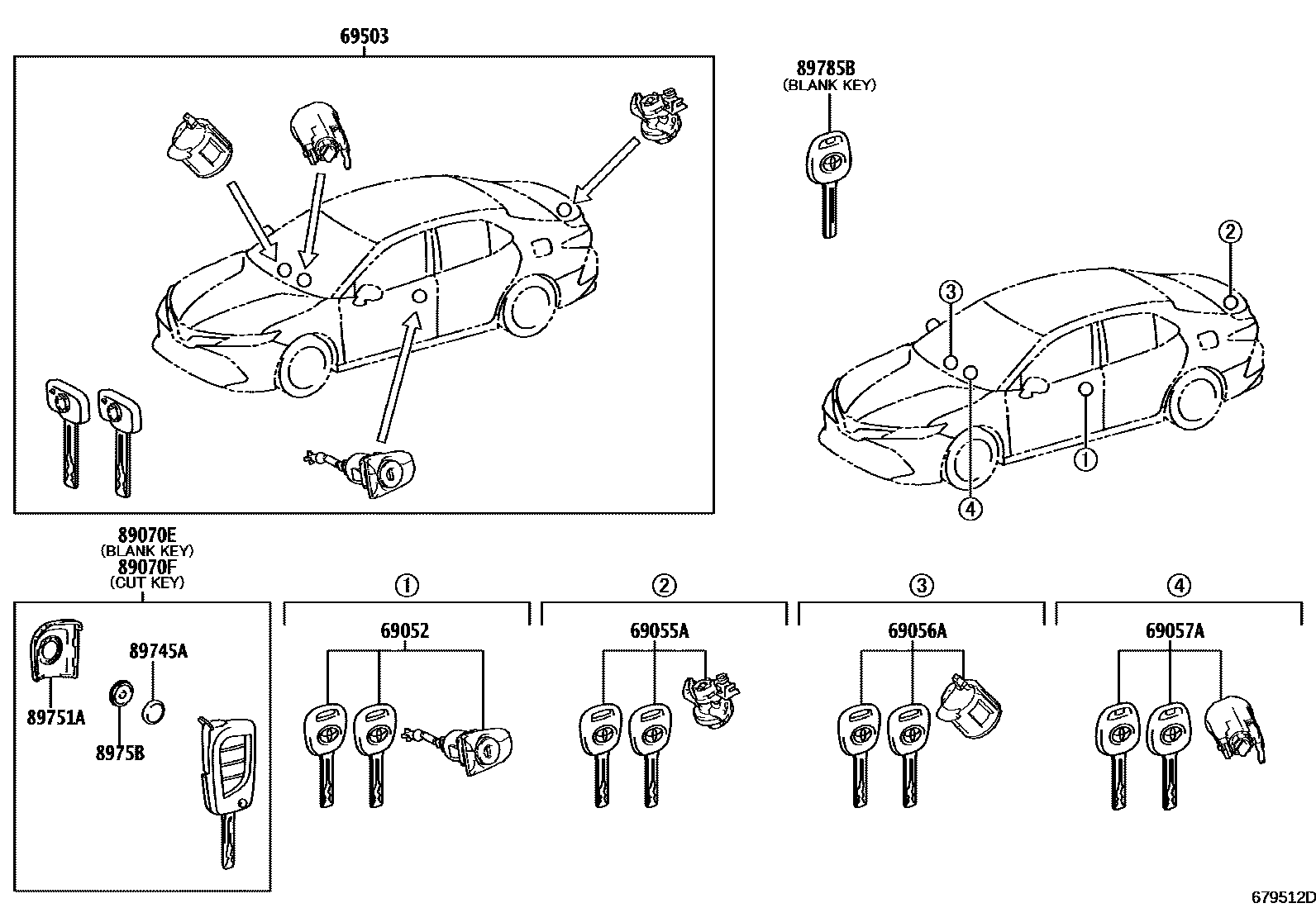

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-06250 · 69052-06260 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06160 · 69055-06170 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06170 · 69056-06180 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06260 |
| 69503 | Door lock cylinder components | 69005-06760 · 69005-06761 · 69005-06770 · 69005-06771 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 |
| 89070E | Remote key assembly | 89070-06790 · 89070-06791 |
| 89070F | Remote key assembly (internal tooth key) | 89070-06800 · 89070-06801 |
| 89745A | Transmitter battery | 89745-0D010 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-06110 |
| 8975B | Remote control battery case cover | 8975B-33050 · 8975B-52010 |
| 89785B | transceiver key master transmitter | 89785-02410 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06200 · 89904-06220 · 89904-06240 · 89904-06350 |
