Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 54 PNC and OE references.

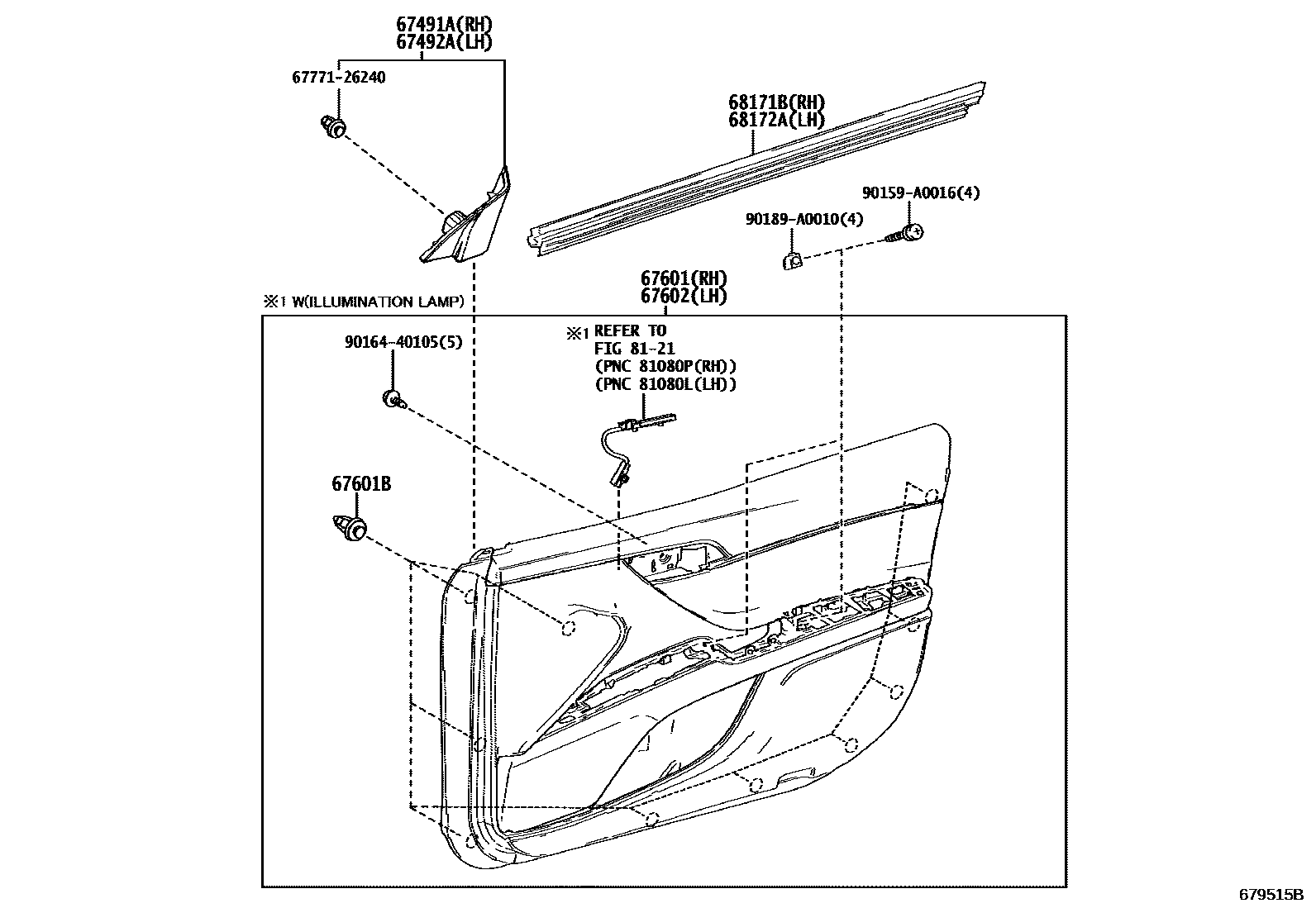

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 679515B
前门板和前门玻璃 — 679515B (201706 – 999999)

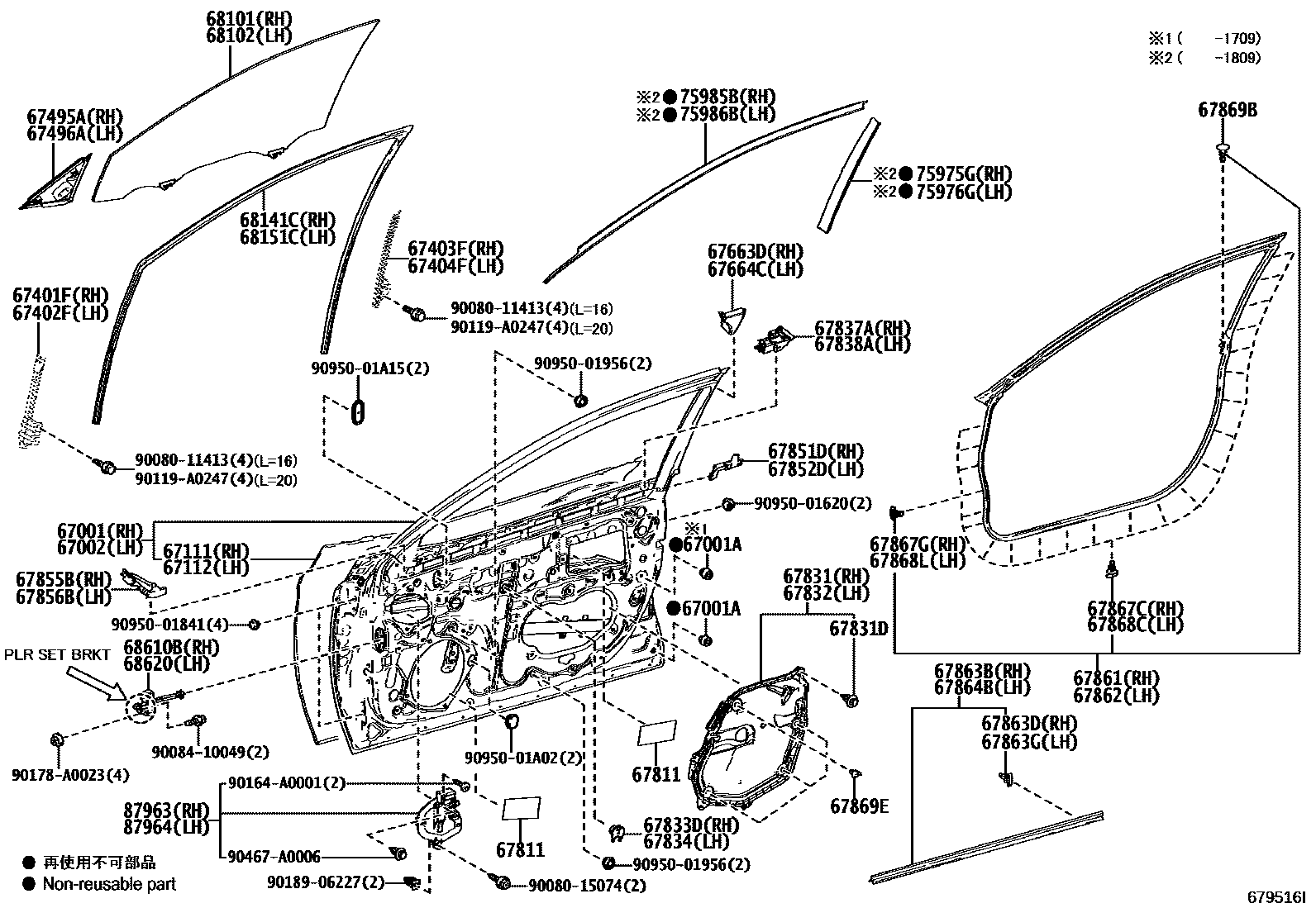

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 679516I
前门板和前门玻璃 — 679516I (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-06280 · 67001-06281
67001AFront door panel cushion90541-09143
67002Left front door panel sub-assembly67002-06270 · 67002-06271
67111Outer right front door panel67111-06200
67112Outer left front door panel67112-06200
67401FRight front door front lower door frame sub-assembly67401-06160
67402FLeft front door front lower door frame sub-assembly67402-06160
67403FRight front door rear lower door frame sub-assembly67403-06141
67404FLeft front door rear lower door frame sub-assembly67404-06141
67491ARight front door lower door frame bracket decorative strip67491-06170
67492ALeft front door lower door frame bracket decorative strip67492-06170
67495ARight front door front lower door frame upper cover67495-06020 · 67495-06060
67496ALeft front door front lower door frame upper cover67496-06020 · 67496-06060
67601BCatch (for front door trim panel)90467-A0005 · 90467-A0048
67663DRight door frame decorative strip67663-06130
67664CLeft door frame decorative strip67664-06130
67811Front door silencer pad67811-AA040
67831Right front door access hole cover67831-06190
67831DCatch (for front door access hole cover)90467-A0005
67832Left front door access hole cover67832-06190
67833DRight front door No. 2 access hole cover67833-0E010
67834Left front door No. 2 access hole cover67833-0E010
67837ARight front door ventilator seal67837-06030 · 67837-06031
67838ALeft front door ventilator seal67838-06020 · 67838-06021
67851DJOINT, EXTERIEUR ARRIERE PORTE AVANT, MD67851-06020
67852DJOINT, EXTERIEUR ARRIERE PORTE AVANT, MG67852-06020
67855BRight front door panel protector67855-06010
67856BLeft front door panel protector67856-06010
67861Right front door seal67861-06180
67862Left front door seal67862-06180
67863BRight front door seal No. 267863-06100
67863DRight side fixing piece (for front door seal No. 2)67867-52010
67863GLeft side fixing piece (for front door seal No. 2)67867-52010
67864BLeft front door seal No. 267863-06100
67867CRight front door seal strip fixing67867-12150
67867GRight door sealing strip fixing67867-52030
67868CLeft front door seal strip fixing67867-12150
67868LLeft door seal strip fixing67867-52030
67869BFront door seal strip clip67868-30030
67869EFront door seal strip clip67869-0E010
68101Right front door glass sub-assembly68101-06340 · 68101-06350
68102Left front door glass sub-assembly68102-06340 · 68102-06350
68141CRight front door glass lift channel68141-06190 · 68141-06191 · 68141-06192 · 68141-06200
68151CLeft front door glass lift channel68151-06180 · 68151-06181 · 68151-06182 · 68151-06190
68171BRight front door glass inner sealing strip68171-06210 · 68171-06212
68172ALeft front door glass inner sealing strip68172-06210 · 68172-06212
68610BRight front door opening limiter assembly68610-06150 · 68610-06151 · 68610-06152
68620Left front door opening limiter assembly68610-06150 · 68610-06151 · 68610-06152
75975GRight front door outer lower trim strip75975-06110
75976GLeft front door outer lower trim strip75976-06110
75985BRight front door trim75985-06110
75986BLeft front door trim75986-06110
87963Right exterior rearview mirror mounting hole cover87963-06020
87964Left exterior rearview mirror mounting hole cover87964-06020
