Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 3 images and 7 PNC and OE references.

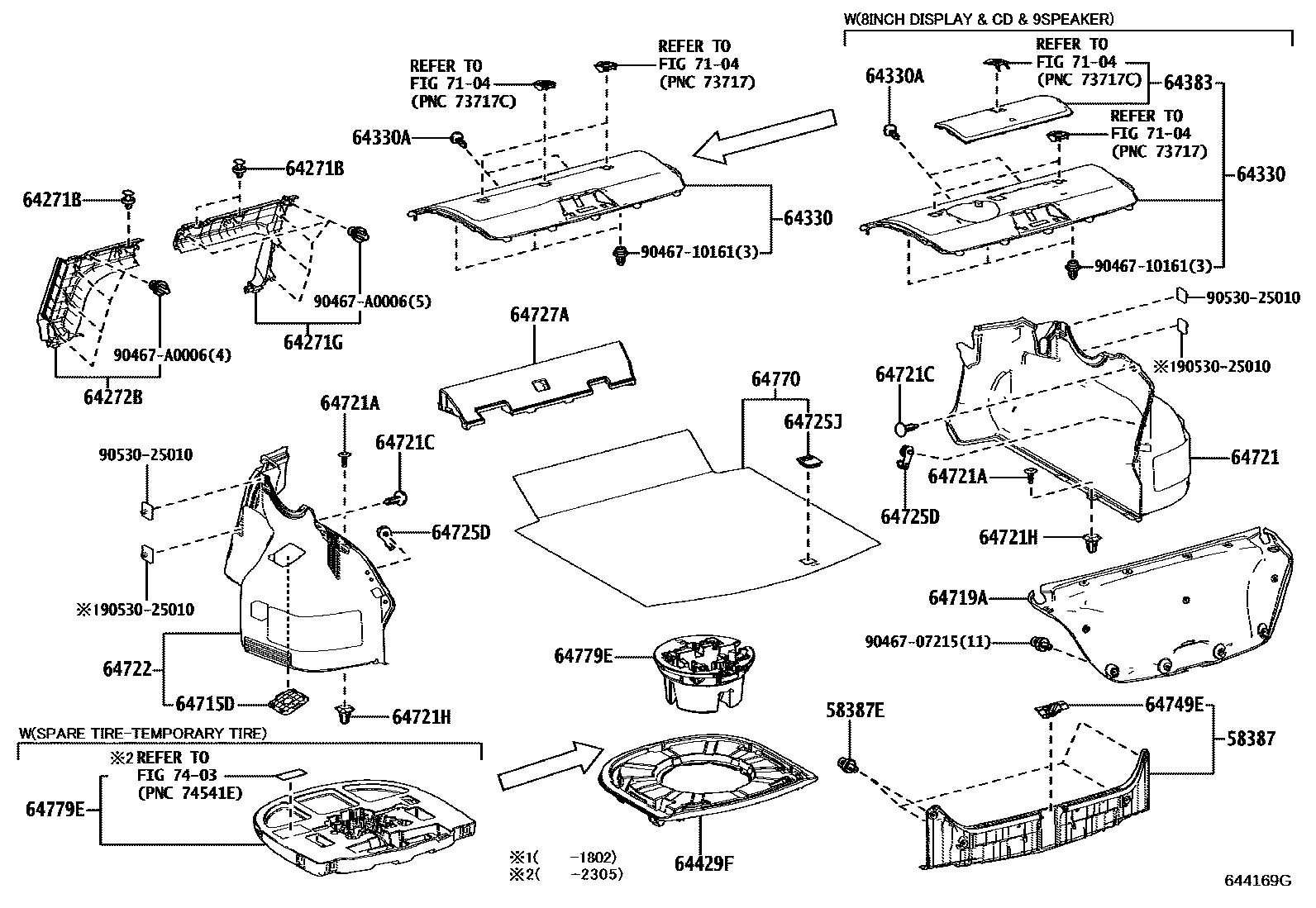

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 644169G
杂物箱板和行李箱垫 — 644169G (201706 – 999999)

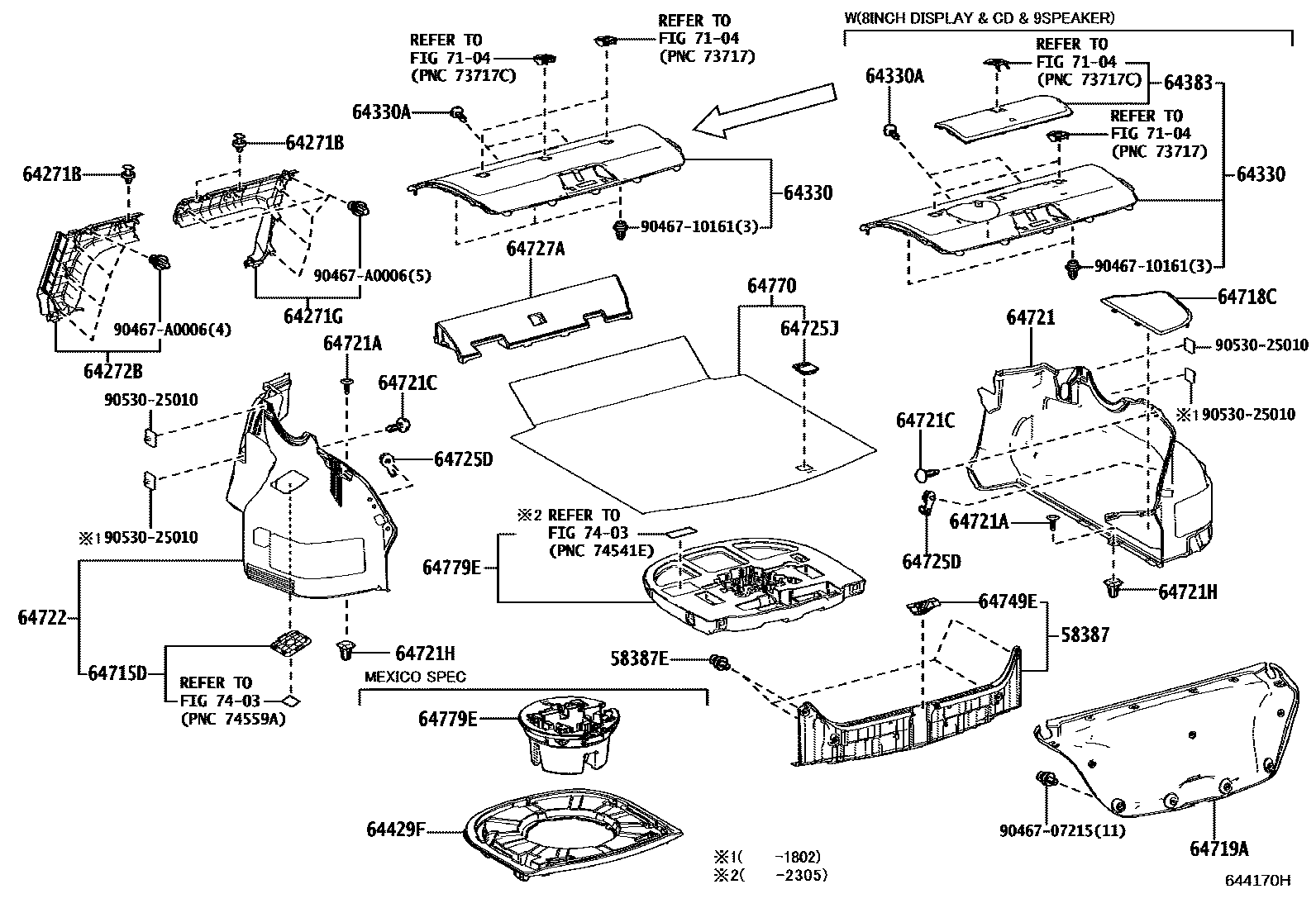

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 644170H
杂物箱板和行李箱垫 — 644170H (201706 – 999999)

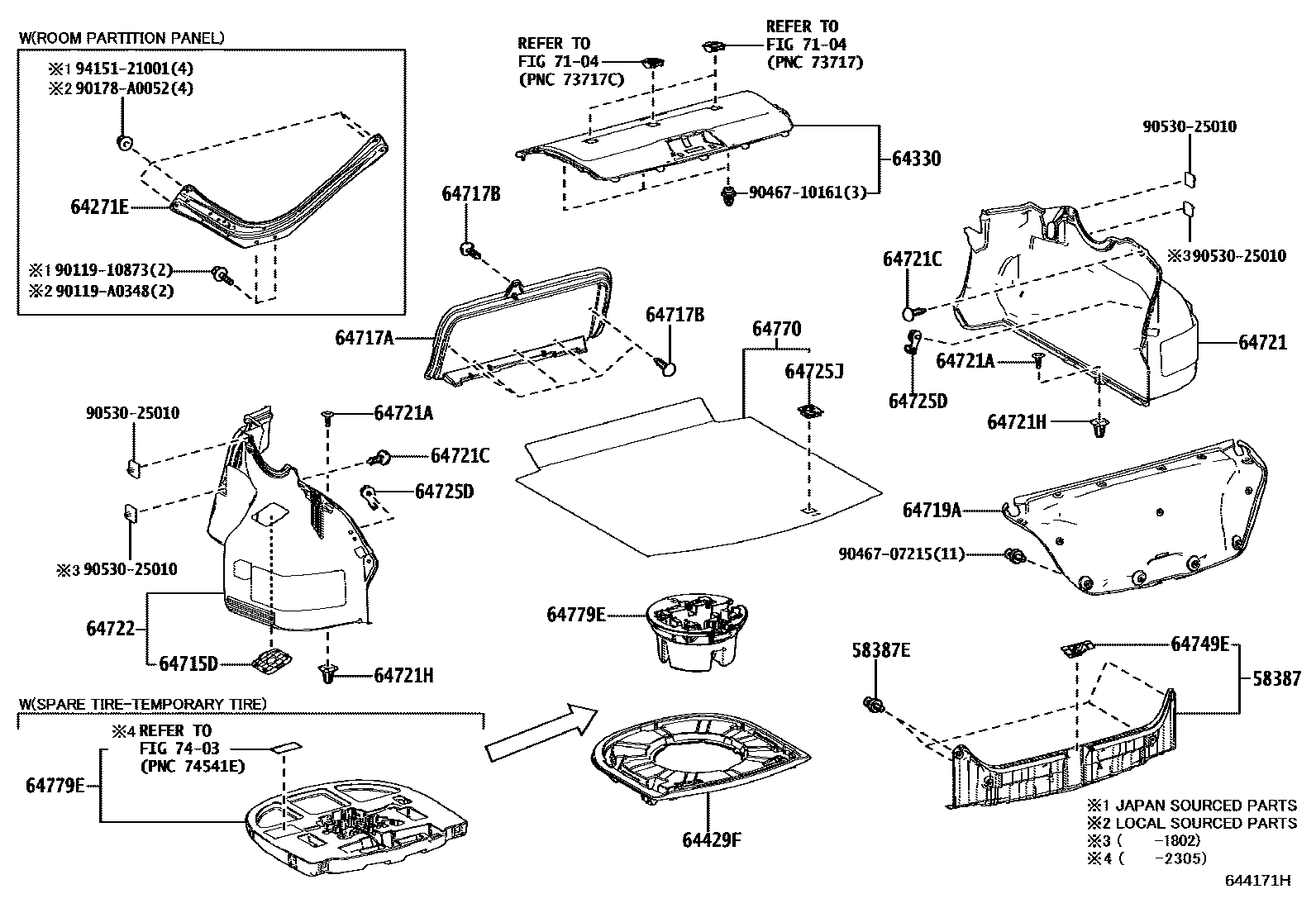

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 644171H
杂物箱板和行李箱垫 — 644171H (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387EClip (for rear floor trim panel)90467-07215
64271Ecompartment partition64241-33070
64429Fsuitcase decorative box64429-06010
64721HClip (suitcase)64779-26010 · 90467-10023
64725JLuggage decorative hook No. 164725-06090
64727ALuggage interior decorative mat64727-06100 · 64727-06170
64779ESpare tire cover bracket64779-06170 · 64779-06210 · 64779-06220 · 64779-06290 · 64779-06400
