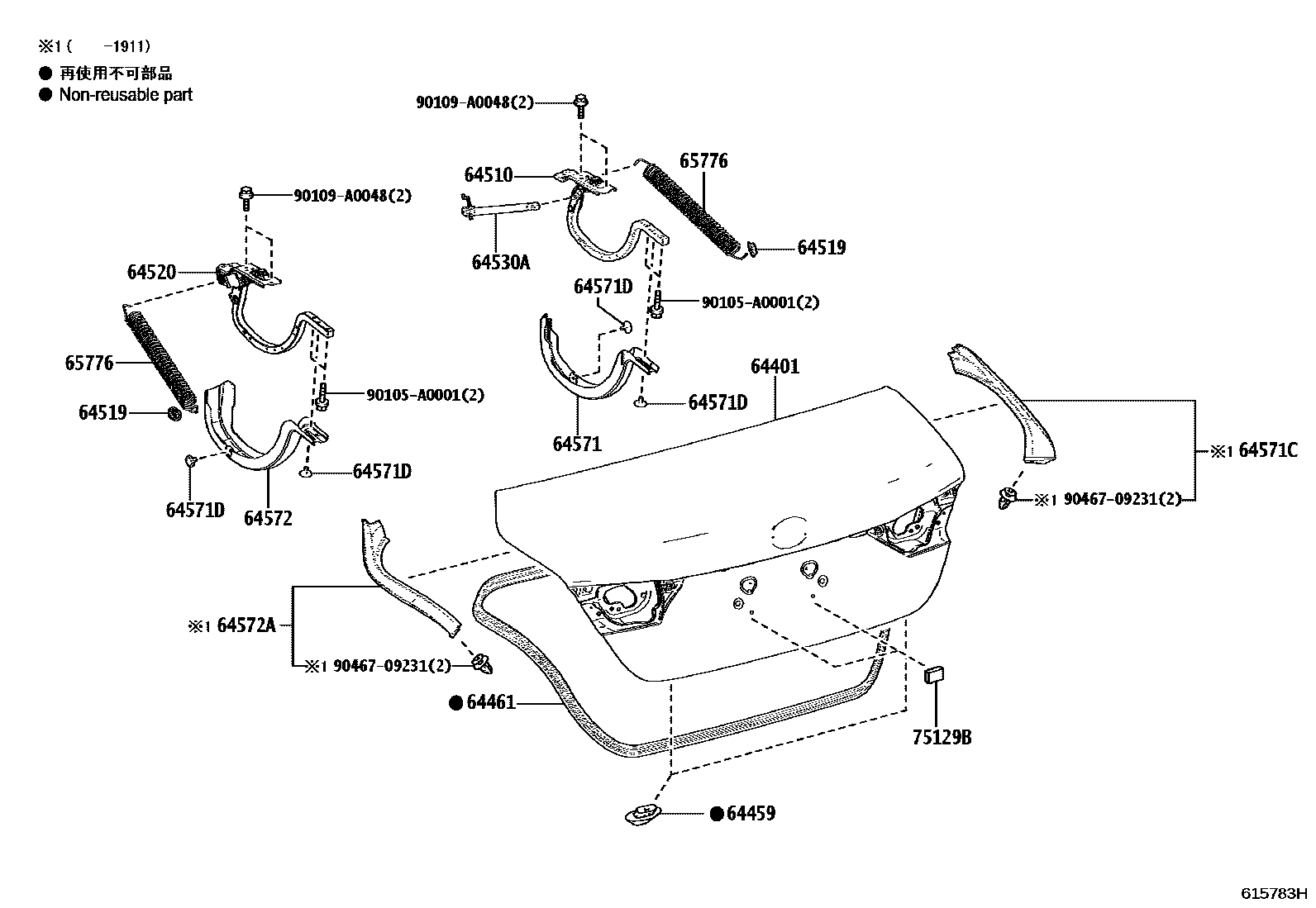

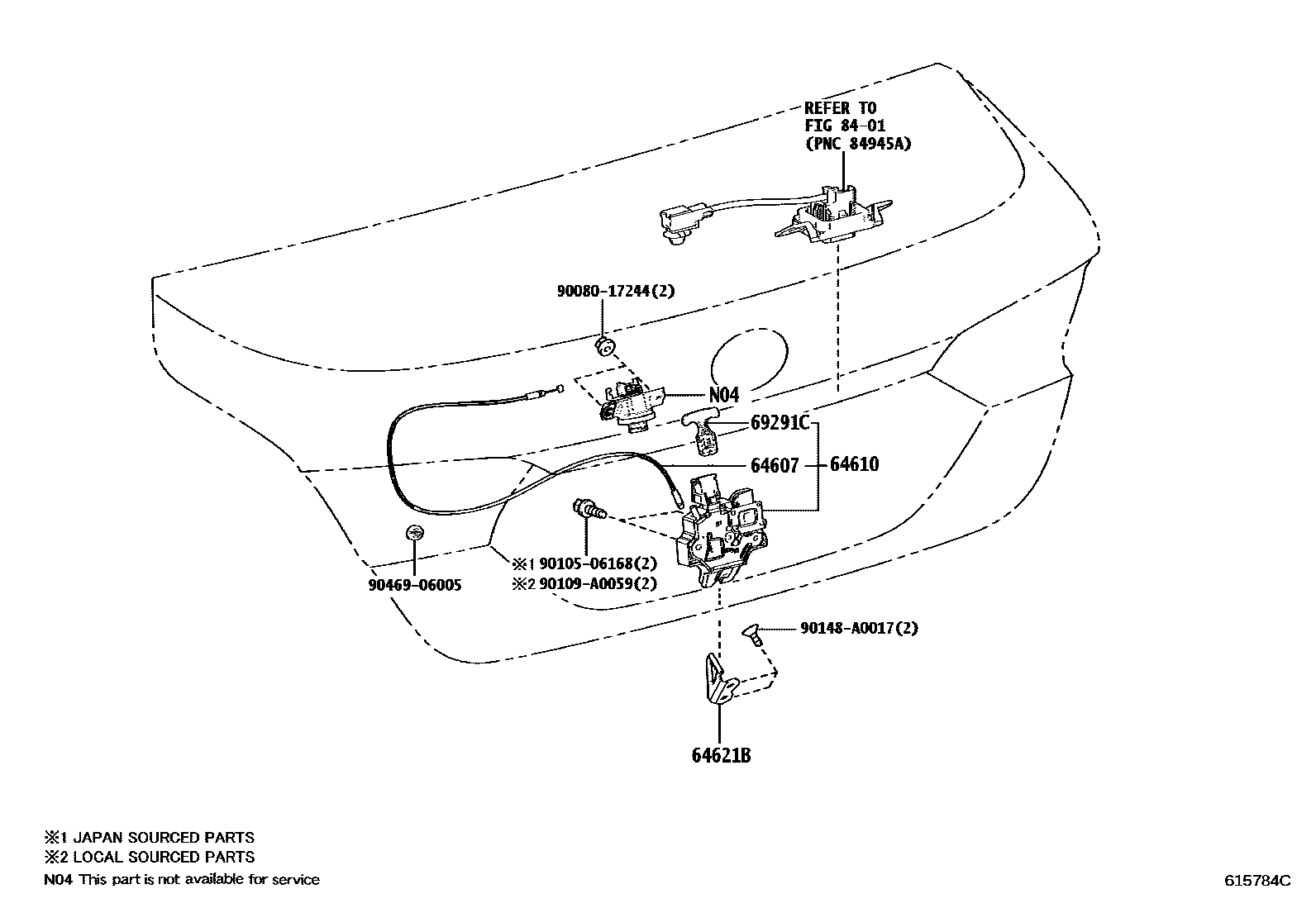

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-06A90 · 64401-06E00 · 64401-06E10 · 64401-06F40 · 64401-06F50 |
| 64459 | Trunk door cushion | 64459-06040 |
| 64461 | Trunk door seal | 64461-06220 |
| 64510 | Trunk door right hinge assembly | 64510-06280 |
| 64519 | BAGUE, SUPPORT CHARNIERE PORTE BAGAGES | 64519-06090 · 64519-07020 |
| 64520 | Trunk door left hinge assembly | 64520-06100 |
| 64530A | Trunk door bracket assembly | 64530-06010 |
| 64571 | Trunk door hinge cover | 64571-06090 |
| 64571C | Decorative cover on right side of luggage compartment door | 64571-06140 |
| 64571D | ATTACHE(PR REVETEMENT CHARNIERE PORTE COMPARTIMENT BAGAGES) | 90467-07215 |
| 64572 | Trunk door left hinge cover | 64572-06070 |
| 64572A | Luggage door left decorative cover | 64572-06120 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06330 |
| 64610 | Trunk door lock assembly | 64600-06070 |
| 64621B | Trunk door latch | 64621-06030 |
| 65776 | Rear door support rod spring | 65776-06010 |
| 69291C | Luggage door inner handle | 69291-33020 |
| 75129B | rear license plate cushion | 75129-AC010 |
