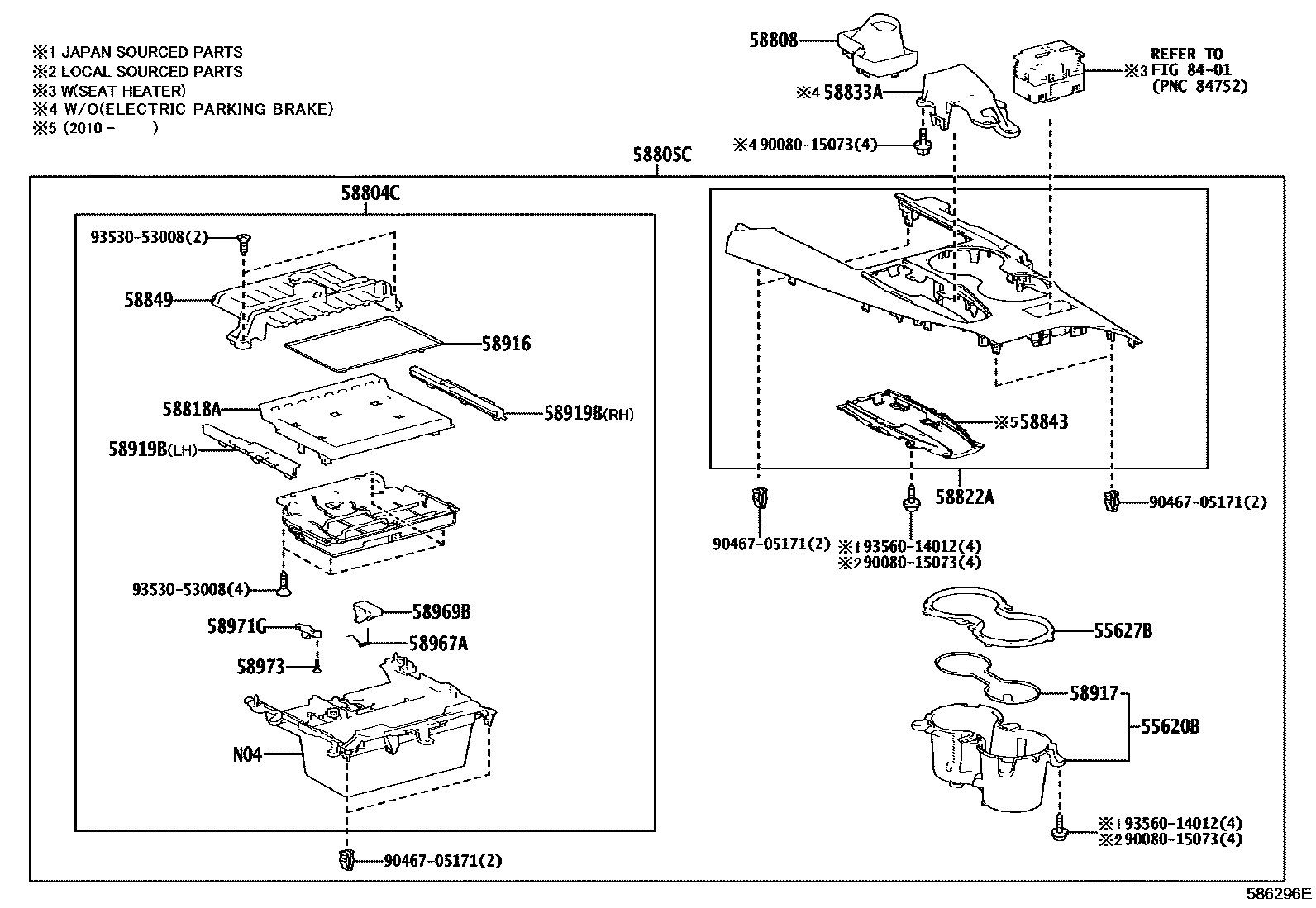

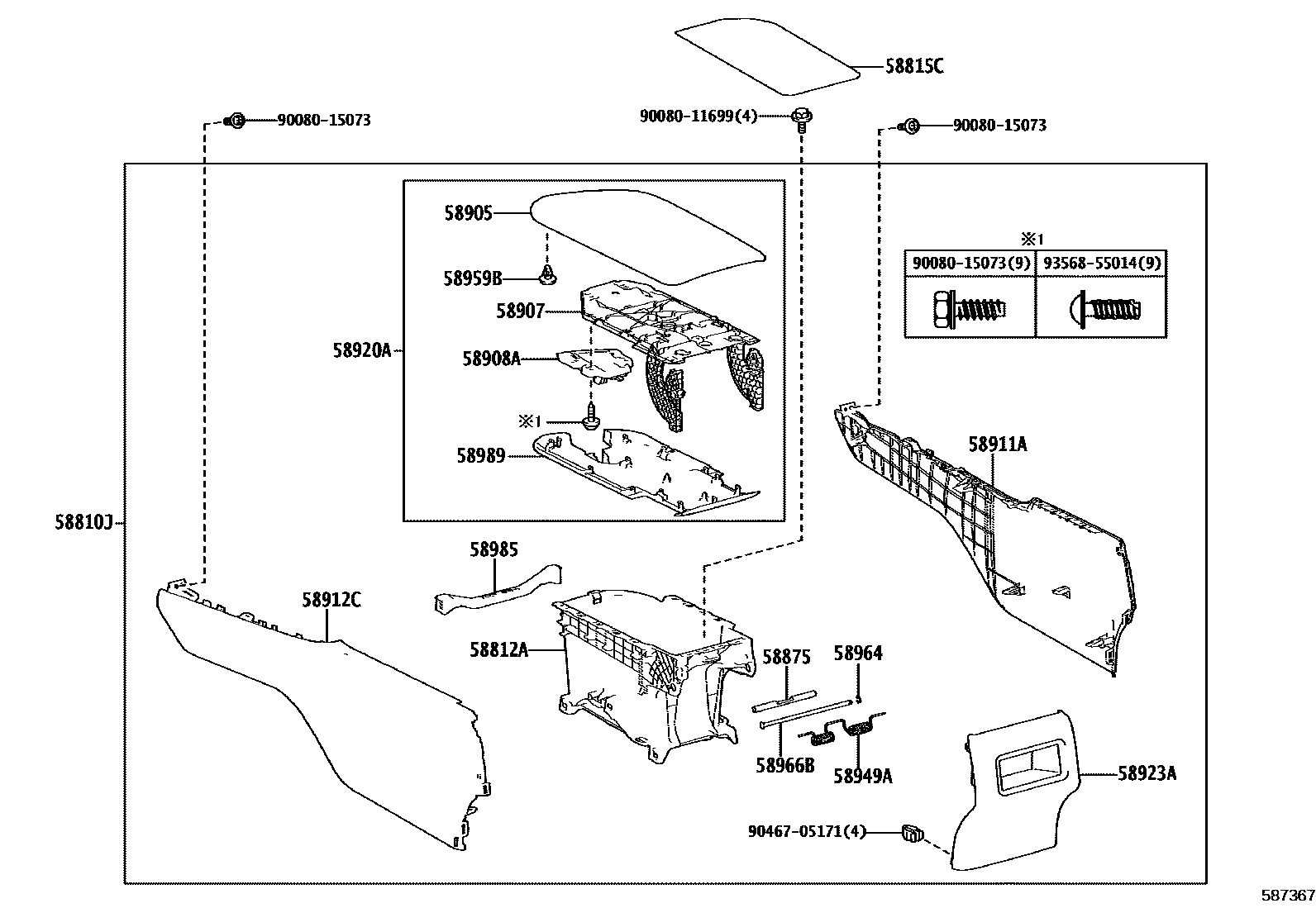

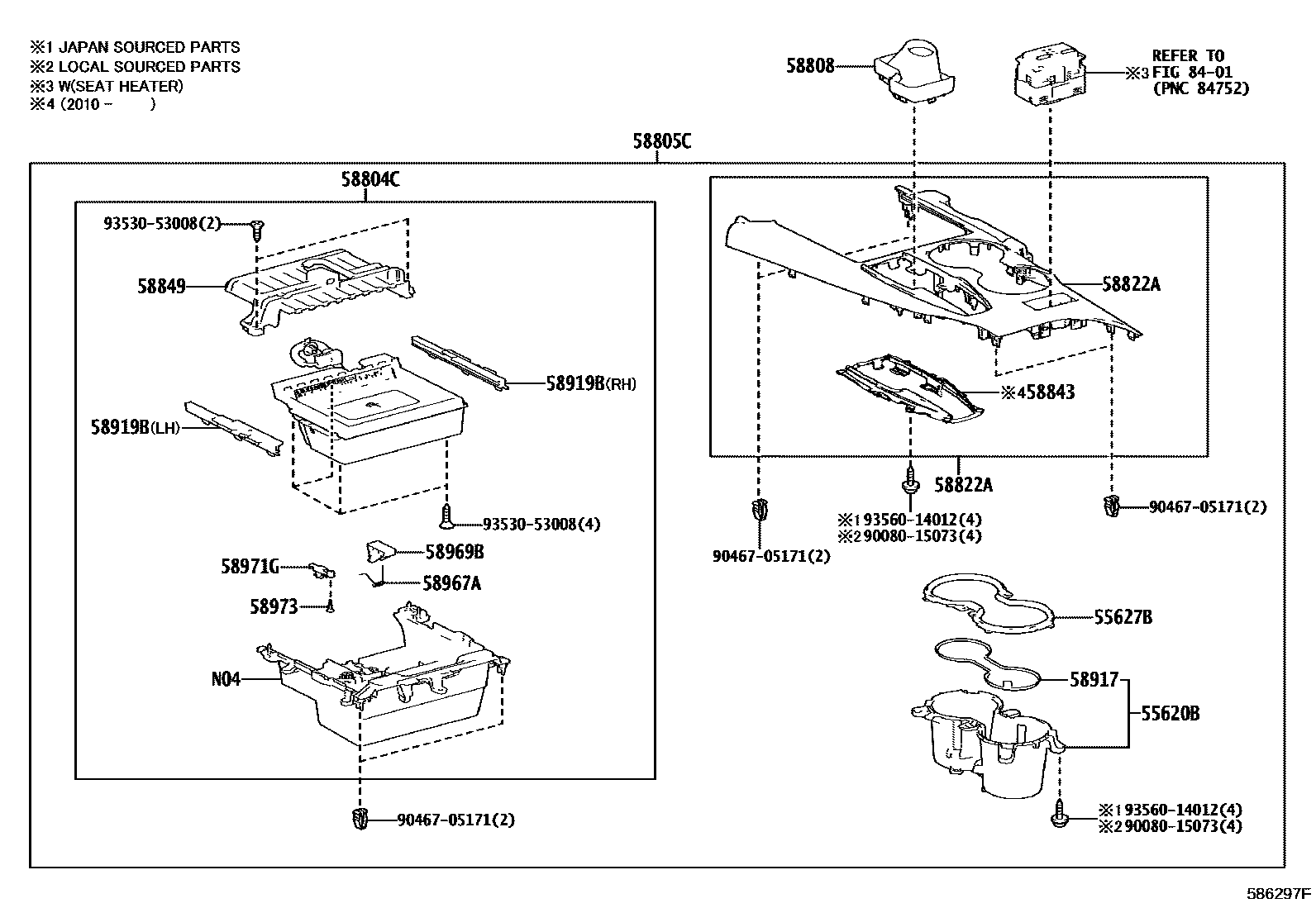

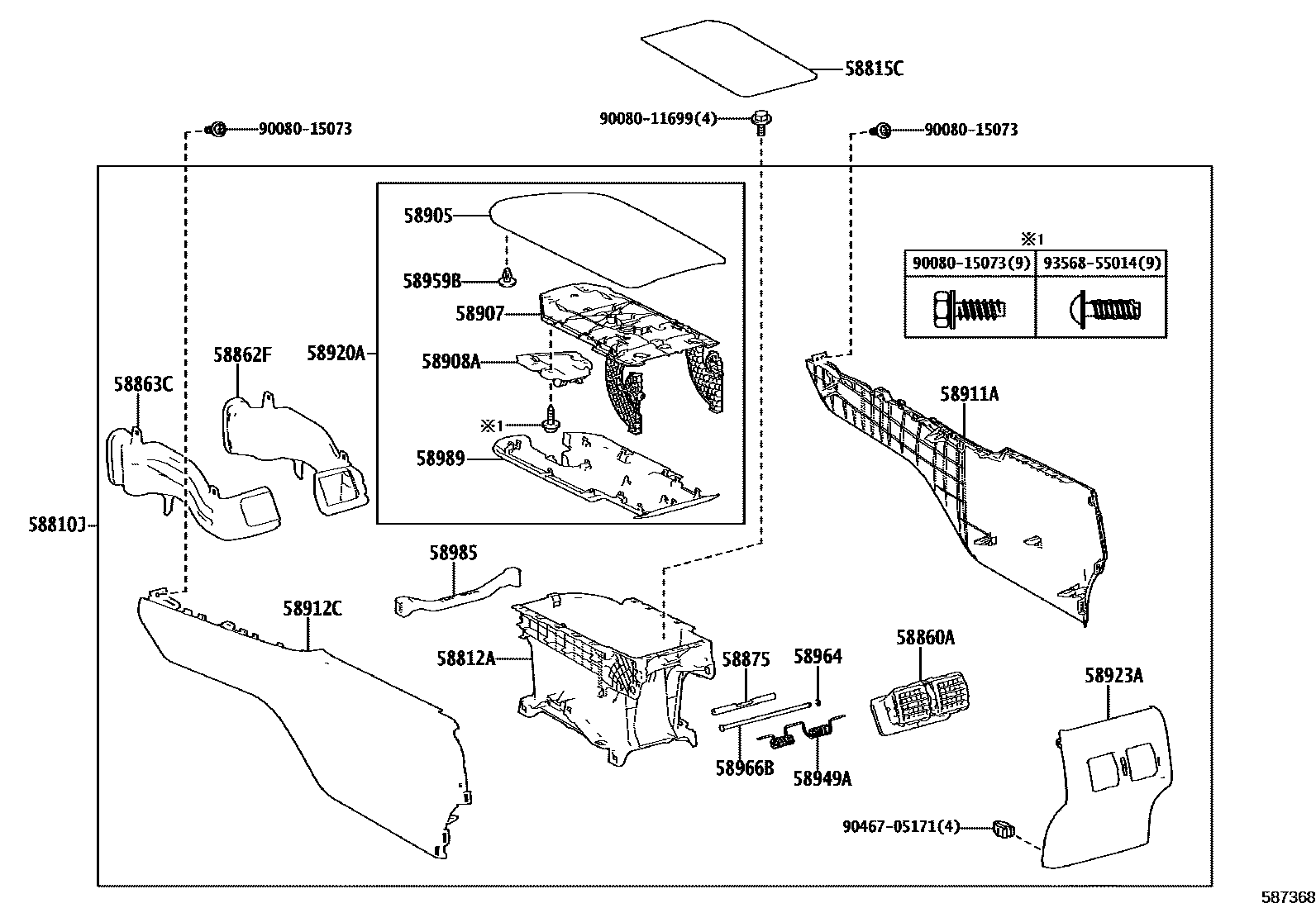

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-06520 |
| 55627B | RAIL, PORTE-GOBELET BOITIER DE CONSOLE | 55627-06020 · 55627-06030 · 55627-06110 · 55627-06120 |
| 58804C | Front armrest box insert sub-assembly | 58804-06440 · 58804-06450 · 58804-06750 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06720 · 58805-06730 · 58805-06740 · 58805-06750 · 58805-06890 · 58805-06A00 · 58805-06E00 · 58805-06E10 · 58805-06E20 · 58805-06E30 · 58805-06E50 · 58805-06F10 · 58805-06F20 · 58805-06F30 · 58805-06G00 · 58805-06G10 · 58805-06G20 · 58805-06G30 |
| 58812A | Lower armrest box | 58812-06210 · 58812-06320 |
| 58815C | Armrest box felt pad | 58815-06190 · 58815-06290 |
| 58818A | Front armrest box cover | 58818-06040 |
| 58822A | Rear armrest box upper panel | 58822-06720 · 58822-06730 · 58822-06C00 · 58822-06C10 · 58822-06C20 · 58822-06C30 |
| 58833A | Armrest box upper cover | 58833-06080 |
| 58843 | shift hole frame | 58843-06040 · 58843-06280 |
| 58849 | Armrest box No. 2 hole cover | 58849-06040 |
| 58862F | Air duct No. 2 for armrest box | 58862-06170 |
| 58863C | CONDUITE, BOITE DE CONSOLE, NO.3 | 58863-06140 |
| 58875 | Armrest box spacer | 58875-06030 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-06160 |
| 58916 | Armrest box bottom pad | 58916-06080 |
| 58917 | Armrest box bottom pad No. 2 | 58917-06140 |
| 58919B | Armrest box nameplate | 58919-06010 · 58919-06020 |
| 58949A | RESSORT, SUPPORT FIX BOITE DE CONSOLE | 58949-06020 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58966B | AXE, BUTOIR PORTE COMPARTIMENT DE CONSOLE | 58966-06070 |
| 58967A | Armrest box cover limit spring | 58967-06320 |
| 58969B | Armrest box cover No. 3 stop | 58969-07020 |
| 58971G | LEVIER, VERROUILLAGE VOLET COFFRET CONSOLE NO. 2 | 58971-07020 |
| 58973 | Armrest box lid lock pin | 58973-07010 |
| 58985 | Armrest box fixing bracket | 58985-06140 |
