Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

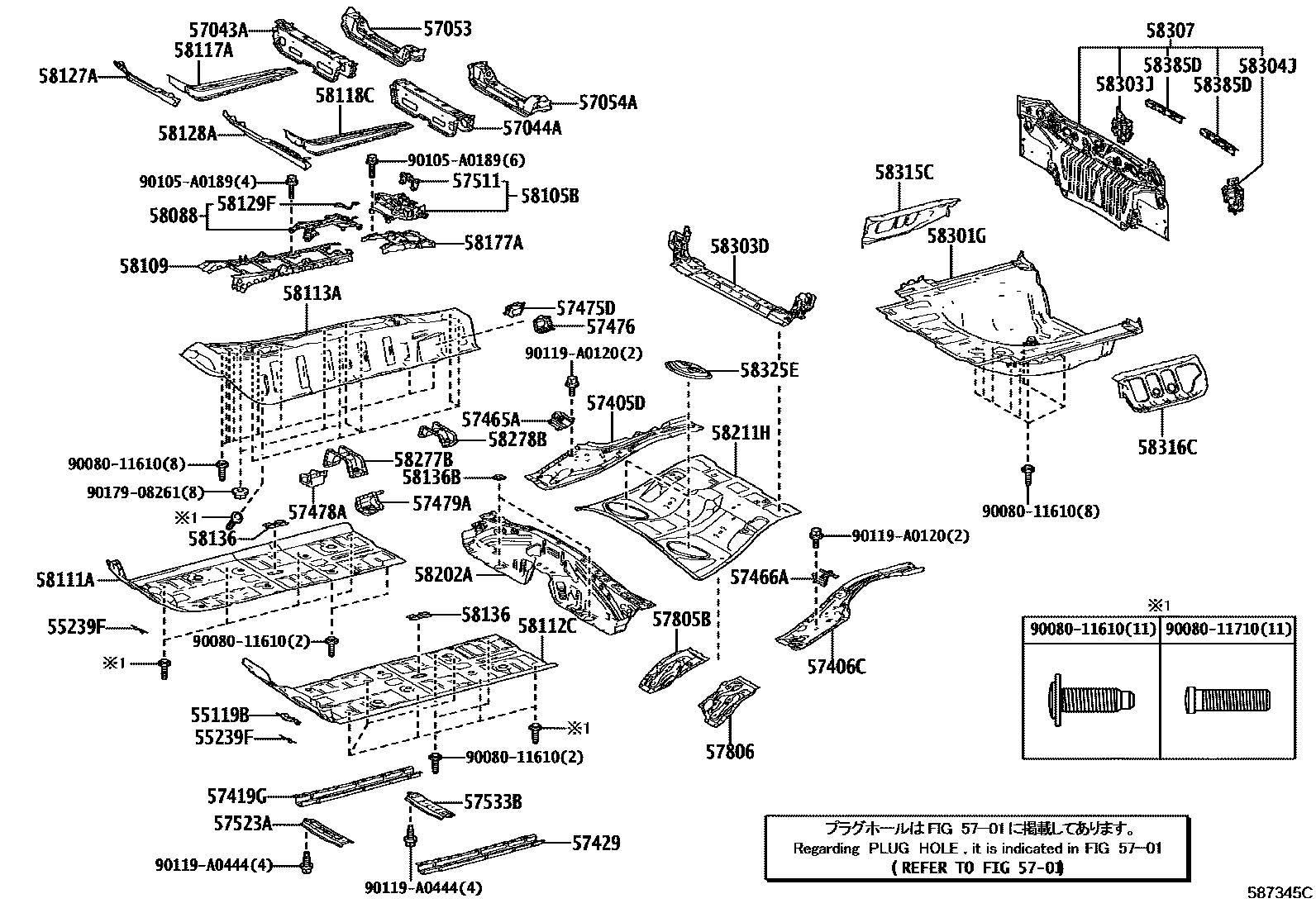

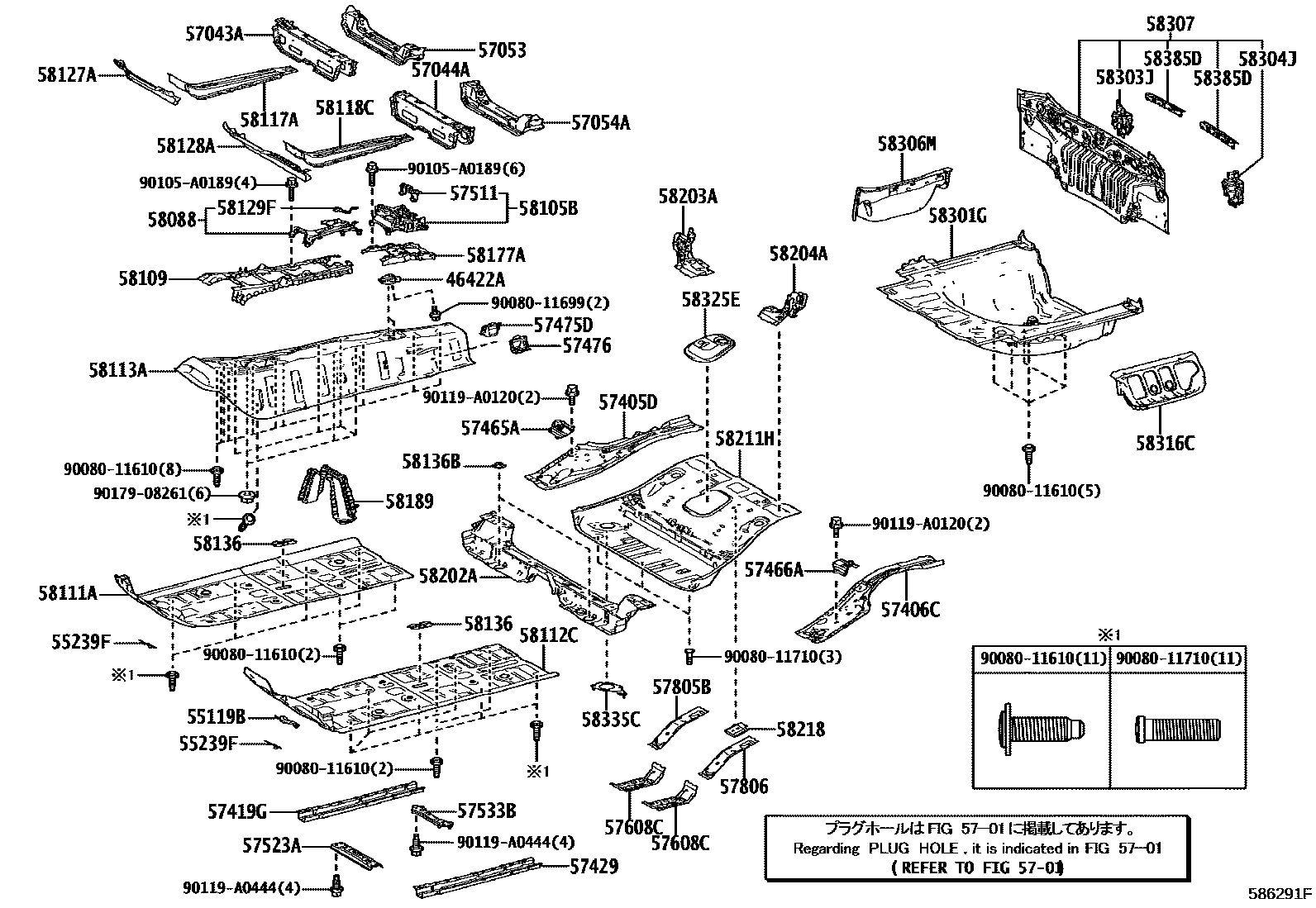

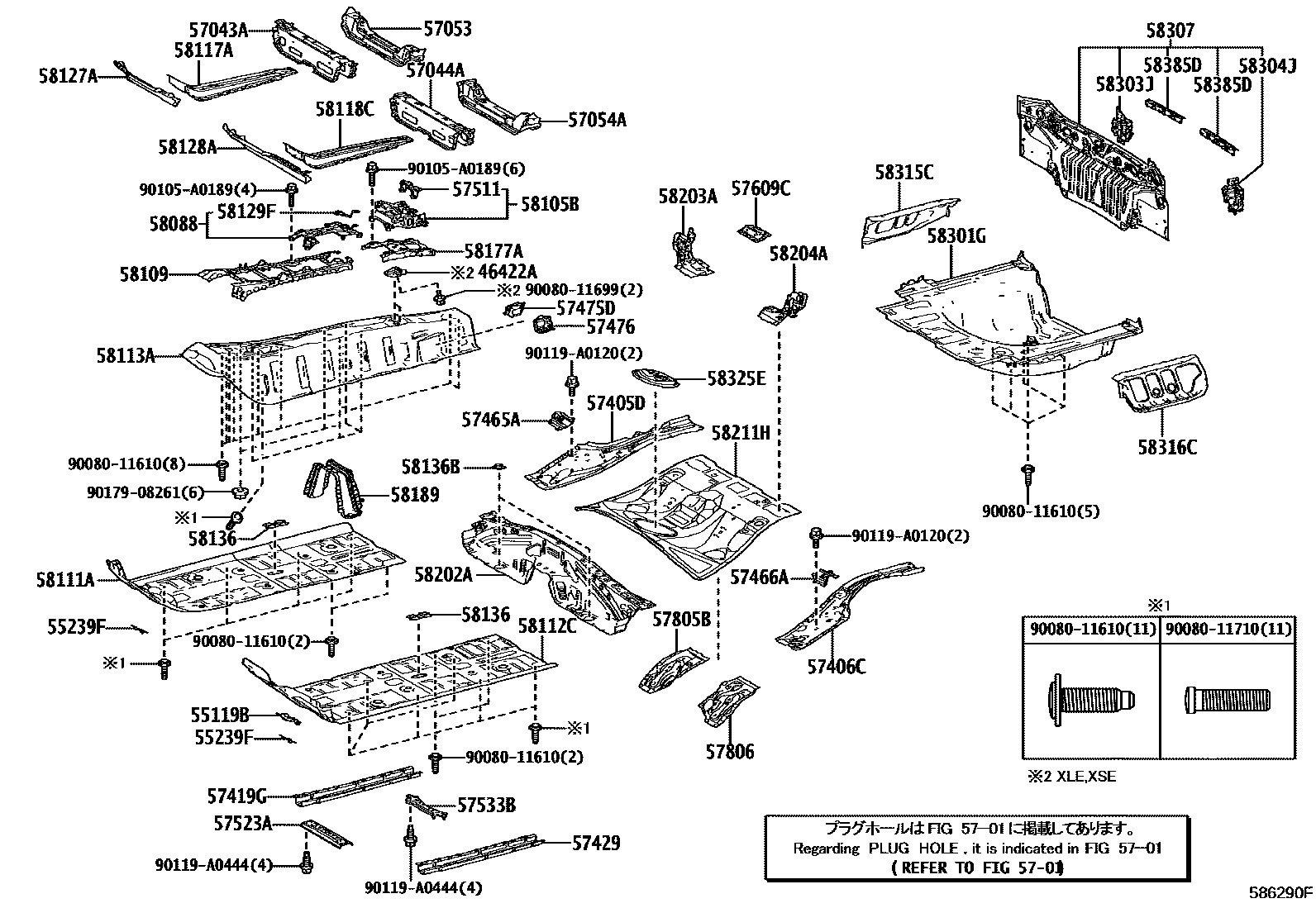

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46422A | BOUCHON, CABLE FREIN STATIONNEMENT, BOITIER | 46422-33020 · 46422-78010 |
| 55119B | PROLONGEMENT, TABLIER, GAUCHE | 55119-06010 |
| 55239F | PLAQUE, ISOLANT DE TABLEAU DE BORD, NO.3 | 55239-06050 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-06060 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-06060 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-06040 · 57053-06050 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-06090 |
| 57405D | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MD | 57405-06010 |
| 57406C | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MG | 57406-06010 · 57406-06060 |
| 57419G | Front floor right rear lower reinforcement | 57419-06090 |
| 57429 | Left rear reinforcement under front floor | 57419-06090 |
| 57465A | Center floor right beam corner panel | 57465-06010 |
| 57466A | Center floor left transom corner panel | 57466-06010 |
| 57475D | Front floor right cross member panel | 57475-06060 · 57475-06100 |
| 57476 | Front floor left cross member panel | 57476-06050 |
| 57478A | Front floor No. 2 cross member right reinforcement | 57478-06010 |
| 57479A | Front floor No. 2 cross member left reinforcement | 57479-06010 |
| 57511 | Front floor center reinforcement | 57511-06060 |
| 57523A | TIRANT DE TRAVERSE DE PLANCHER CENTRAL | 57523-06010 · 57523-06050 |
| 57533B | Front floor center bracket | 57533-06070 · 57533-06090 |
| 57608C | Fuel tank mounting bracket sub-assembly | 57608-06130 |
| 57609C | Rear floor No. 5 cross member sub-assembly | 57609-06040 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-06030 · 57805-06040 · 57805-06110 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57805-06040 · 57806-06030 · 57806-06070 |
| 58088 | SOUS-ENS. SUPPORT, TRINGL CHG VIT PLANCHER | 58088-06010 · 58088-06060 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-06060 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-06010 |
| 58111A | Front floor right bottom panel | 58111-06140 · 58111-06141 · 58111-06191 |
| 58112C | Front floor left bottom panel | 58112-06010 · 58112-06011 |
| 58113A | front floor center panel | 58113-06010 · 58113-06070 |
| 58117A | Front floor right reinforcement | 58117-06010 |
| 58118C | Front floor left reinforcement | 58117-06010 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-06070 · 58127-33030 |
| 58128A | Front cross member to front panel beam left reinforcement | 58128-06070 · 58128-06071 · 58128-33010 |
| 58129F | COLLIER, CABLE CHANGEMENT RAPPORT & SELECTION | 58129-06010 |
| 58136 | Front floor hole cover | 58136-06050 |
| 58136B | Center floor hole cover | 58136-06070 |
| 58177A | Front floor right extension | 58177-06010 · 58177-06050 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06140 |
| 58202A | Center floor front floor sub-assembly | 58202-06060 · 58202-06100 · 58202-06140 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-06020 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-06050 |
| 58211H | central floor base | 58211-06230 · 58211-06231 · 58211-06250 · 58211-06330 |
| 58218 | seat floor | 58218-06070 |
| 58277B | Drive shaft center bracket reinforcement | 58277-06010 |
| 58278B | No. 2 drive shaft center bracket reinforcement | 58278-06010 |
| 58301G | SOUS-ENS. PANNEAU, PLANCHER ARR | 58301-06904 · 58301-06905 · 58301-06907 |
| 58303D | Rear floor partition sub-assembly | 58303-06090 |
| 58303J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE DROIT | 58303-06030 |
| 58304J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE GAUCHE | 58304-06050 |
| 58306M | Rear floor side panel sub-assembly | 58306-06120 |
| 58307 | Body lower back panel sub-assembly | 58307-06220 · 58307-06221 |
| 58315C | Rear floor right side panel extension | 58315-06020 |
| 58316C | Rear floor left side panel extension | 58316-06040 |
| 58325E | Rear floor access hole cover | 58325-06080 · 58325-06090 · 58325-06100 |
| 58335C | Front floor right panel | 58335-06050 |
| 58385D | Rear bumper cover bracket | 58385-06150 |
