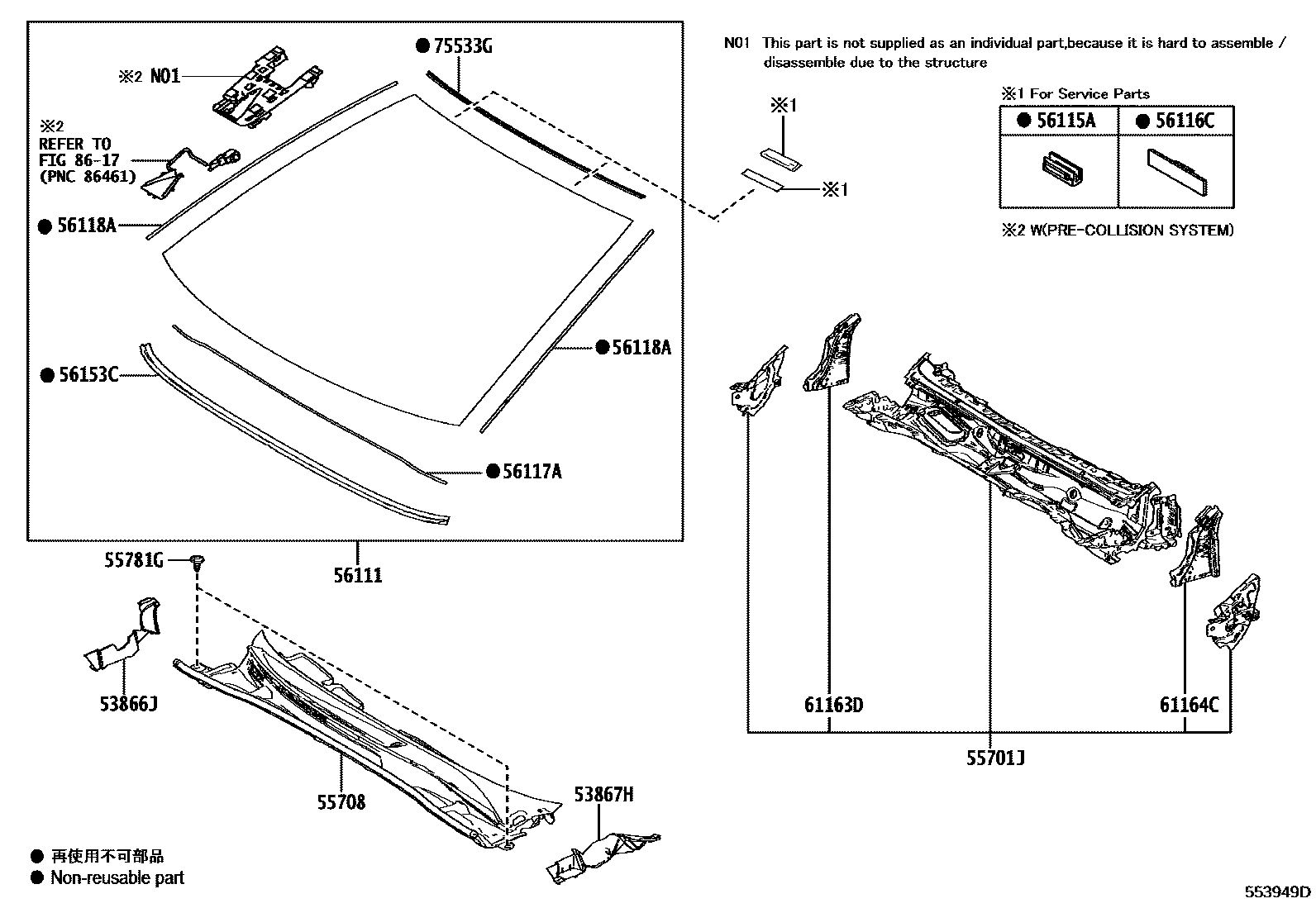

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-06140 |
| 53867H | Left front fender to cowl side seal | 53867-06140 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06350 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-06270 · 55708-06280 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-06A91 · 56101-06B00 · 56101-06B01 · 56101-06B10 · 56101-06B11 · 56101-06B30 · 56101-06B31 · 56101-06B60 · 56101-06B61 · 56101-06B80 · 56101-06B81 · 56101-06B90 · 56101-06B91 · 56101-06C40 · 56101-06C41 · 56101-06J70 · 56101-06J80 · 56101-06J90 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06190 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-06040 |
| 56153C | Front center window inner protective strip | 56153-06010 |
| 61163D | MONTANT, CARROSSERIE AVANT, INT INF MD | 61163-06010 |
| 61164C | MONTANT, CARROSSERIE AVANT, INT INF MG | 61164-06010 |
| 75533G | Windshield outer protective strip | 75531-06210 |
