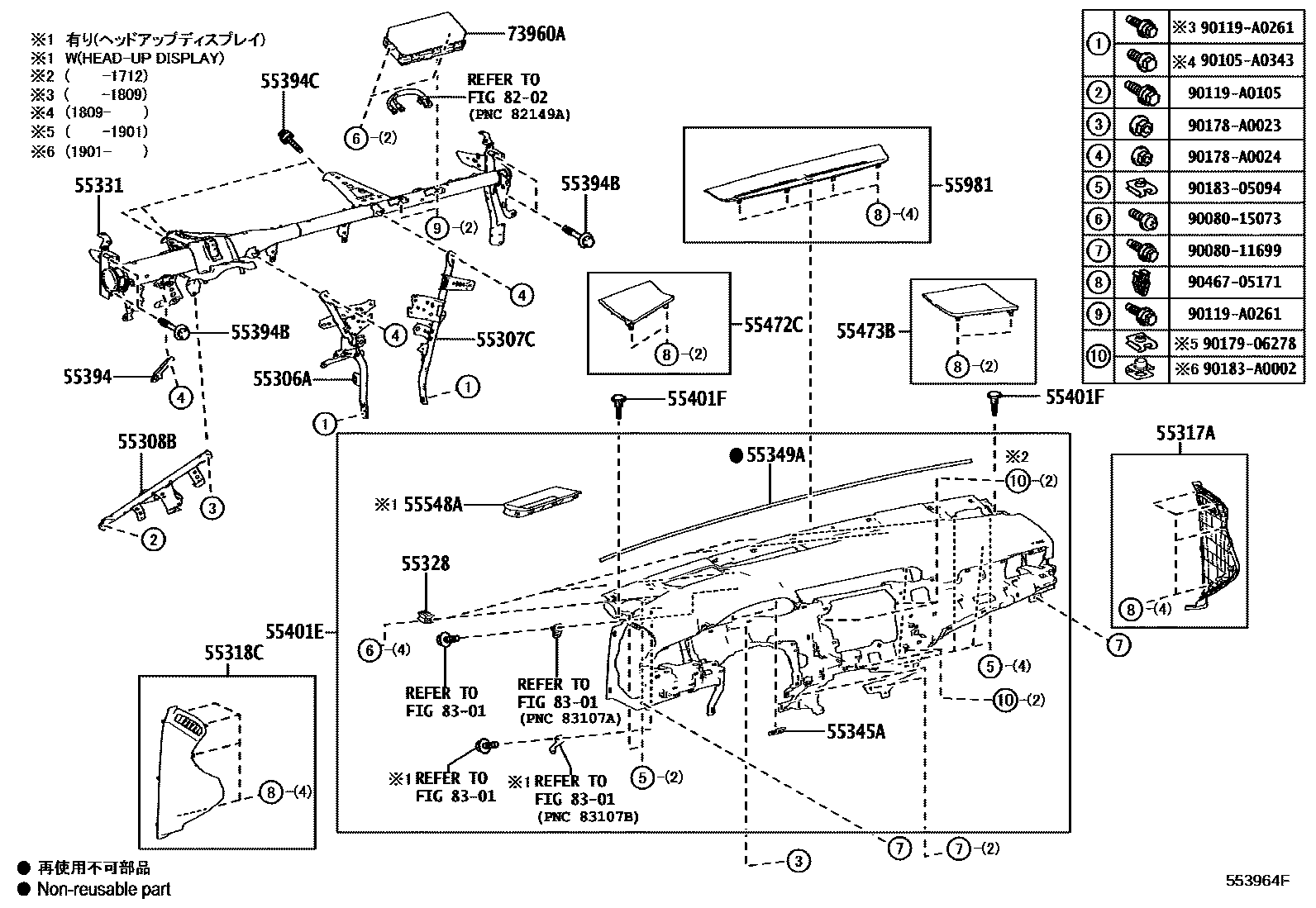

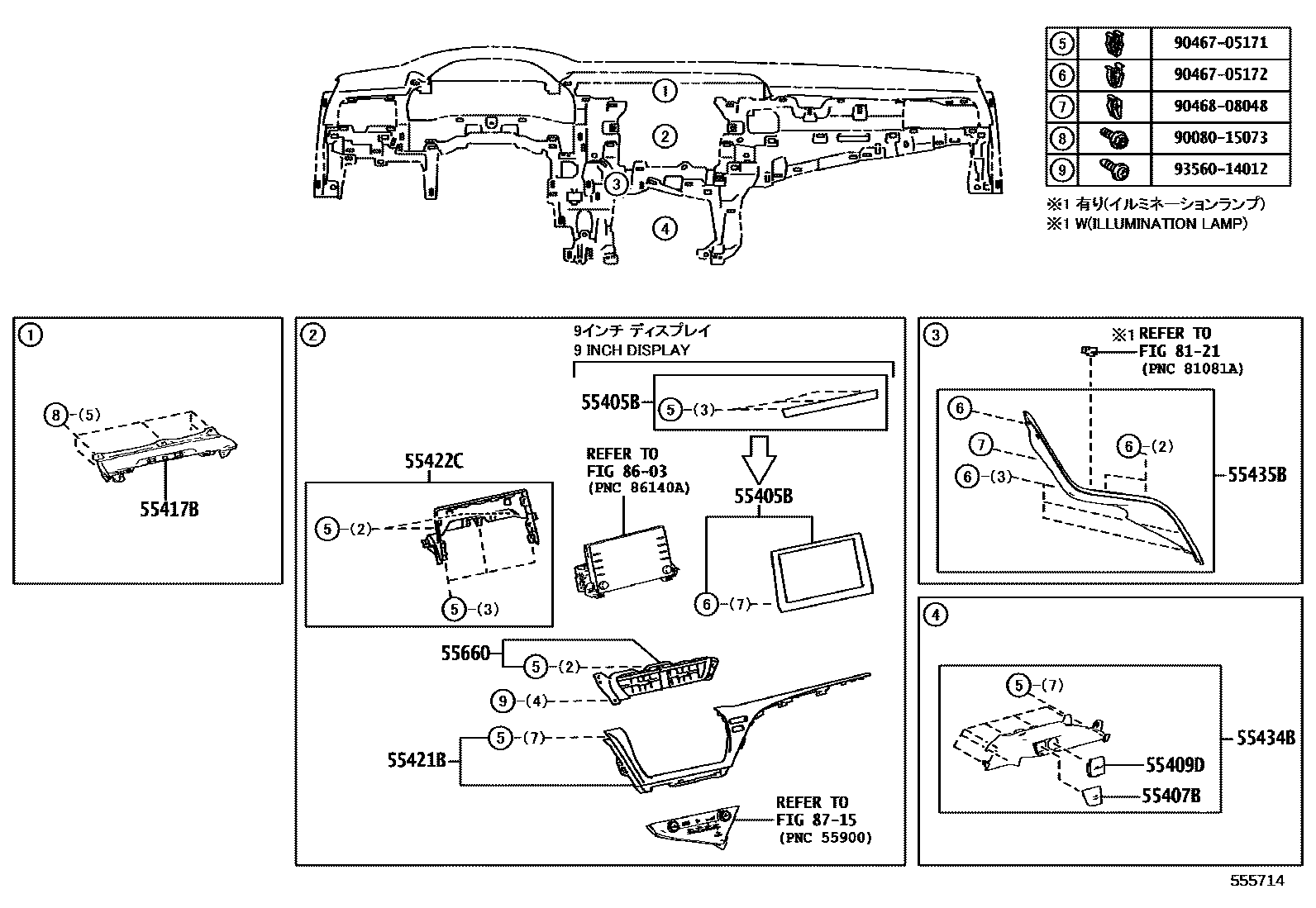

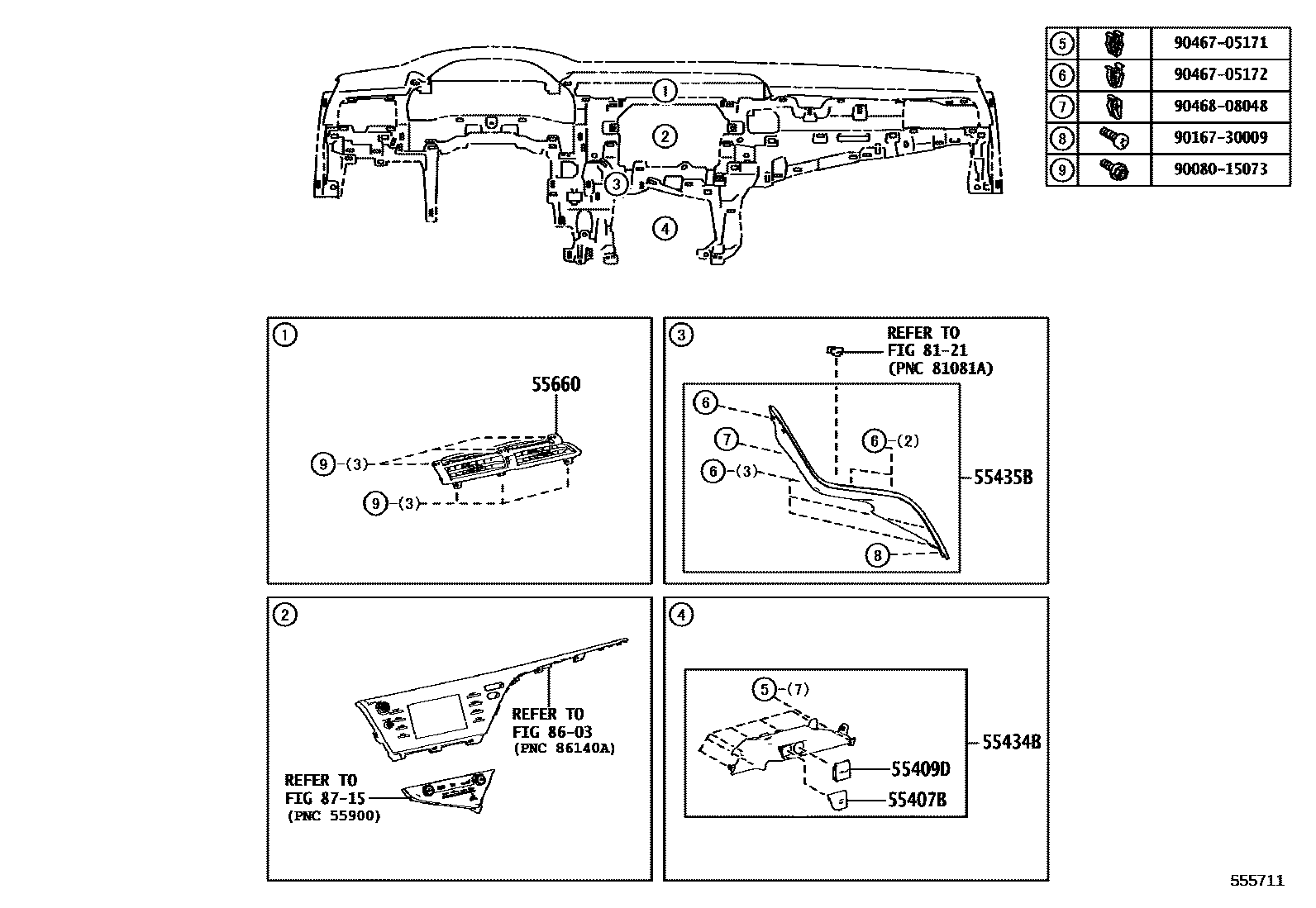

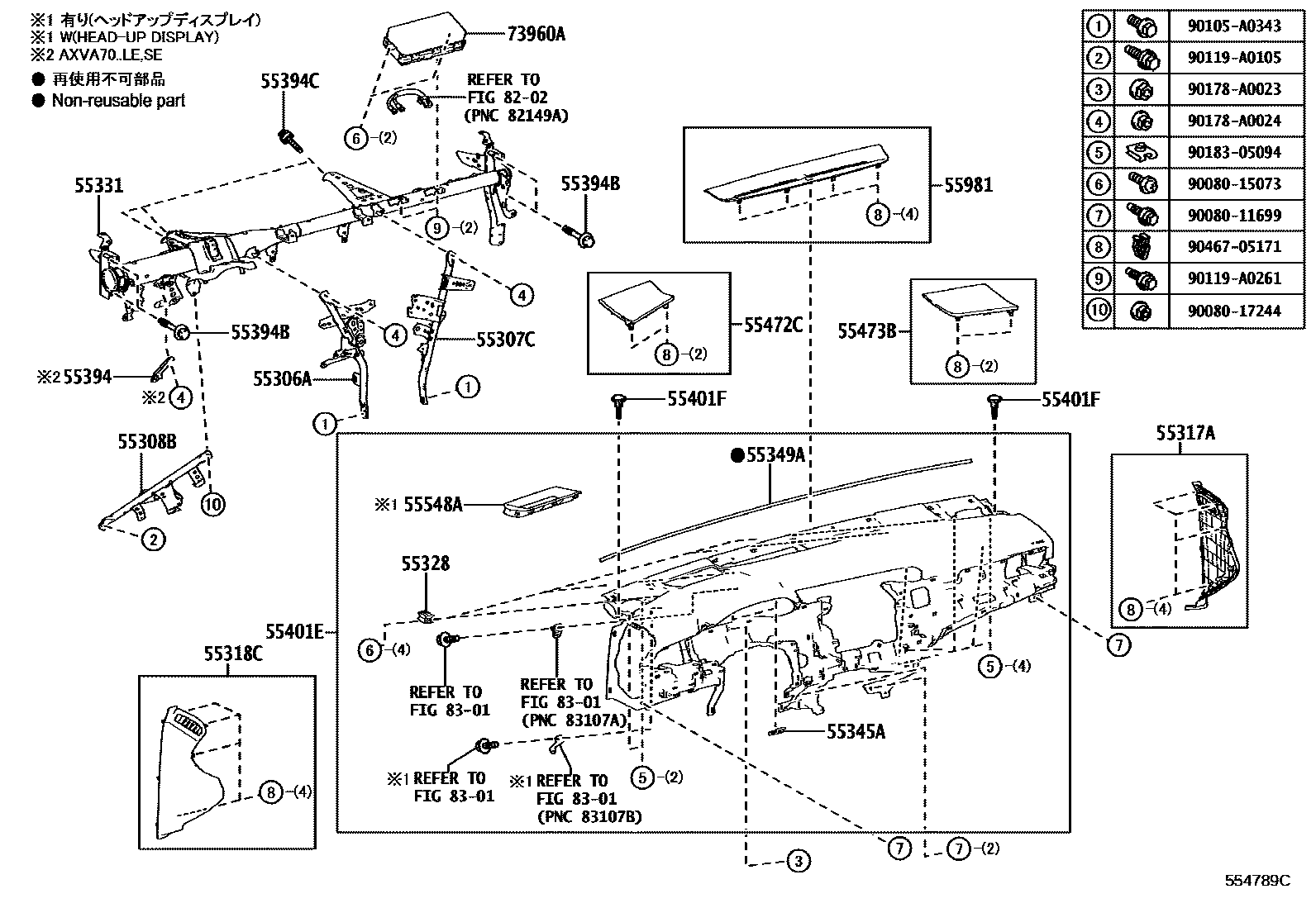

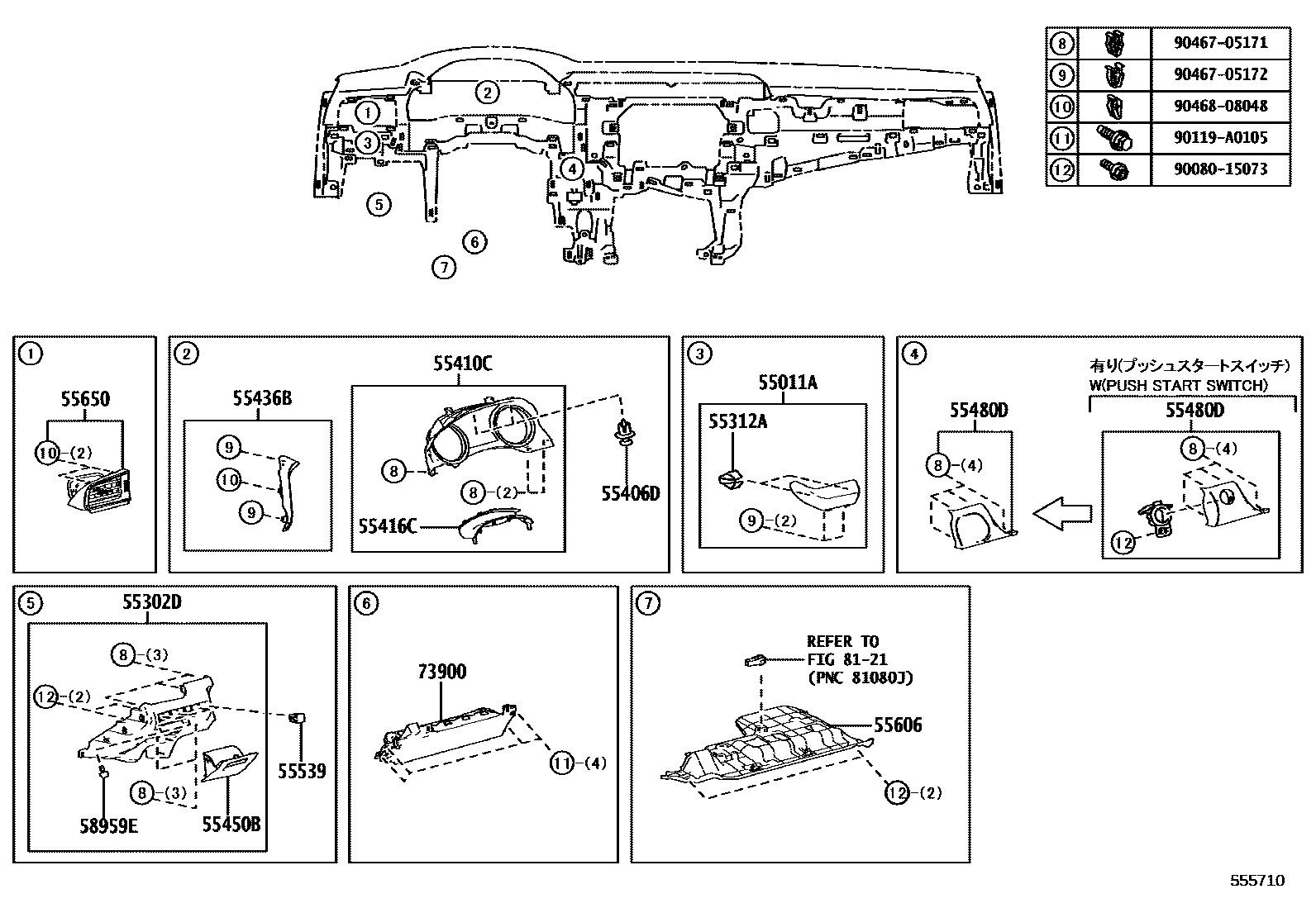

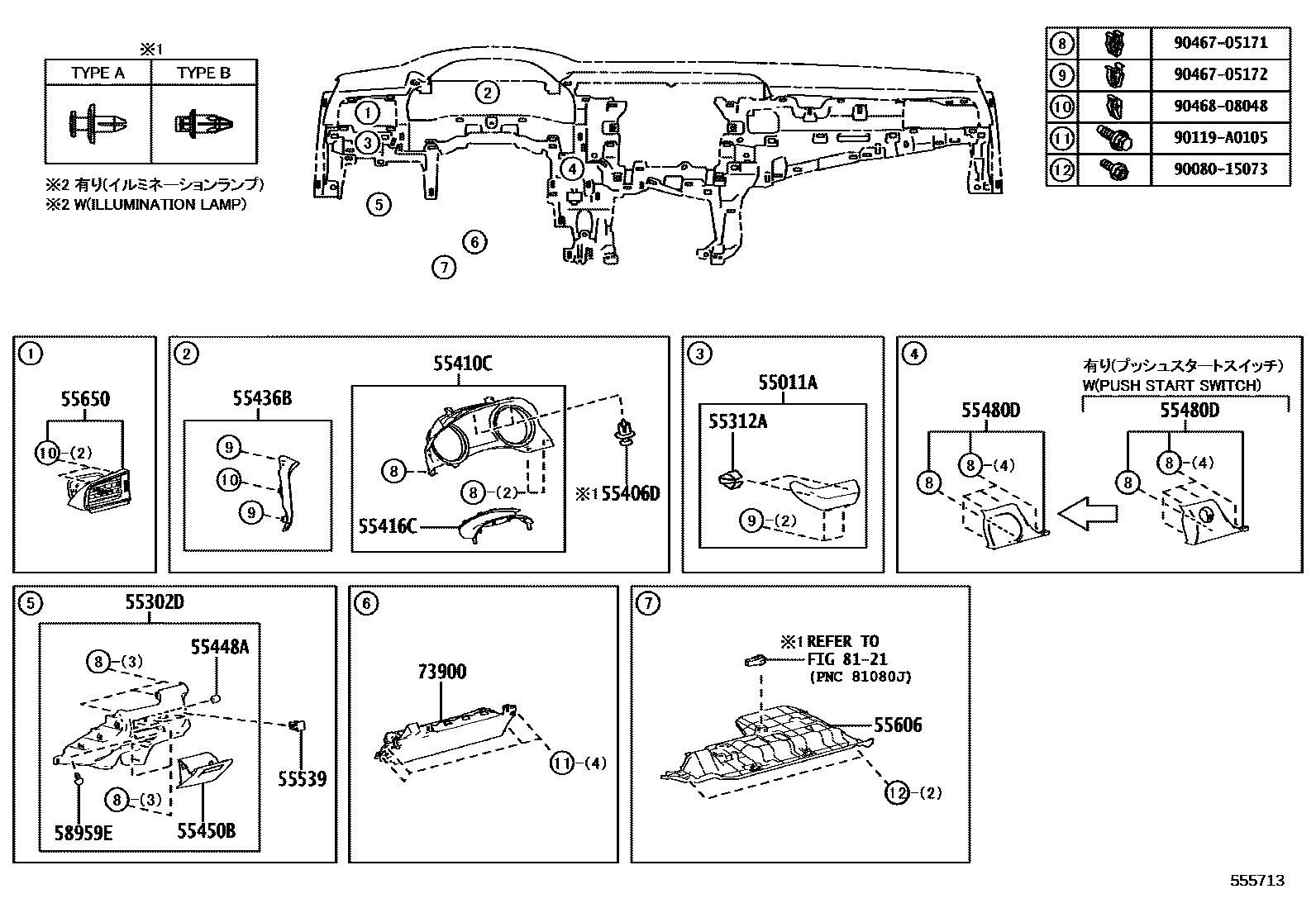

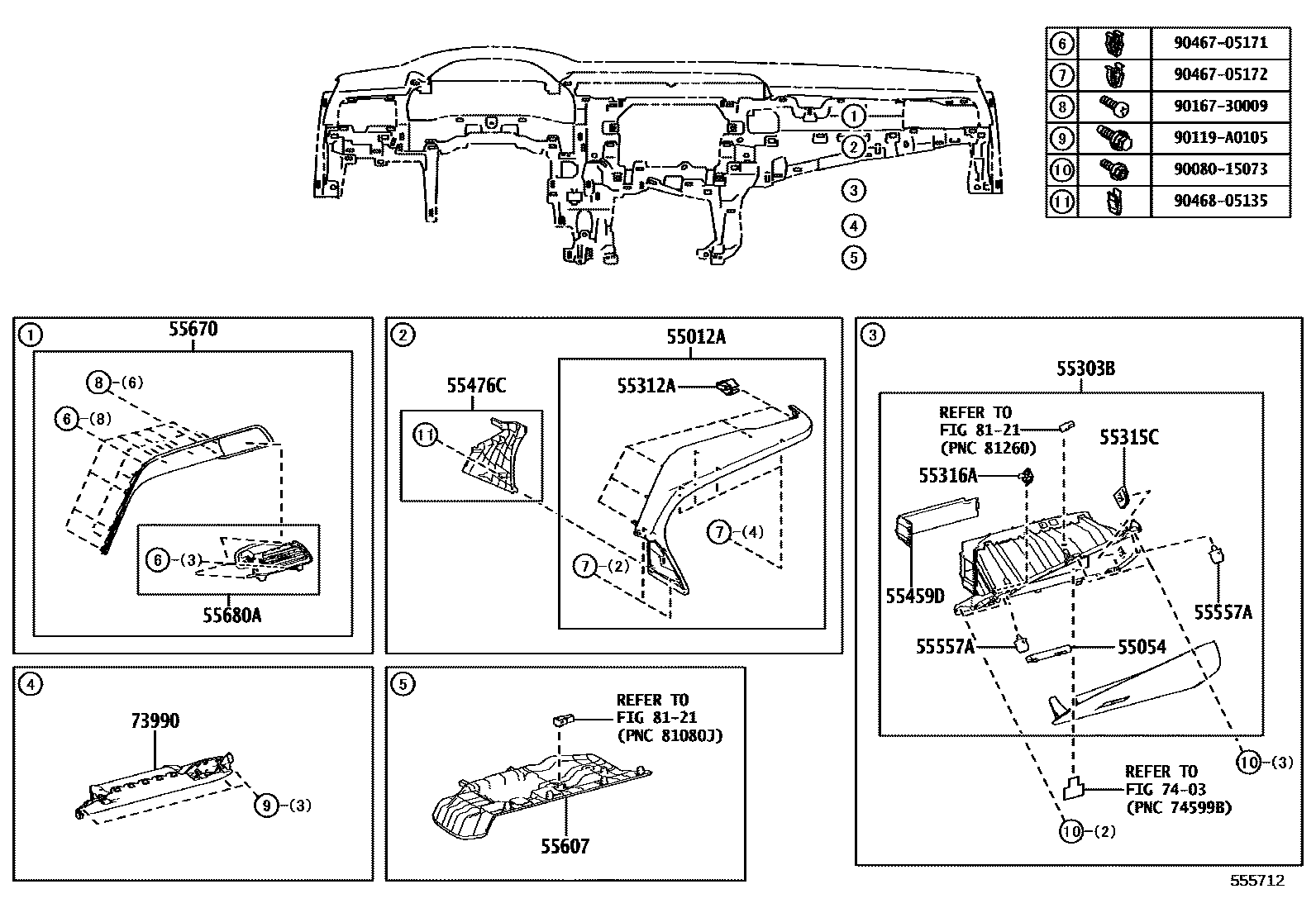

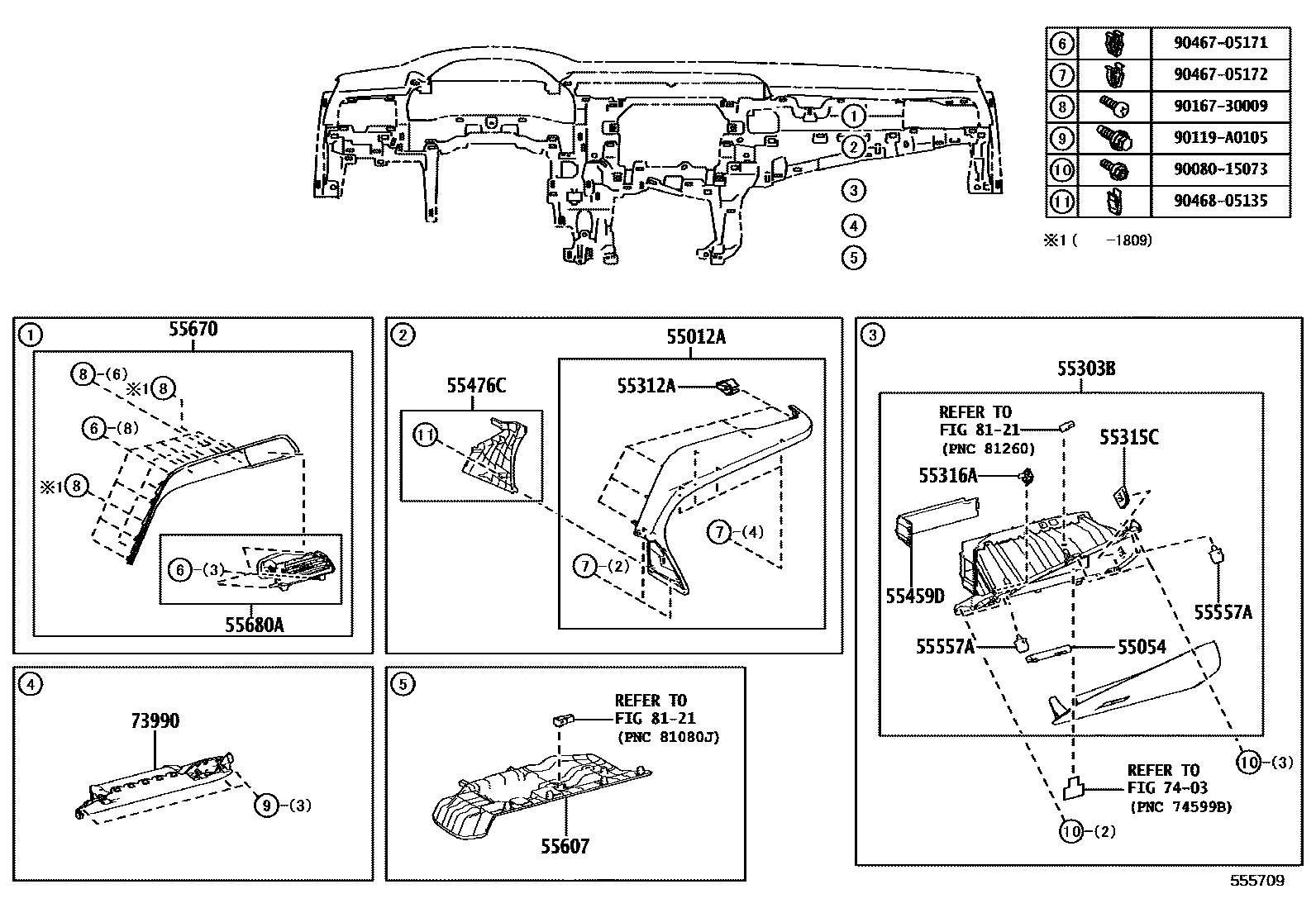

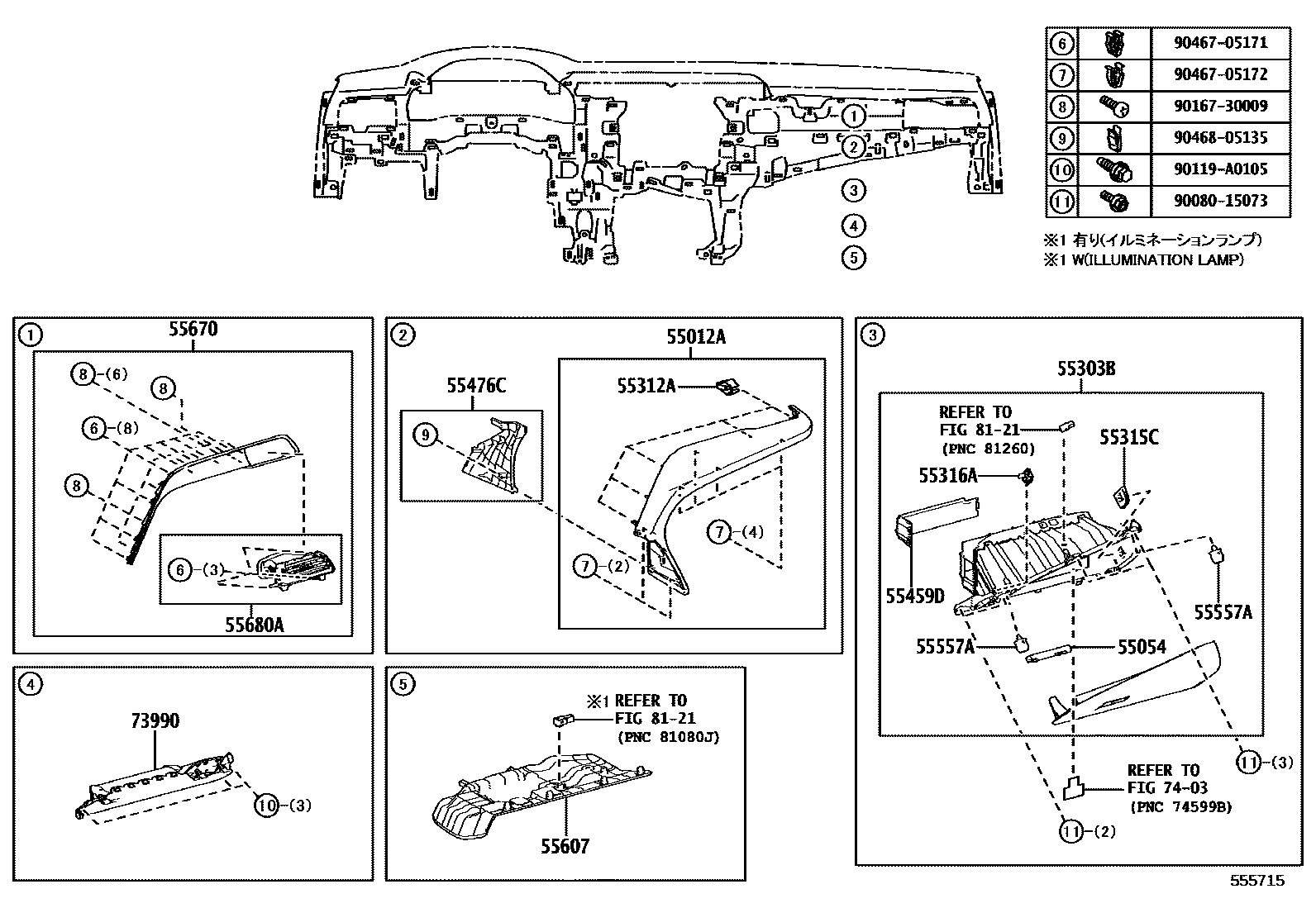

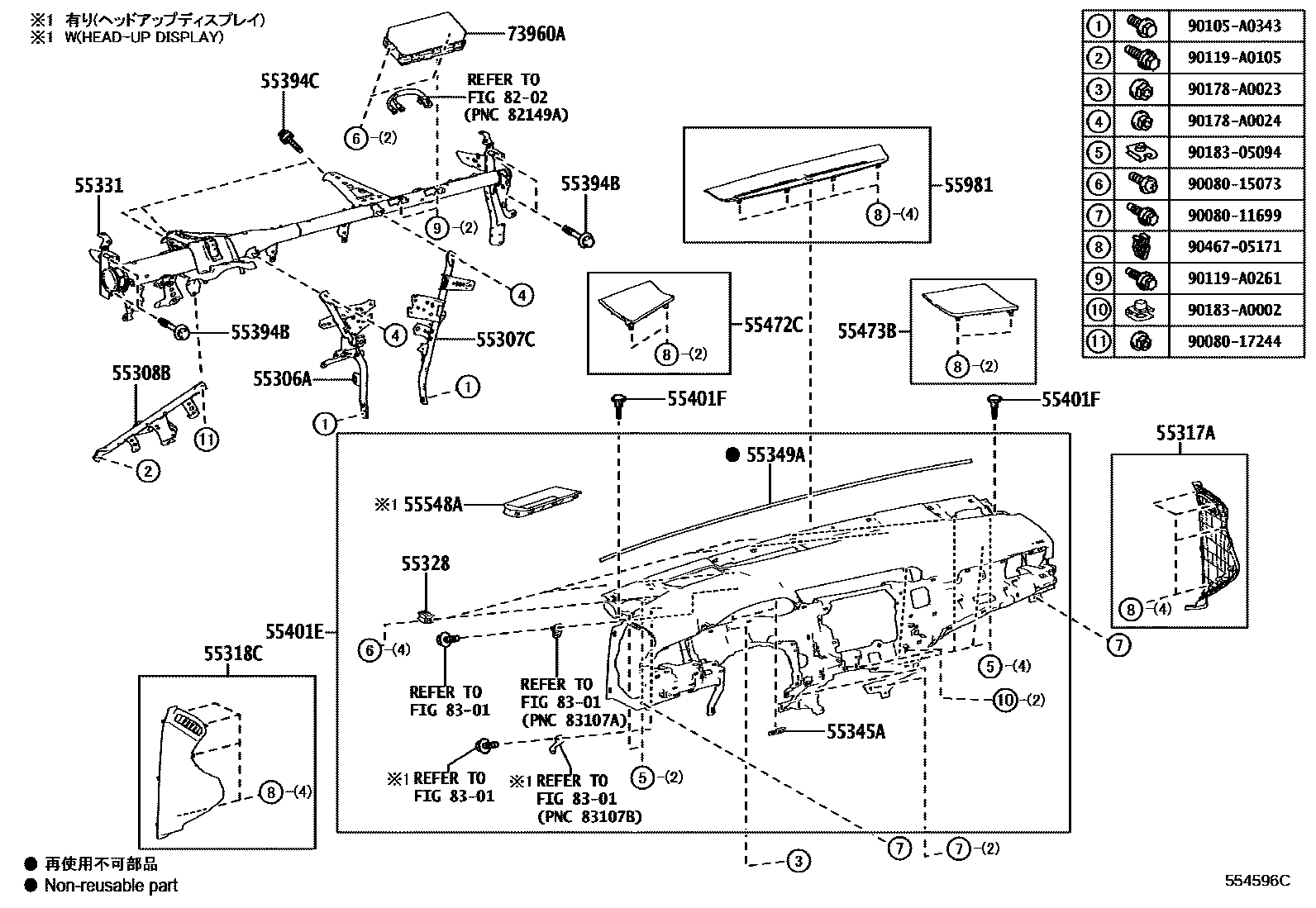

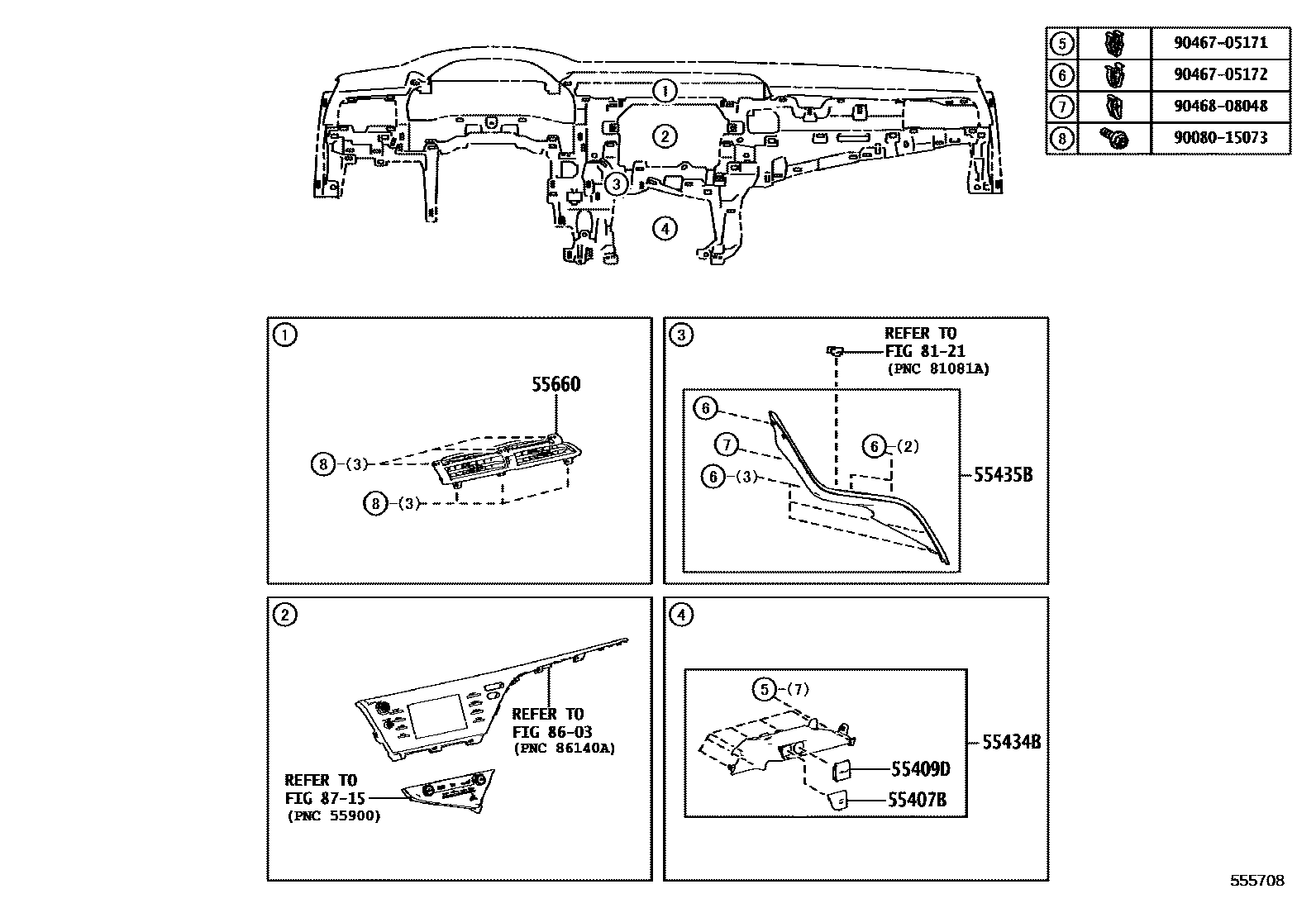

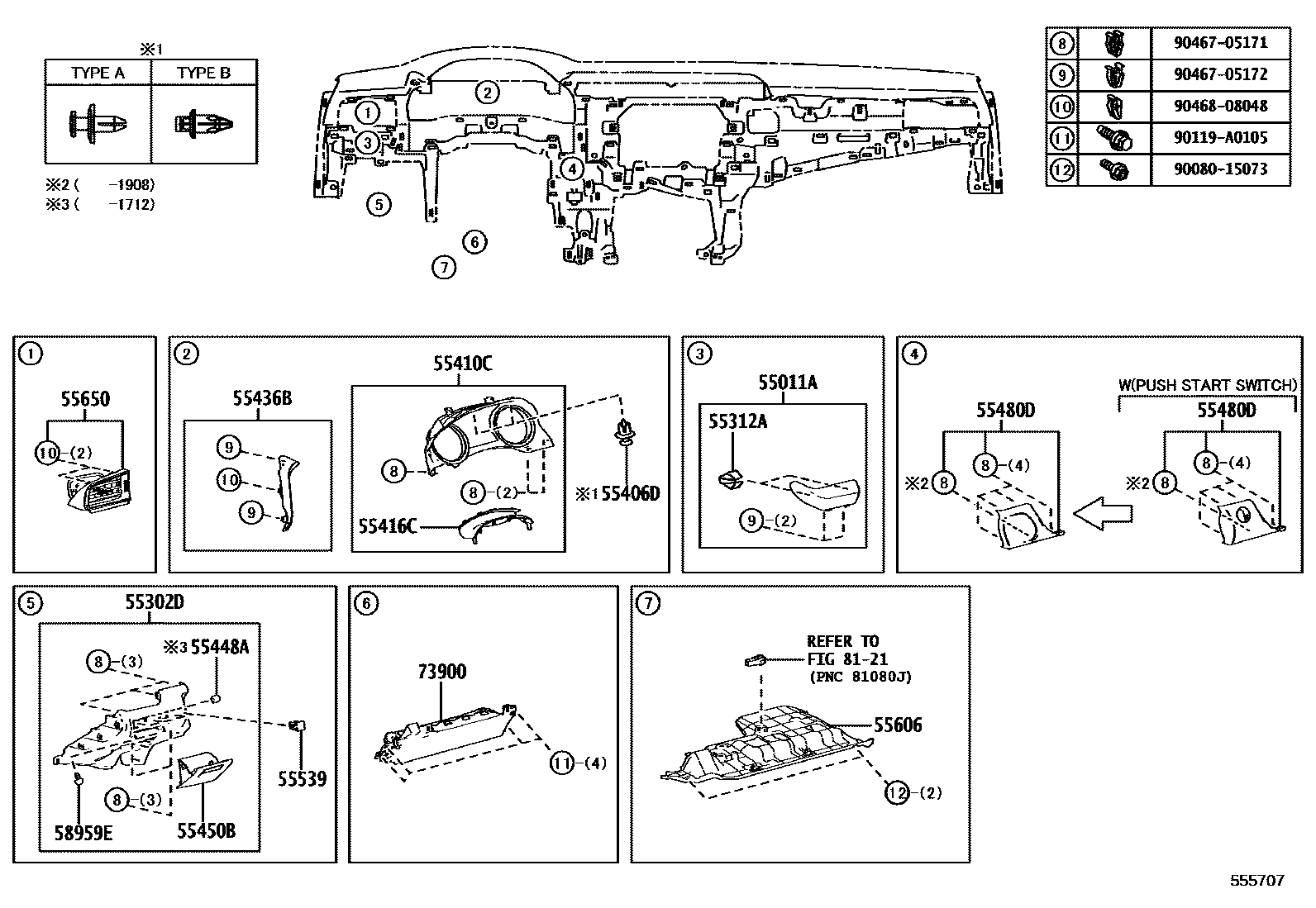

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 12 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-06100 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06160 · 55306-06250 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-06110 · 55307-06240 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-06070 · 55308-06160 |
| 55315C | RENFORT, COTE INSTRUMENT, SUPERIEUR MD | 55315-06140 |
| 55316A | RENFORT, COTE INSTRUMENT, SUPERIEUR MG | 55316-06310 |
| 55317A | Dashboard right panel | 55317-06330 |
| 55318C | Dashboard left panel | 55318-06250 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-06340 · 55330-06460 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-06170 |
| 55394 | SUPPORT, TABLEAU BORD A PEDALE | 55394-06190 |
| 55394B | Dashboard bolts | 90105-A0280 |
| 55394C | Dashboard bolts | 90119-A0312 |
| 55401F | Clip (for safety mat) | 52161-02020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-06220 · 55405-06240 |
| 55410C | Instrument cluster decorative panel assembly | 55410-06190 · 55410-06310 · 55410-06320 |
| 55416C | Instrument cluster decorative panel fixings | 55416-06140 |
| 55417B | Radio tuner trim panel fixing | 55417-06020 |
| 55421B | Decorative panel on instrument cluster | 55421-06030 |
| 55422C | Center instrument cluster upper decorative panel | 55422-06040 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-06230 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-06200 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-08020 |
| 55459D | Instrument panel lower left cover | 55459-06090 |
| 55472C | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.1 | 55472-06141 |
| 55473B | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.2 | 55473-06141 |
| 55539 | Spare switch hole cover | 55539-06110 |
| 55548A | Dashboard hole cover | 55548-06081 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06290 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-06480 · 55650-06481 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-06260 · 55660-06340 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-06790 · 55670-06890 · 55670-06A00 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-06020 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-06111 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06230 |
