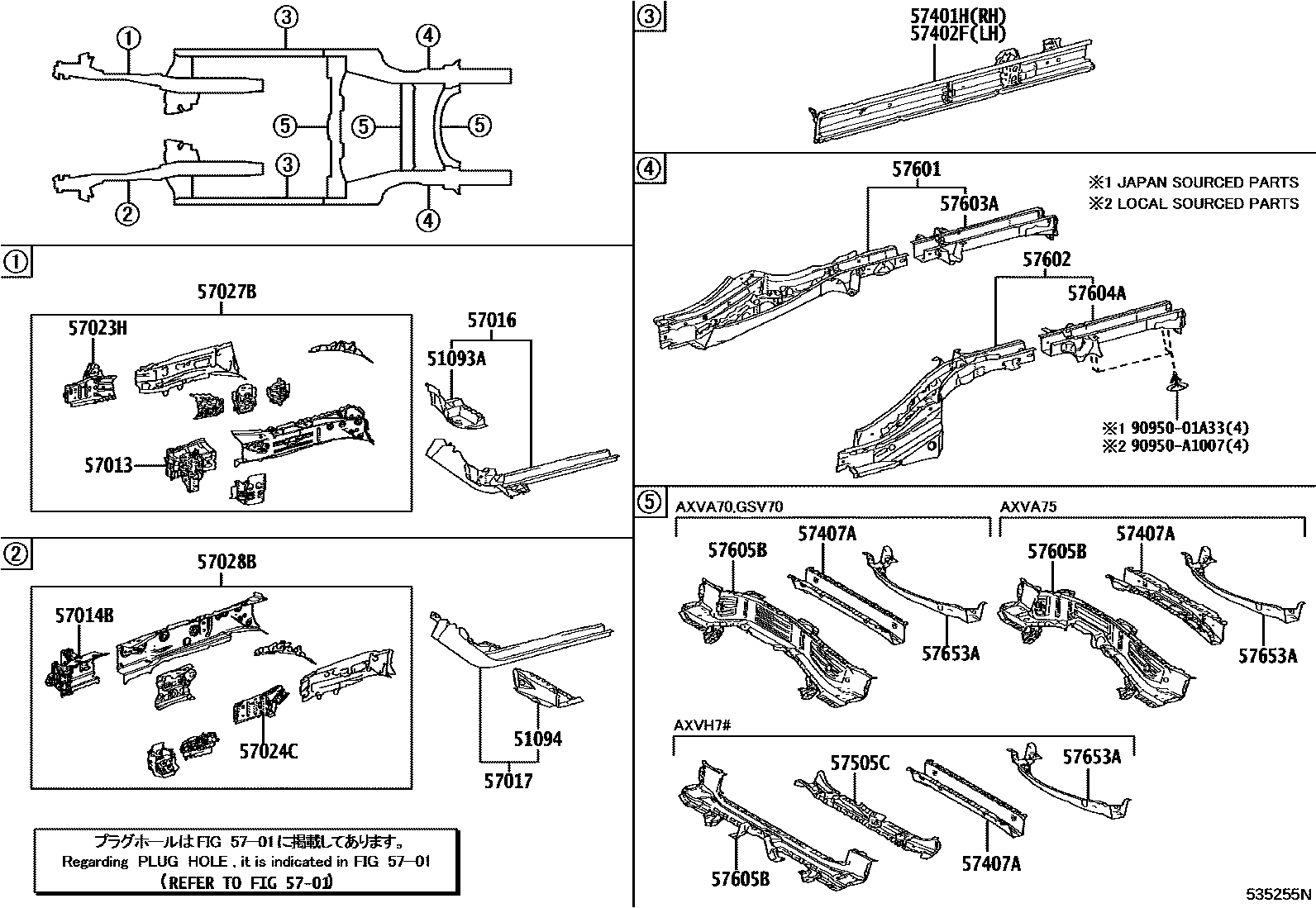

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51093A | SOUS-ENS. CROCHET, TRANSPORT, AVANT MD | 51093-06010 · 57197-06081 |
| 51094 | SOUS-ENS. CROCHET, TRANSPORT, AVANT MG | 51094-06010 · 57198-06081 |
| 57013 | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MD | 57013-06020 · 57013-06021 |
| 57014B | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MG | 57014-06020 · 57014-06021 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06160 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06140 |
| 57023H | SUPPORT, SOUS-ENS., MONTAGE CARROSSERIE NO.2 DR | 57023-06010 |
| 57024C | SUPPORT, SOUS-ENS., MONTAGE CARROSSERIE NO.2 GA | 57024-06010 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-06906 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-06906 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-06280 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-06280 |
| 57407A | Center floor beam sub-assembly | 57407-06020 · 57407-06021 · 57407-06022 · 57407-06070 |
| 57505C | SOUS-ENSEMBLE DE RENFORT INFERIEUR DE PLANCHER AVANT | 57505-06010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06430 · 57601-06490 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06260 · 57602-06320 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-06020 · 57603-06060 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-06050 · 57604-06090 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06200 · 57605-06210 · 57605-06280 |
| 57653A | No. 2 rear floor cross member | 57653-06090 |
