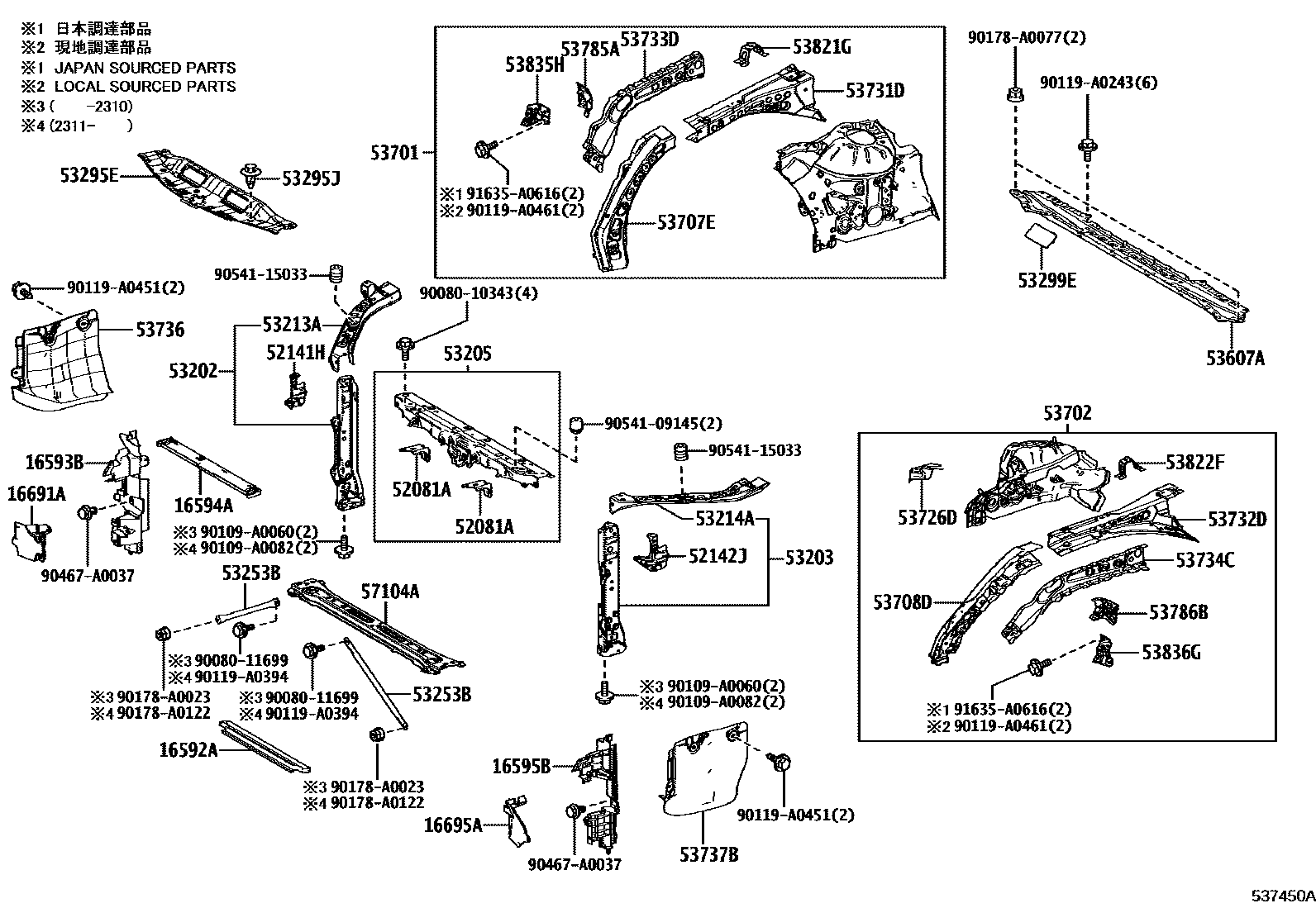

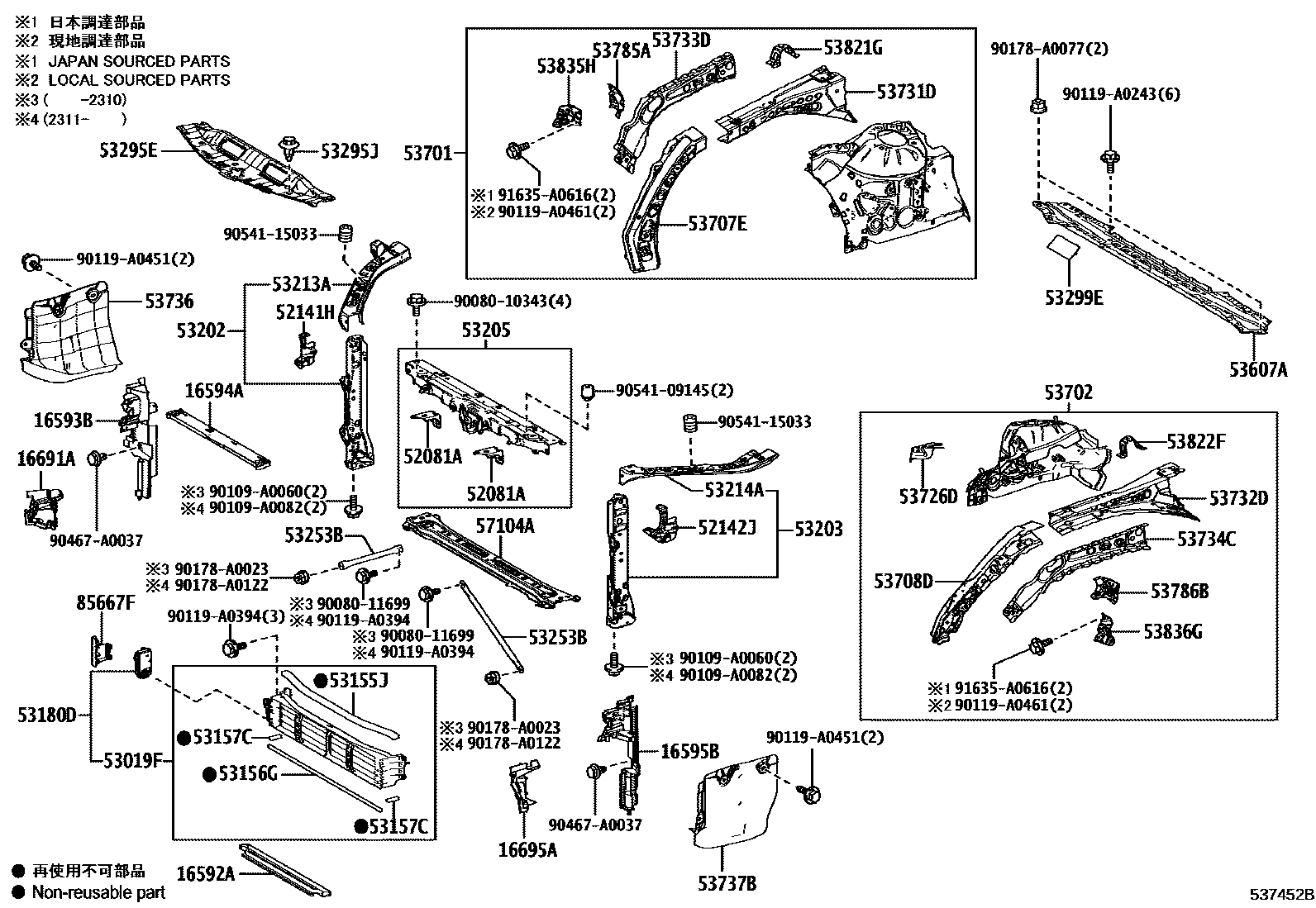

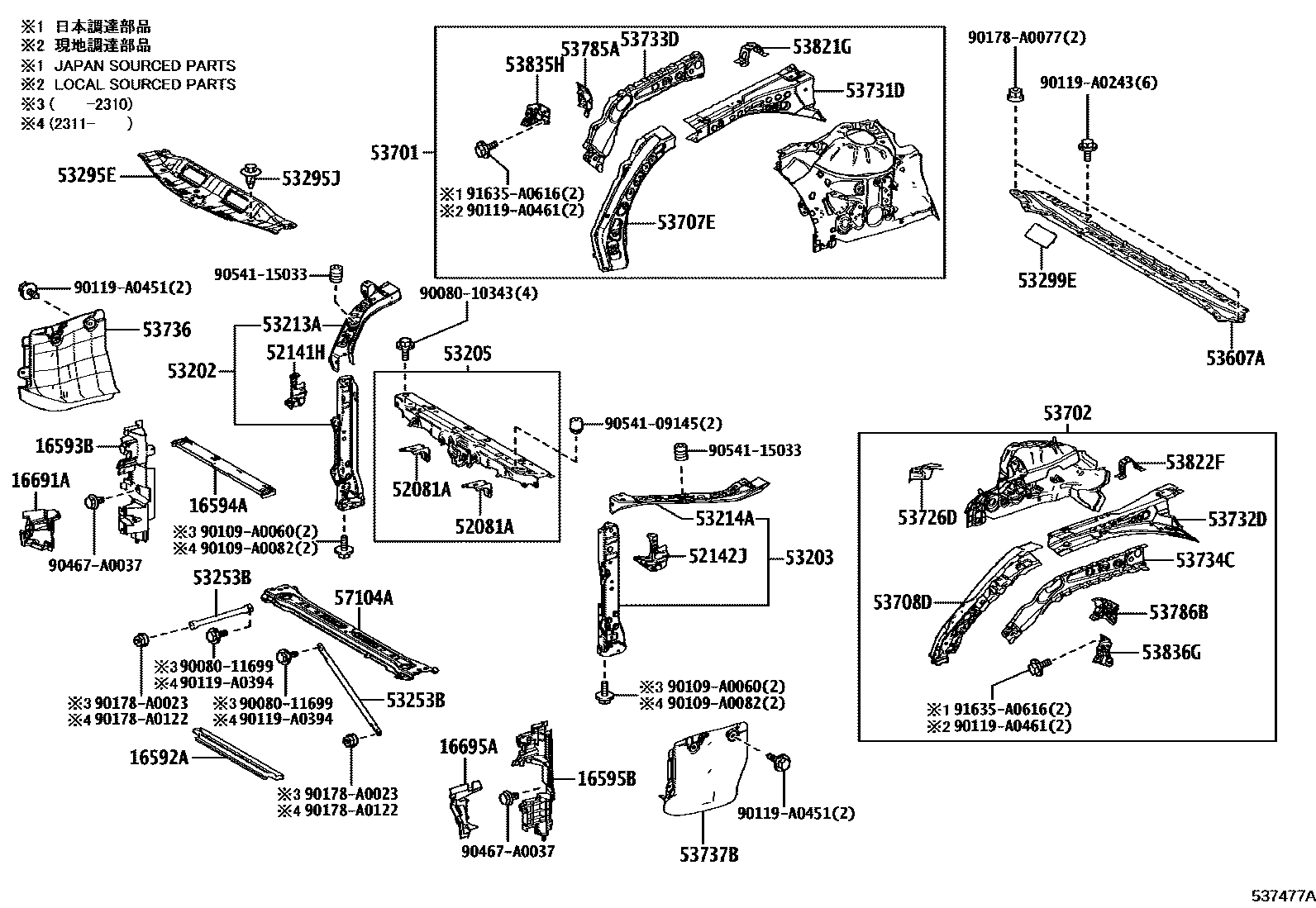

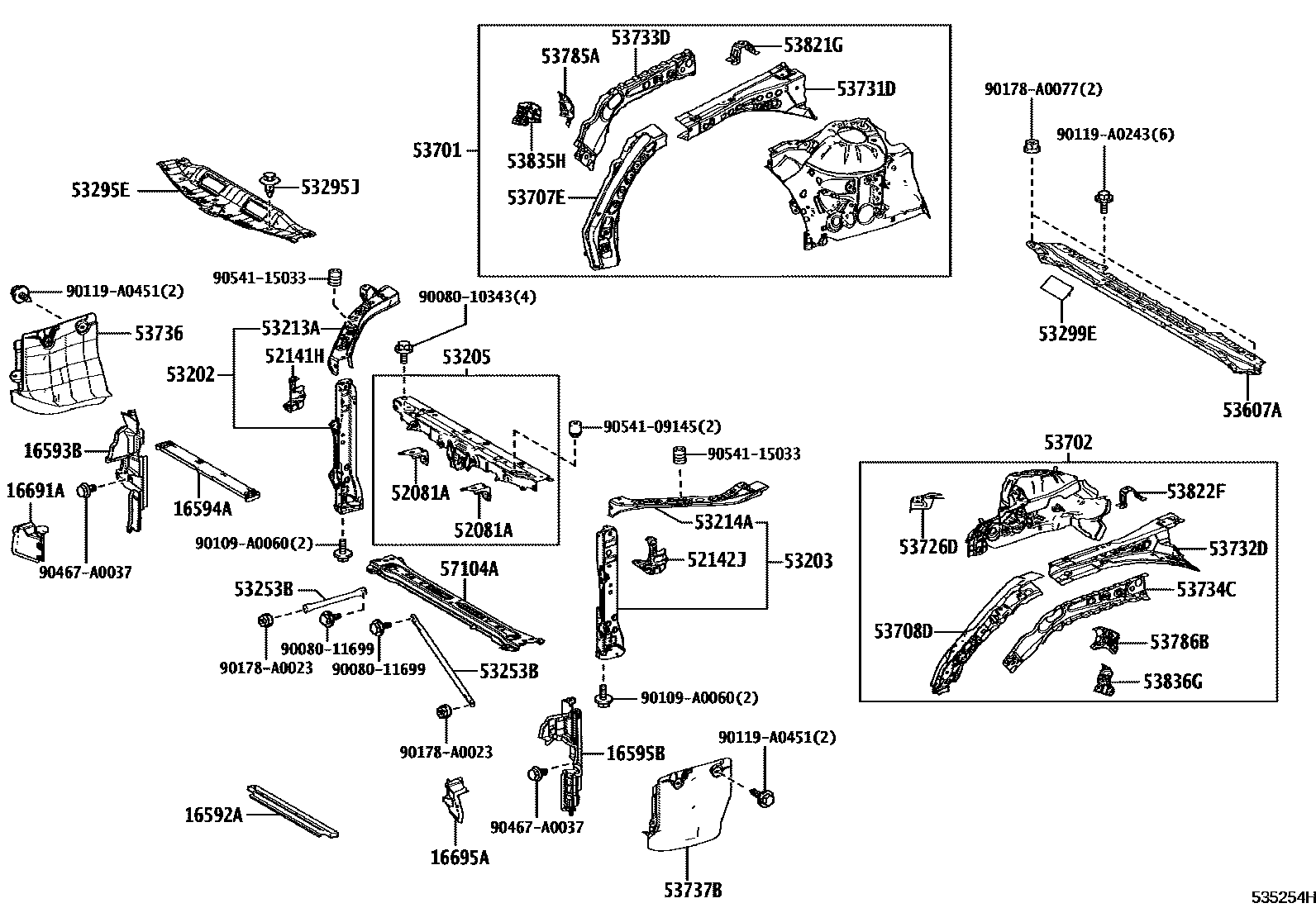

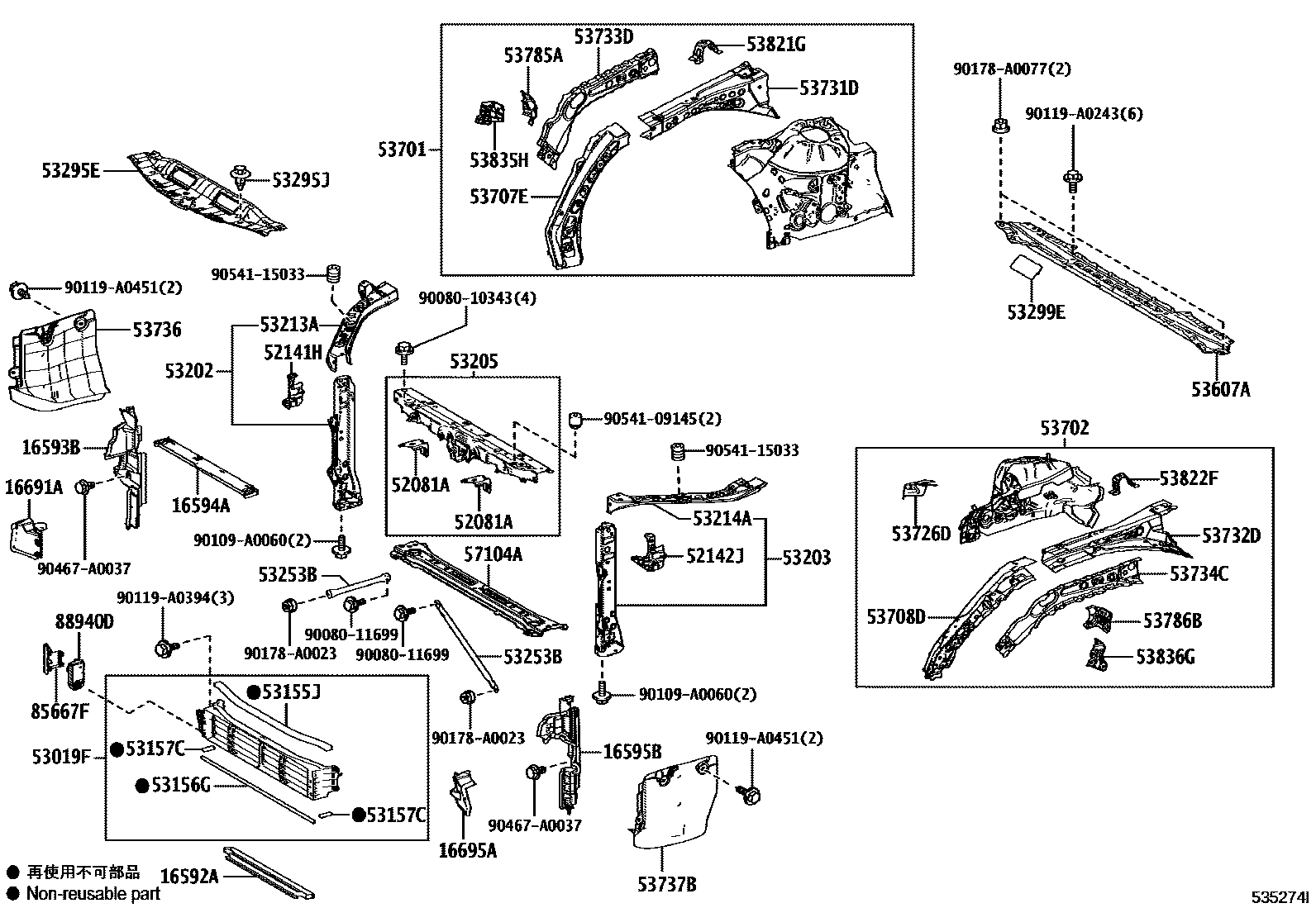

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 7 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-F0010 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-F0010 · 16593-F0050 · 16593-F0060 · 16593-F0070 · 16593-F0340 · 16593-F0350 · 16593-F0360 · 16593-F0370 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-F0010 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-F0010 · 16595-F0050 · 16595-F0060 · 16595-F0070 · 16595-F0360 · 16595-F0370 · 16595-F0380 · 16595-F0390 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-F0010 · 16691-F0030 · 16691-F0100 · 16691-F0150 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-F0010 · 16695-F0011 · 16695-F0030 · 16695-F0031 · 16695-F0100 · 16695-F0160 |
| 52081A | Front bumper right side stay sub-assembly | 52081-06010 |
| 52141H | Front bumper right upper arm | 52141-06170 |
| 52142J | Front bumper left upper arm | 52142-06160 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-06010 · 53019-06020 · 53019-06021 |
| 53155J | JOINT ETANCHEITE NO.1 CALANDRE RADIATEUR | 53155-06040 |
| 53156G | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-06030 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-06050 |
| 53180D | ENS. DE VOLET DE RADIATEUR | 53180-06090 · 53180-06091 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06230 · 53202-06231 |
| 53203 | Radiator left bracket sub-assembly | 53203-06270 |
| 53205 | Radiator upper bracket sub-assembly | 53205-06901 |
| 53213A | Radiator upper right bracket | 53213-06900 · 53213-06905 |
| 53214A | Radiator upper left bracket | 53214-06900 |
| 53253B | Radiator mounting bracket | 53253-06010 |
| 53295E | Cold air intake pipe seal | 53295-06190 |
| 53295J | CLIP, JOINT CONDUIT ADMISSION AIR FRAIS | 90467-07217 |
| 53299E | PLAQUE DE GAINE D'ADMISSION D'AIR FRAIS | 53299-06010 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-06010 |
| 53701 | Right front fender fender sub-assembly | 53701-06260 |
| 53702 | Left front fender fender sub-assembly | 53702-06240 |
| 53707E | Fender right fender sub-assembly | 53707-06060 |
| 53708D | Fender left fender sub-assembly | 53708-06010 |
| 53726D | No. 2 left front fender fender | 53726-06090 |
| 53731D | Right front fender to cowl side upper beam | 53731-06190 |
| 53732D | Left front fender to cowl side upper beam | 53732-06180 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06150 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06150 |
| 53736 | Right front fender fender seal | 53736-06070 |
| 53737B | Left front fender fender seal | 53737-06130 |
| 53785A | Right front fender corner plate | 53785-06010 |
| 53786B | Left front fender corner plate | 53786-06010 |
| 53821G | Right front fender rear support | 53821-06140 |
| 53822F | Left front fender rear support | 53822-06130 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-06130 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-06140 |
| 55101 | Front apron sub-assembly | 55101-06440 |
| 55210 | Front wall insulation pad assembly | 55210-06420 · 55210-06421 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-06500 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-06010 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-06020 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 57104A | Front cross member sub-assembly | 57104-06060 |
| 85667F | COUV, MOTEUR | 85667-06020 |
| 88940D | ACTUAT ASS, GRILL ECHANG | 88940-33060 |
