VOCR EPC

Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 5 images and 8 PNC and OE references.

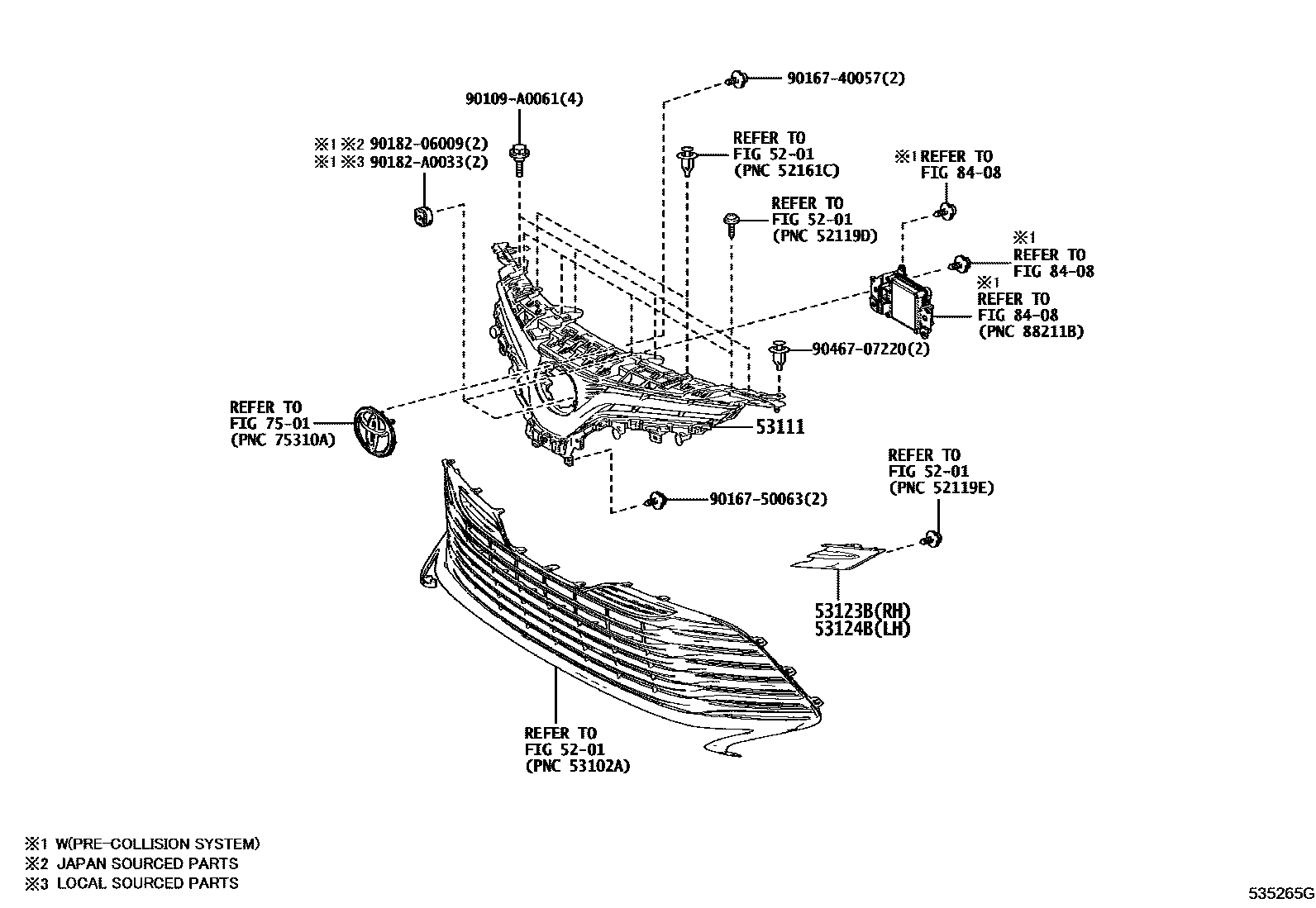

Toyota CAMRY radiator grille EPC diagram — 535265G
radiator grille — 535265G (201706 – 202010)

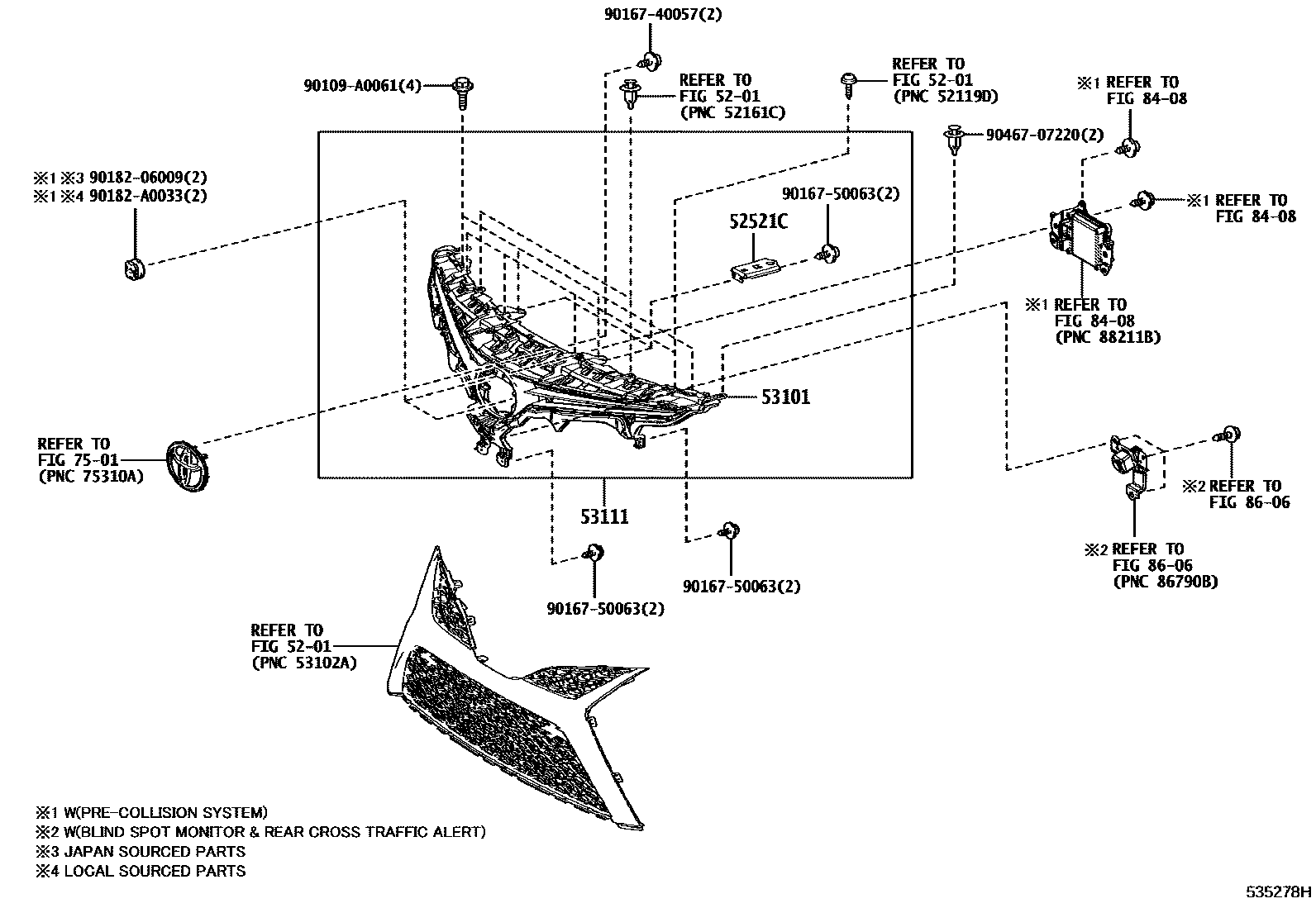

Toyota CAMRY radiator grille EPC diagram — 535278H
radiator grille — 535278H (201706 – 202010)

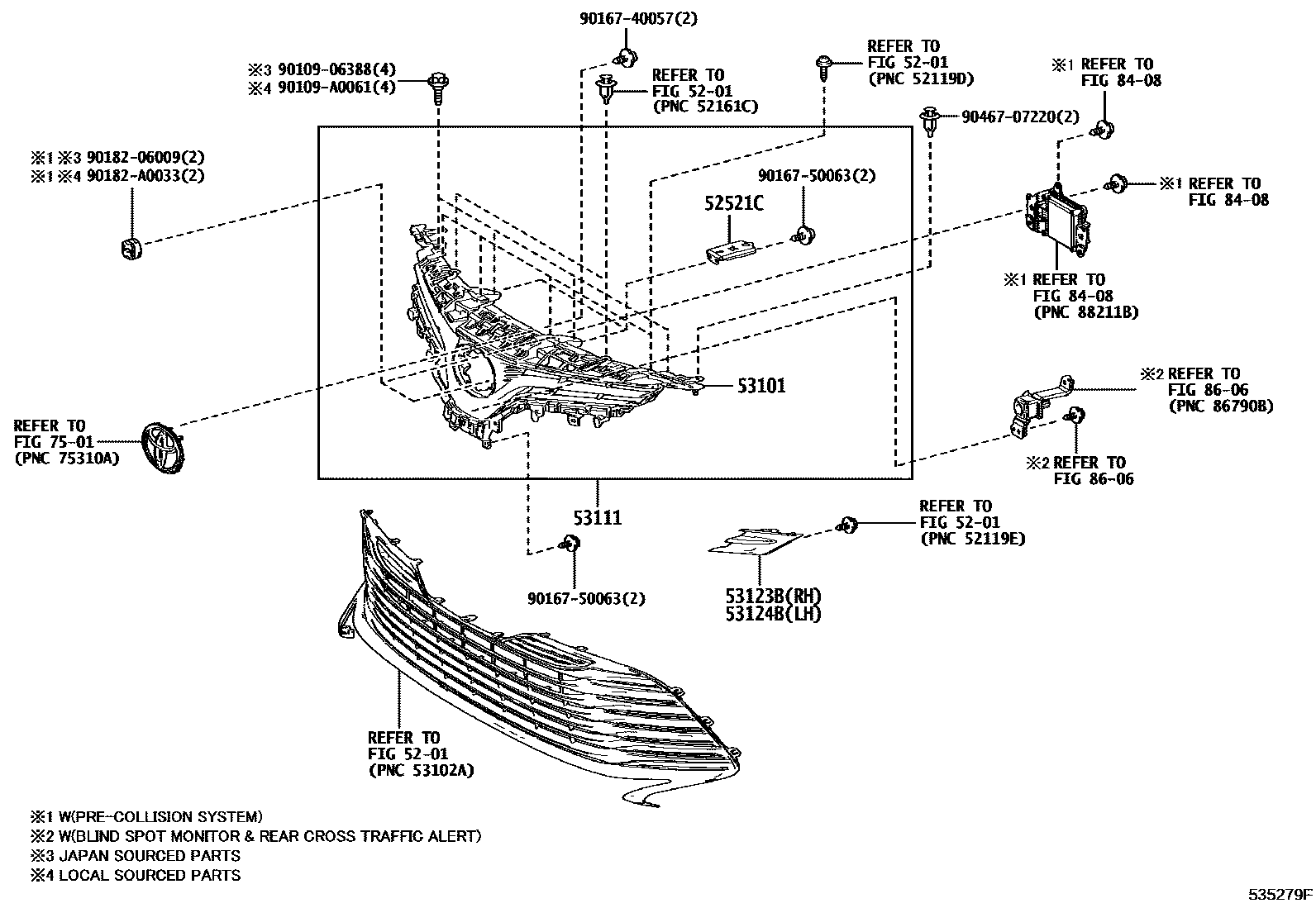

Toyota CAMRY radiator grille EPC diagram — 535279F
radiator grille — 535279F (201706 – 202010)

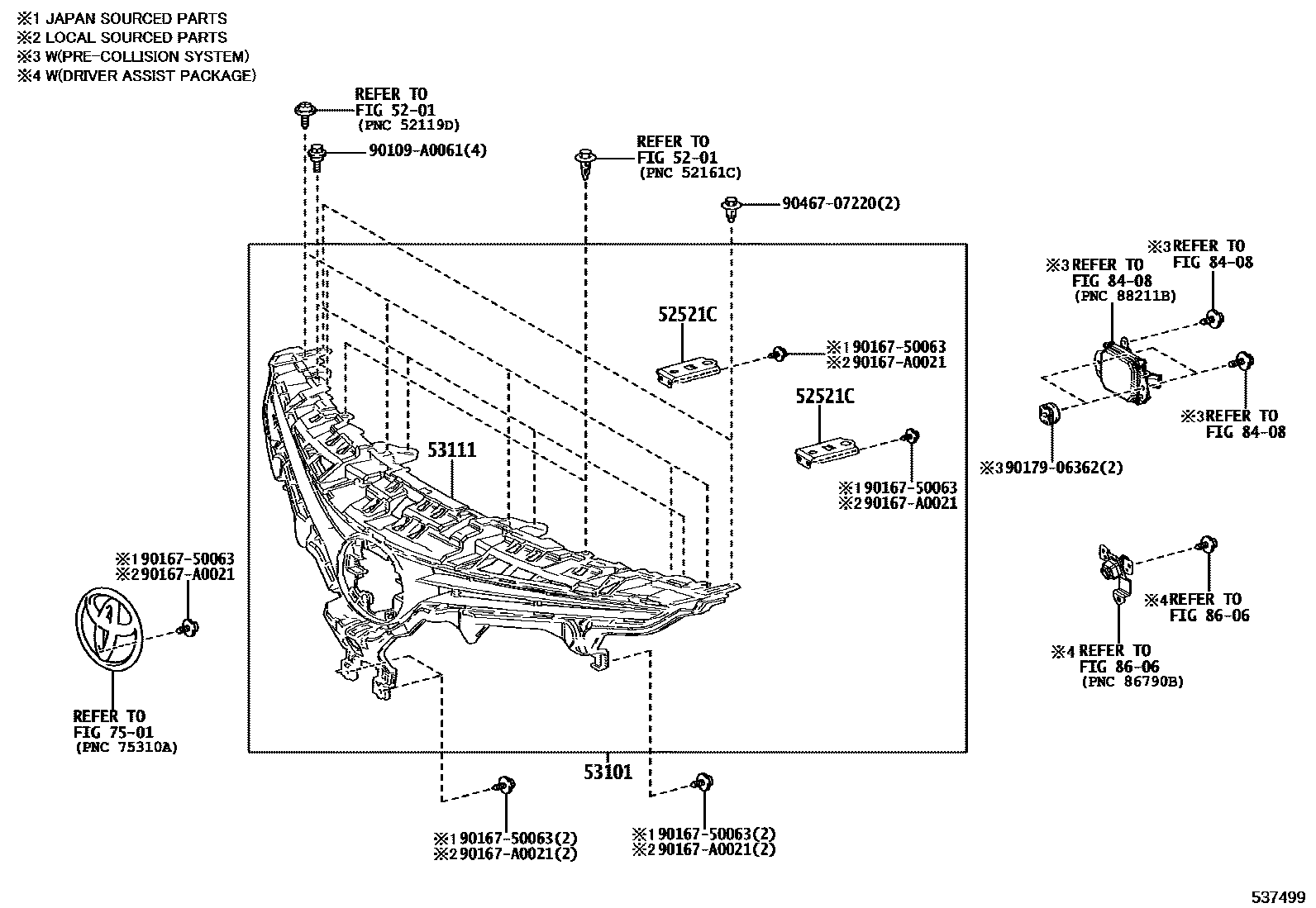

Toyota CAMRY radiator grille EPC diagram — 537499
radiator grille — 537499 (202010 – 999999)

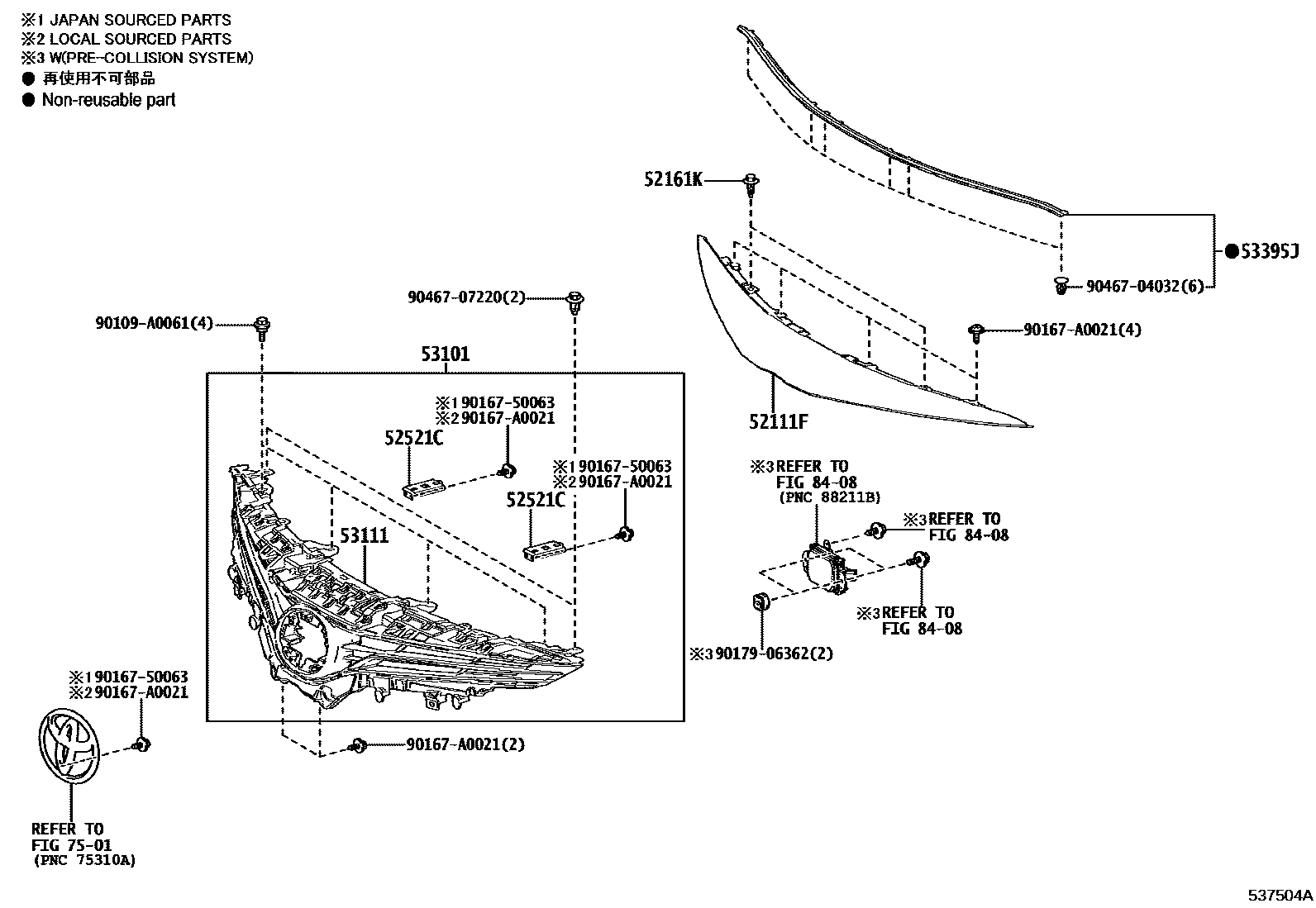

Toyota CAMRY radiator grille EPC diagram — 537504A
radiator grille — 537504A (202010 – 999999)

PNC and OE references

PNCPart nameOE numbers
52111FBARRE, PARE-CHOCS AVANT, CENTRALE52111-06900
52161Kfront bumper insert52161-02020
52521CDISP. RET., PARE-CHOCS AVANT, SUPERIEURE52521-06090
53101Radiator grille sub-assembly53101-06F30 · 53101-06F50 · 53111-06660 · 53111-06860 · 53111-06880
53111radiator grille53101-06A70 · 53101-06A90 · 53101-06E10 · 53101-06E30 · 53111-06B60 · 53111-06C50
53123BProtective strip on the right side of the radiator grille53123-06070 · 53123-06110
53124BRadiator grille left protective strip53124-06050 · 53124-06150
53395JJOINT ETANCH., CAPOT A PANNEAU EN BOUT AVANT53395-06070
