Toyota CAMRY 后保险杠及附件 — Figure 5202

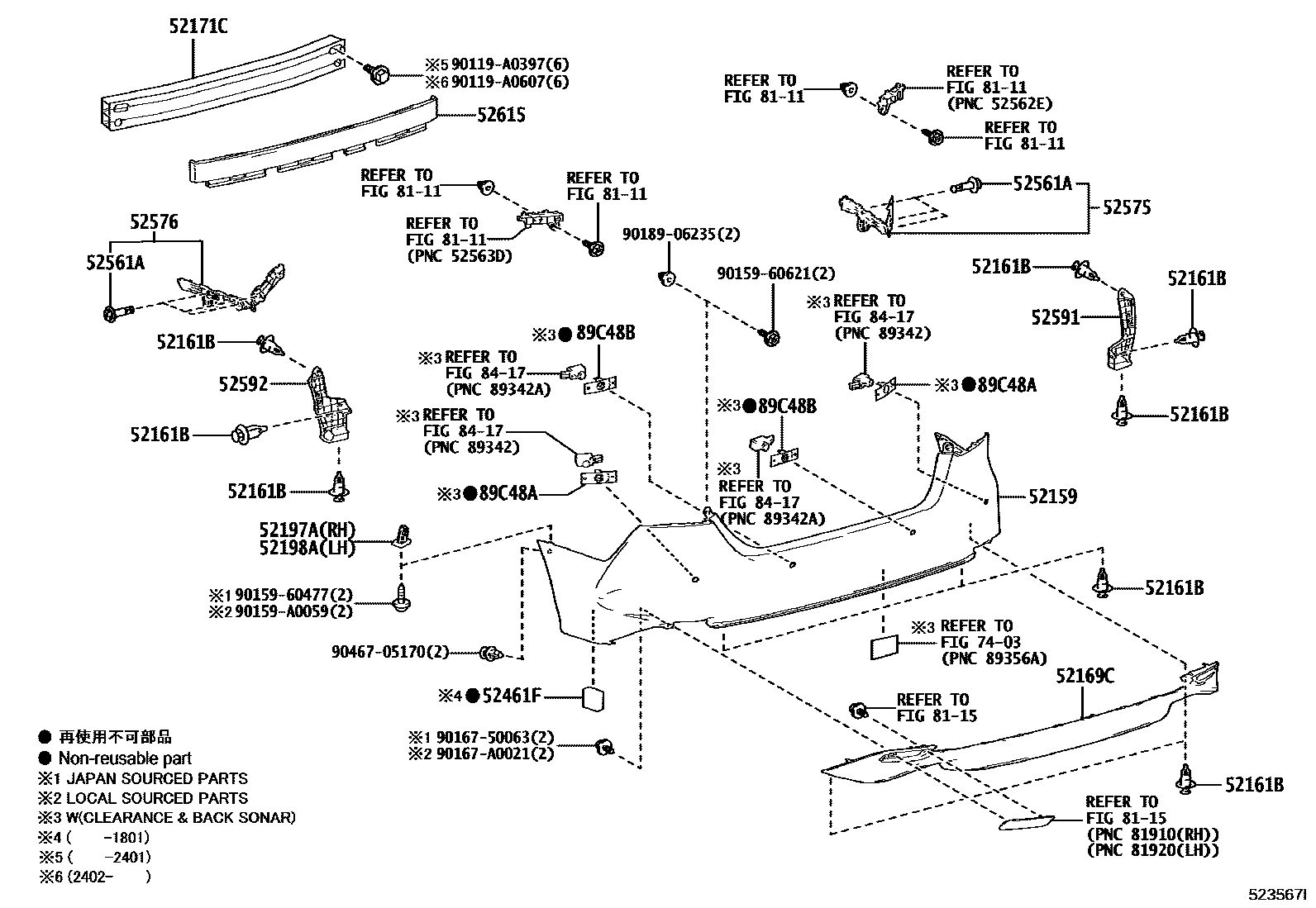

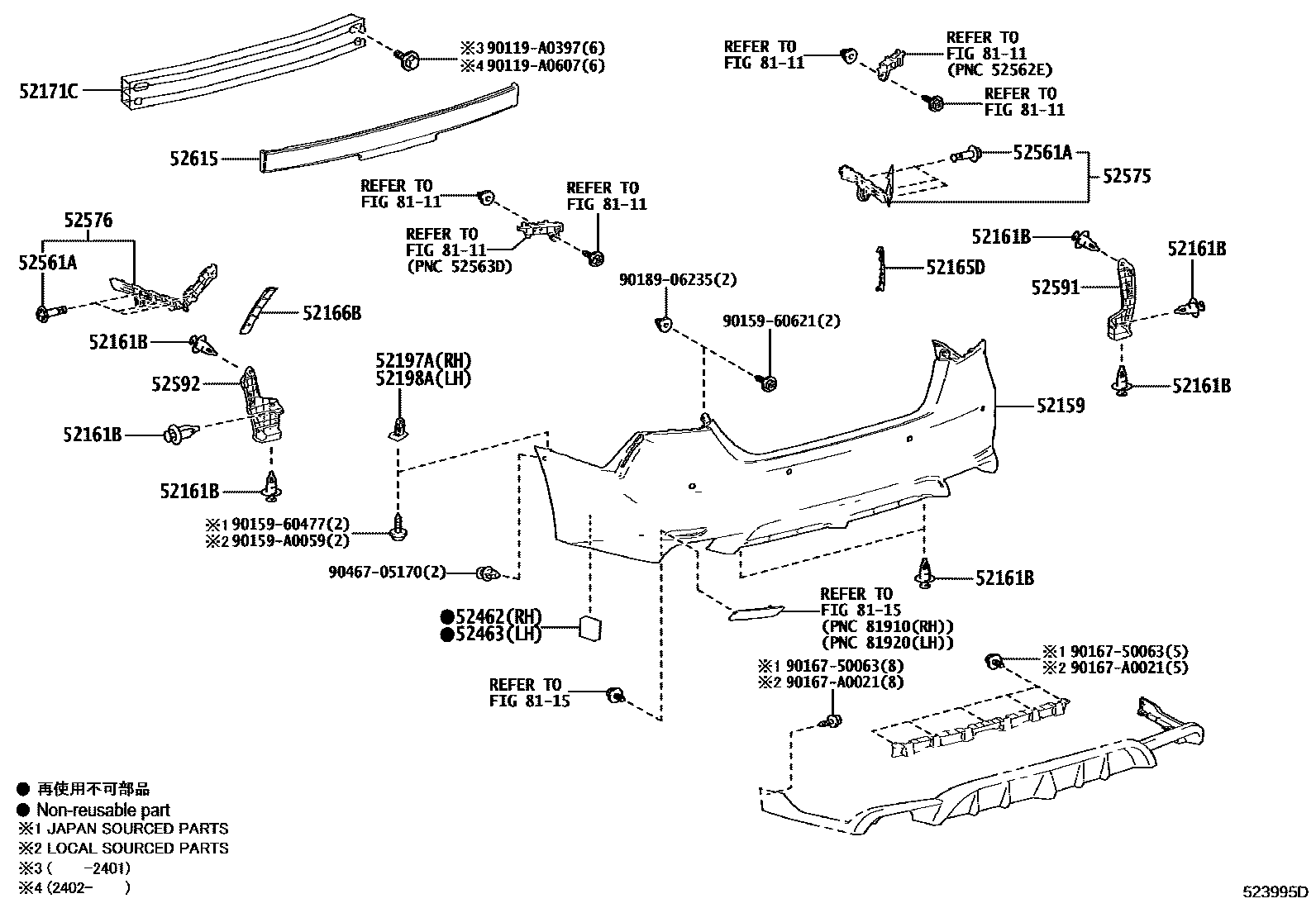

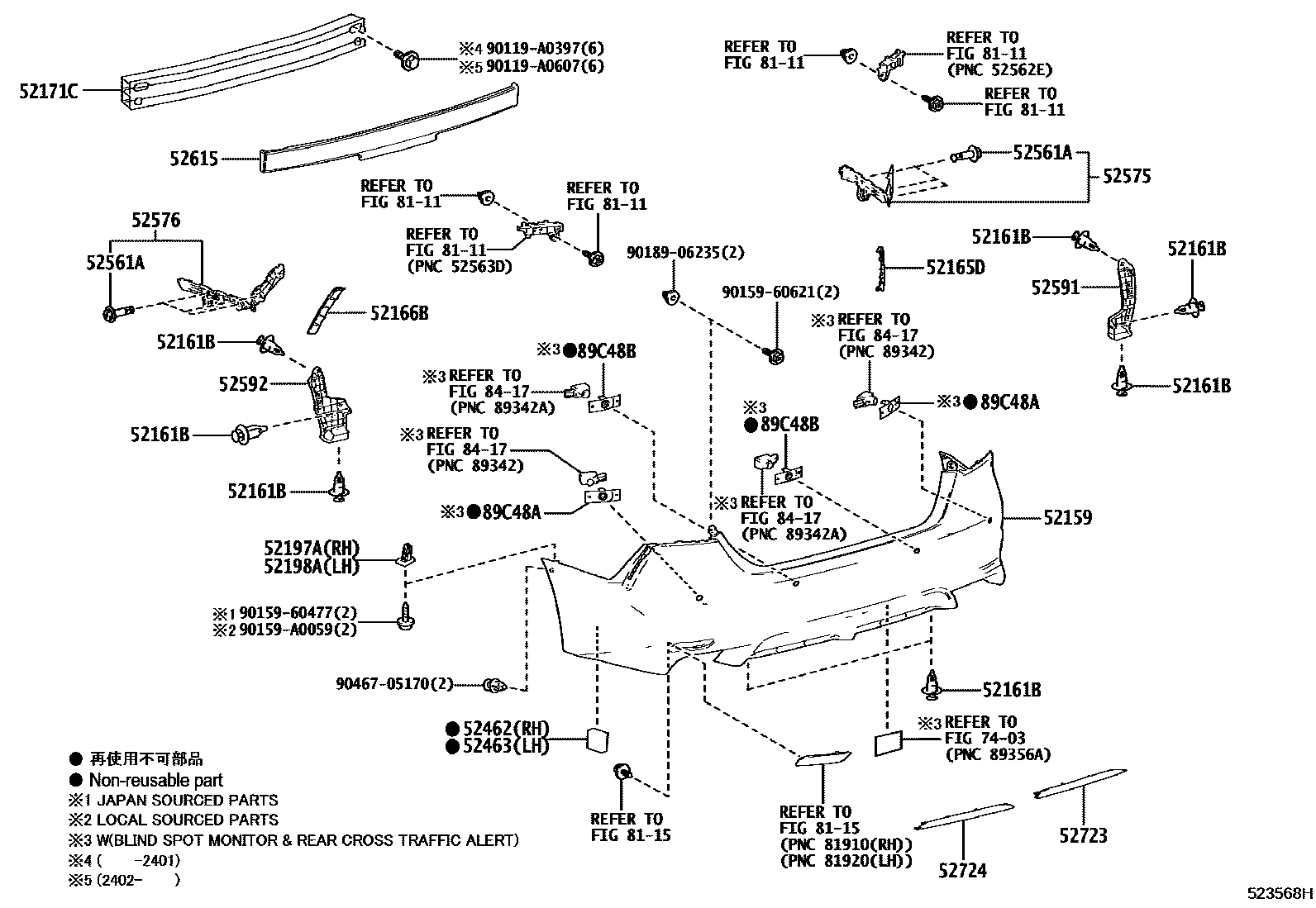

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X913 · 52159-0X914 · 52159-0X915 · 52159-0X916 · 52159-0X928 · 52159-0X931 · 52159-0X932 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52165D | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MD | 52165-06030 |
| 52166B | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MG | 52166-06030 |
| 52169C | Rear bumper lower cover | 52169-06150 |
| 52171C | RENFORT PARE-CHOCS ARRIERE | 52171-06170 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52461F | rear bumper lining | 52462-06180 |
| 52462 | Rear bumper right side lining | 52462-06220 · 52462-33060 |
| 52463 | Rear bumper left lining | 52463-06140 · 52463-33100 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52575 | Rear bumper right side fixing bracket | 52575-06160 |
| 52576 | Rear bumper left side fixing bracket | 52576-06160 |
| 52591 | Rear bumper right seal | 52591-06030 |
| 52592 | Rear bumper left seal | 52592-06030 |
| 52615 | Rear bumper energy absorber | 52615-06100 · 52615-06190 |
| 52723 | Rear bumper right extension protection strip | 52723-06010 |
| 52724 | Rear bumper left extension protection strip | 52724-06010 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-06050 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-06050 |
