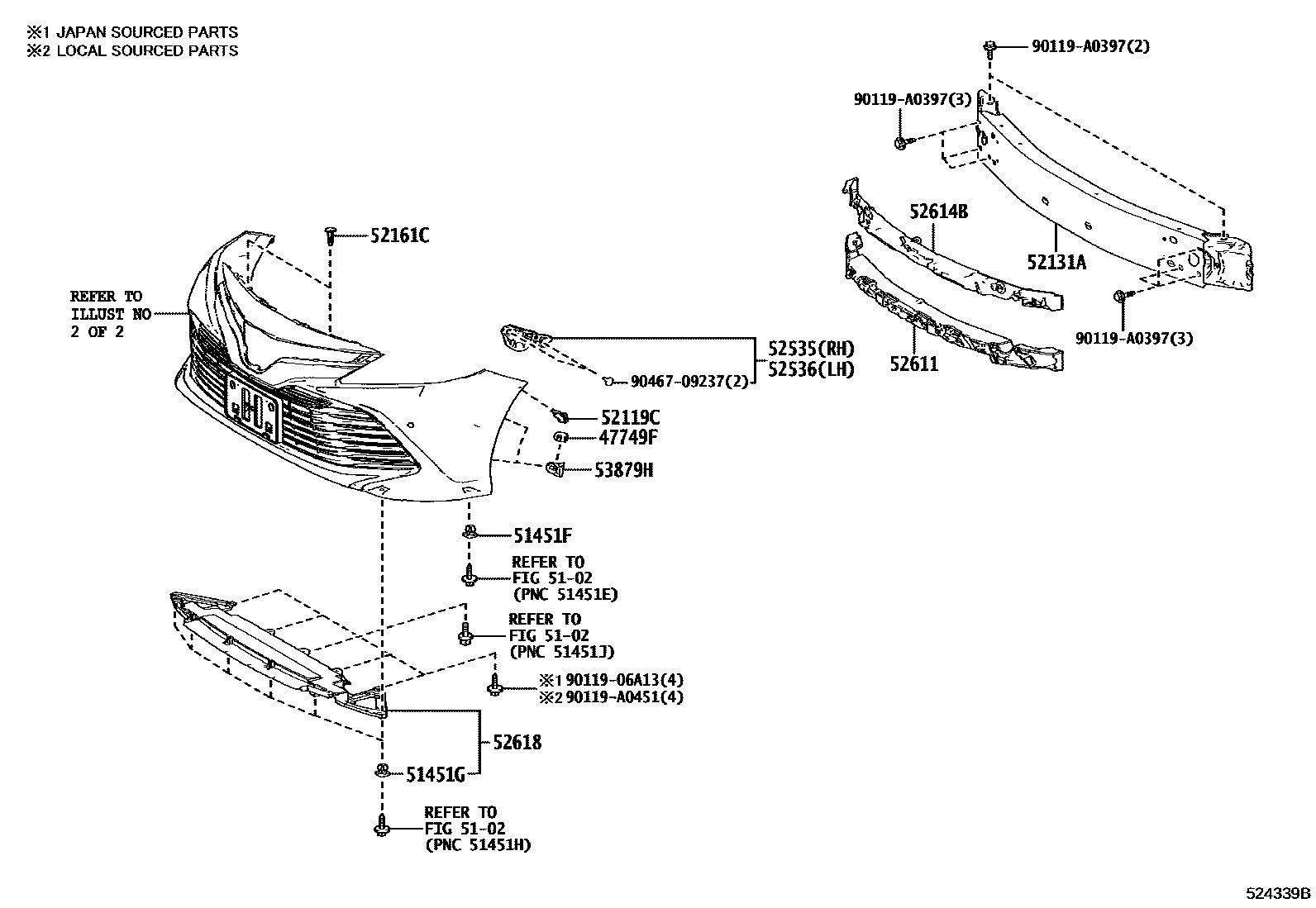

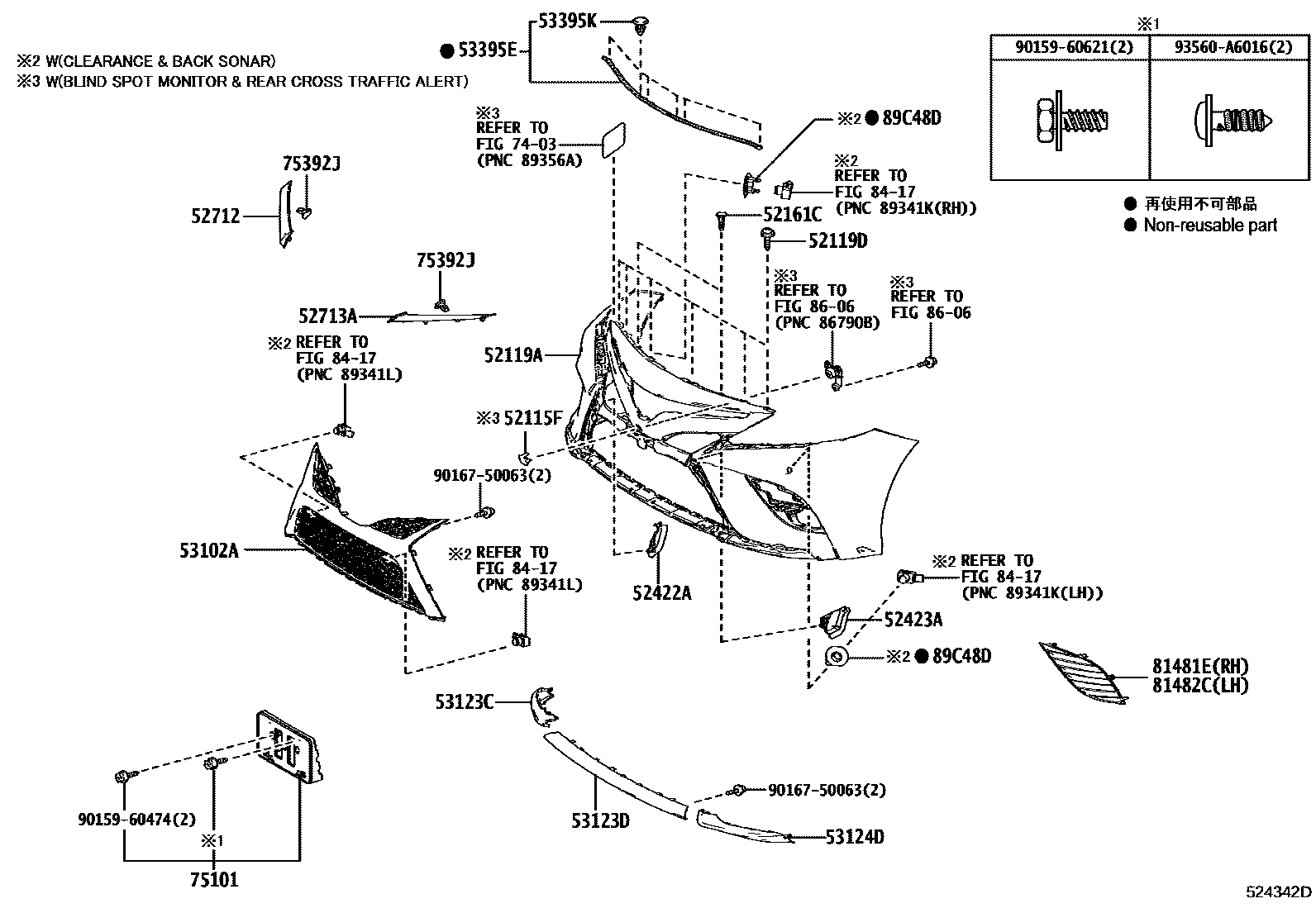

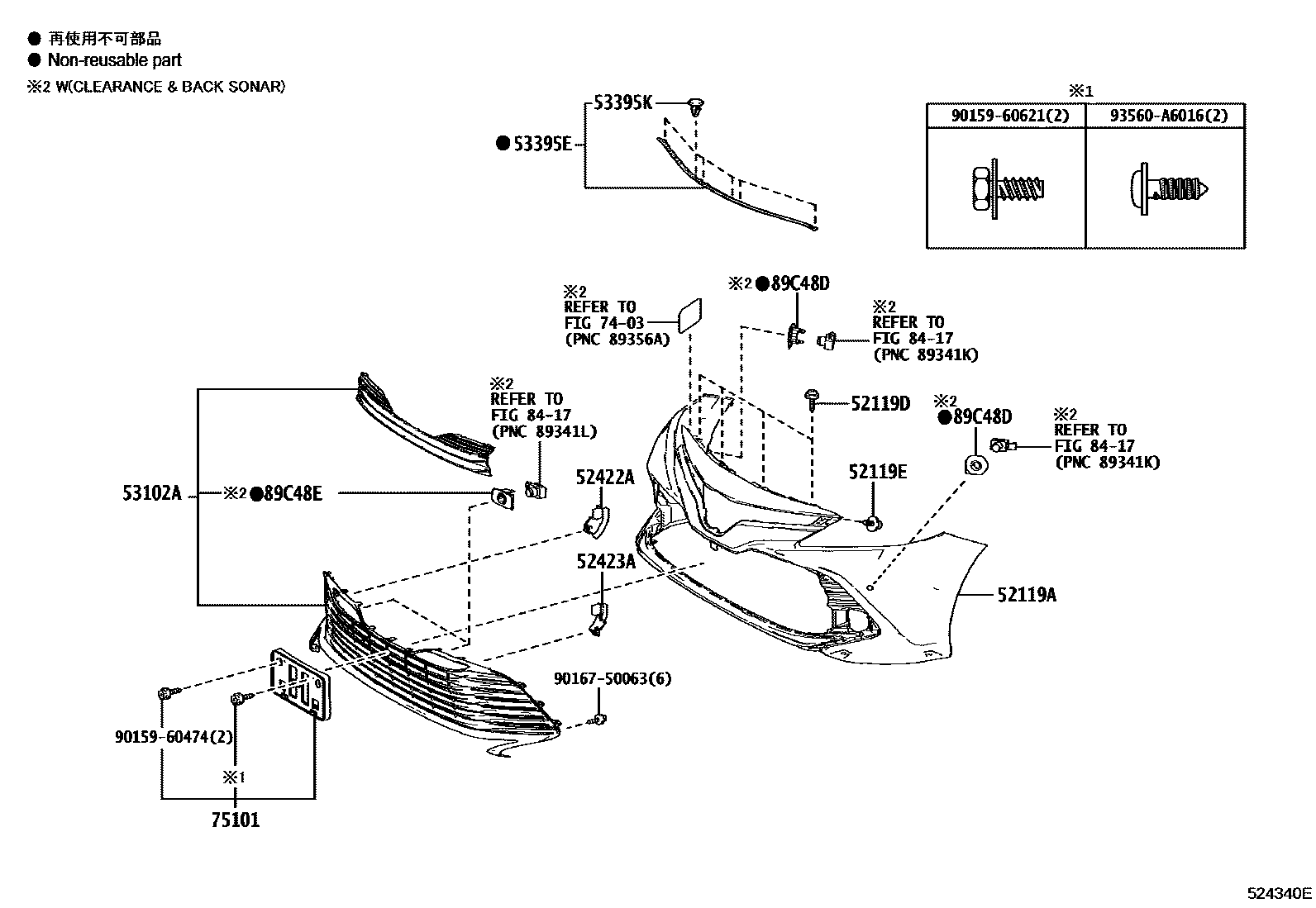

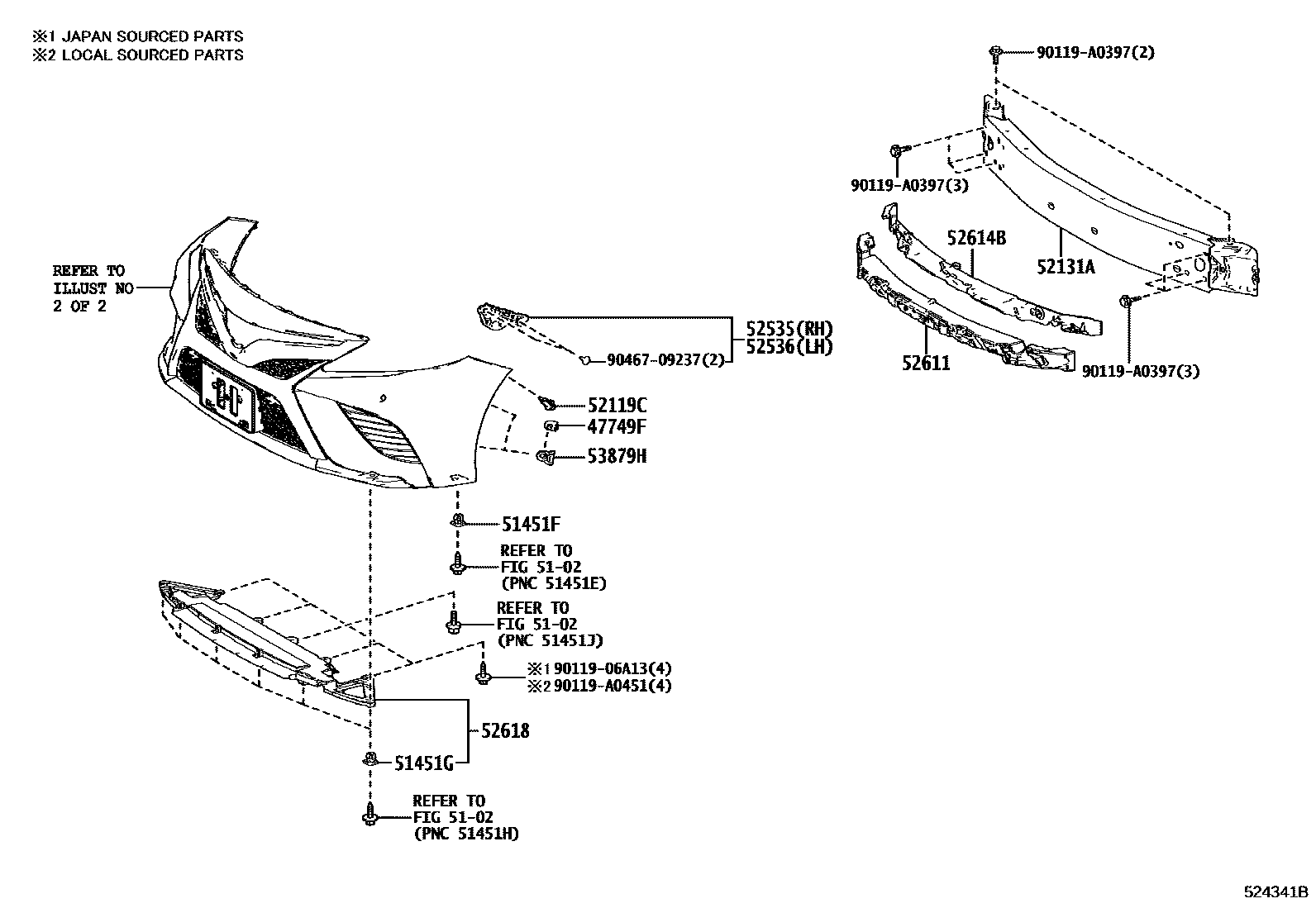

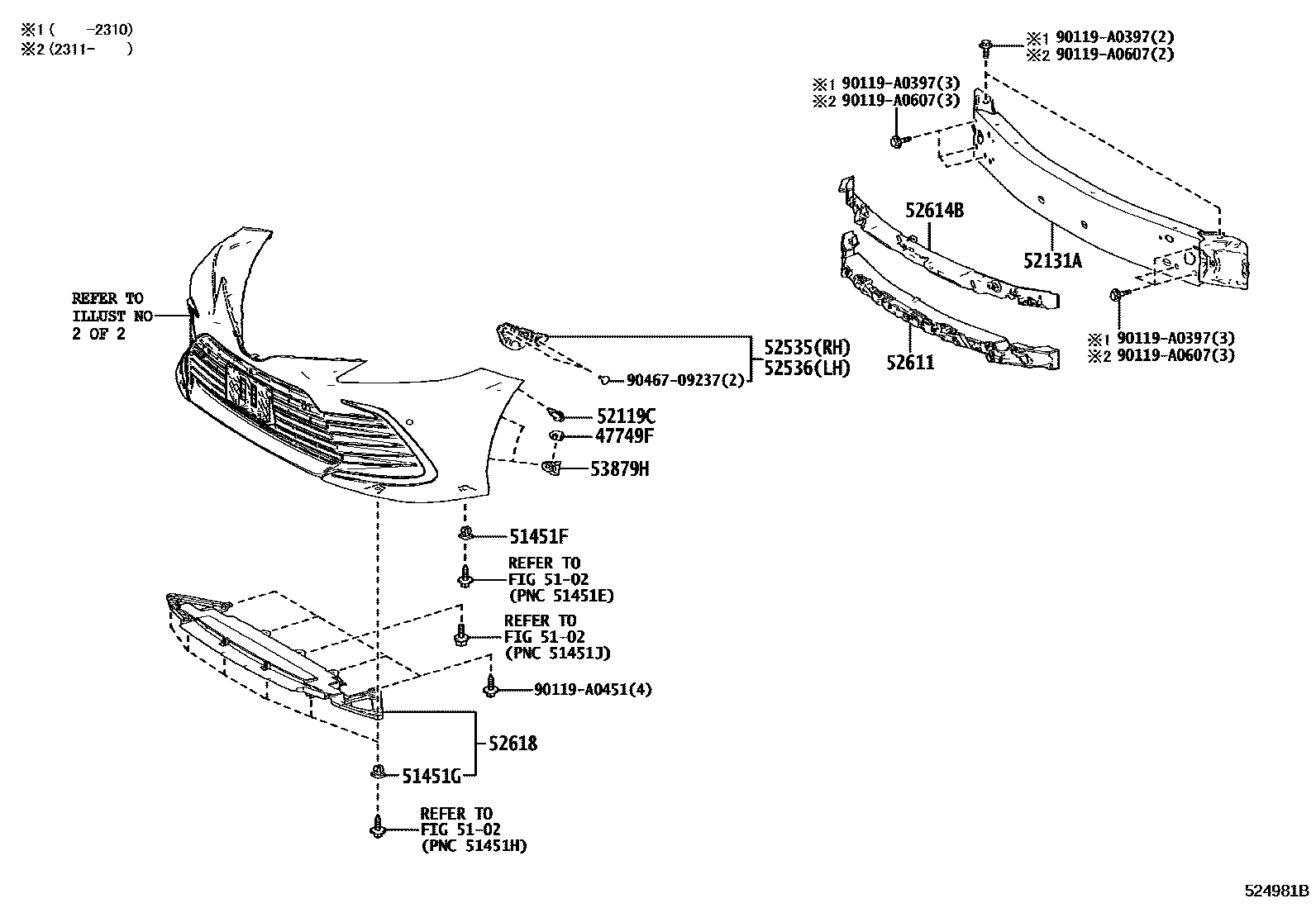

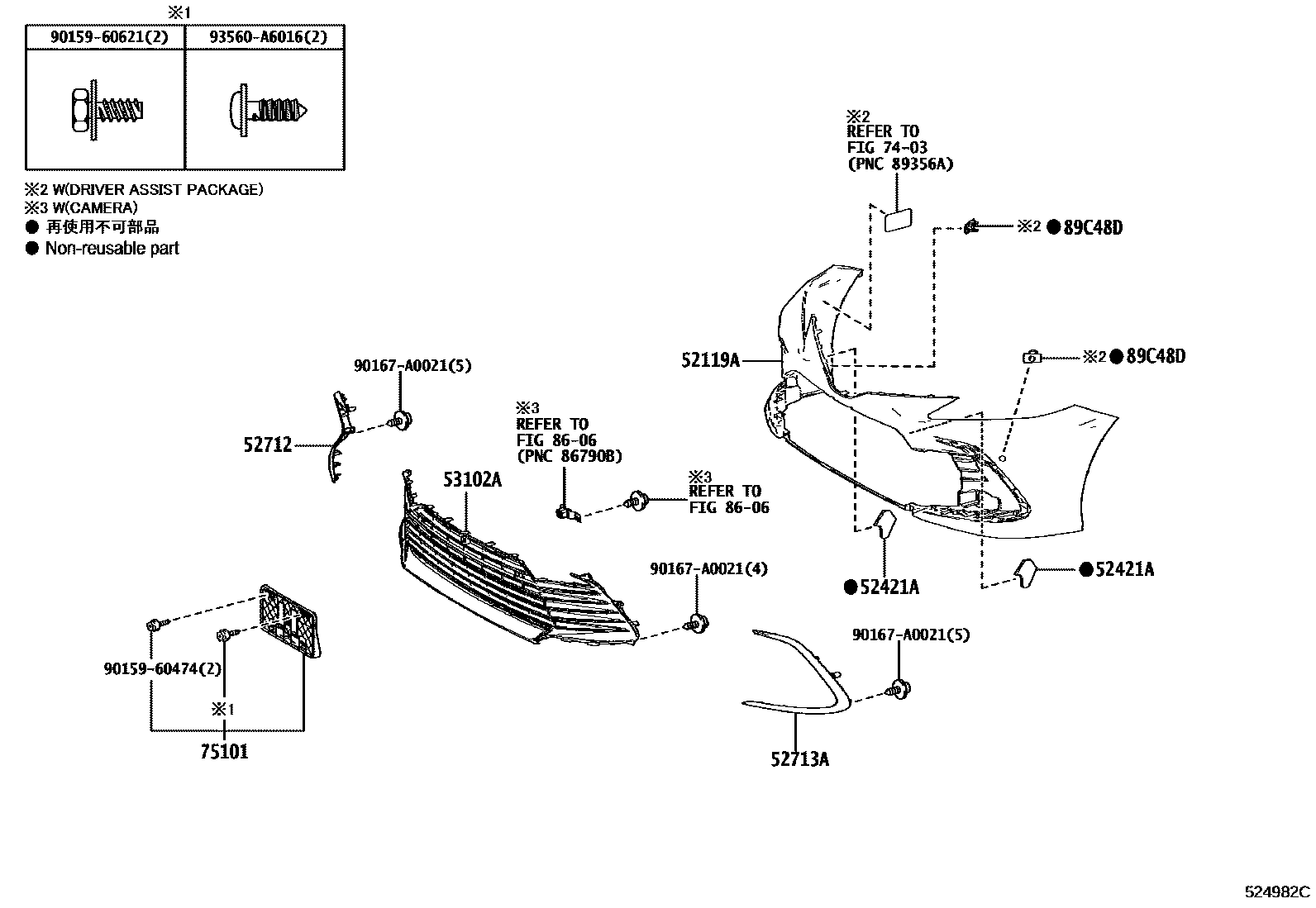

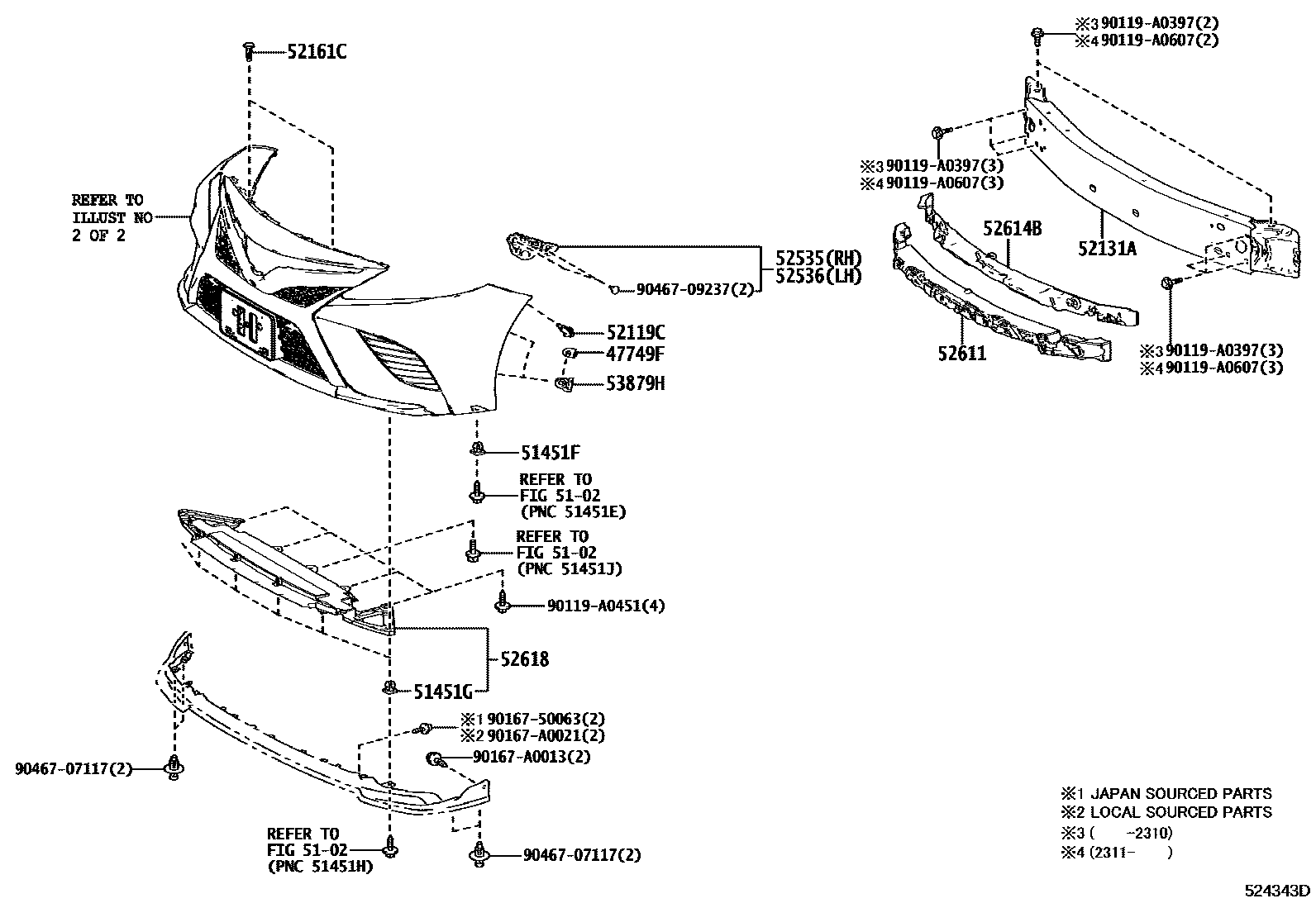

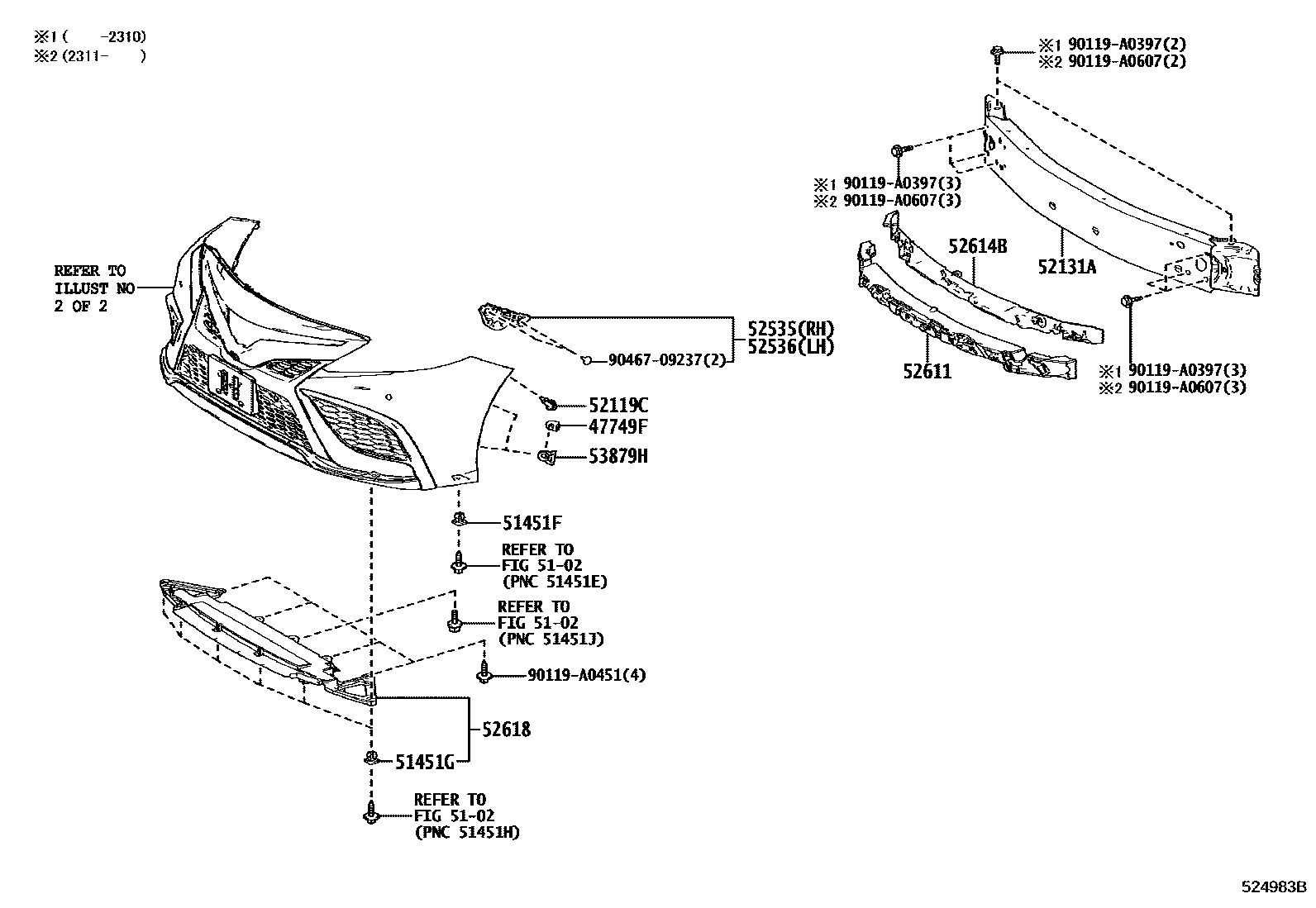

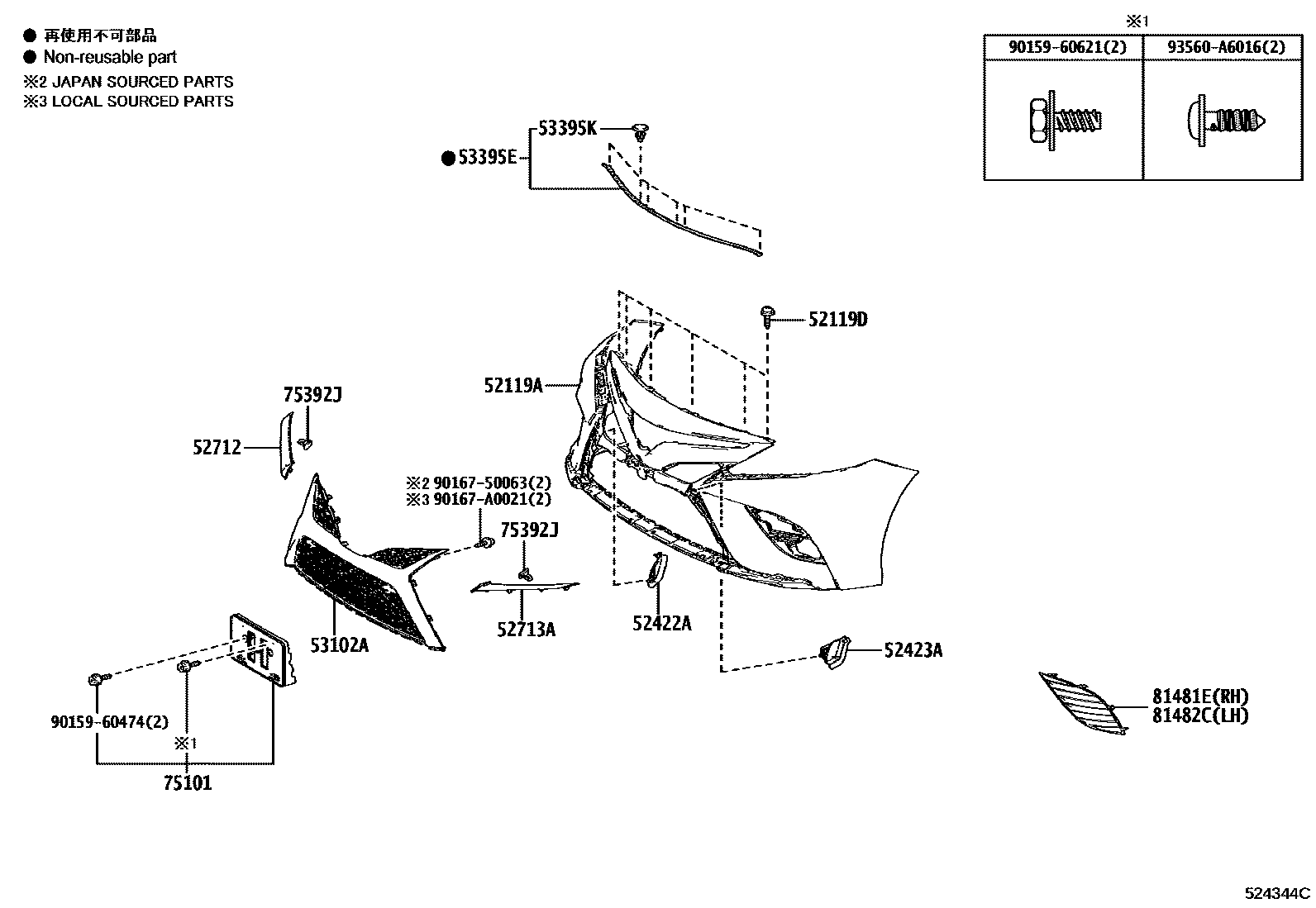

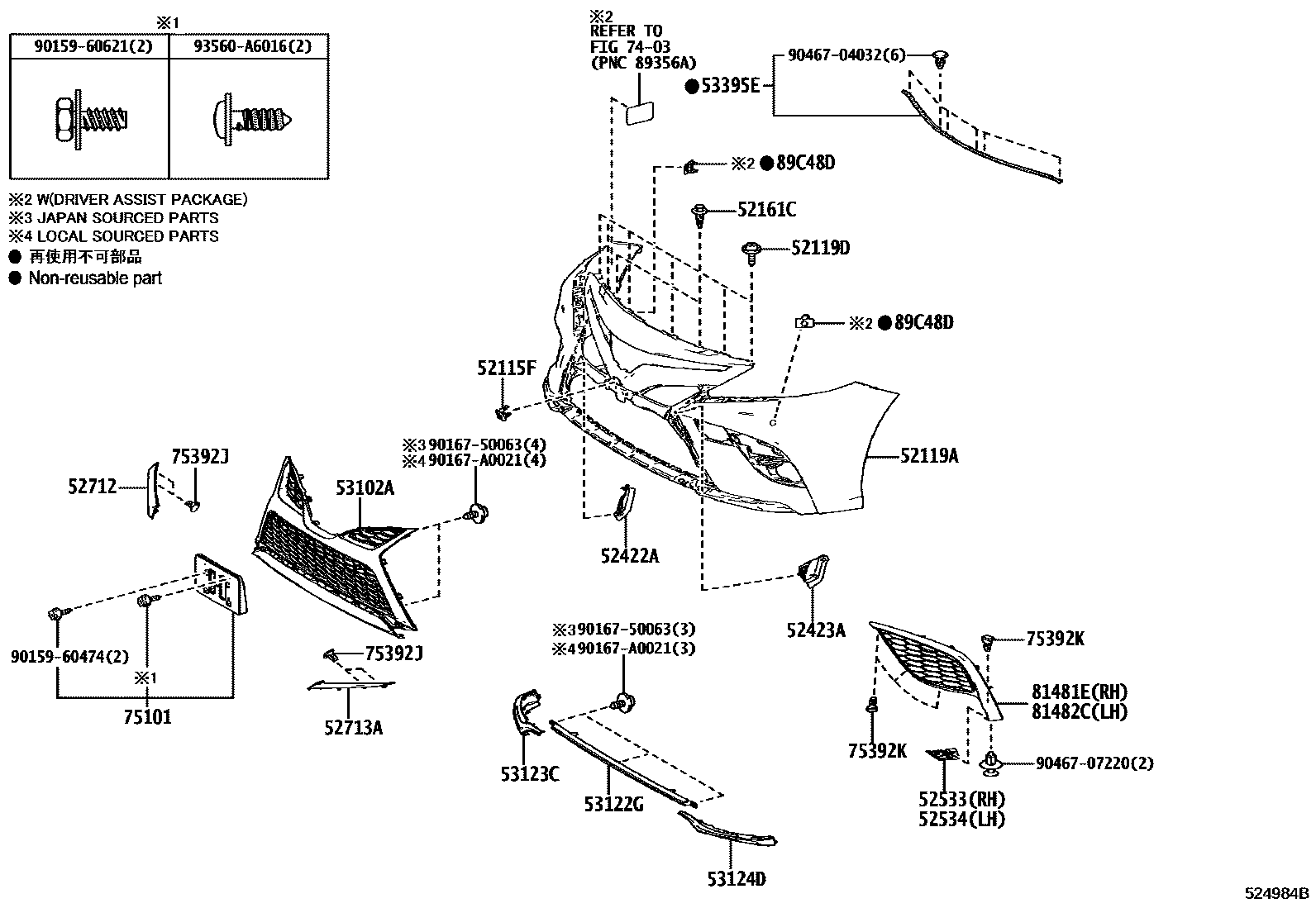

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 10 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 51451G | OEILLET, NO.2 | 90189-06237 |
| 52119A | front bumper cover | 52119-0X936 · 52119-0X937 · 52119-0X938 · 52119-0X939 · 52119-0X940 · 52119-0X952 · 52119-0X953 · 52119-0X954 · 52119-0X955 · 52119-0X956 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52119D | VIS, NO.1 | 90167-50063 · 90167-A0021 |
| 52119E | VIS, NO.2 | 90167-50063 |
| 52131A | Front bumper reinforcement | 52021-06160 · 52021-06170 |
| 52161C | front bumper insert | 52161-02020 |
| 52421A | front bumper lining | 52421-06010 |
| 52422A | Front bumper right side lining | 52422-06010 · 52422-06020 |
| 52423A | Front bumper left lining | 52423-06010 · 52423-06020 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-06010 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-06010 |
| 52535 | Front bumper right side fixing bracket | 52535-06210 |
| 52536 | Front bumper left fixed bracket | 52536-06210 |
| 52611 | front bumper energy absorber | 52611-06460 · 52611-06570 |
| 52614B | ABSORBEUR CHOC NO. 2 PARE-CHOCS AVANT | 52614-06010 |
| 52618 | Front bumper lower shock absorber | 52618-06040 |
| 52712 | Front bumper right side protective strip | 52712-06100 · 52712-06110 · 52712-06120 · 52712-06180 · 52712-06200 |
| 52713A | Front bumper left protective strip | 52713-06100 · 52713-06110 · 52713-06120 · 52713-06180 · 52713-06200 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-06100 · 53102-06110 · 53102-06240 · 53102-06250 · 53102-06270 · 53102-06280 · 53102-06290 · 53102-06300 · 53102-06310 · 53102-06320 · 53102-06330 · 53102-06380 · 53102-06390 · 53102-06420 · 53102-06520 · 53102-06550 · 53102-06560 · 53102-06580 · 53102-06630 · 53102-06640 · 53102-06650 |
| 53122G | MOULURE, GRILLE RADIATEUR, INF CTR | 53122-06120 · 53122-06130 |
| 53123C | Radiator grille lower right protective strip | 53123-06040 · 53123-06060 · 53123-06150 · 53123-06190 |
| 53123D | Radiator grille lower protective strip | 53122-06040 · 53122-06080 |
| 53124D | Radiator grille lower left protective strip | 53124-06120 · 53124-06130 · 53124-06250 · 53124-06260 |
| 53395E | Engine cover to front end plate seal | 53395-06070 · 53395-06120 |
| 53395K | CLIP(POUR LE CAPOT SUR JOINT PANNEAU EXTREMITE AVANT) | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75101 | Front license plate bracket sub-assembly | 75101-06070 · 75101-06090 · 75101-06100 · 75101-06110 |
| 75392J | External protective strip fixings | 75392-35220 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-35220 |
| 81481E | Right fog light cover | 81481-06170 · 81481-06180 · 81481-06220 · 81481-06240 |
| 81482C | Left fog light cover | 81482-06170 · 81482-06180 · 81482-06190 · 81482-06200 |
| 89C48E | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL AVANT | 89348-06060 · 89348-06070 |
