Toyota CAMRY 制动配管和卡箍 — Figure 4708

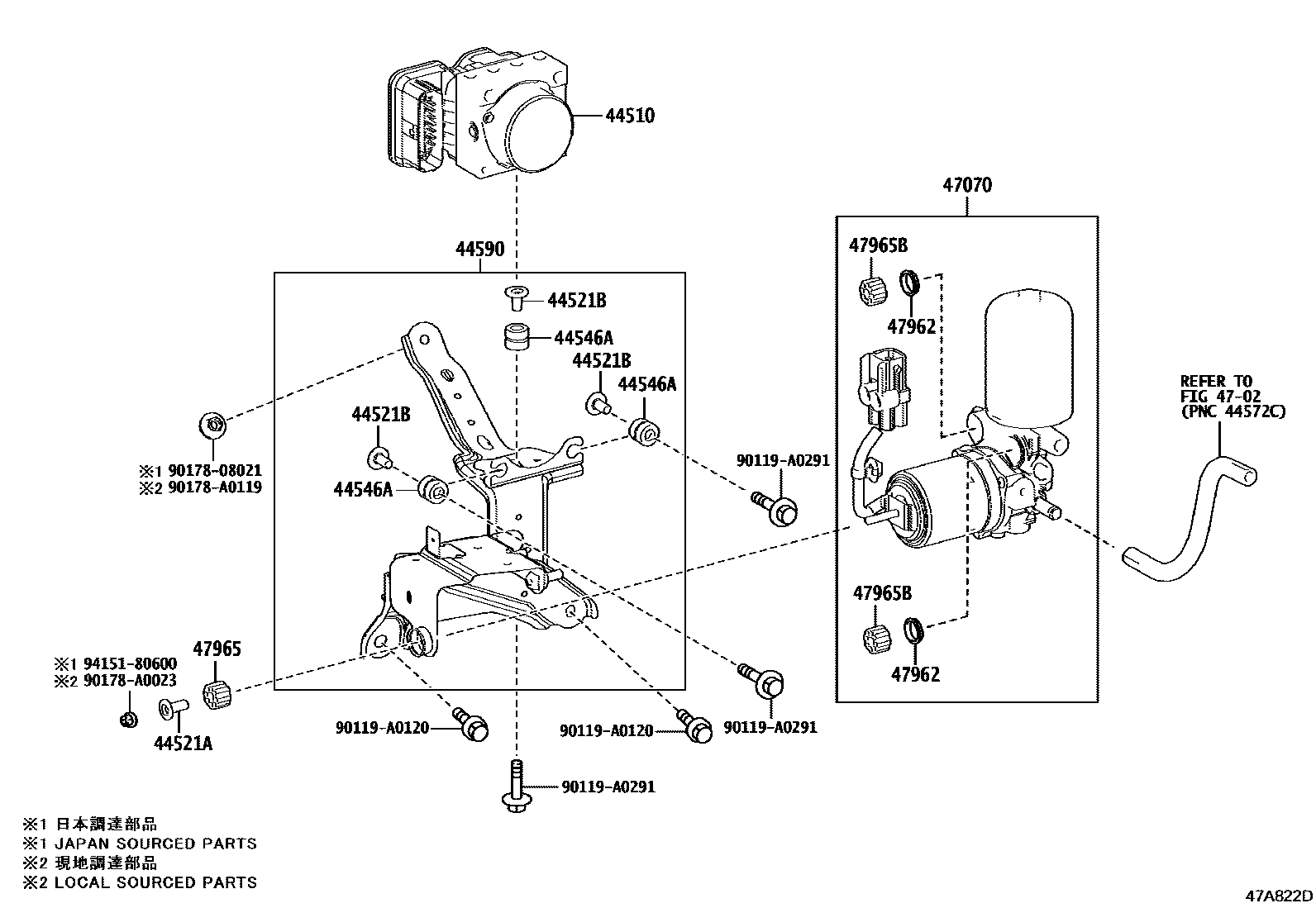

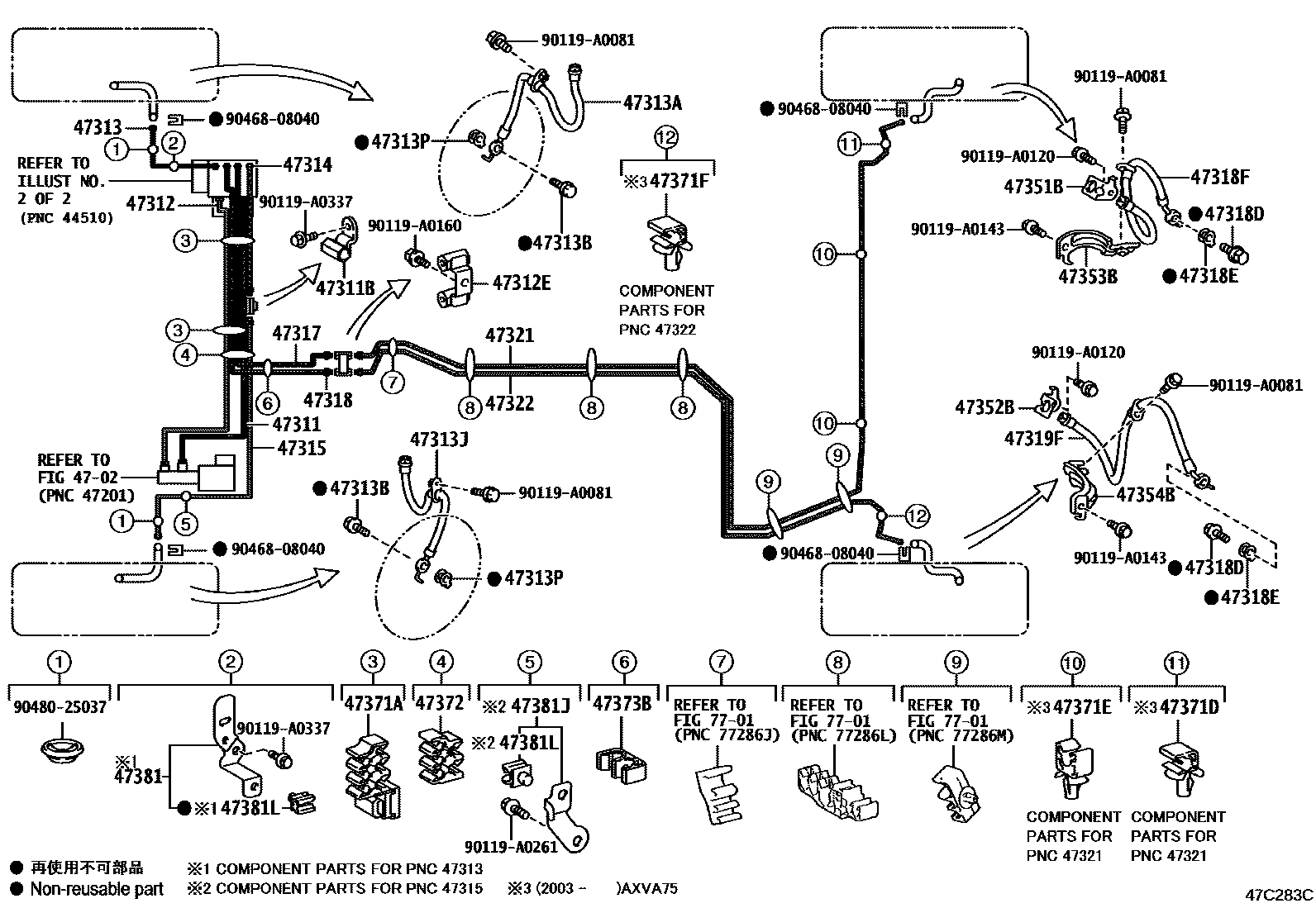

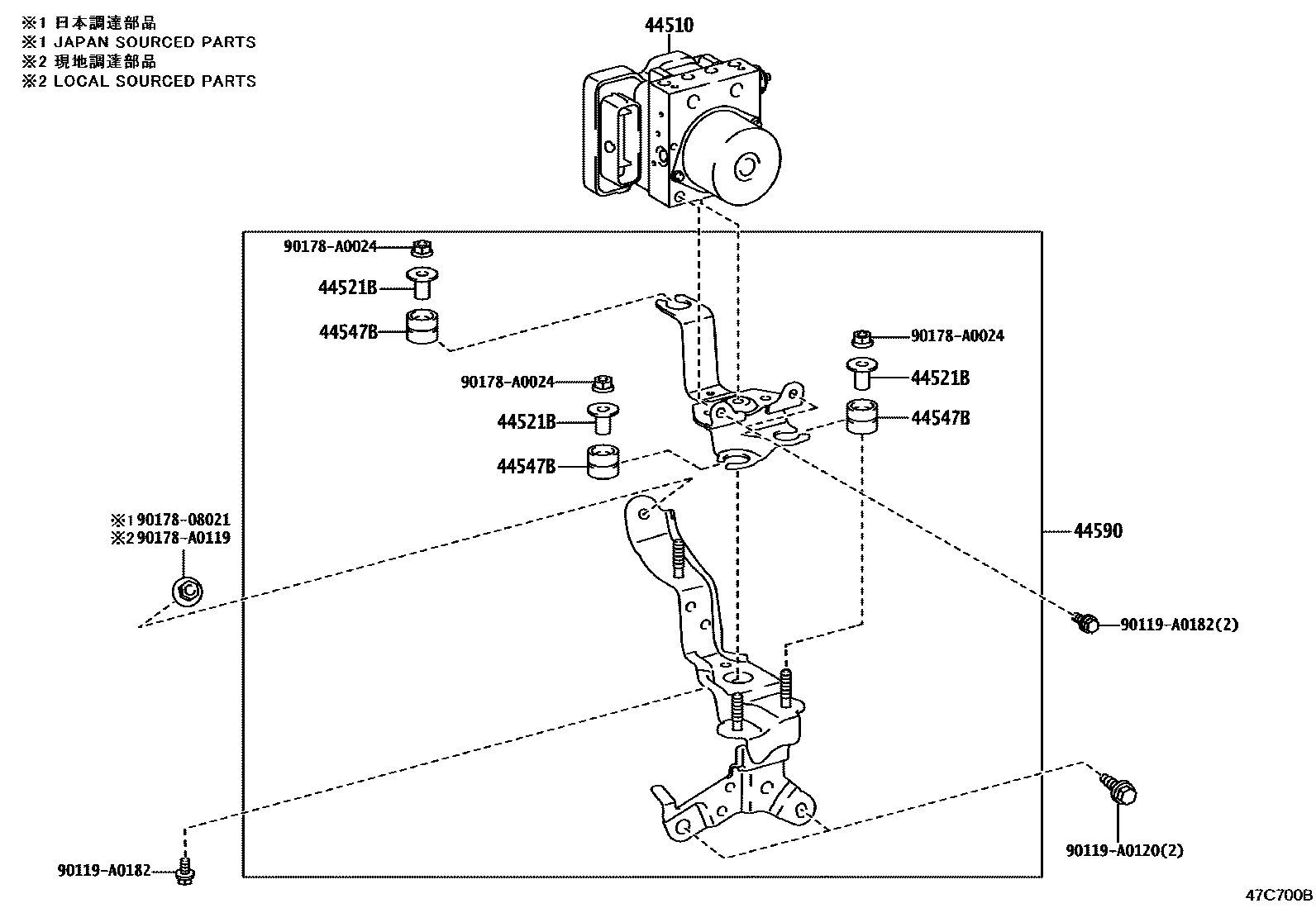

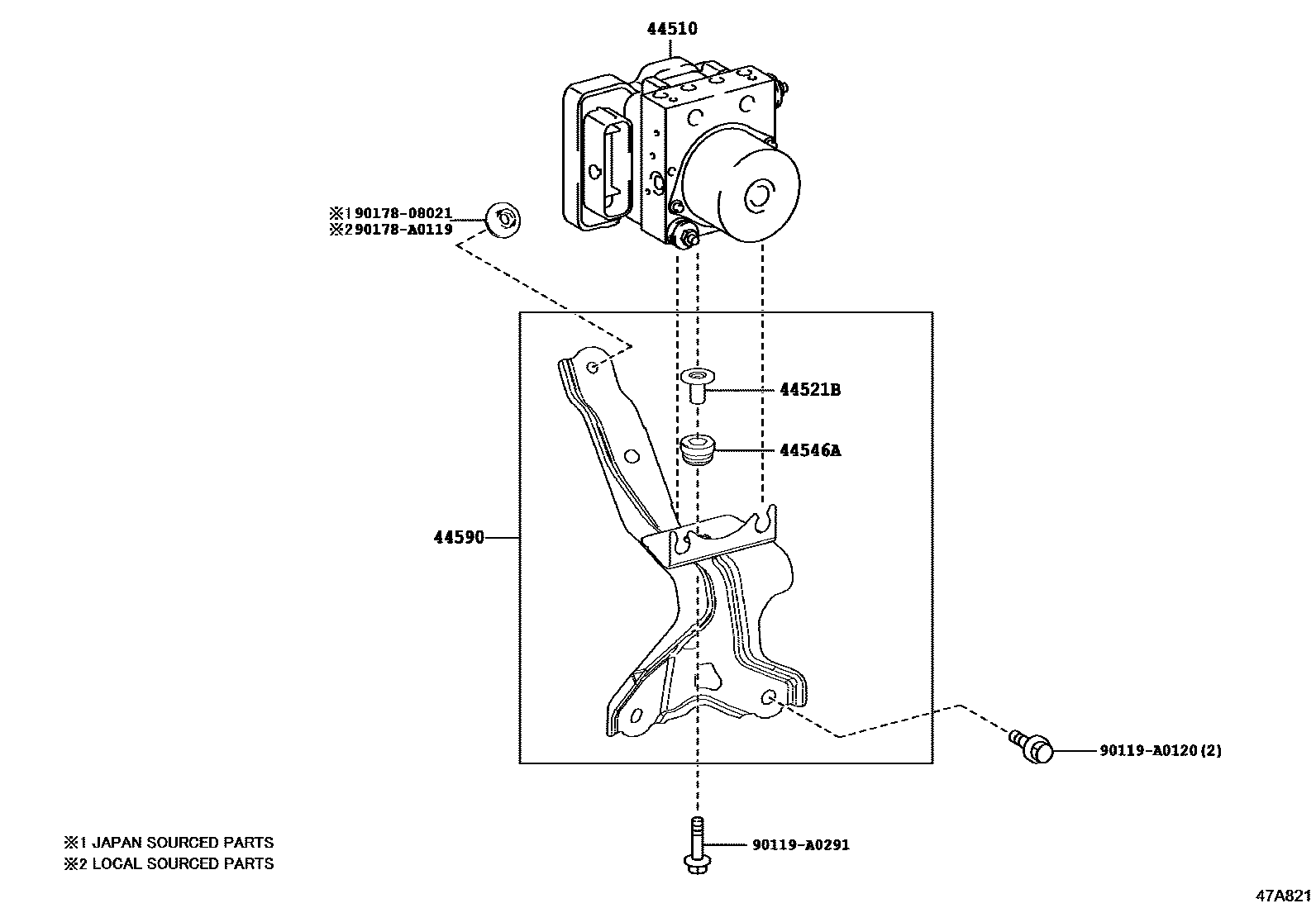

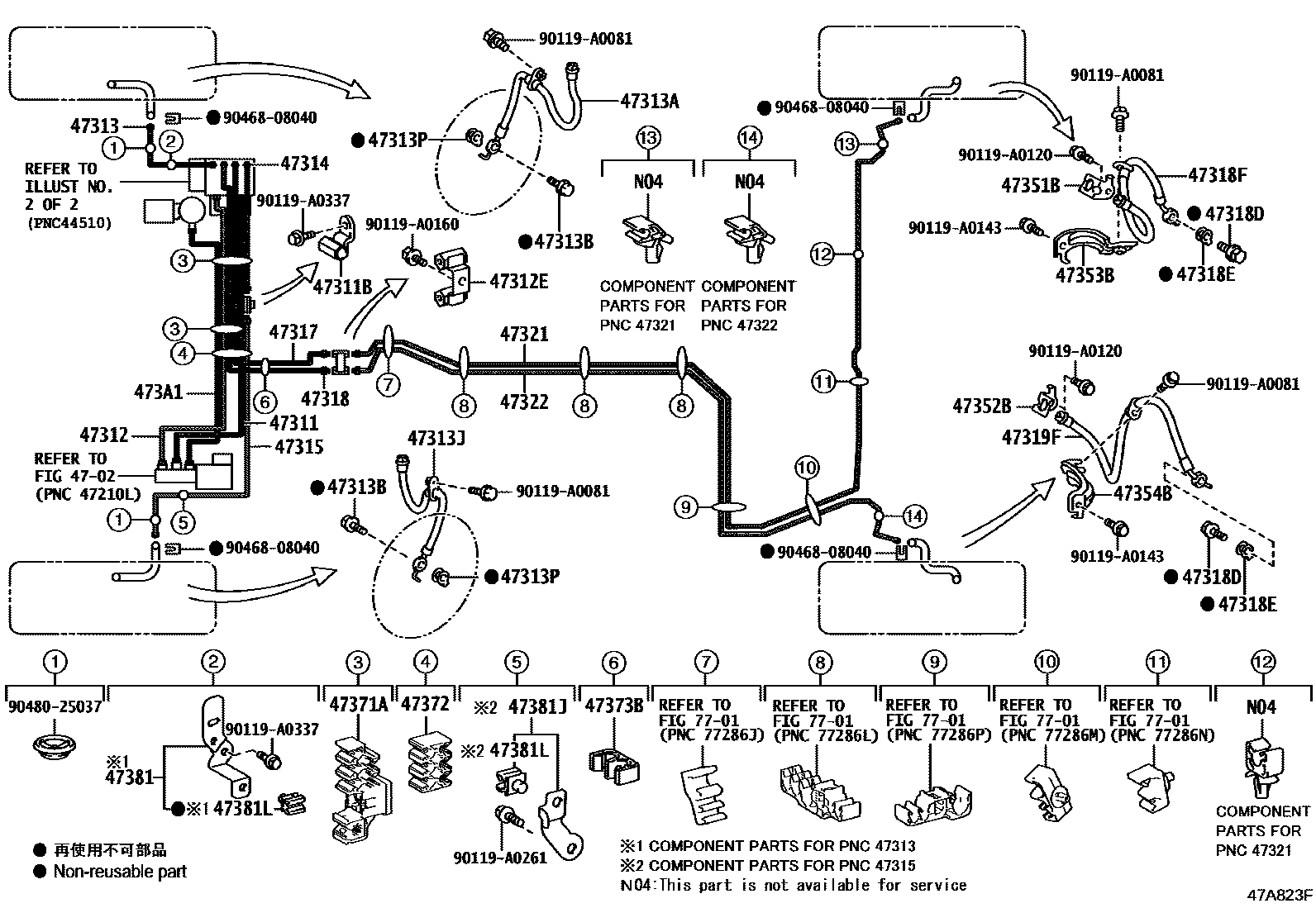

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-06250 · 44050-06380 · 44050-06381 · 44050-06390 · 44050-06391 · 44050-06400 · 44050-06410 · 44050-06430 · 44050-06440 · 44050-06560 · 44050-06570 · 44050-06580 · 44050-06600 · 44050-06610 · 44050-33650 · 44050-33A80 · 44050-33D80 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-47010 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-12050 · 44521-12060 · 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 · 44547-10080 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-06310 · 44590-06360 · 47940-33020 |
| 47070 | Brake booster pump assembly | 47070-33070 |
| 47311 | No. 1 front brake pipe | 47311-06650 · 47311-06660 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 · 90412-A0015 |
| 47312 | No. 2 front brake pipe | 47312-06490 · 47312-06500 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-A0011 |
| 47313 | No. 3 front brake pipe | 47313-06480 |
| 47313A | No. 1 front flexible hose | 90947-A2104 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-A0001 |
| 47313J | No. 2 front flexible hose | 90947-A2105 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06430 |
| 47315 | No. 5 front brake pipe | 47315-06450 |
| 47317 | No. 7 front brake pipe | 47317-06550 · 47317-07110 |
| 47318 | No. 8 front brake pipe | 47318-06110 · 47318-07060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2106 · 90947-A2107 |
| 47319F | Left rear flexible hose | 90947-A2106 · 90947-A2108 |
| 47321 | No. 1 rear brake pipe | 47321-06270 · 47321-06271 · 47321-06280 · 47321-06281 · 47321-06380 |
| 47322 | No. 2 rear brake pipe | 47322-06270 · 47322-06271 · 47322-06280 · 47322-06281 · 47322-06380 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06050 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06050 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06030 · 47351-06040 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06030 · 47352-06040 |
| 47371A | No. 1 brake pipe clamp | 90949-01E31 · 90949-01E39 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90949-01E01 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01D99 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47381 | No. 1 brake pipe clamp bracket | 47371-33340 |
| 47381J | No. 2 brake pipe clamp bracket | 47371-33350 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-01D56 |
| 473A1 | TUYAU, ACCUMULATEUR AU MAITRE-CYLINDRE DE FREIN | 473A1-06010 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | BAGUE, POMPE SERVOFREIN, NO.2 | 47965-30010 |
