Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707

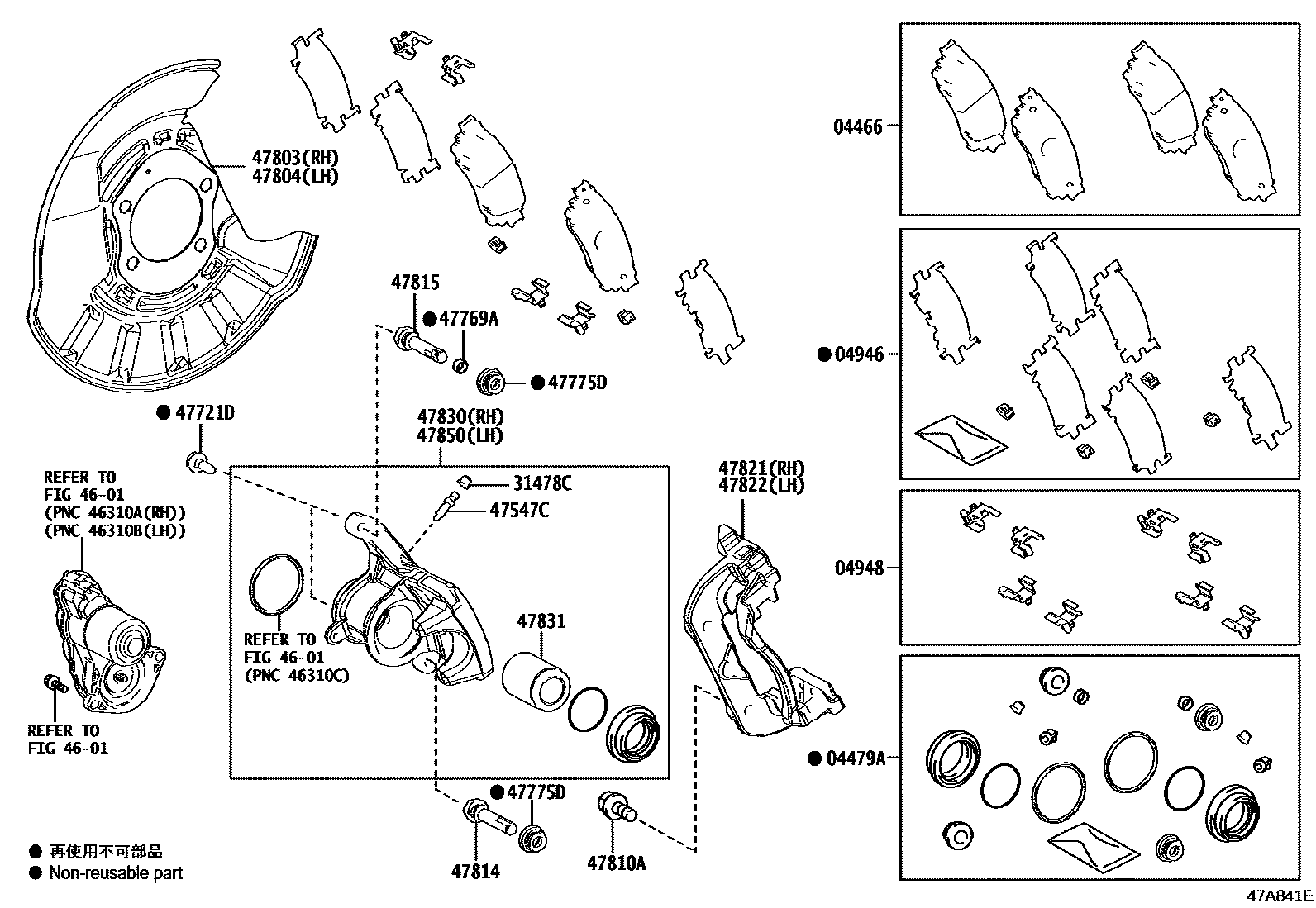

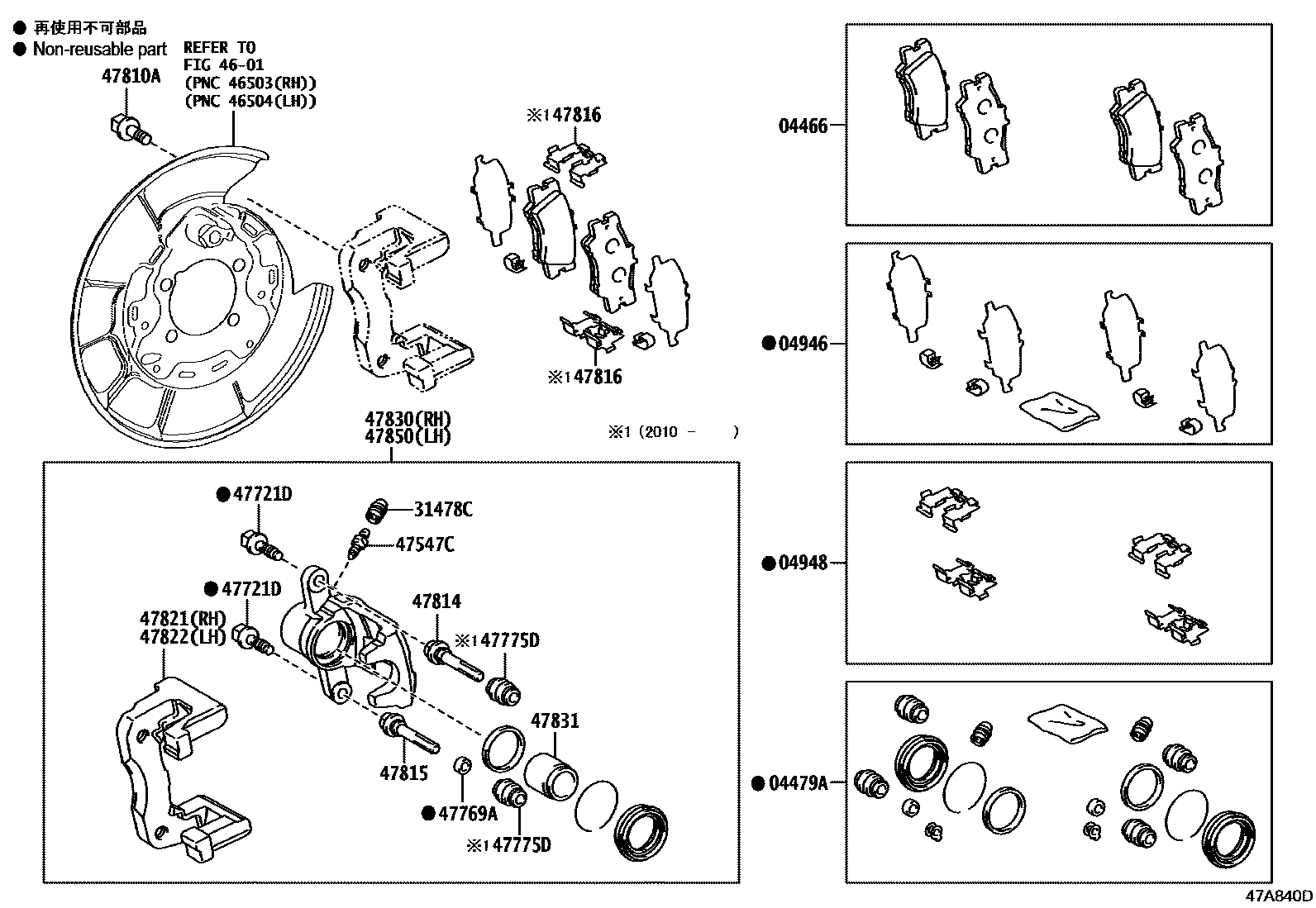

Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0E070 · 04466-33210 |
| 04479A | Rear disc brake cylinder assembly | 04479-0E100 · 04479-0E101 · 04479-0E102 · 04479-0E110 · 04479-33380 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-02120 · 04946-06170 · 04946-33080 · 04946-33090 |
| 04948 | Rear disc brake mounting assembly | 04948-0E050 · 04948-33050 · 04948-33060 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0R010 · 31478-30010 · 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA603 · 90016-AA608 · 90016-AA614 · 90105-08164 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-50010 · 47879-06130 · 47879-33240 |
| 47775D | Bushing boot (for rear disc brake) | 47875-06170 · 47875-33240 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-06010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-06010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90080-10395 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06130 · 47814-0R050 · 47814-33240 · 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-06130 · 47815-0R050 · 47815-33240 · 47815-78010 |
| 47816 | Pad support plate No. 1 (for rear disc brake) | 47816-33280 |
| 47821 | Right disc brake cylinder retaining bracket | 47821-06170 · 47821-06200 · 47821-06210 · 47821-33280 |
| 47822 | Left disc brake cylinder retaining bracket | 47822-06160 · 47822-06190 · 47822-06200 · 47822-33280 |
| 47830 | Right rear disc brake cylinder assembly | 47830-06170 · 47830-06200 · 47830-06210 · 47830-33280 |
| 47831 | rear disc brake piston | 47831-06170 · 47831-06171 · 47831-06180 · 47831-06200 · 47831-33280 · 47831-78010 |
| 47850 | Left rear disc brake cylinder assembly | 47850-06160 · 47850-06190 · 47850-06200 · 47850-33280 |
