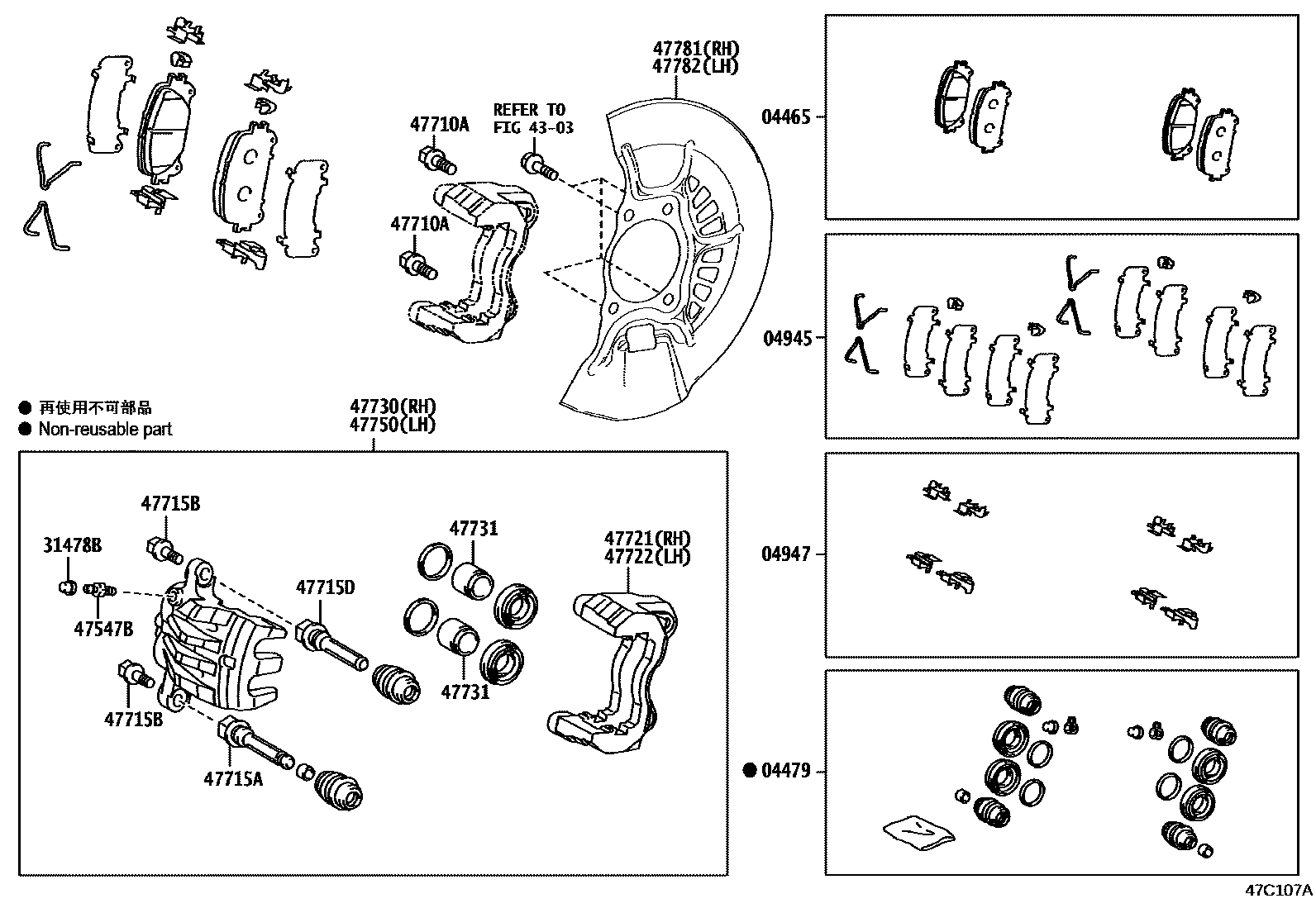

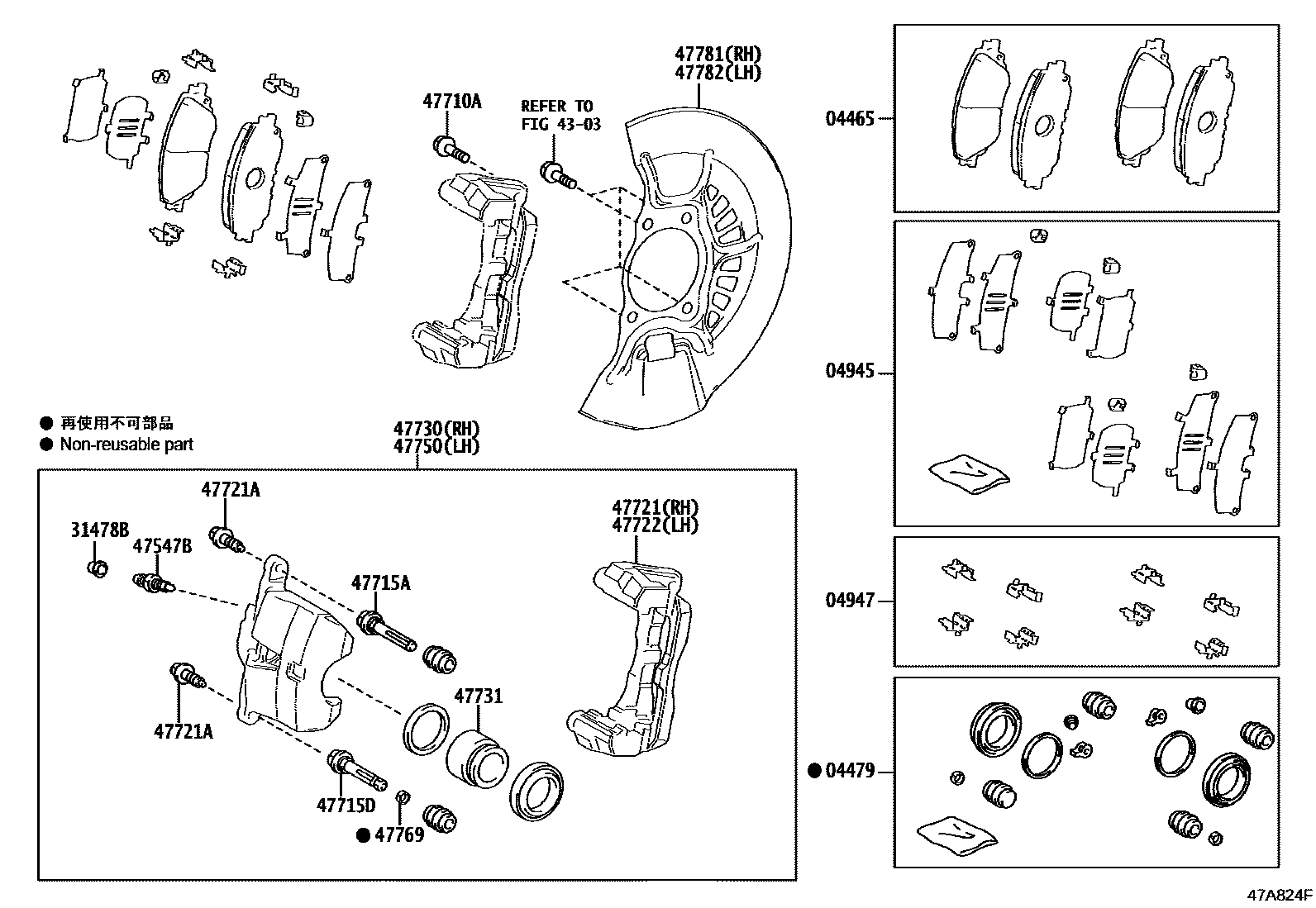

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-06170 · 04465-0E060 · 04465-33500 |
| 04479 | Front disc brake cylinder assembly | 04478-0E060 · 04478-0E061 · 04478-48200 |
| 04945 | Front silencer gasket assembly | 04945-0E070 · 04945-0E071 · 04945-33310 |
| 04947 | Front disc brake mounting kit | 04947-0E030 · 04947-0E031 · 04947-48080 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-12130 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90080-10067 |
| 47715A | Front disc brake cylinder sliding pin | 47714-48150 · 47715-04080 · 47715-08040 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90015-AA602 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-33340 · 47715-48150 |
| 47721 | Right front disc brake cylinder retainer | 47721-06321 · 47721-06322 · 47721-33400 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA103 |
| 47722 | Left front disc brake cylinder retainer | 47722-06321 · 47722-06322 · 47722-33390 |
| 47730 | Right front disc brake cylinder assembly | 47730-06320 · 47730-06321 · 47730-33400 |
| 47731 | Front disc brake piston | 47731-06320 · 47731-48150 |
| 47750 | Left disc brake cylinder assembly | 47750-06320 · 47750-06321 · 47750-33390 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47781 | Right front disc brake dust cover | 47781-06180 |
| 47782 | Left front disc brake dust cover | 47782-06180 |
