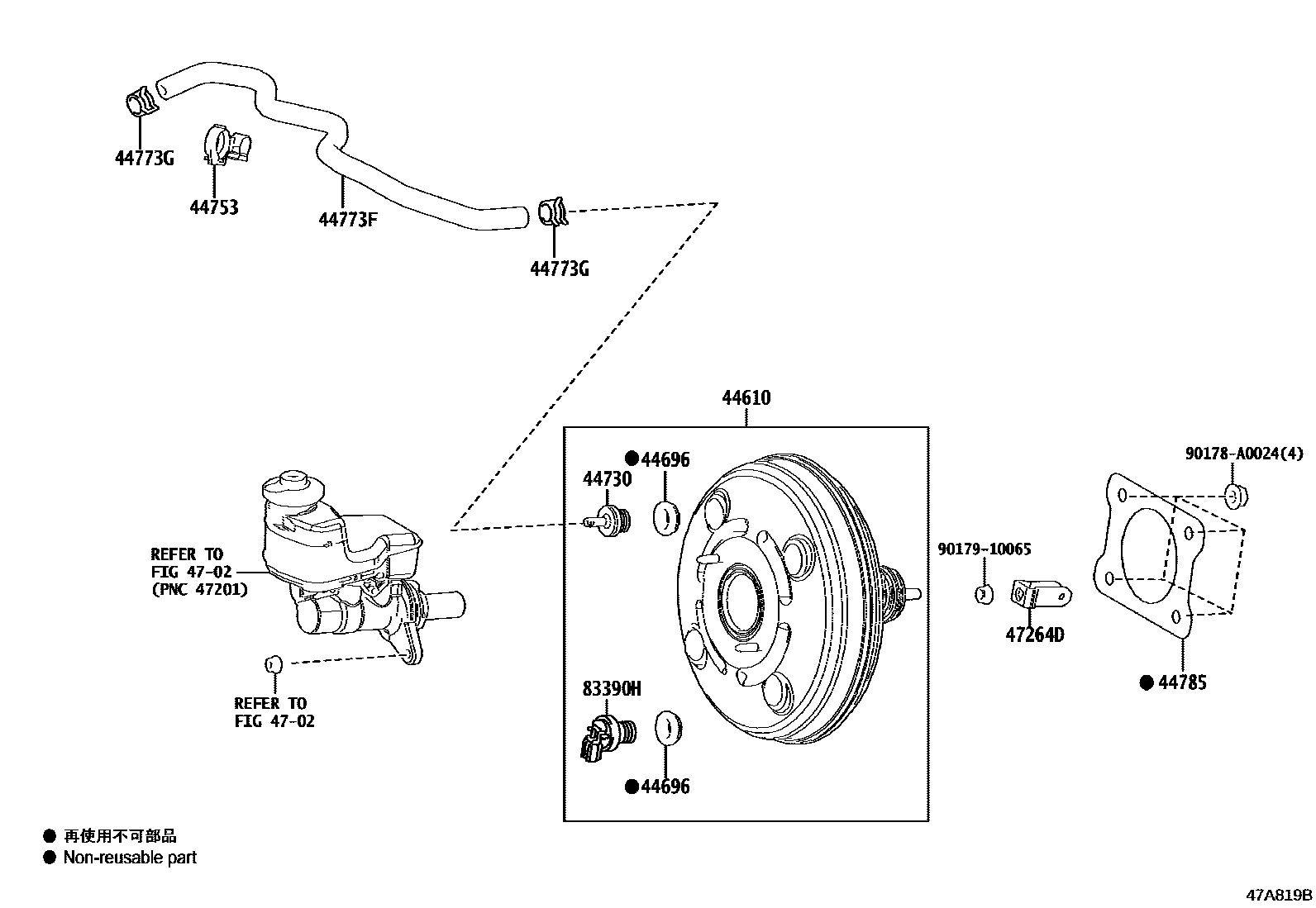

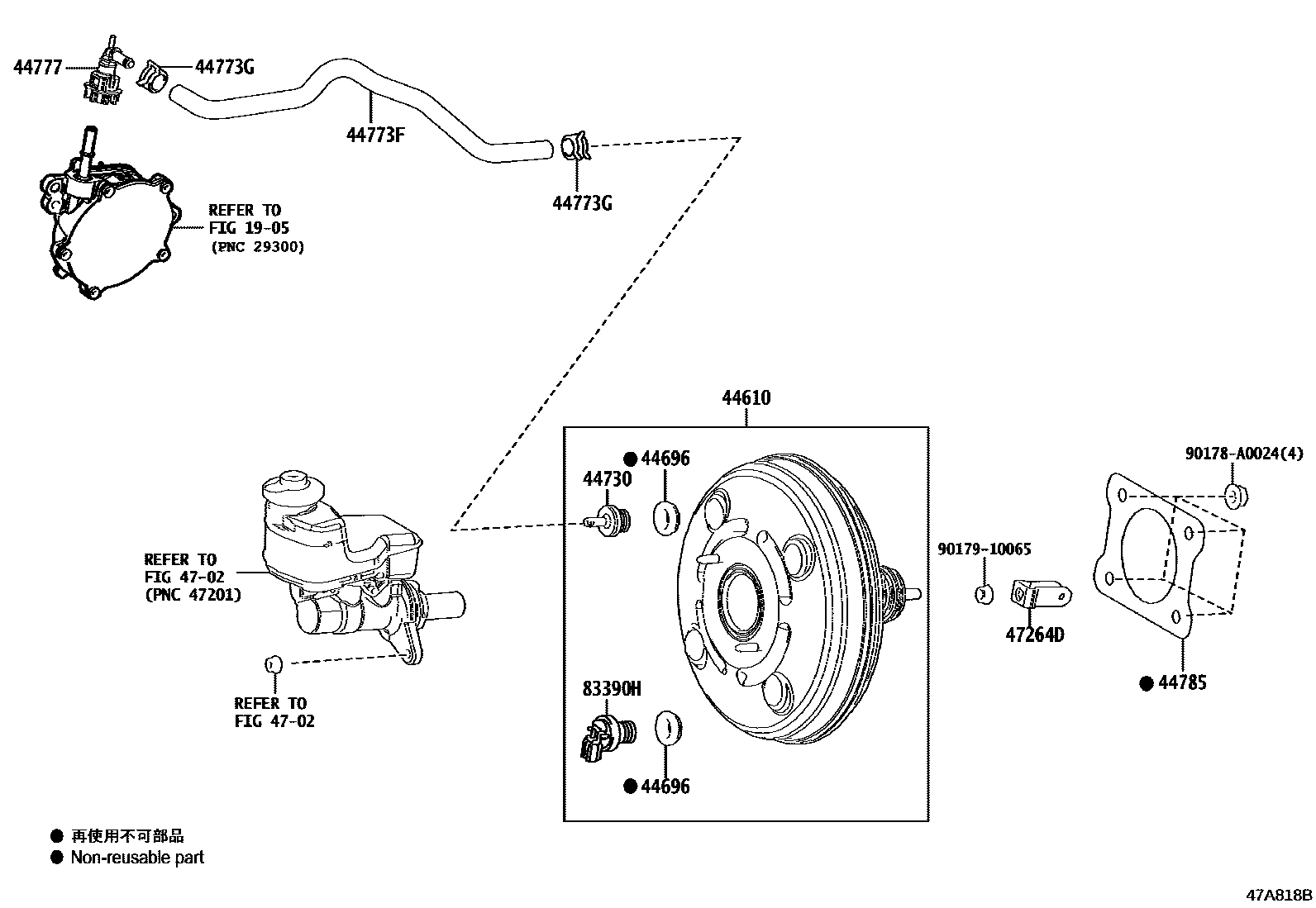

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06670 · 44610-07170 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-22150 |
| 44753 | No. 2 vacuum reservoir clip | 44753-48340 |
| 44773F | Hoses (connector to check valve) | 44773-06170 · 44773-06180 · 44773-33180 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-06010 · 44777-33010 |
| 44785 | brake booster pad | 44785-02060 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-33030 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
