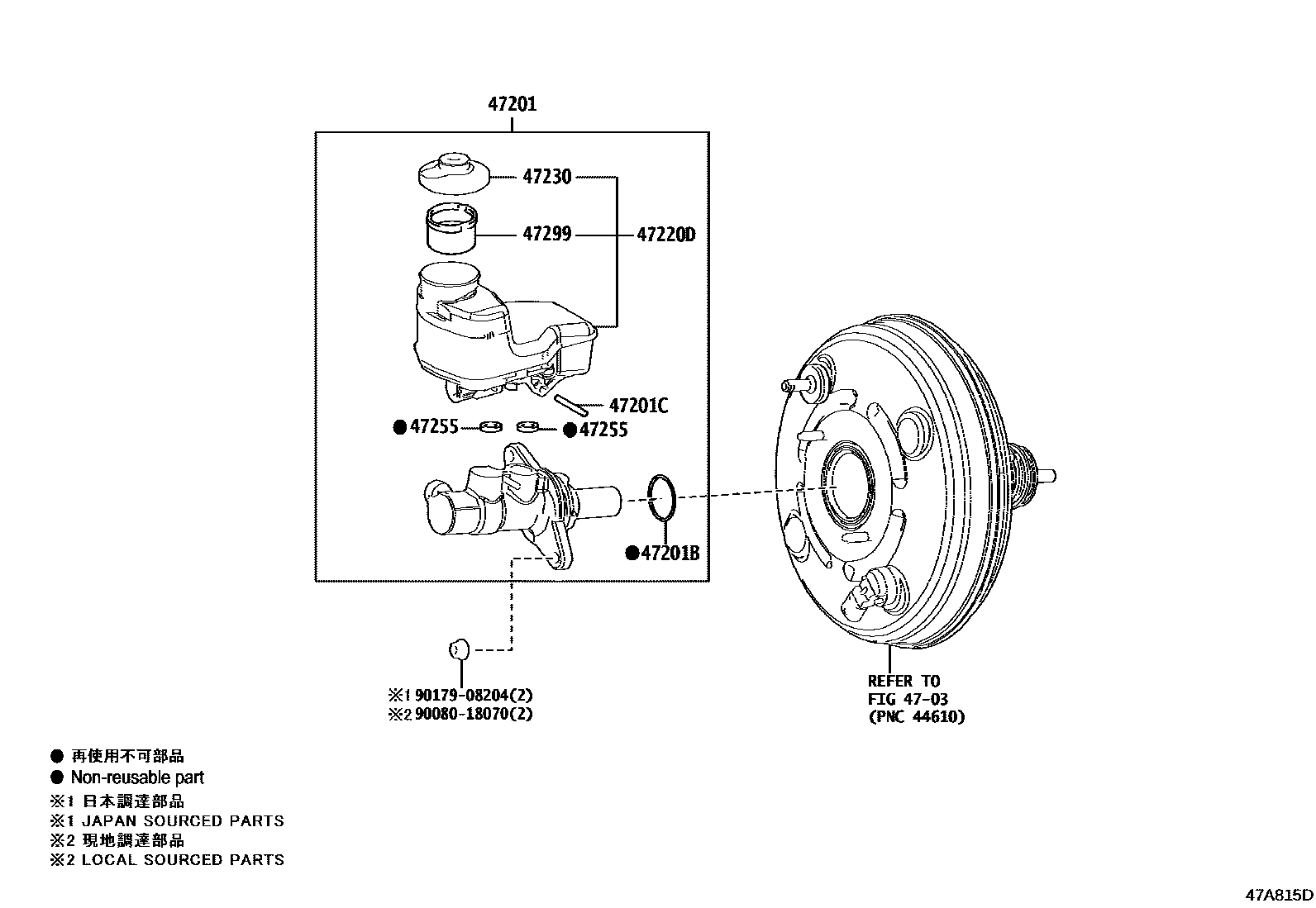

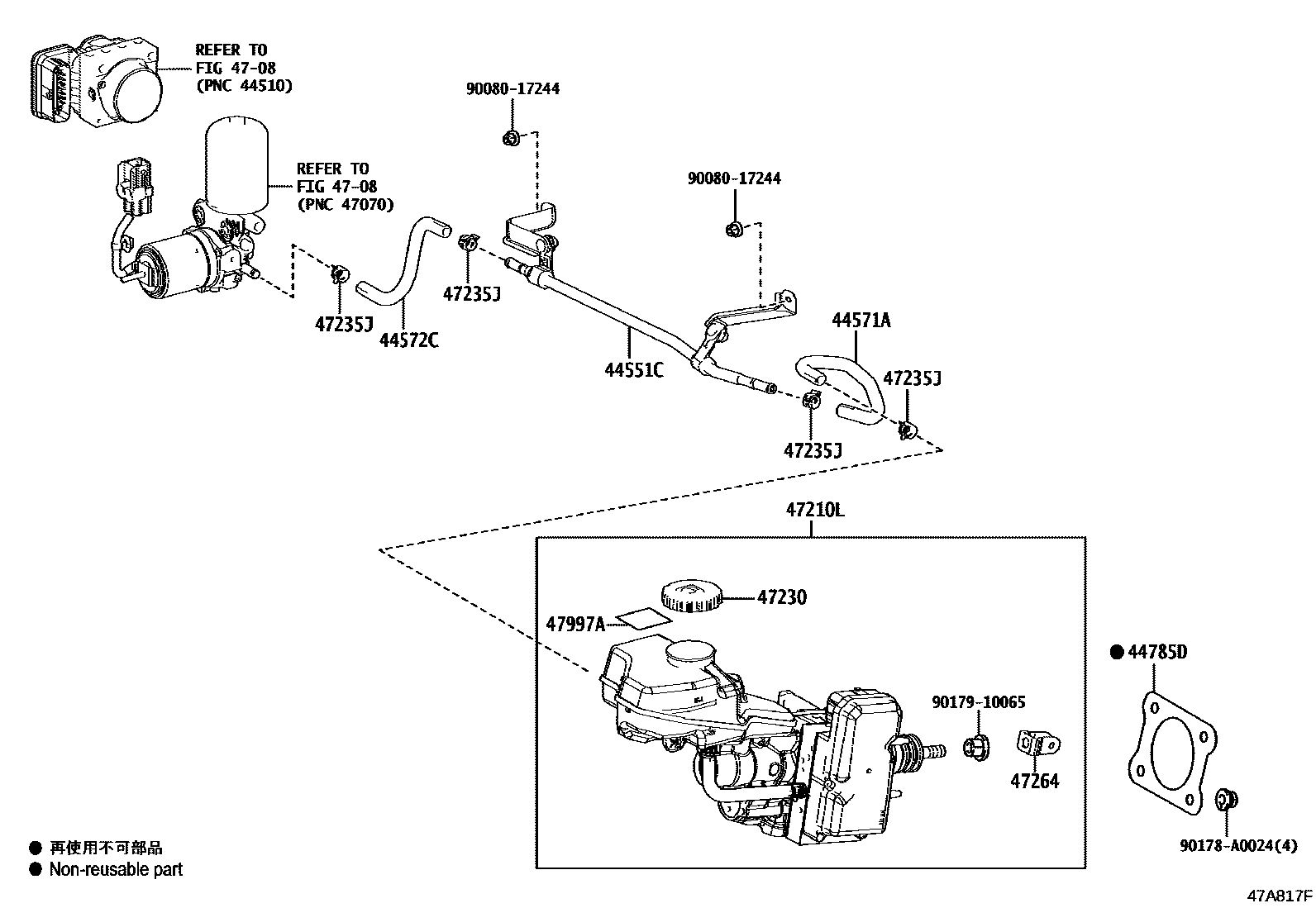

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-06060 |
| 44571A | No. 1 brake actuator hose | 44571-06050 |
| 44572C | No. 2 brake actuator hose | 44572-06020 |
| 44785D | brake master cylinder gasket | 44785-02060 · 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-06510 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-33310 · 47050-33380 · 47050-33390 · 47050-33710 · 47050-33A40 · 47050-33A41 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06260 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01031 · 47230-33330 · 47230-47090 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-A0017 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
