Toyota CAMRY Parking Brake & Cable — Figure 4601

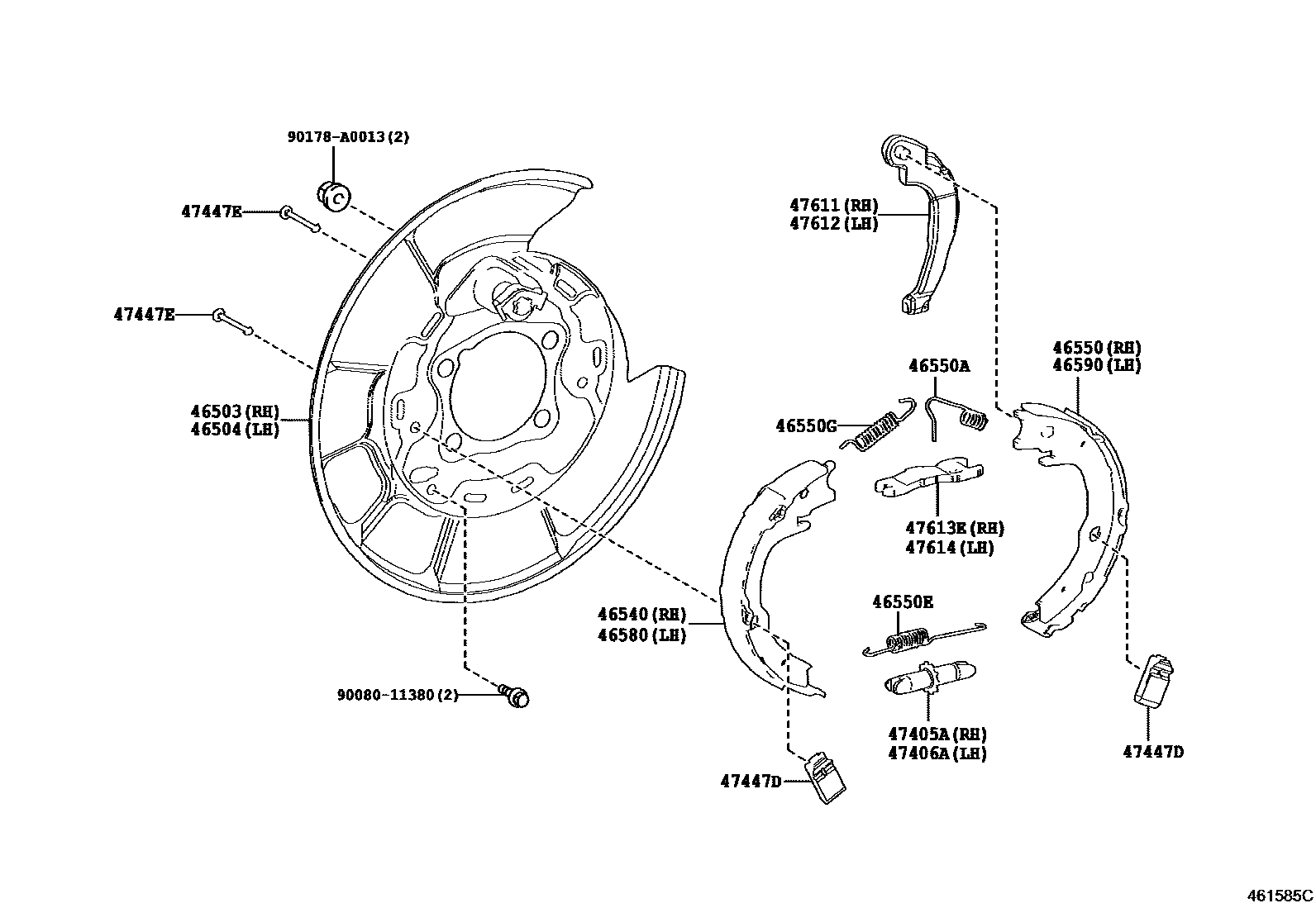

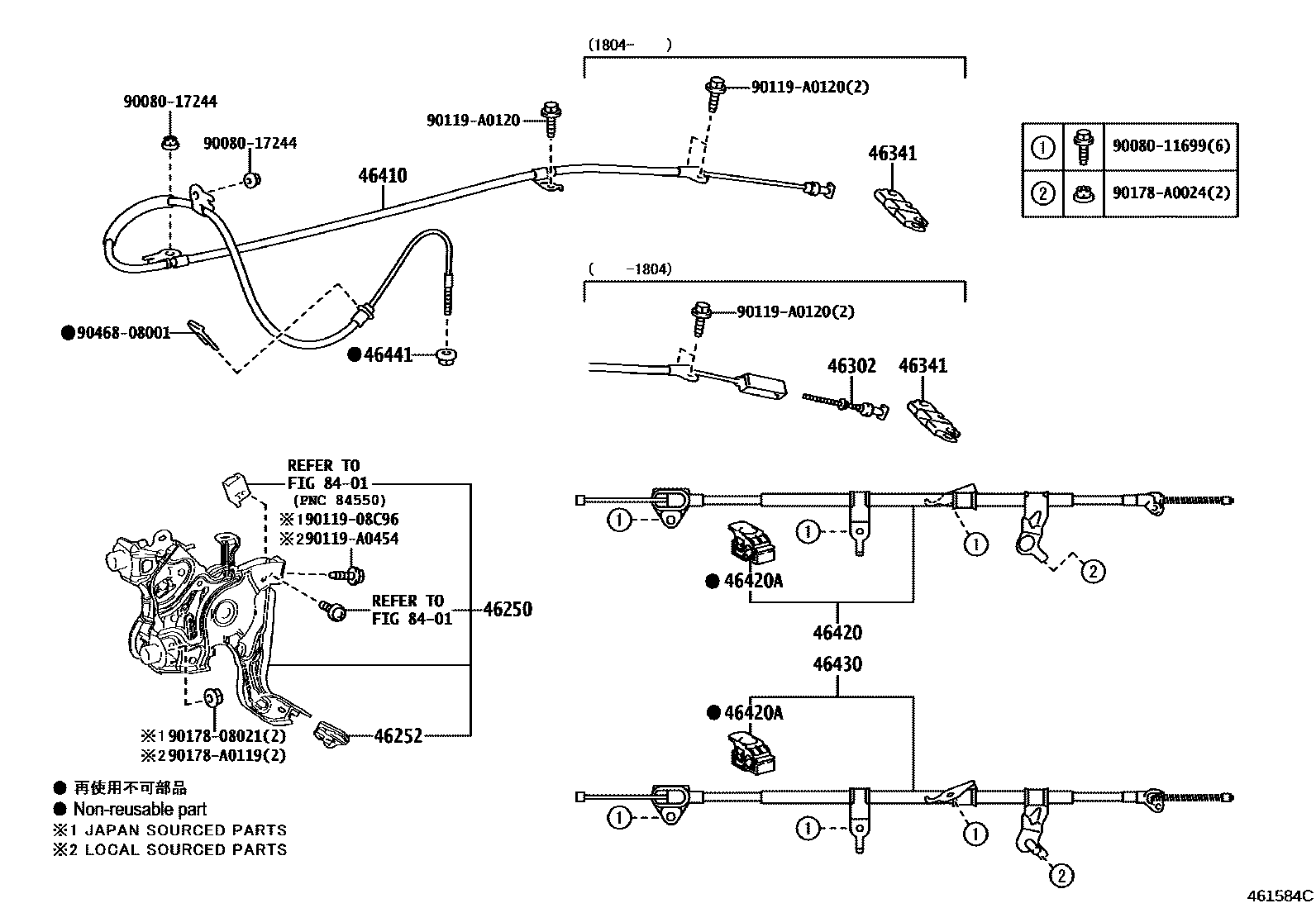

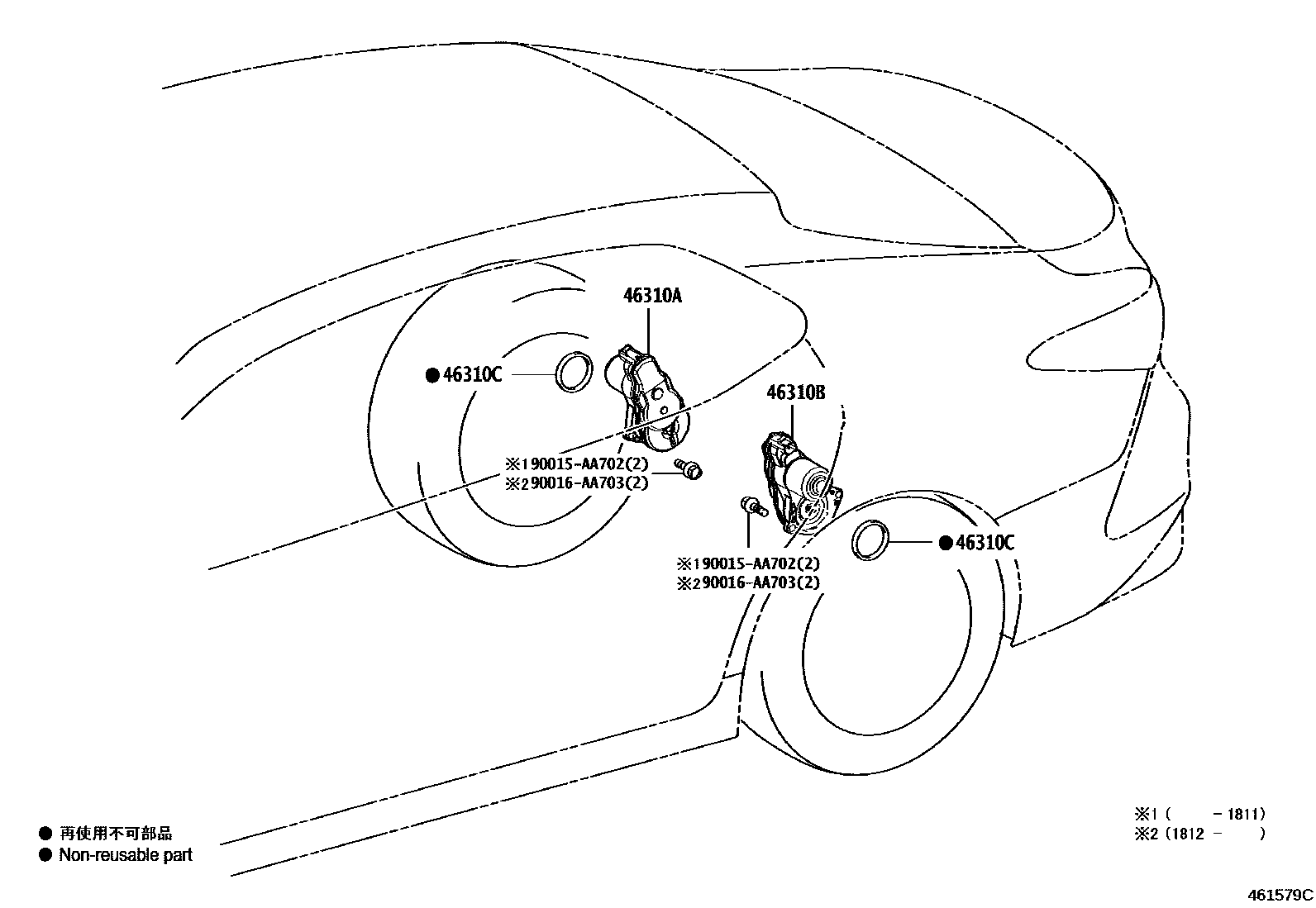

Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46250 | ENS. PEDALE, FREIN STATIONNEMENT SANS CABLE | 46250-06010 |
| 46252 | Parking brake pedal pad | 46252-06030 |
| 46302 | No. 1 parking brake lever sub-assembly | 46302-06010 |
| 46310A | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MD | 46310-33010 |
| 46310B | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MG | 46310-33010 |
| 46310C | JOINT D'ETANCHEITE(POUR ACT FREIN STATIONNEMENT) | 90015-AH005 |
| 46341 | Parking brake balancer | 46341-33030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-06170 · 46410-06171 |
| 46420 | Parking brake No. 2 cable assembly | 46420-06230 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46402-02020 · 46402-06010 |
| 46430 | Parking brake No. 3 cable assembly | 46430-06190 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
| 46503 | Right parking brake pad sub-assembly | 46503-06110 |
| 46504 | Left parking brake pad sub-assembly | 46504-06110 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-0R030 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-0R030 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90016-AY124 · 90016-AY126 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90016-AY125 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90016-AY123 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-0R030 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-0R030 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-0R010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-0R010 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-02090 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-11010 |
| 47611 | Right parking brake shoe lever | 46601-42040 |
| 47612 | Left parking brake shoe lever | 46602-42040 |
| 47613E | Right parking brake shoe push rod | 46612-02090 |
| 47614 | Left parking brake shoe push rod | 46622-02090 |
