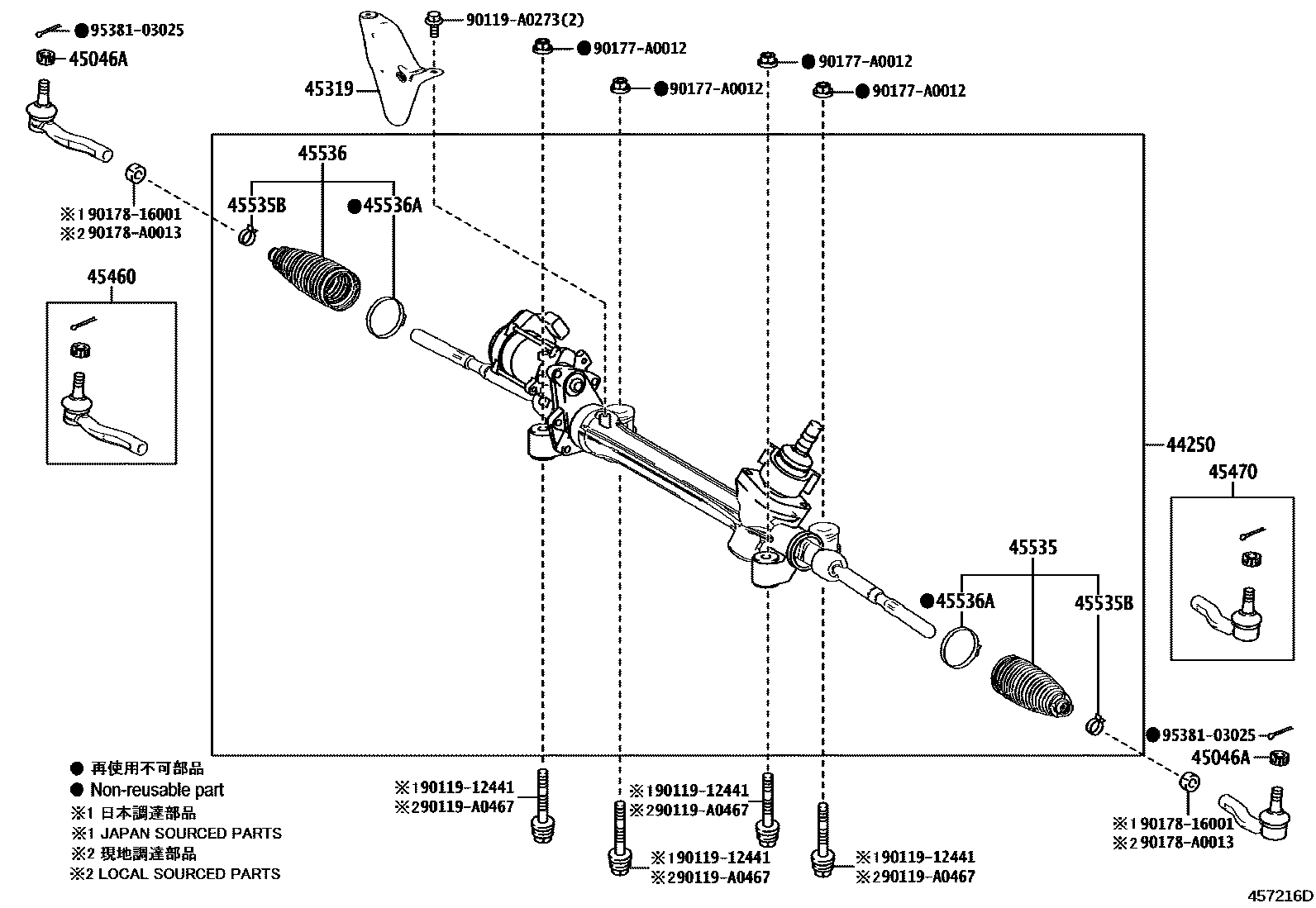

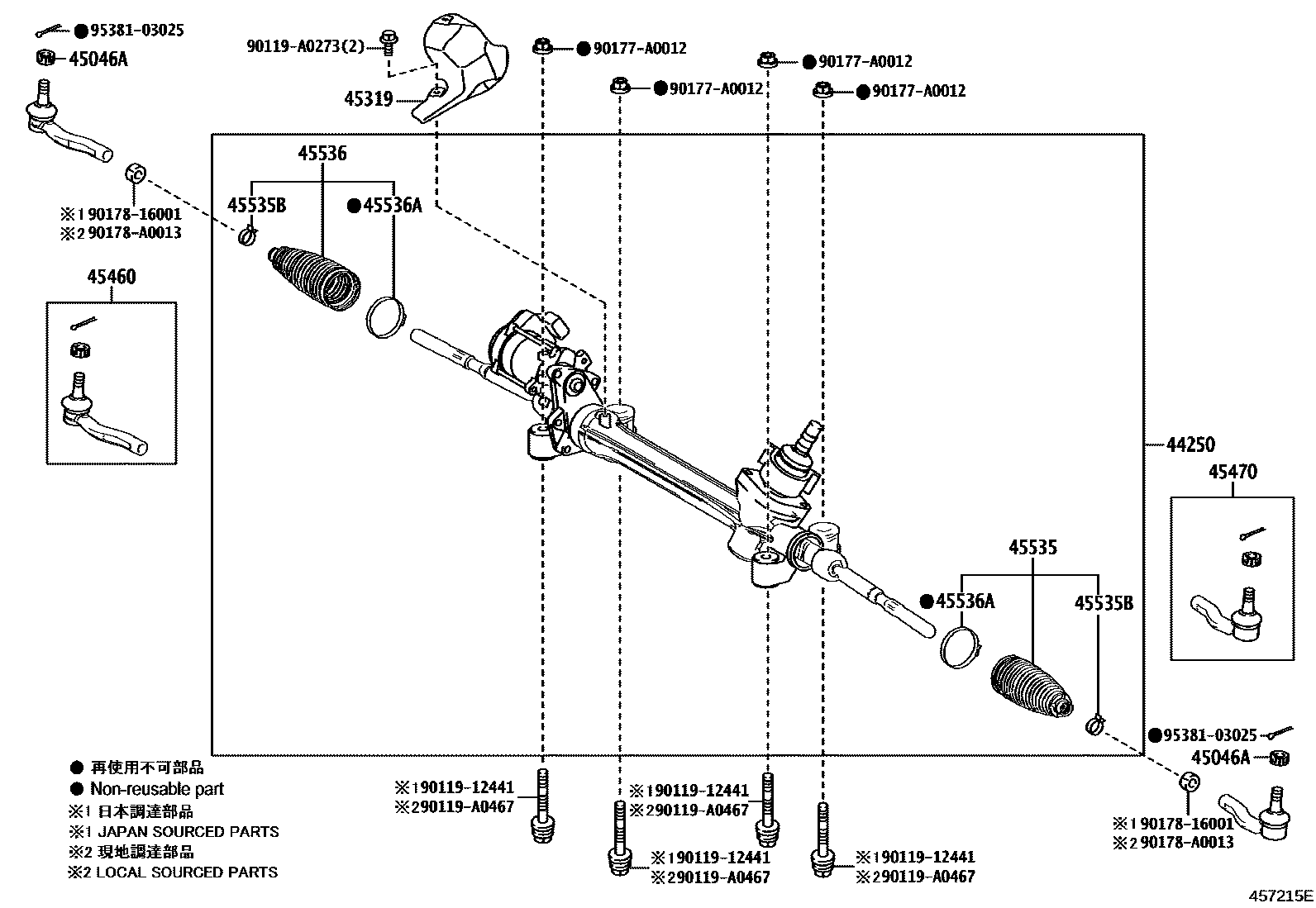

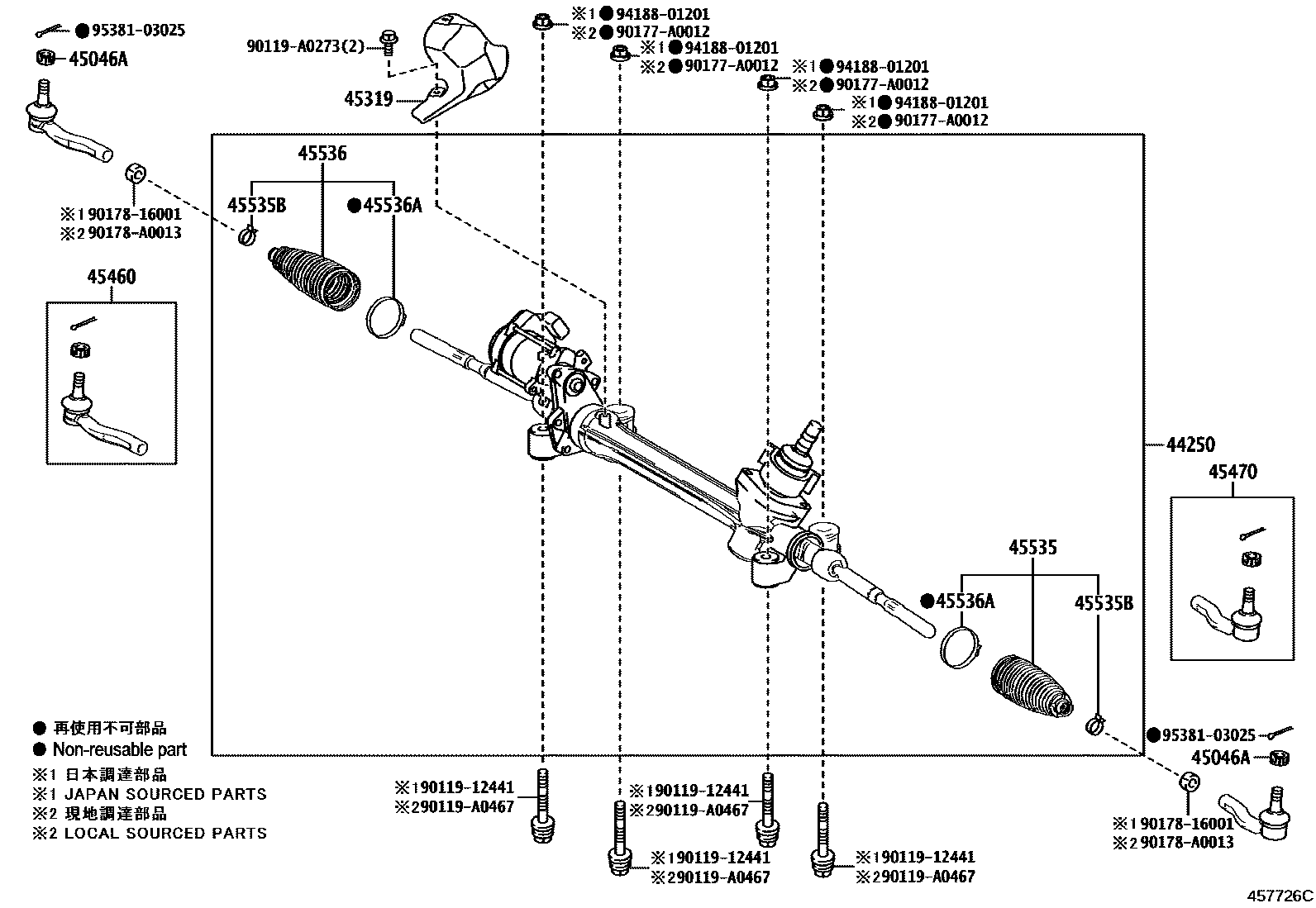

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06370 · 44250-06371 · 44250-06372 · 44250-06373 · 44250-06380 · 44250-06381 · 44250-06382 · 44250-06383 · 44250-06390 · 44250-06391 · 44250-06392 · 44250-06393 · 44250-06400 · 44250-06401 · 44250-06402 · 44250-06403 · 44250-06500 · 44250-06501 |
| 45046A | Castle nuts (for tie rod ends) | 90080-17220 |
| 45319 | Steering gear heat insulation pad | 45319-06010 · 45319-06020 · 45319-06080 |
| 45460 | Right tie rod assembly | 45460-09280 |
| 45470 | Left tie rod assembly | 45470-09180 |
| 45535 | No. 1 steering rack dust cover | 45535-09500 |
| 45535B | Clamp (for steering rack dust boot) | 45537-02020 · 45537-0T010 · 90467-19017 |
| 45536 | No. 2 steering rack dust cover | 45535-09500 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0T010 |
