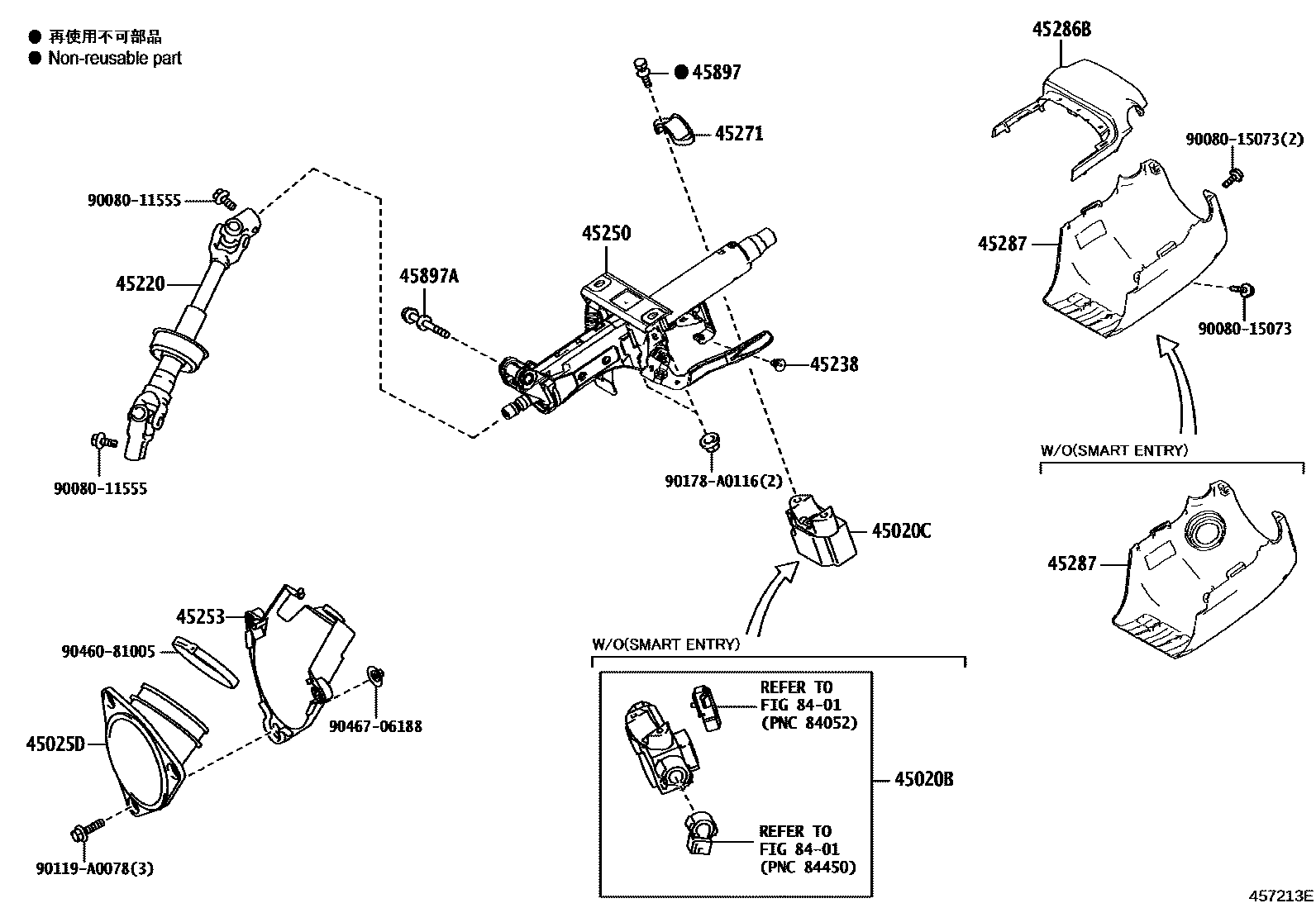

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45020-06220 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-06230 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06200 |
| 45220 | Steering intermediate shaft assembly | 45220-06250 · 45220-06251 · 45220-06252 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45250 | Steering column assembly | 45250-06B20 · 45250-06B30 |
| 45253 | Steering column hole cover | 45253-06180 |
| 45271 | Clamp on steering column | 45271-08010 |
| 45897 | Steering lock fixing bolt | 45897-08010 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 · 90119-A0362 |
