Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |

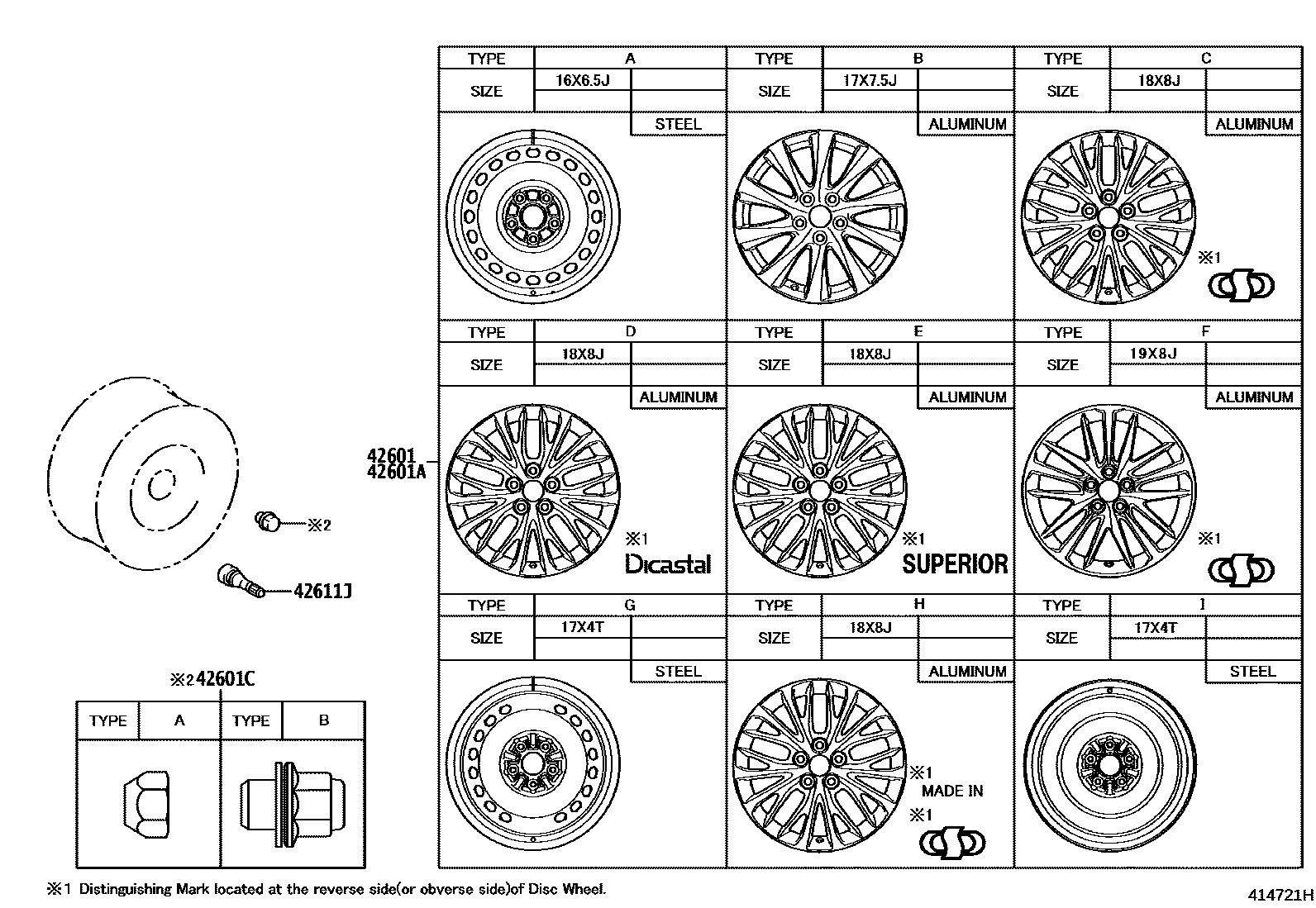

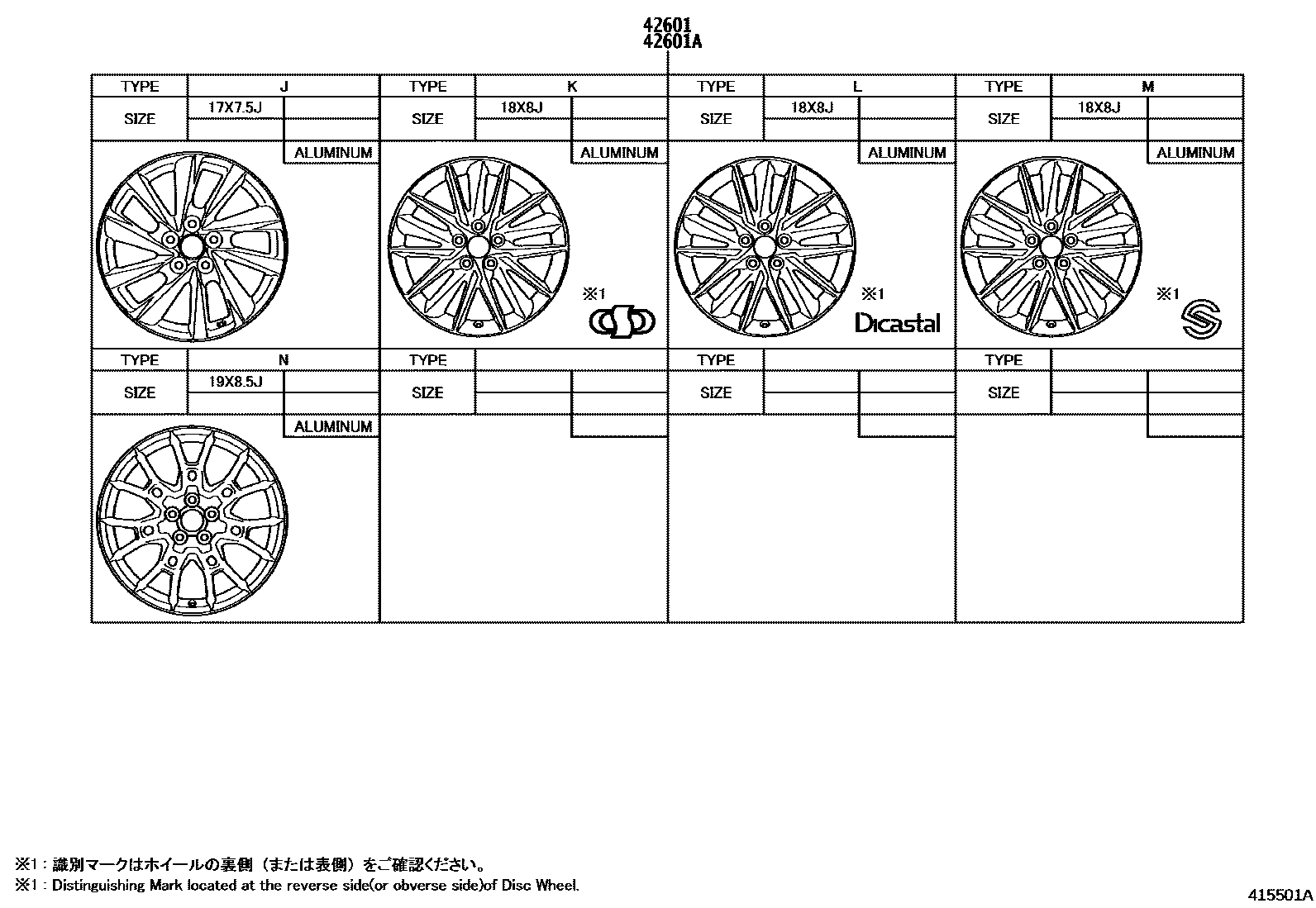

| 42601 | spoke wheel | 42611-06D90 · 42611-06E00 · 42611-06E01 · 42611-06E10 · 42611-06E20 · 42611-06F70 · 42611-06F80 · 42611-06F90 · 42611-06G90 · 42611-06J00 · 42611-06J20 · 42611-06J30 · 42611-06J40 · 42611-06J50 · 42611-06J60 · 42611-06J70 · 42611-YYE40 |
| 42601A | Spoke wheel (for spare tire) | 42611-06C40 · 42611-06E00 · 42611-06E01 · 42611-06F70 · 42611-06F90 · 42611-06J00 · 42611-06J20 · 42611-06J30 · 42611-06J40 · 42611-06J50 · 42611-06J60 · 42611-42471 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01007 · 90942-A1005 · 90942-A1009 · 90942-A1010 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06150 · 42603-06160 · 42603-08010 |

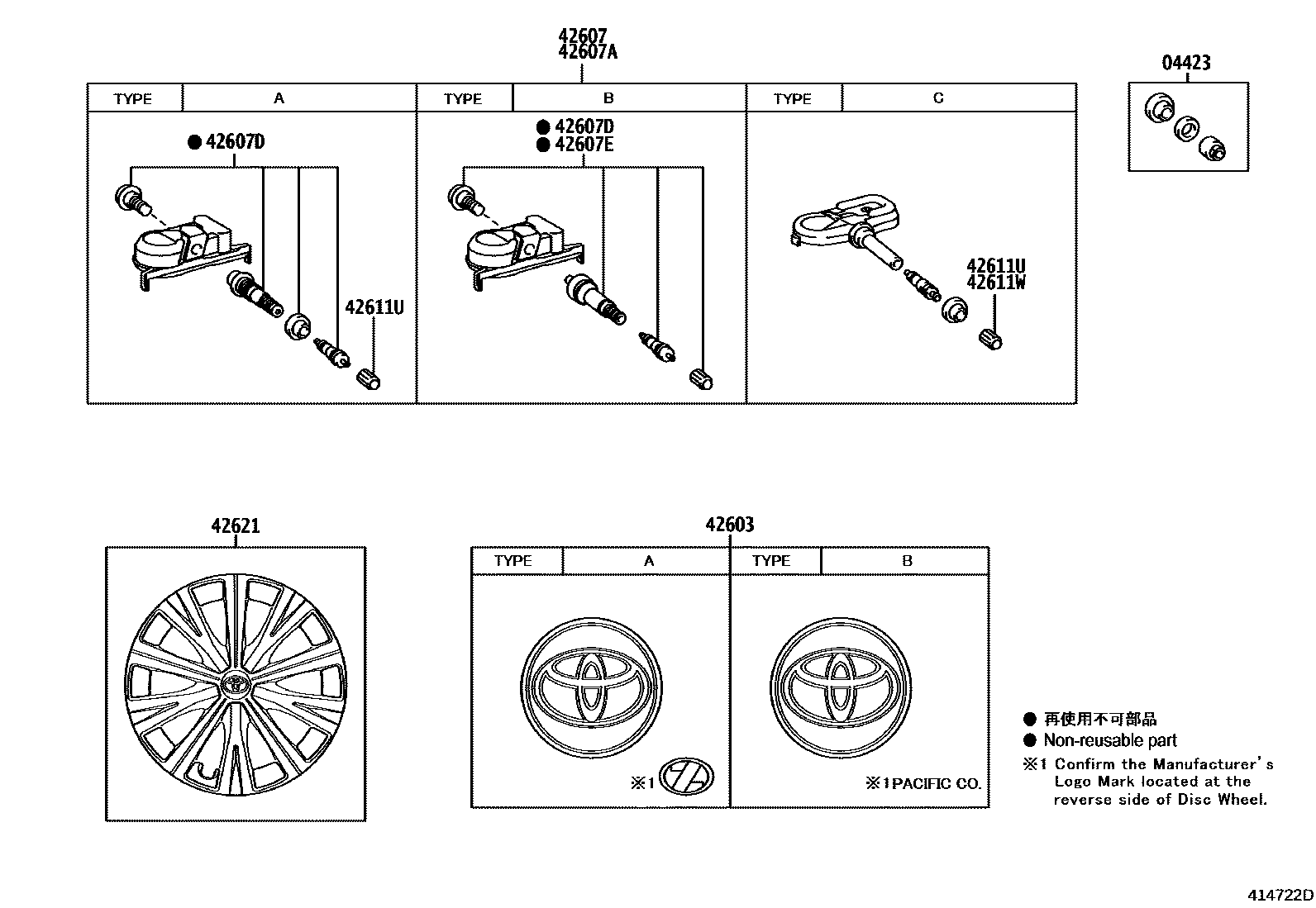

| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02050 · 42607-02100 · 42607-06030 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-02050 · 42607-06030 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-A5005 · 90942-A5007 |
| 42607E | SOUPAPE, CONTROLE PRESSION PNEU (ROUE SECOURS) | 90942-A5005 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42611W | Tire valve cap (for spare tire) | 90942-A5002 |
| 42621 | wheel cover | 42602-06140 · 42602-06141 · 42602-06142 · 42602-33190 |
