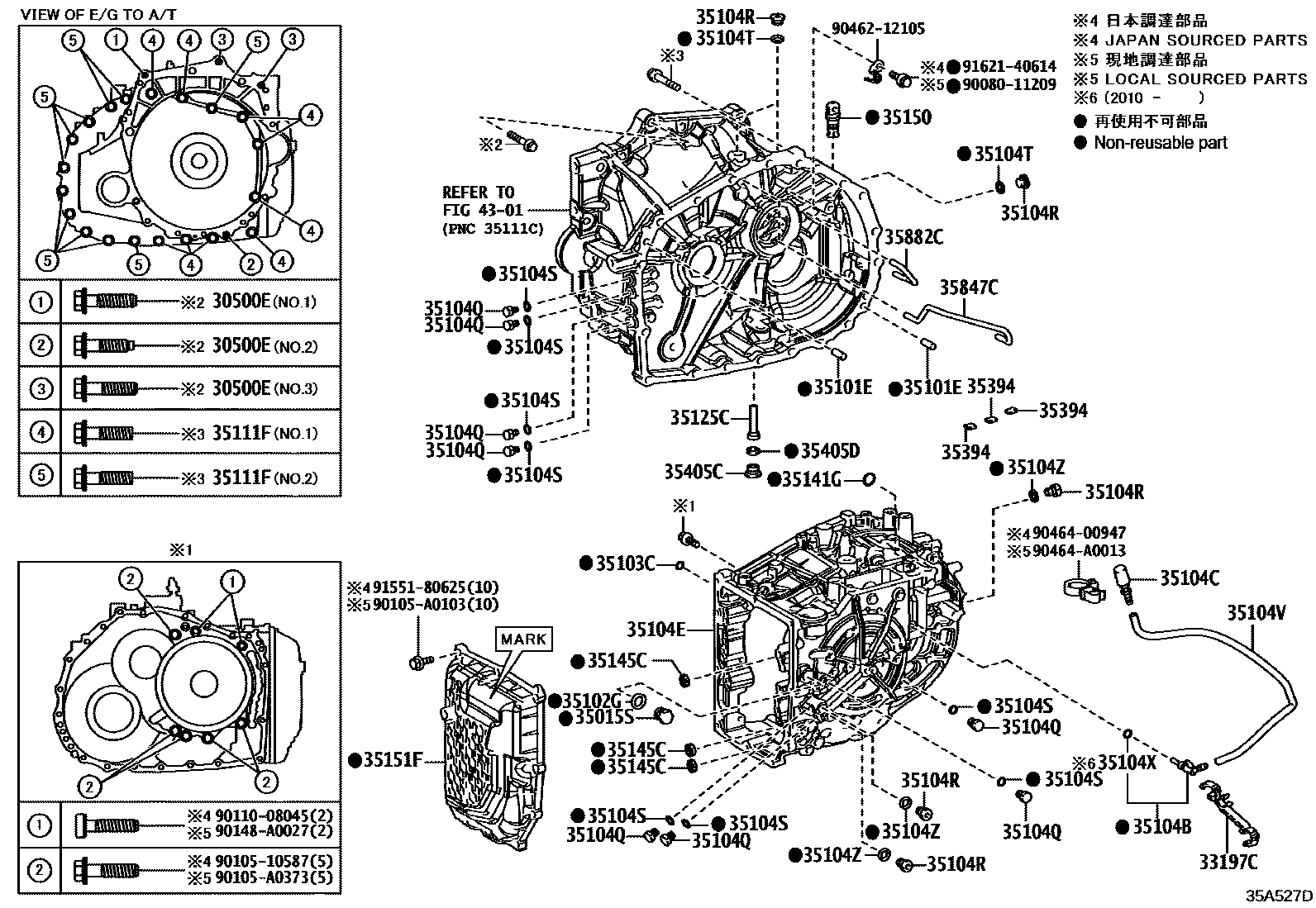

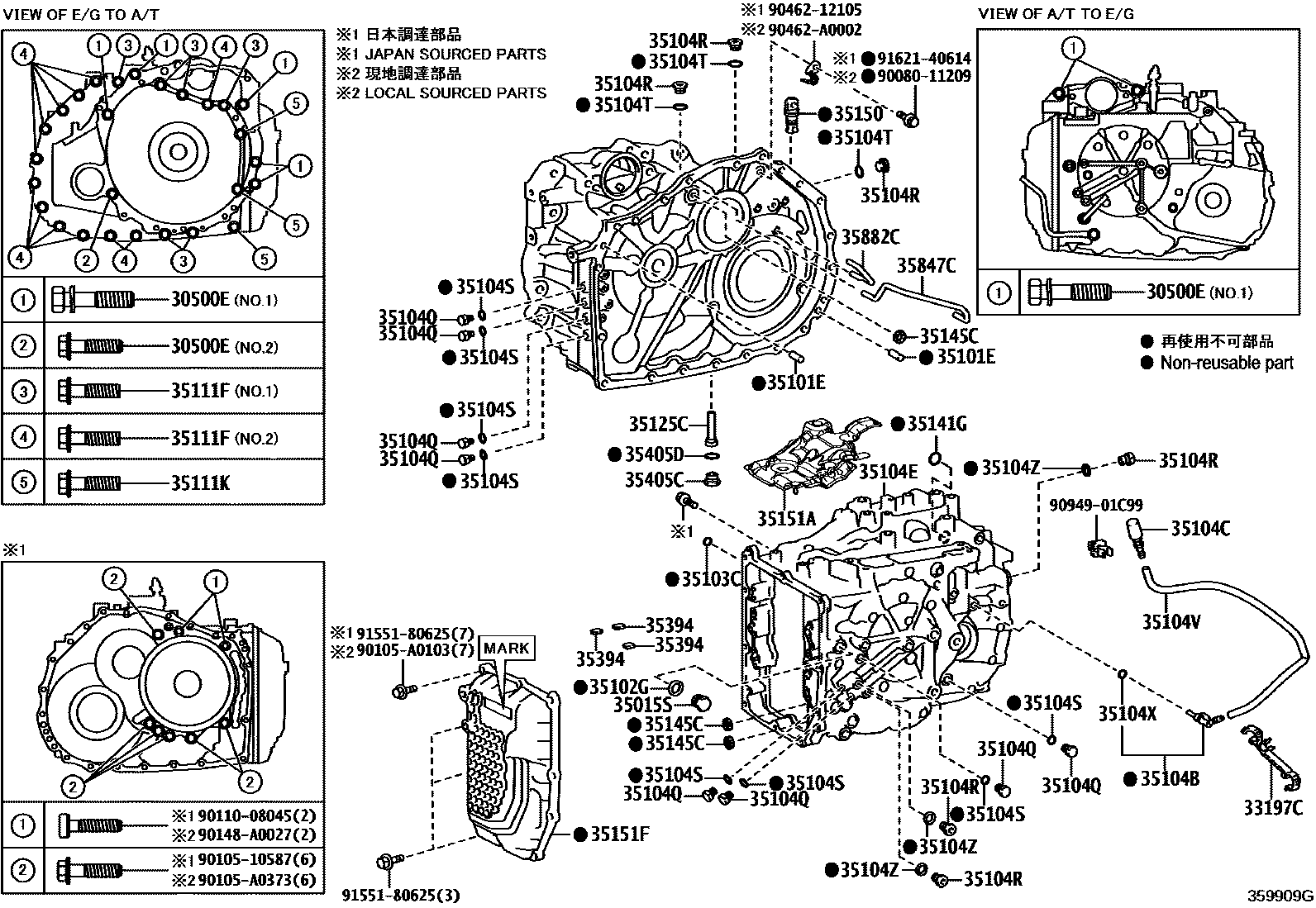

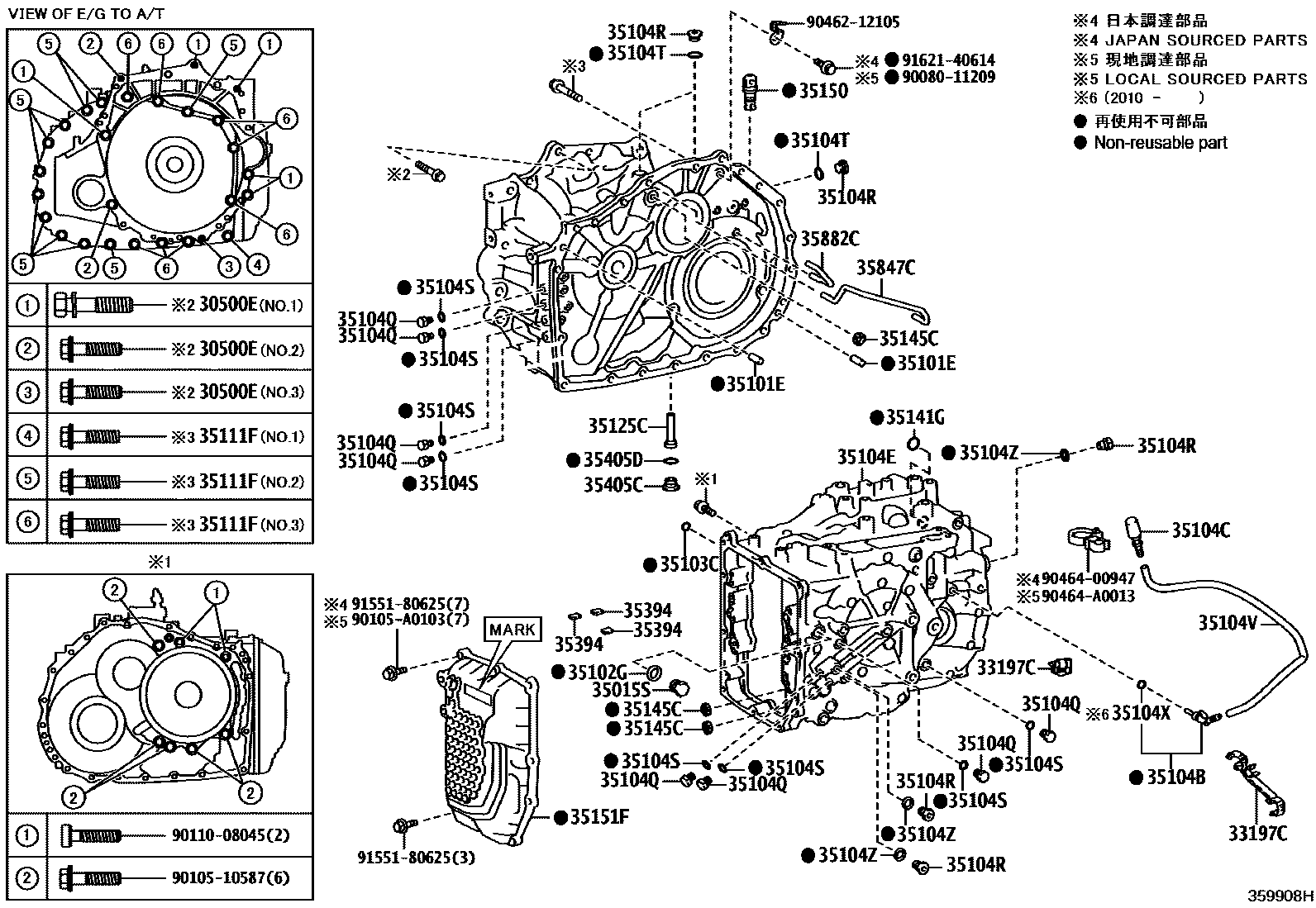

Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503
Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90080-10338 · 90080-11310 · 90105-10425 · 90105-10591 · 90105-A0225 · 90105-A0269 · 90105-A0393 · 90119-12168 · 91552-81250 · 91553-80830 |
| 33197C | COLLIER, RENIFLARD TRANSMISSION | 33197-06010 · 33197-33020 |
| 35015S | Straight thread plug (for transmission coupling) | 90341-18064 · 90341-A0003 |
| 35101E | Direct sales (for automatic transmission) | 90250-10017 · 90250-10021 |
| 35102G | Gasket (for transaxle rear cover) | 90430-18008 · 90430-A0003 |
| 35103C | O-ring | 90301-06021 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03230 · 90930-A3009 |
| 35104C | Ventilation plug No. 2 (ATM) | 90930-03216 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-06030 · 35104-06050 · 35104-0R010 · 35104-33130 · 35104-33140 · 35104-48030 · 35104-48040 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 · 90341-A0001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-14015 · 90341-A0005 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90080-30105 · 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90430-14008 |
| 35104V | Hoses (for breather plug) | 35121-33060 · 35121-33070 |
| 35104X | O-ring (for breather plug) | 90301-08015 |
| 35104Z | Gasket (for transaxle housing) | 90430-14008 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-A0367 · 90105-A0430 · 91551-00835 · 91551-00840 |
| 35111K | Bolts (for securing transmission housing and case) | 91551-00840 |
| 35125C | No. 1 transmission oil pipe | 35125-06120 · 35125-06130 · 35125-33110 · 35125-48090 |
| 35141G | O-ring (for automatic transmission) | 90301-10018 · 90301-A0016 |
| 35145C | Transmission axle housing gasket | 35145-07010 · 35145-33010 · 35145-33020 |
| 35150 | gearbox plug assembly | 35150-45010 |
| 35151A | Transmission axle housing upper cover | 35151-45020 |
| 35151F | gearbox side cover | 35151-06010 · 35151-33160 · 35151-33161 |
| 35394 | Oil filter magnet (for transmission) | 35394-08010 · 35394-48010 |
| 35405C | SS-ENS. OBTURATEUR, AVEC VIS A TETE PLATE | 90341-18016 · 90341-18023 · 90341-A0009 |
| 35405D | SEGMENT, O (POUR VIS D'OBTURATION A TETE PLATE) | 90430-18008 · 90430-A0003 |
| 35847C | Transmission lubricant supply pipe | 35847-06010 · 35847-48020 · 35847-48030 |
| 35882C | Differential gear lubricant oil supply pipe | 35882-06030 · 35882-48020 · 35882-48030 |
