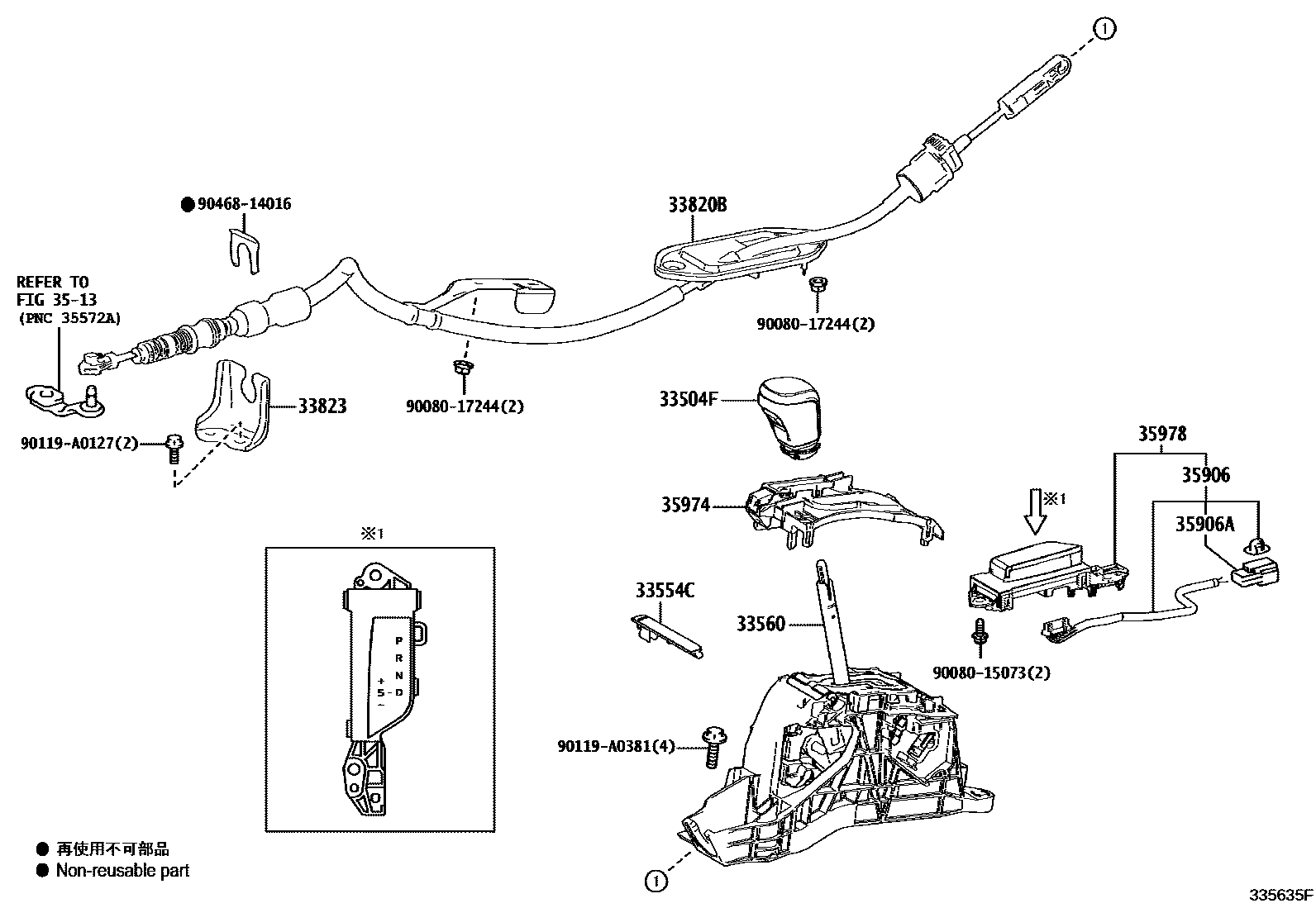

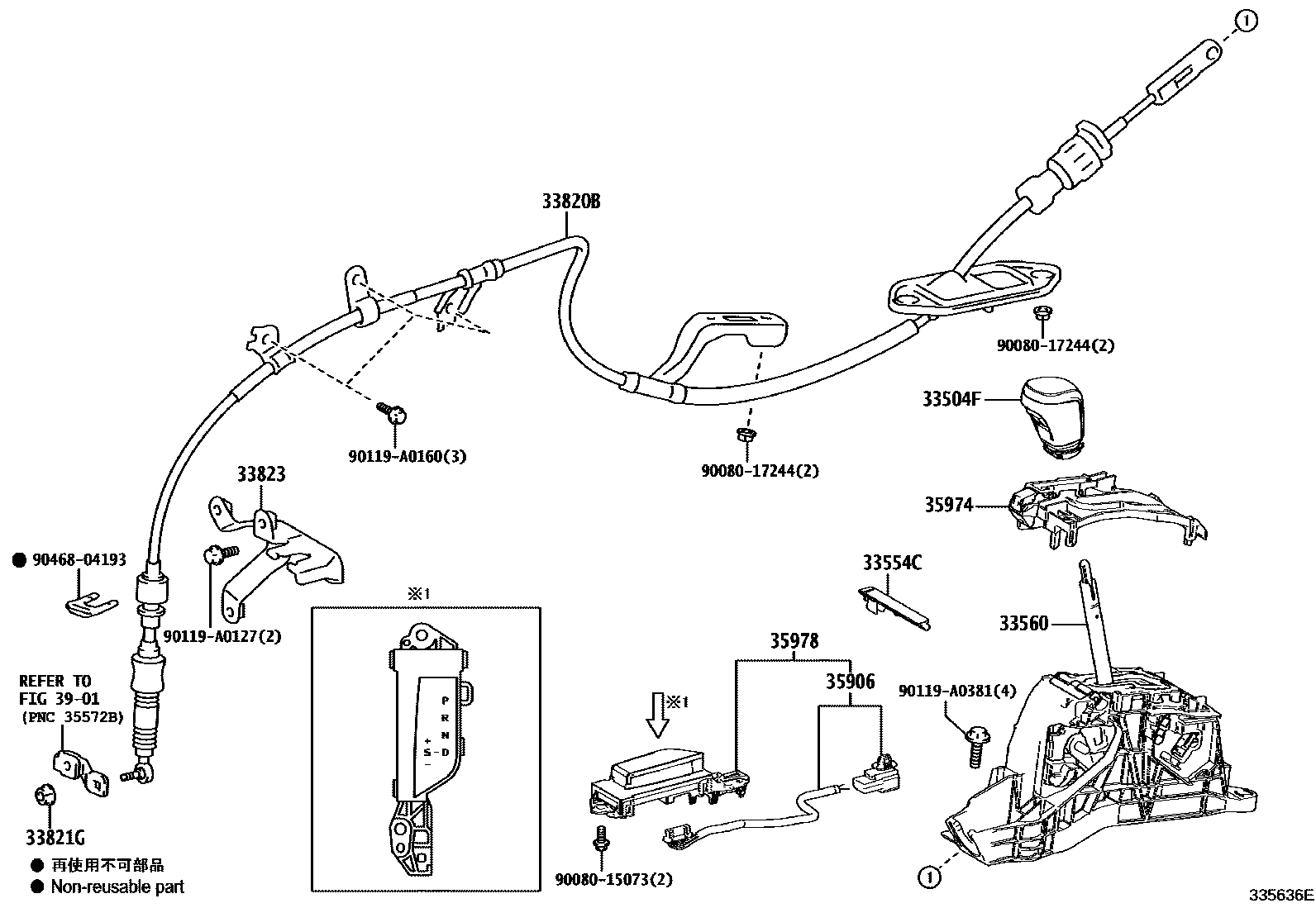

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554C | Shift lock release button cover | 33554-06080 |
| 33560 | Shift lock control unit assembly | 33560-06390 · 33560-06400 |
| 33820B | Transmission control cable assembly | 33820-06520 · 33820-06530 · 33820-06590 · 33820-06710 |
| 33821G | Nut (for transmission control cable) | 90178-A0024 |
| 33823 | No. 1 transmission control cable bracket | 33823-06040 · 33823-06070 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06260 · 35906-06270 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-06190 |
| 35978 | Shift lever position indicator light | 35978-06230 · 35978-06240 |
