Toyota CAMRY 燃油喷射系统 — Figure 2211

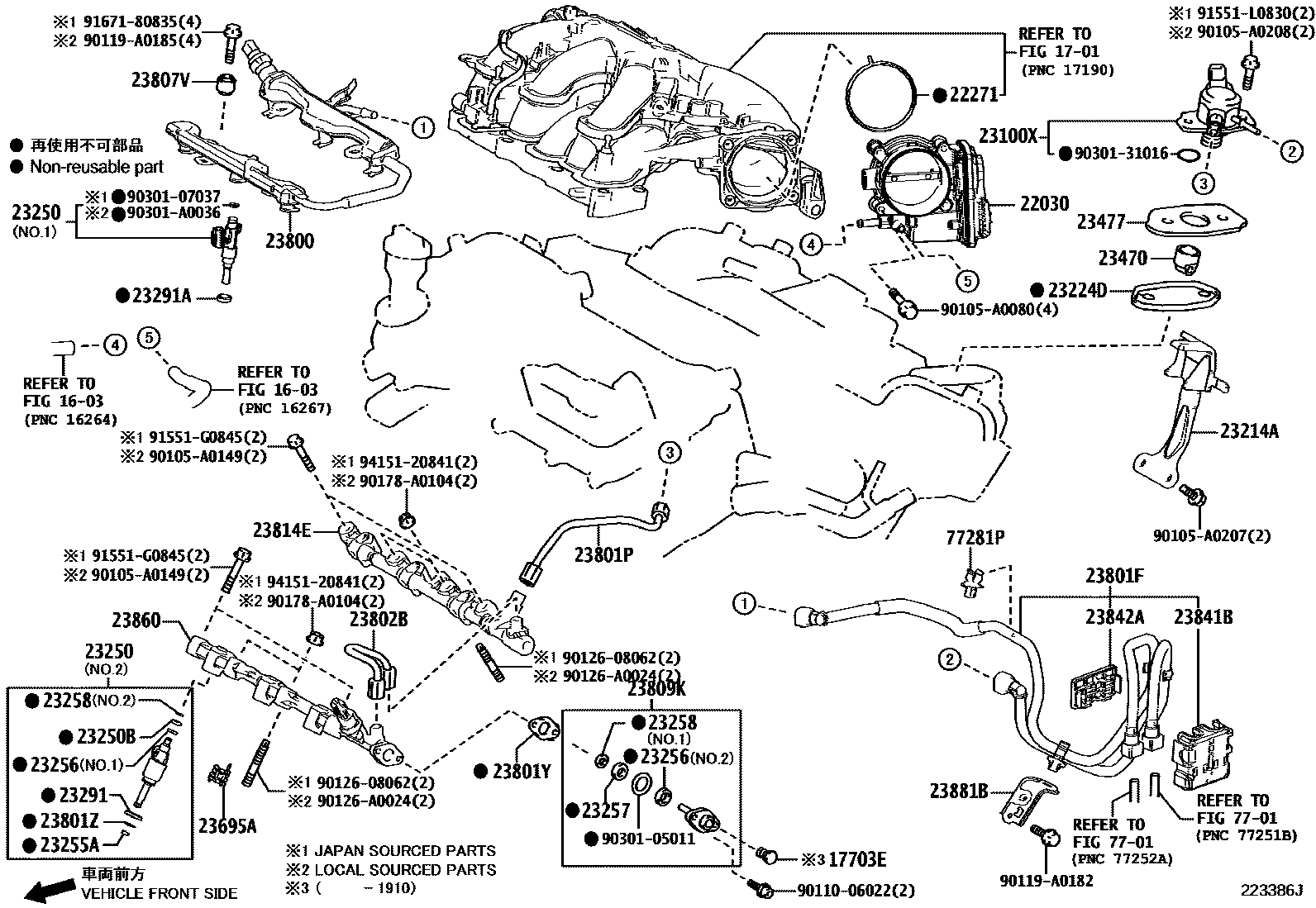

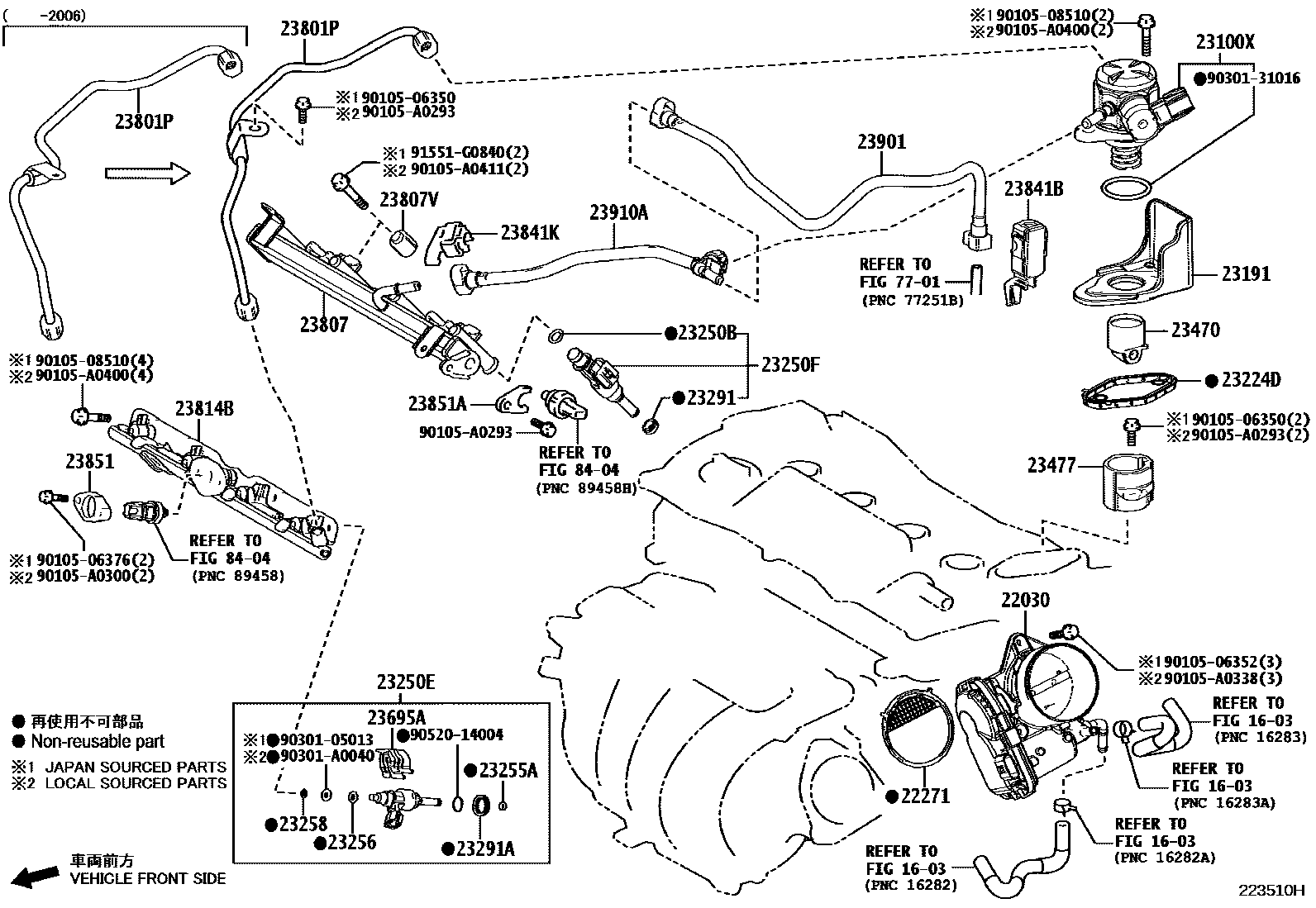

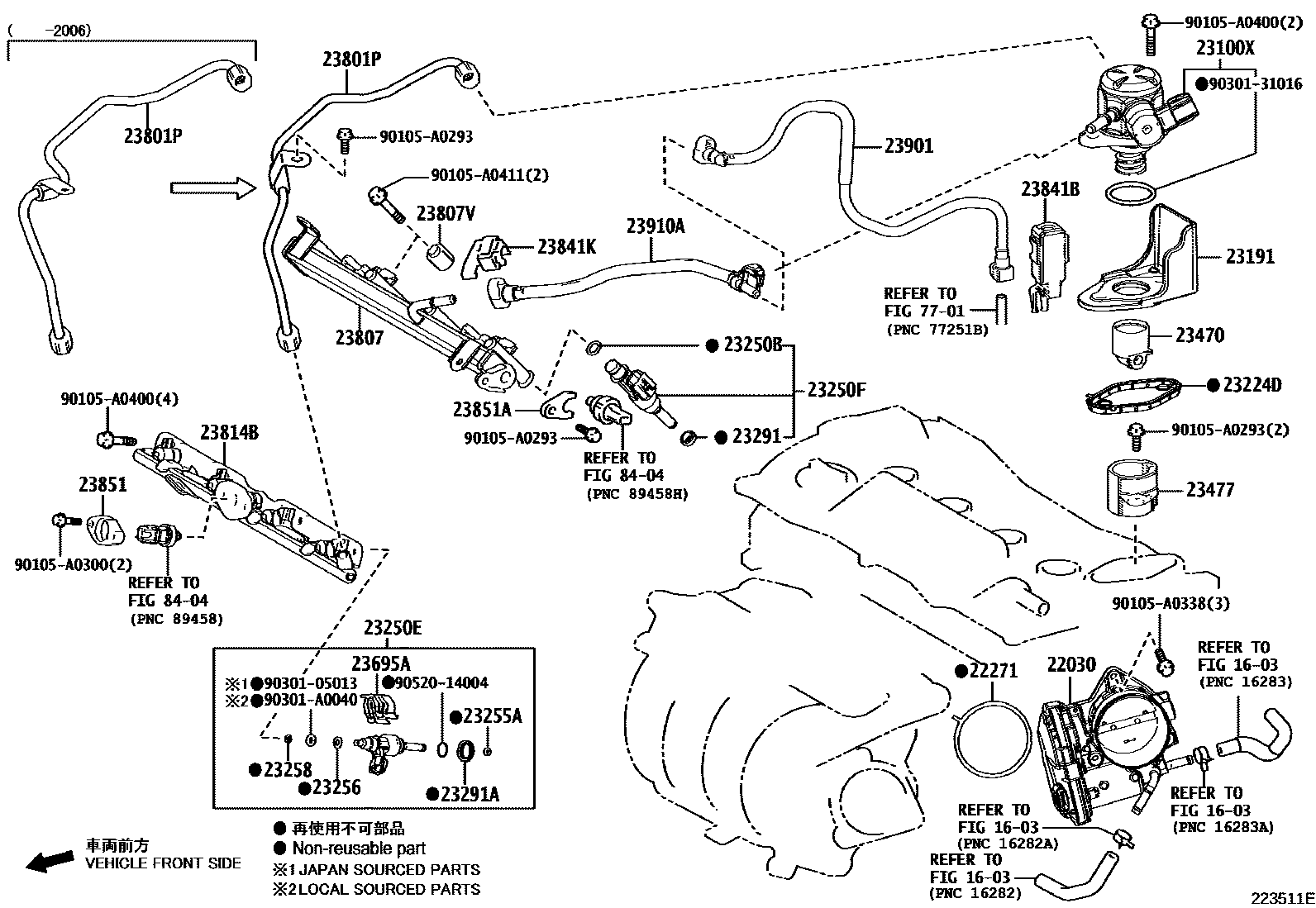

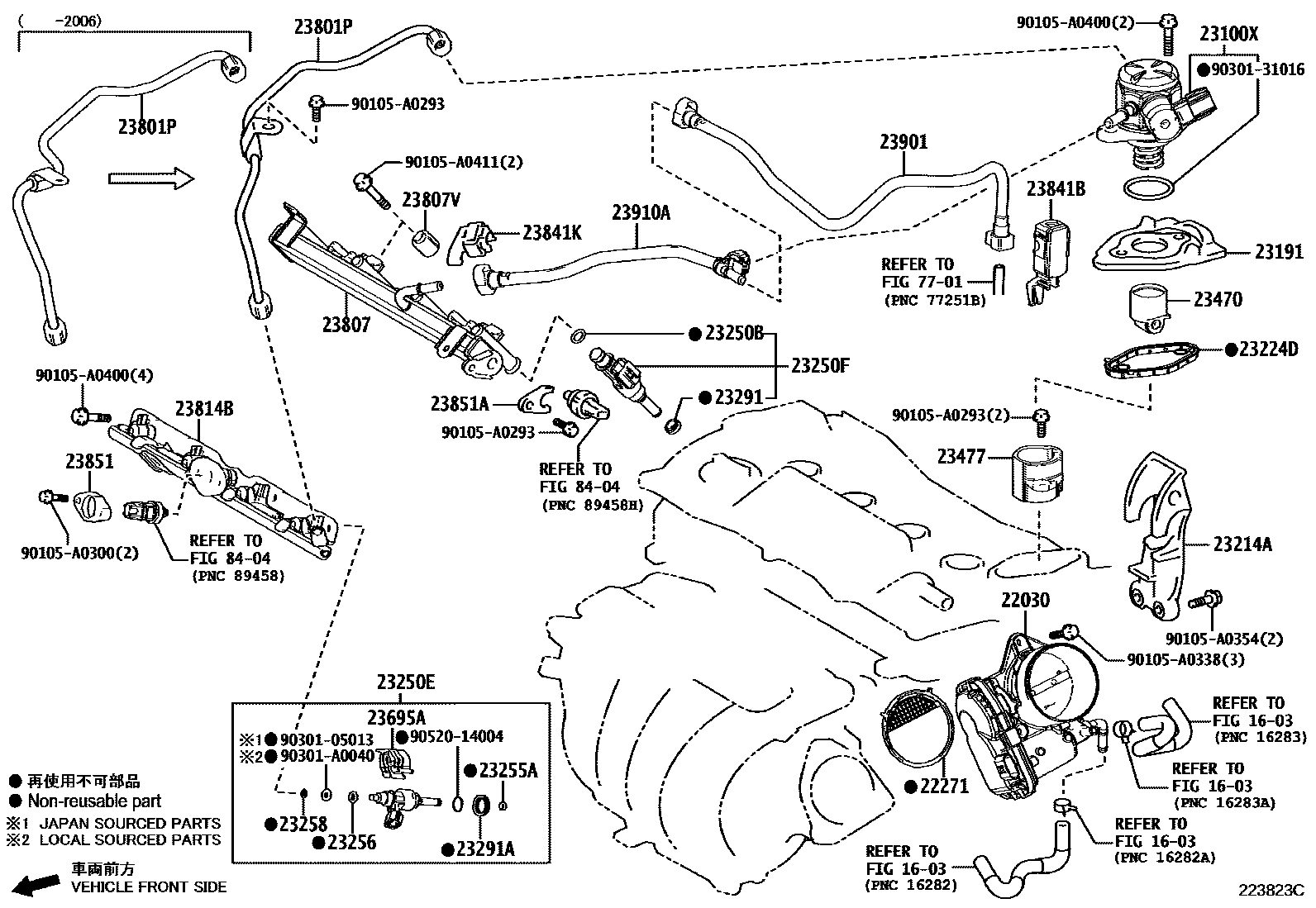

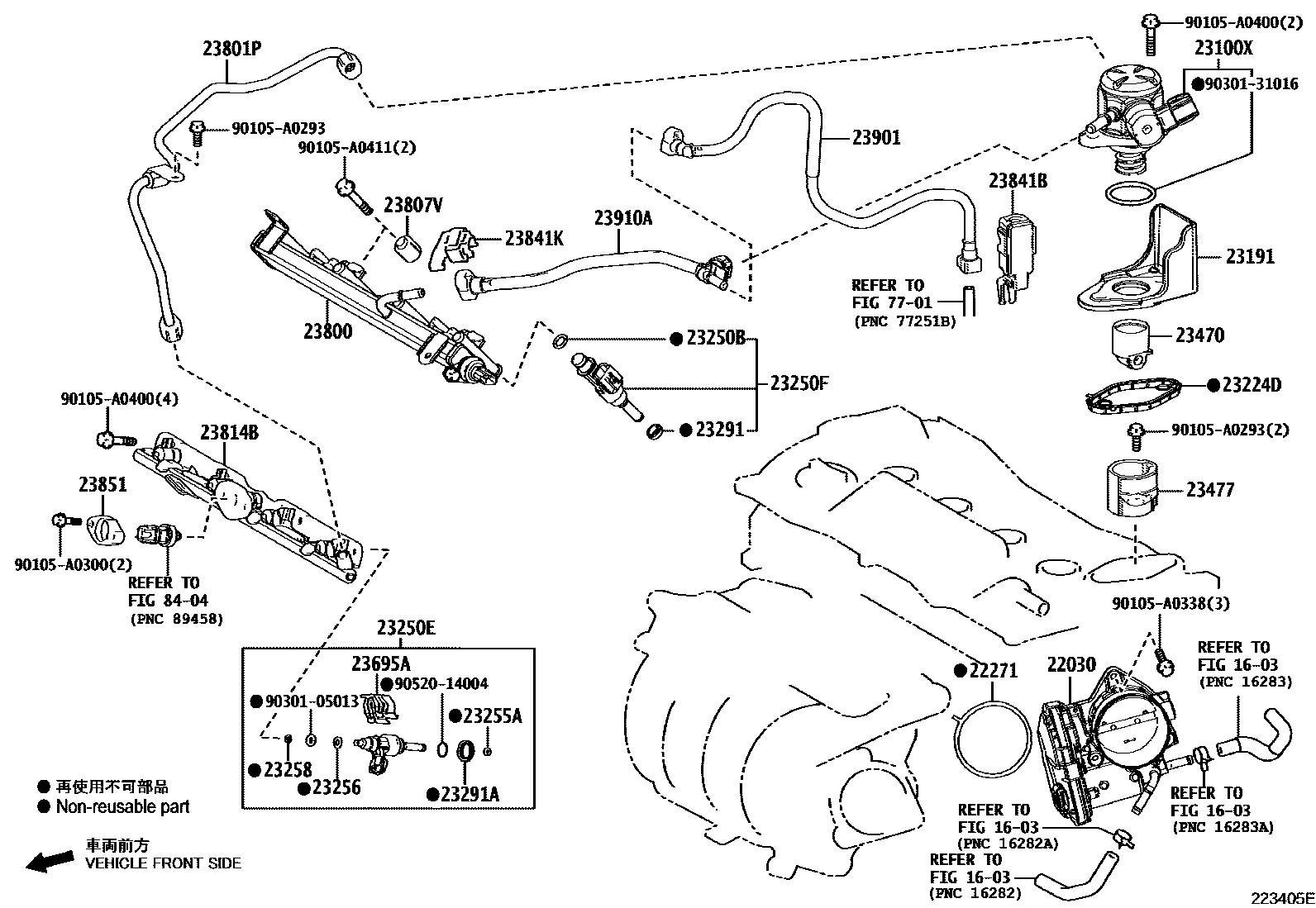

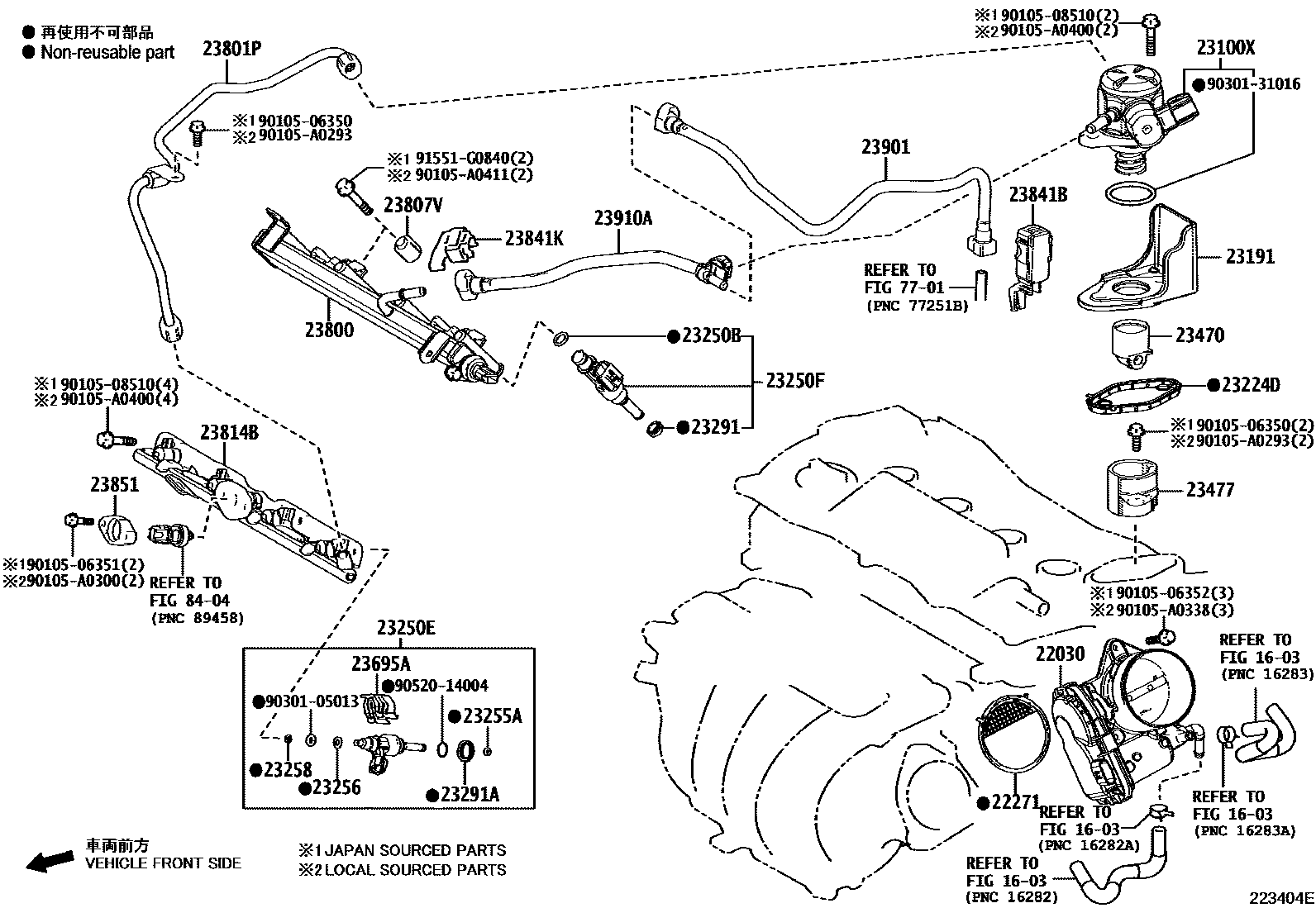

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17703E | SOUS-ENSEMBLE DE CAPUCHON PARE-POUSSIERE | 17703-47010 |
| 22030 | Electronic throttle body assembly | 22030-0P060 · 22030-25010 · 22030-F0010 · 22030-F0020 |
| 22271 | Throttle body gasket | 22271-0P020 · 22271-25010 · 22271-F0010 · 22271-F0020 |
| 23100X | fuel pump assembly | 23101-0P010 · 23101-25040 · 23101-F0010 |
| 23191 | BRIDE, POMPE CARBURANT | 23191-25050 · 23191-F0010 · 23214-F2080 |
| 23214A | PROTECTEUR, POMPE A CARBURANT | 23214-0P010 · 23214-F0020 |
| 23224D | JOINT D'ETANCHEITE, ENTRETOISE DE POMPE A CARBURANT | 23224-0P010 · 23224-0P011 · 23224-25010 · 23224-25011 · 23224-F0010 · 23224-F0011 |
| 23250 | Fuel injector assembly | 23209-09330 · 23209-39435 |
| 23250B | O-ring (for fuel injector) | 90301-05011 · 90301-07037 · 90301-A0036 · 90301-A0040 · 90301-C0072 |
| 23250F | ENS INJECTEUR, CARBURANT(POUR PORT) | 23209-29105 · 23209-29175 · 23209-F9000 · 23209-F9080 |
| 23255A | Injector seal | 23255-0P010 · 23255-25010 · 23255-31020 · 23255-F0010 |
| 23256 | No. 1 injector retaining ring | 23256-25010 · 23256-31010 · 23256-F0010 |
| 23257 | No. 2 injector retaining ring | 23257-47010 |
| 23258 | No. 3 injector retaining ring | 23258-31010 · 23258-31020 · 23258-36010 |
| 23291 | Injector vibration isolation pad | 23291-0P010 · 23291-0V020 · 23291-28020 |
| 23291A | Injector vibration isolation pad | 23291-23010 · 23291-28020 · 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 · 23470-F0010 |
| 23477 | fuel pump tappet guide | 23477-25010 · 23477-31020 · 23477-F2010 |
| 23695A | Injector body clamp | 23695-25010 · 23695-31020 |
| 23800 | ENS. TUYAU, AVEC CAPTEUR D'ALIMENTATION EN CARBURANT | 23800-0P010 · 23800-25010 · 23800-31040 |
| 23801F | No. 1 fuel hose | 23801-0P080 · 23801-0P081 · 23801-0P082 · 23801-0P083 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-25030 · 23801-25031 · 23801-31210 · 23801-F0010 · 23801-F0011 |
| 23801Y | padding | 23893-47010 |
| 23801Z | Snap ring (for fuel pipe) | 90520-A0062 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-31160 |
| 23807 | Oil pipe sub-assembly | 23814-25021 · 23814-25022 · 23814-25023 · 23814-F0021 · 23814-F0022 · 23814-F0023 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-25010 · 90561-08023 |
| 23809K | SS-ENS. BOUCHON, TUYAU CARBURANT | 23809-47010 |
| 23814B | oil pipeline | 23814-25010 · 23814-25011 |
| 23814E | Right oil pipe | 23807-0P070 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0P050 · 23841-31070 |
| 23841K | ATTACH, TUY ESS | 23841-F0010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0P120 |
| 23851 | SUPPORT, CAPTEUR PRESSION CARBURANT, NO.1 | 23851-25020 · 23851-F2010 |
| 23851A | SUPPORT, CAPTEUR PRESSION CARBURANT, NO.2 | 23851-25030 · 23851-F2080 |
| 23860 | ENS. TUYAU, ALIMENTATION CARBURANT AVEC CAPTEUR, MG | 23860-0P030 |
| 23881B | fuel hose bracket | 23881-0P050 |
| 23901 | Fuel pipe sub-assembly | 23901-F0010 · 23901-F0011 · 23901-F0020 · 23901-F0021 · 23901-F0022 |
| 23910A | Fuel pipe sub-assembly | 23901-F0110 · 23901-F0111 |
| 77281P | fuel hose clamp | 77281-0E120 |
