Toyota CAMRY 真空泵 — Figure 1905

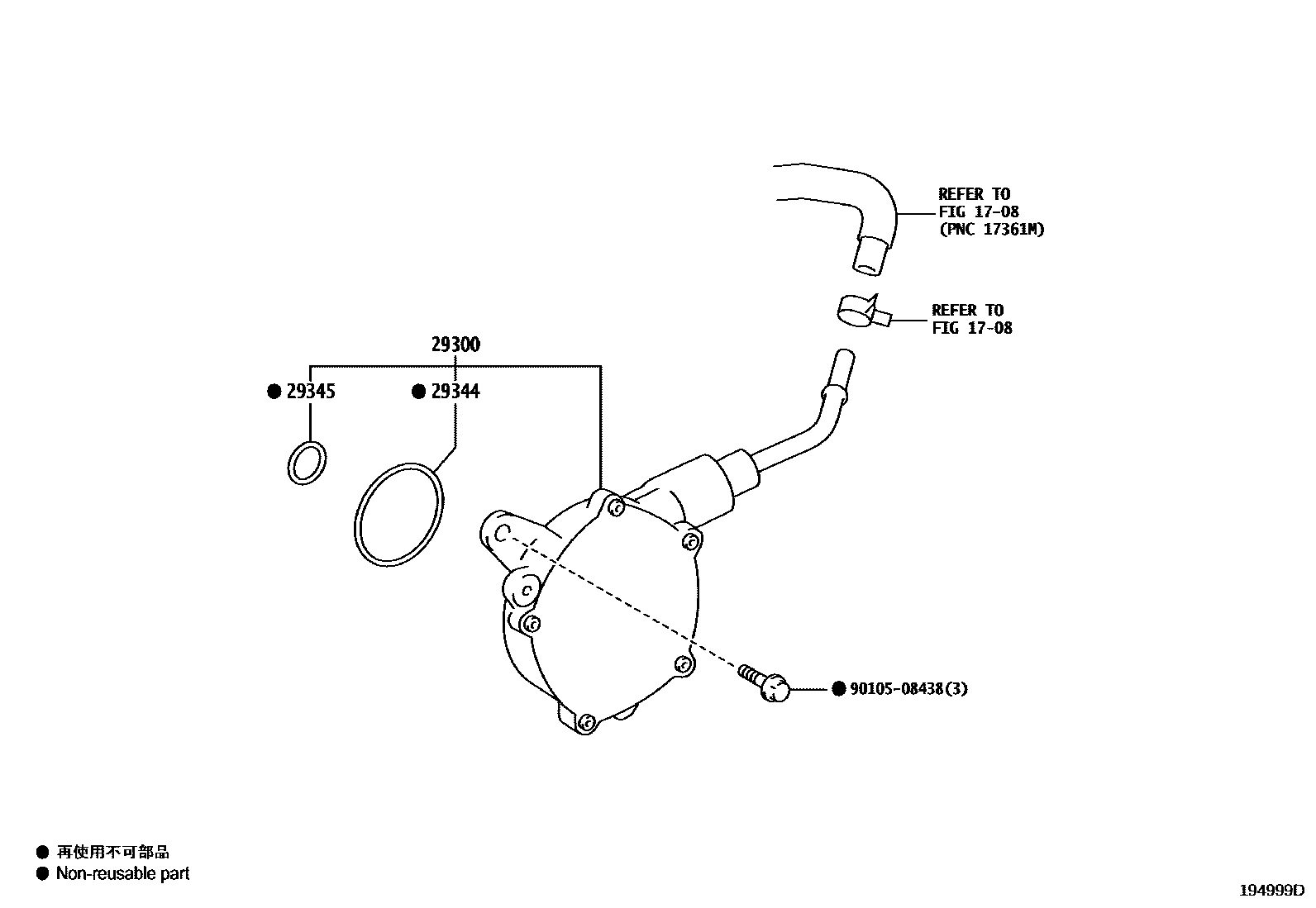

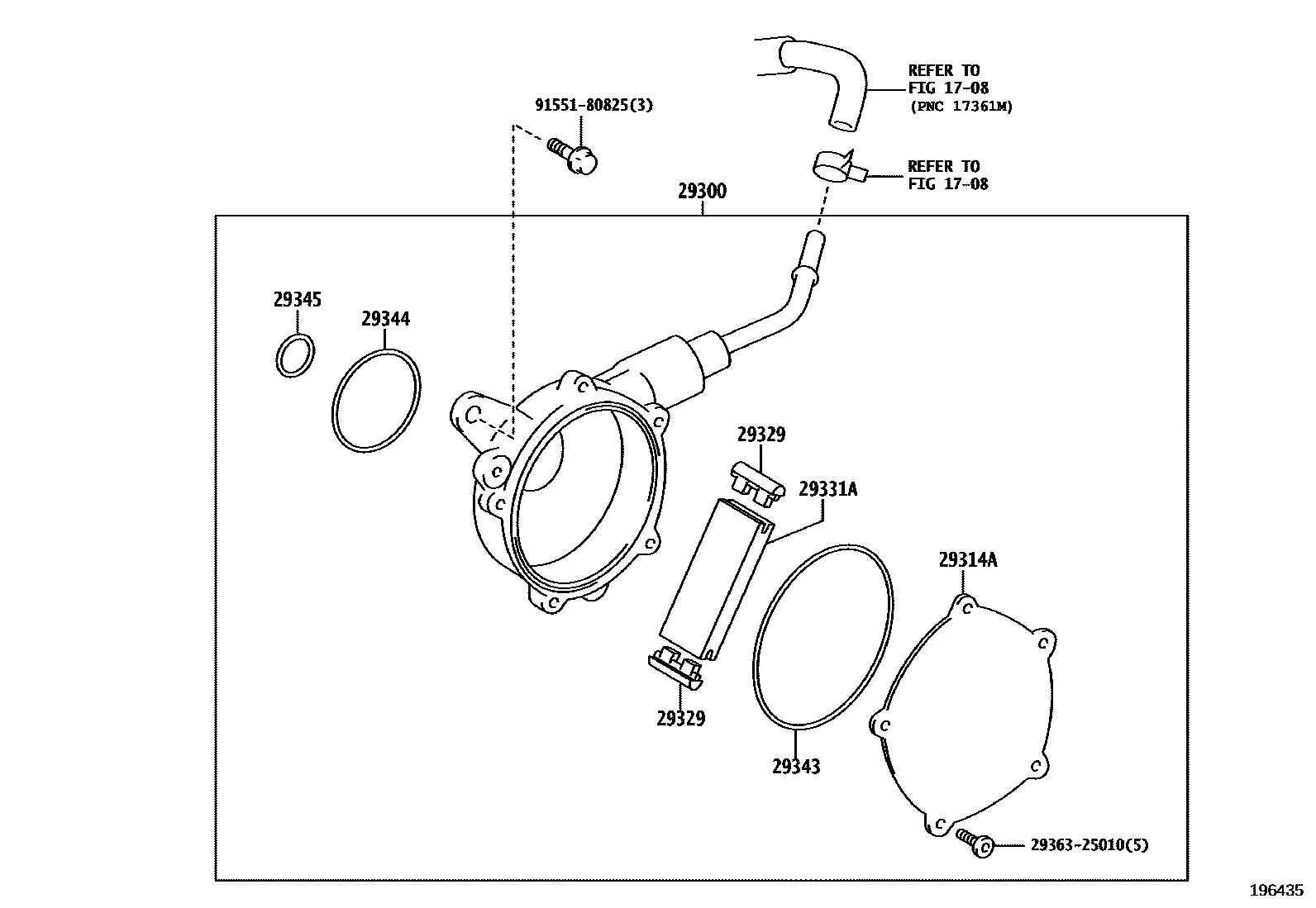

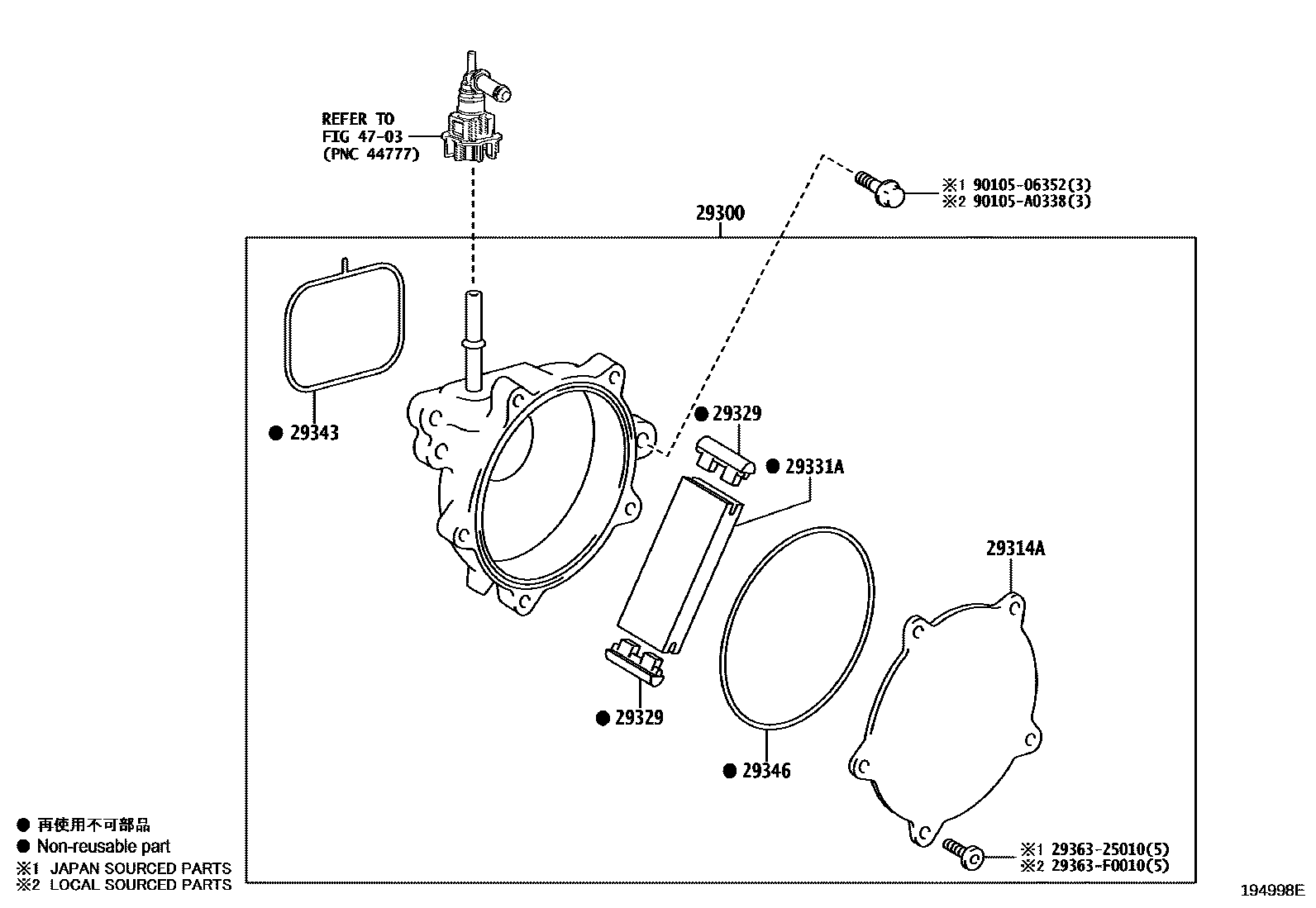

Toyota CAMRY EPC diagram 1905, 真空泵, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-0P010 · 29300-0P011 · 29300-25010 · 29300-25011 · 29300-25012 · 29300-31011 · 29300-F0010 · 29300-F0011 · 29300-F0012 |
| 29314A | end cap | 29314-25010 · 29314-31010 · 29314-F0010 |
| 29329 | Vane vacuum pump cover | 29329-25010 · 29329-25011 · 29329-37010 · 29329-F0010 · 29329-F0011 |
| 29331A | vacuum pump blades | 29331-25010 · 29331-36011 · 29331-37010 · 29331-F0010 |
| 29343 | JOINT TORIQUE, POMPE A VIDE, NO.1 | 29343-25010 · 29343-36010 · 29343-F0010 |
| 29344 | JOINT TORIQUE, POMPE A VIDE, NO.2 | 29344-0P010 · 29344-22011 |
| 29345 | JOINT TORIQUE, POMPE A VIDE, NO.3 | 29345-0P010 · 29345-22011 |
| 29346 | JOINT, TORIQUE CACHE POMPE A VIDE | 29346-25010 · 29346-F0010 |
