Toyota CAMRY 点火线圈和火花塞 — Figure 1901

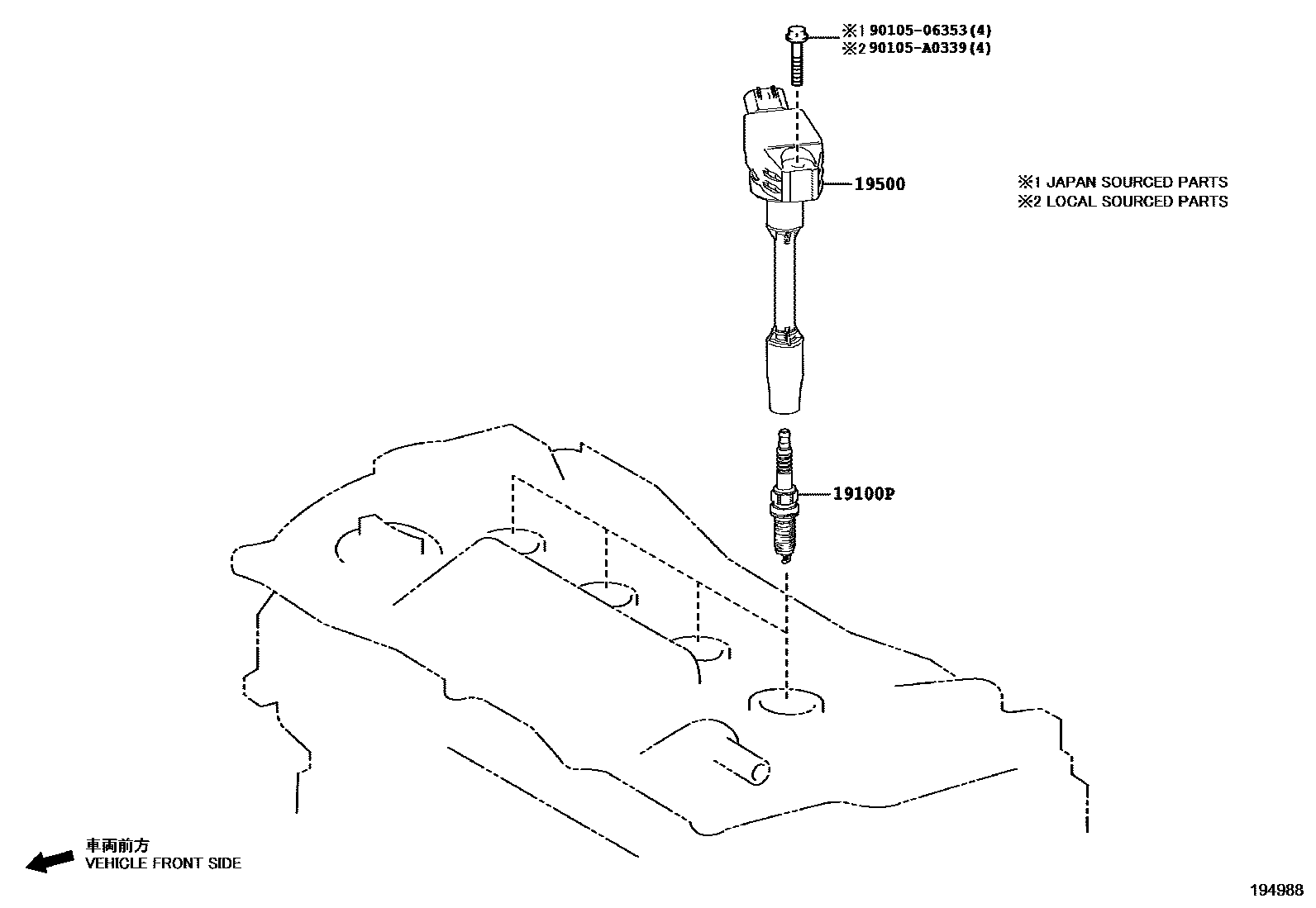

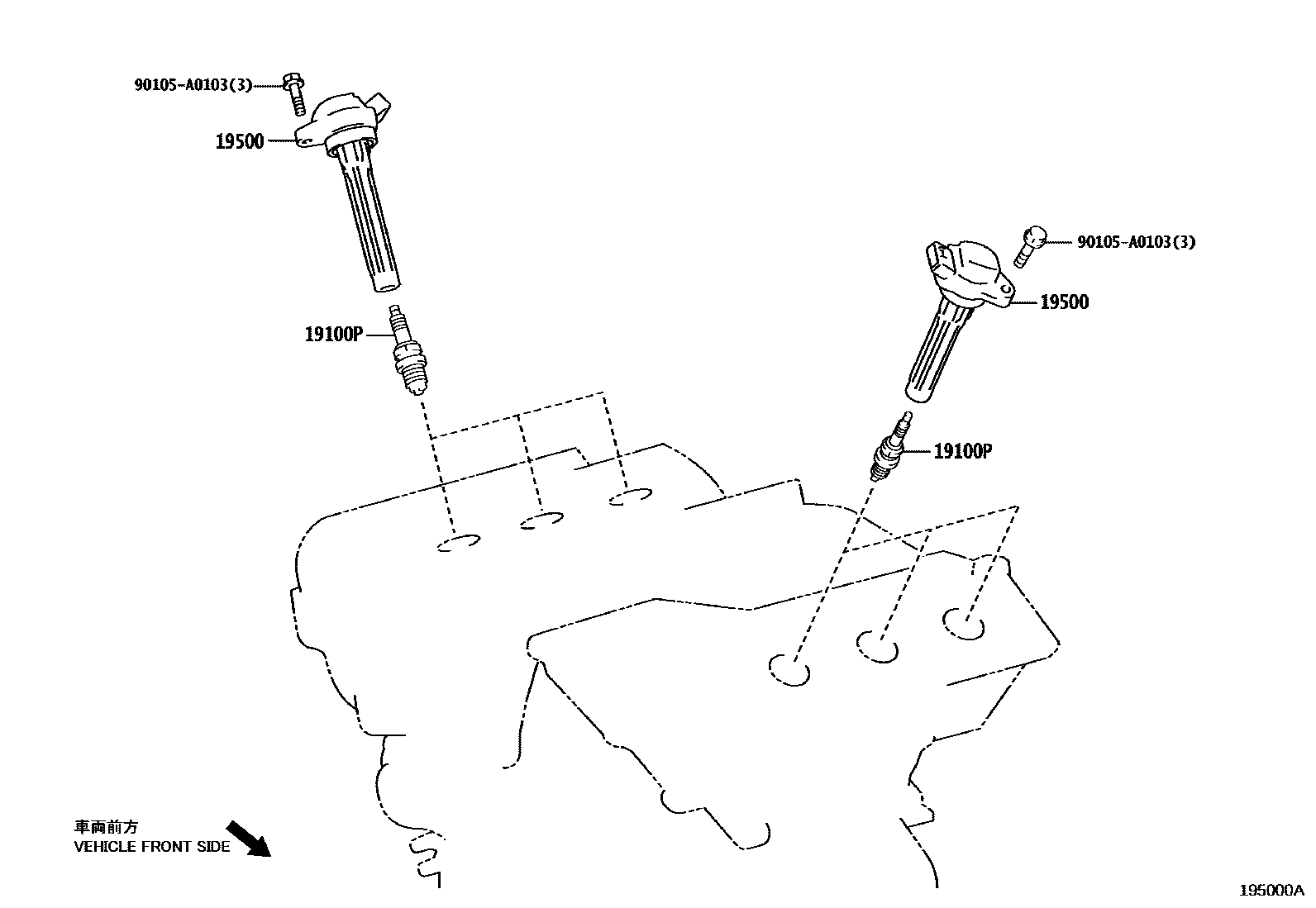

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01263 · 90919-01289 · 90919-A1001 |
| 19500 | Ignition coil assembly | 90919-02276 · 90919-A2009 · 90919-A2010 · 90919-A2013 |
