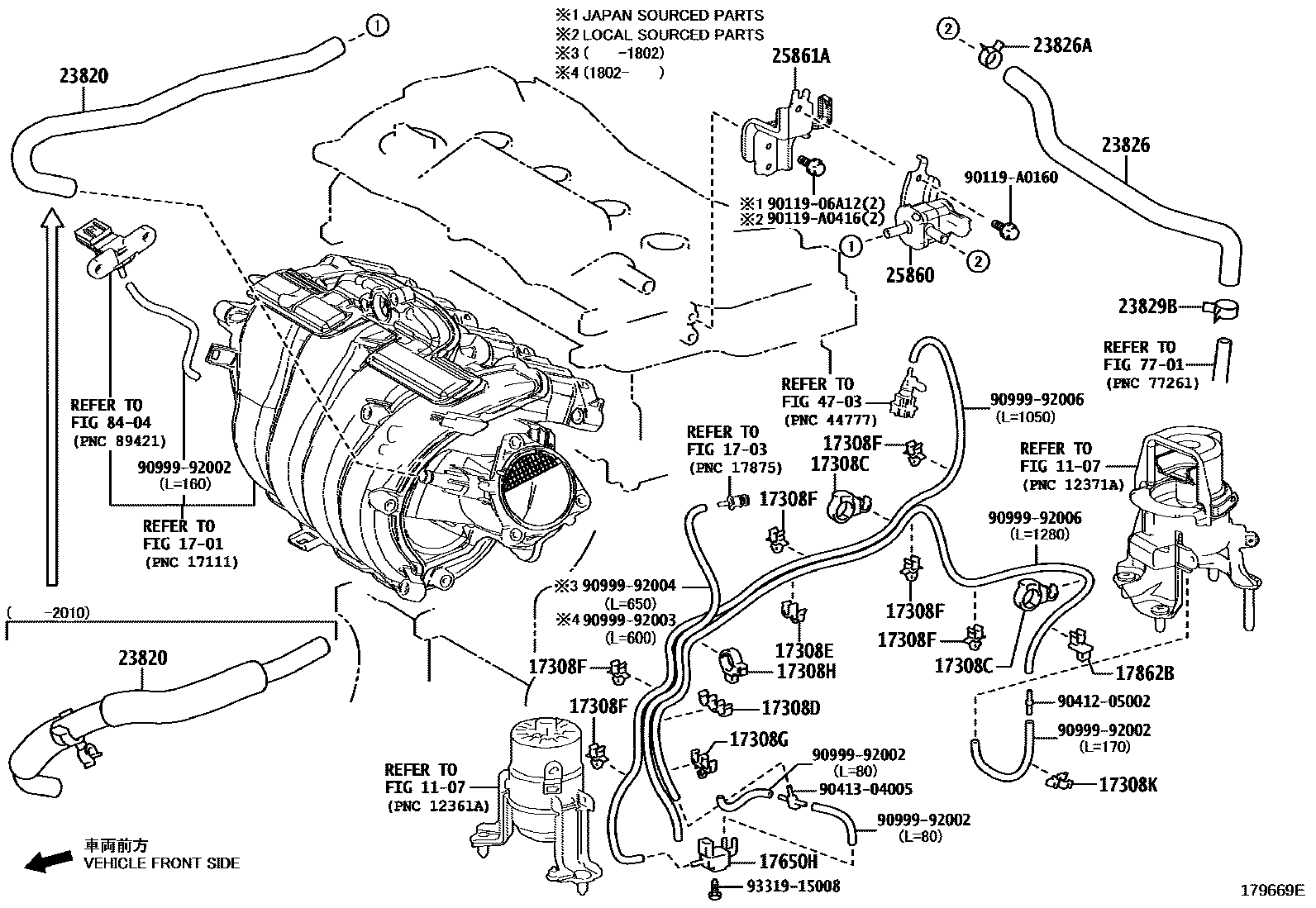

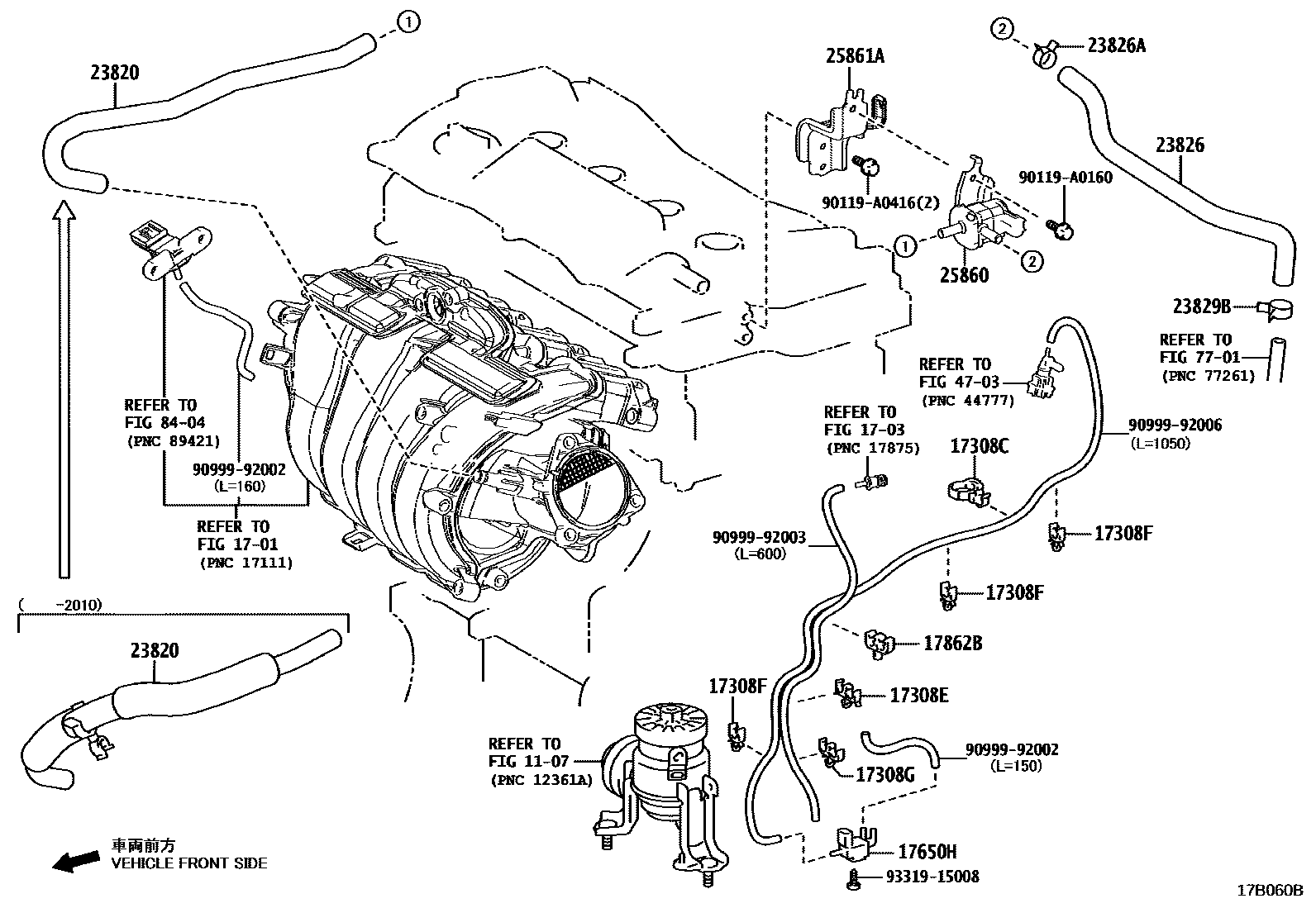

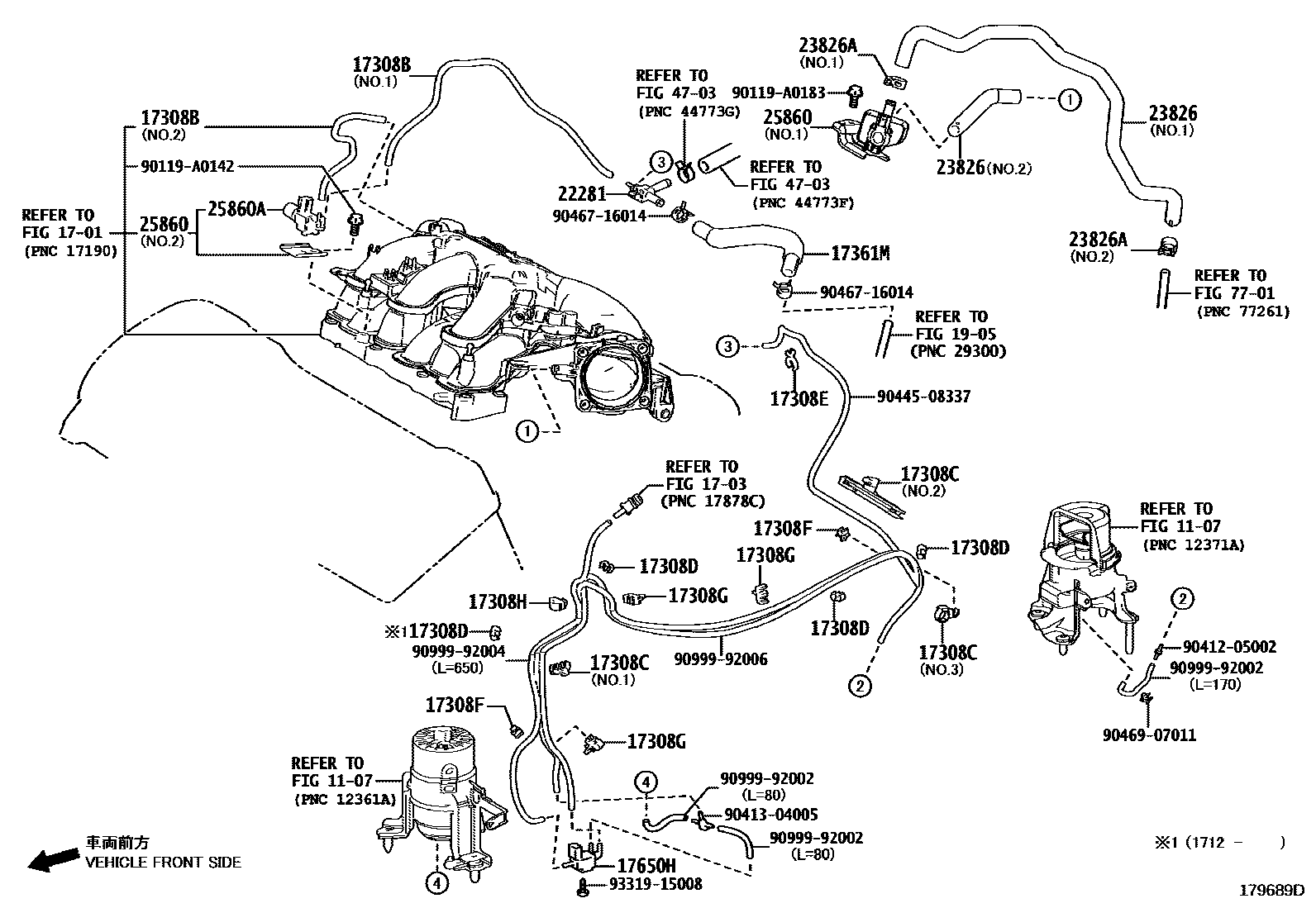

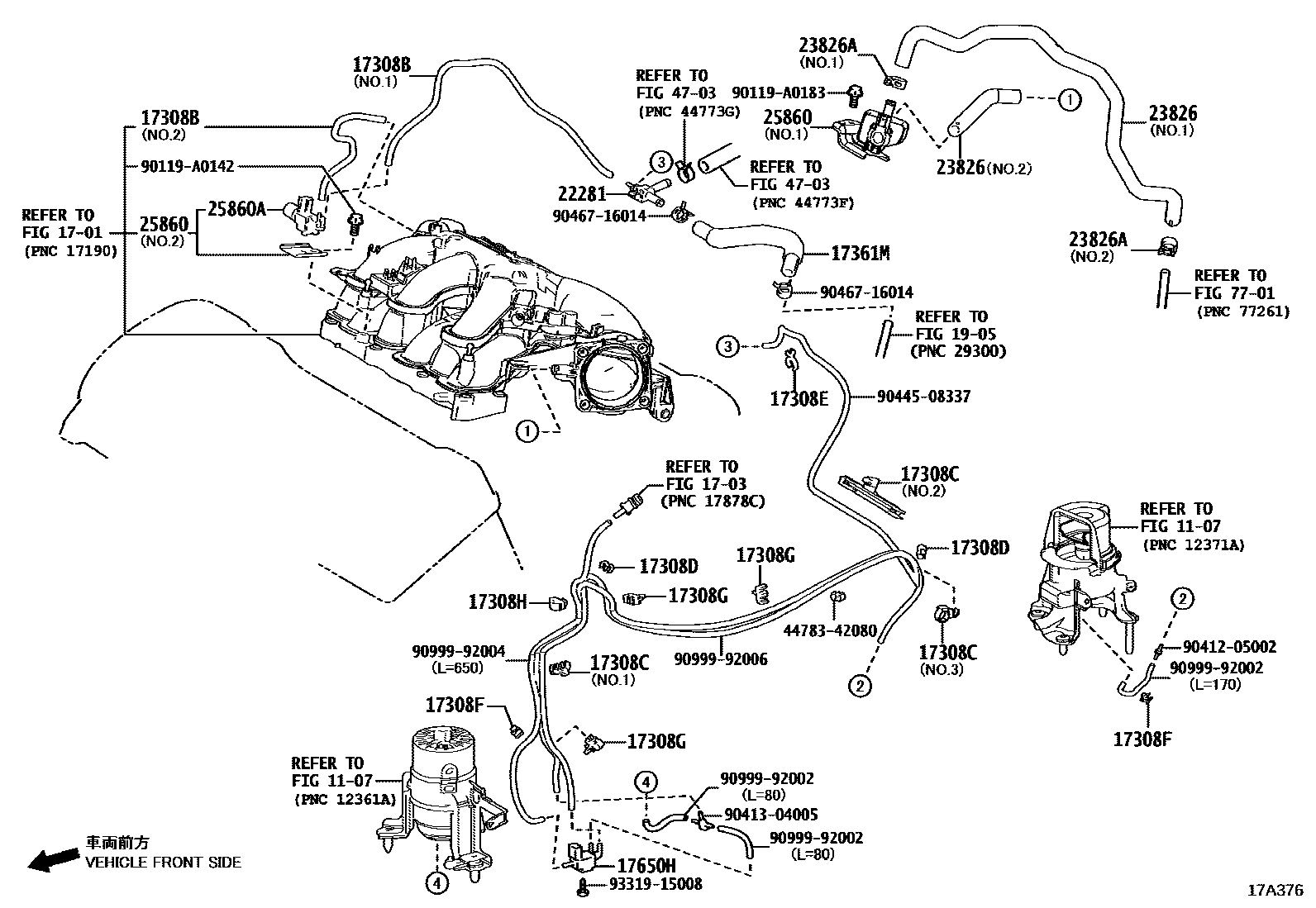

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 25760-31020 · 90999-92002 |
| 17308C | Clamp (for vacuum hose) | 44783-33040 · 44783-33050 · 44783-33060 |
| 17308D | Clamp No. 2 (for vacuum hose) | 90464-00074 · 90464-00082 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42070 · 44783-42080 · 90464-00082 · 90464-00175 |
| 17308F | No. 4 clamp (for vacuum hose) | 44783-42040 · 90469-07011 |
| 17308G | No. 5 clamp (for vacuum hose) | 90469-07012 |
| 17308H | Clamp No. 6 (for vacuum hose) | 90959-01434 |
| 17308K | COLLIER, NO.7(POUR FLEX DEPRESSION) | 44783-42040 · 90469-07011 |
| 17361M | air tube | 17361-0P020 |
| 17650H | Vacuum switch valve | 90910-12059 · 90910-TC003 |
| 17862B | hose clamp | 44783-42050 · 44783-42060 · 90949-01C91 |
| 22281 | Air delivery pipe joint | 22281-0P010 |
| 23820 | Fuel vapor supply hose assembly | 23820-F0081 · 23820-F0110 · 23820-F0150 · 23820-F0360 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0P270 · 23826-0P280 · 23826-F0070 · 23826-F0071 · 23826-F0080 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-A0032 · 90467-16014 · 96133-41501 · 96136-41901 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-A0032 · 96136-41901 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0P030 · 25860-31120 · 25860-F0010 · 25860-F0020 |
| 25860A | No. 1 vacuum switch valve | 25860-46010 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-25011 |
