Toyota CAMRY Exhaust Pipe — Figure 1702

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 6 images and 22 PNC and OE references.

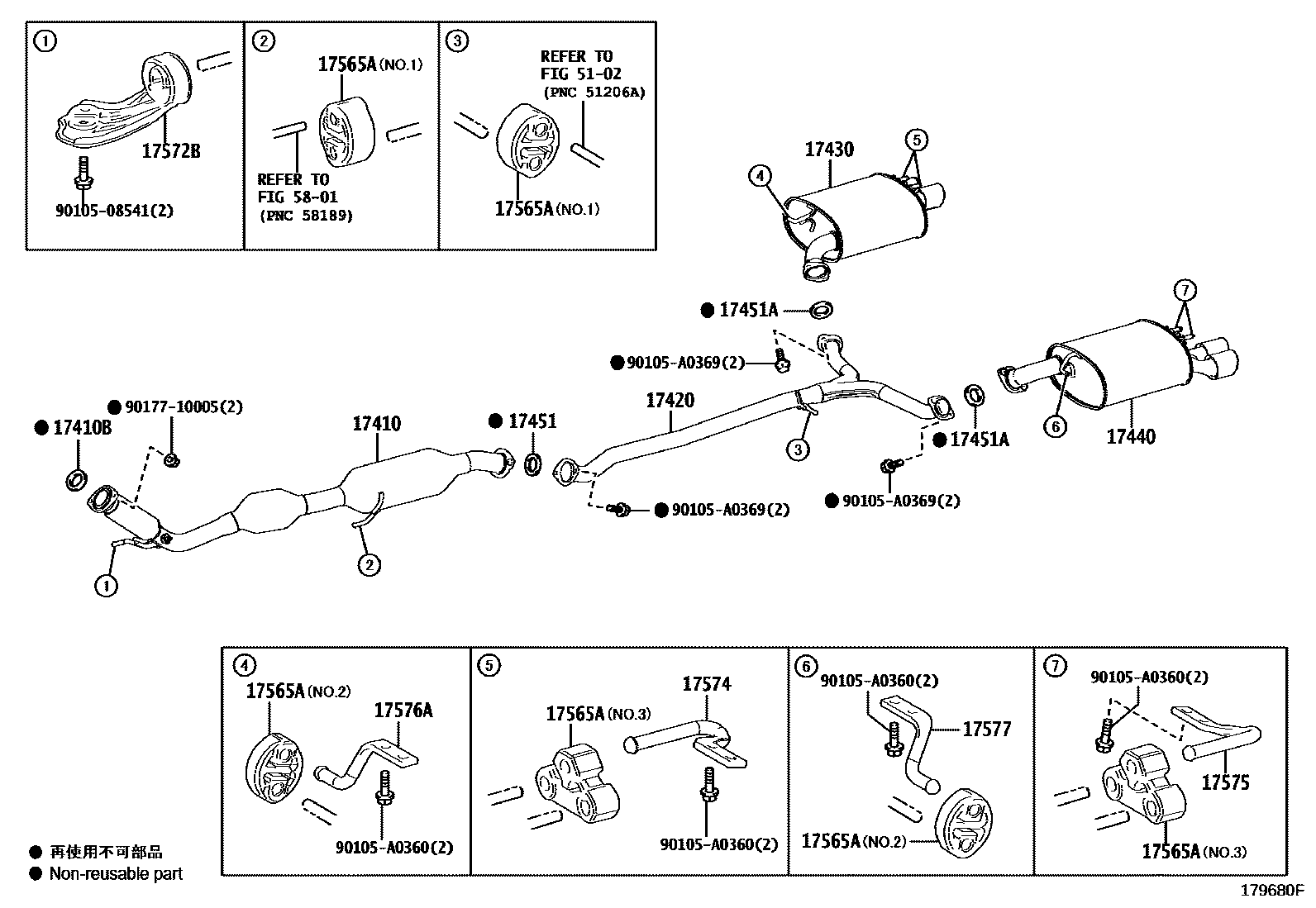

Toyota CAMRY Exhaust Pipe EPC diagram — 179680F — Exhaust Pipe — 179680F (201706 – 999999)

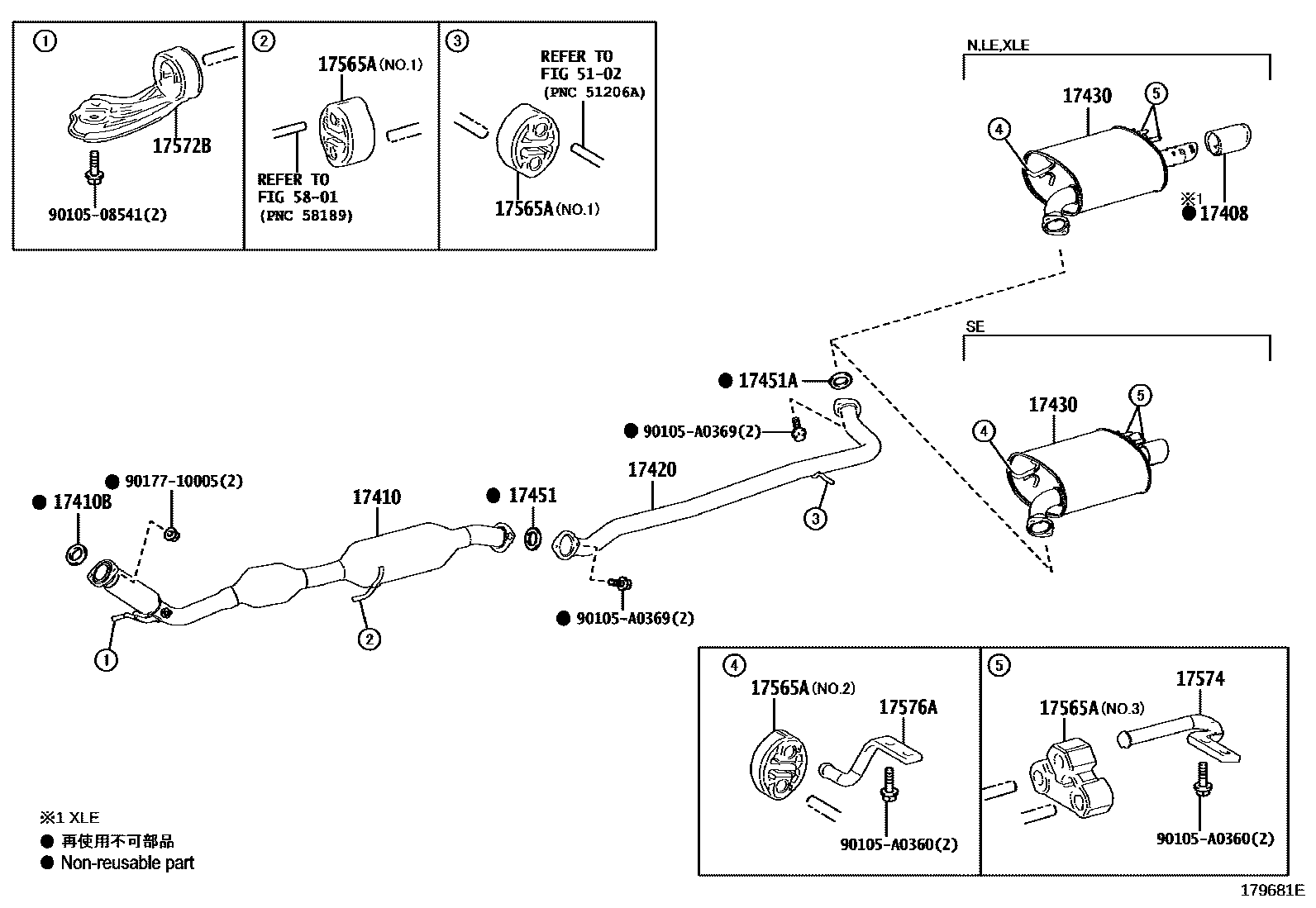

Toyota CAMRY Exhaust Pipe EPC diagram — 179681E — Exhaust Pipe — 179681E (201706 – 999999)

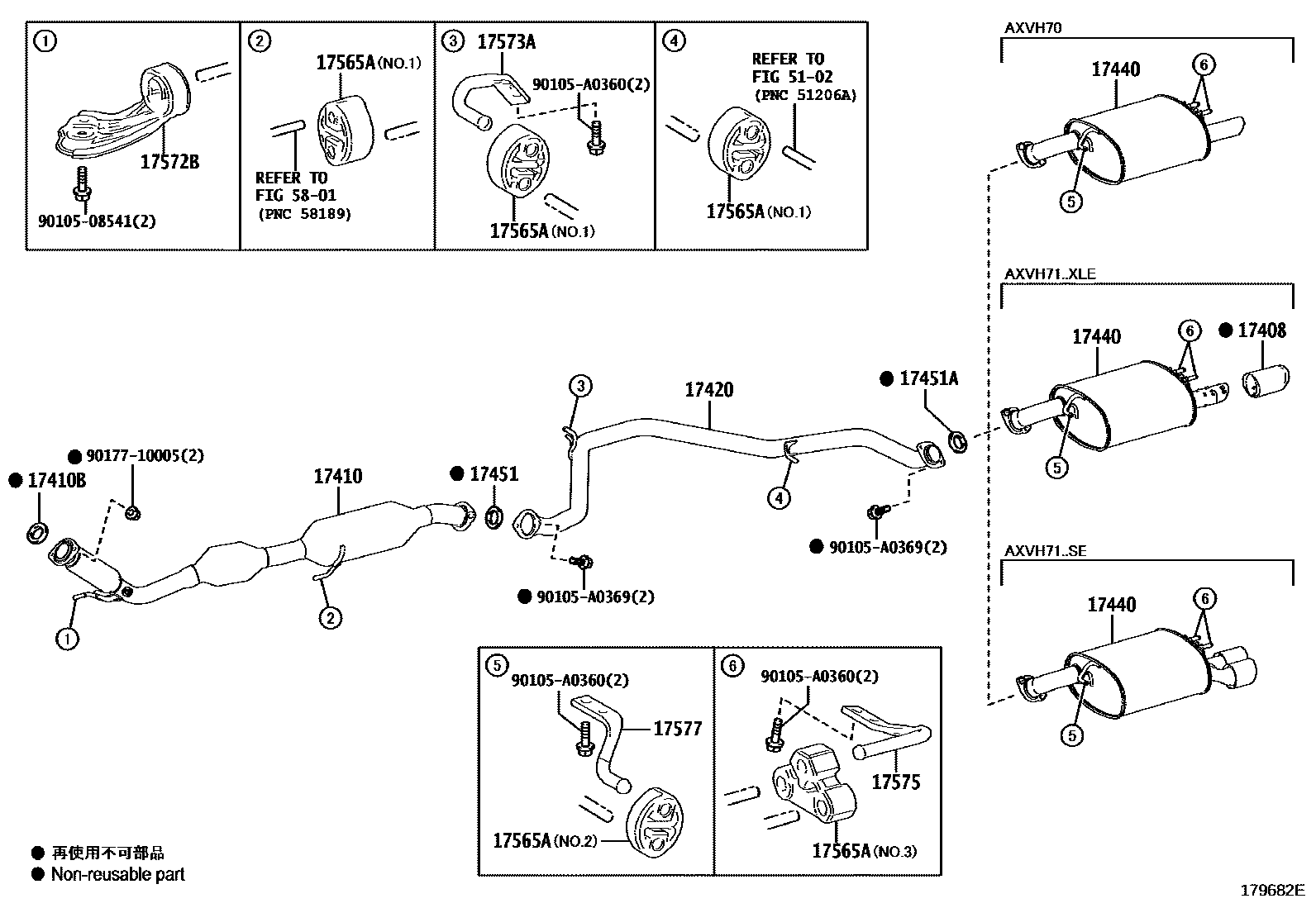

Toyota CAMRY Exhaust Pipe EPC diagram — 179682E — Exhaust Pipe — 179682E (201706 – 999999)

Toyota CAMRY Exhaust Pipe EPC diagram — 179688E — Exhaust Pipe — 179688E (201706 – 999999)

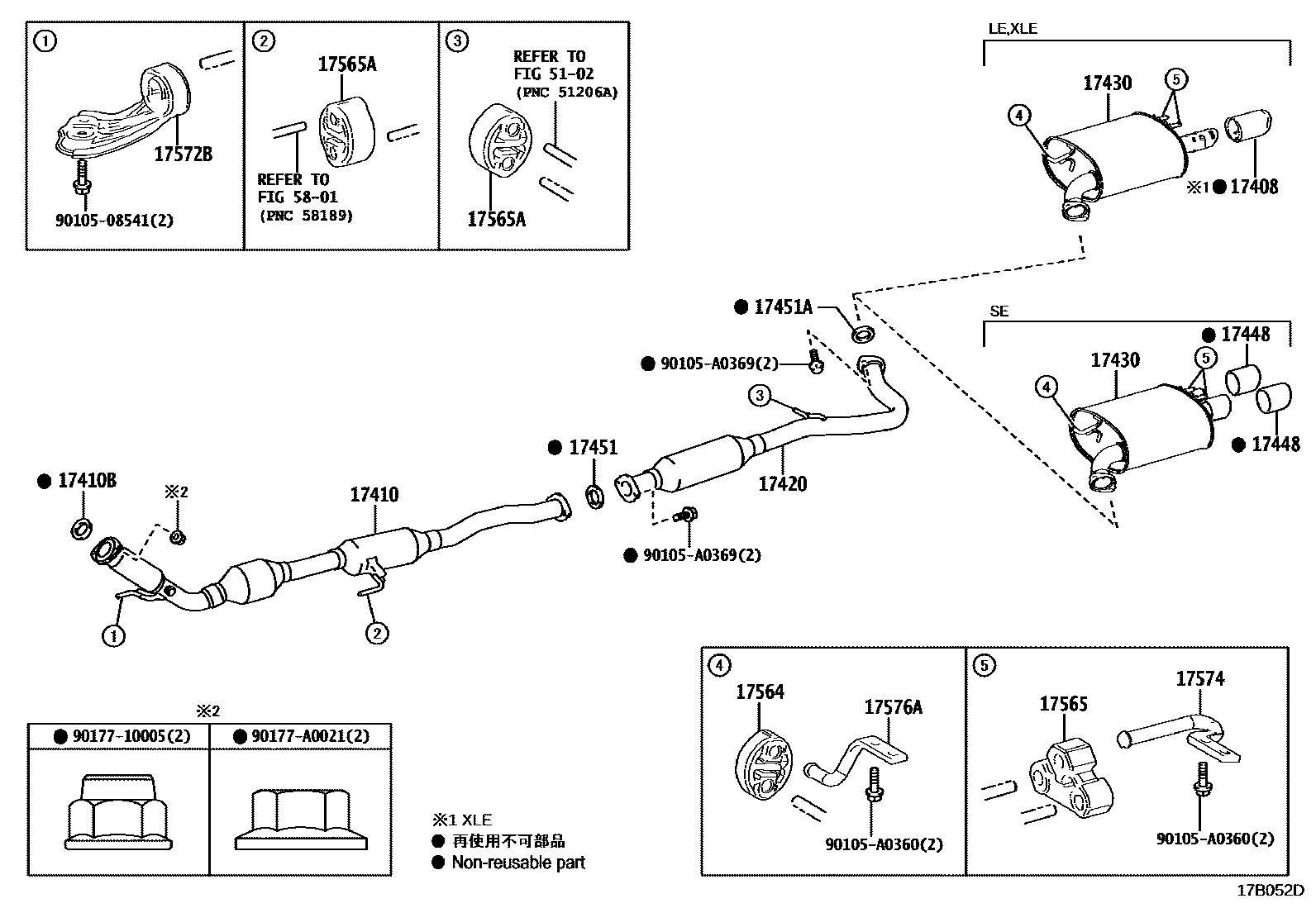

Toyota CAMRY Exhaust Pipe EPC diagram — 17B052D — Exhaust Pipe — 17B052D (202003 – 999999)

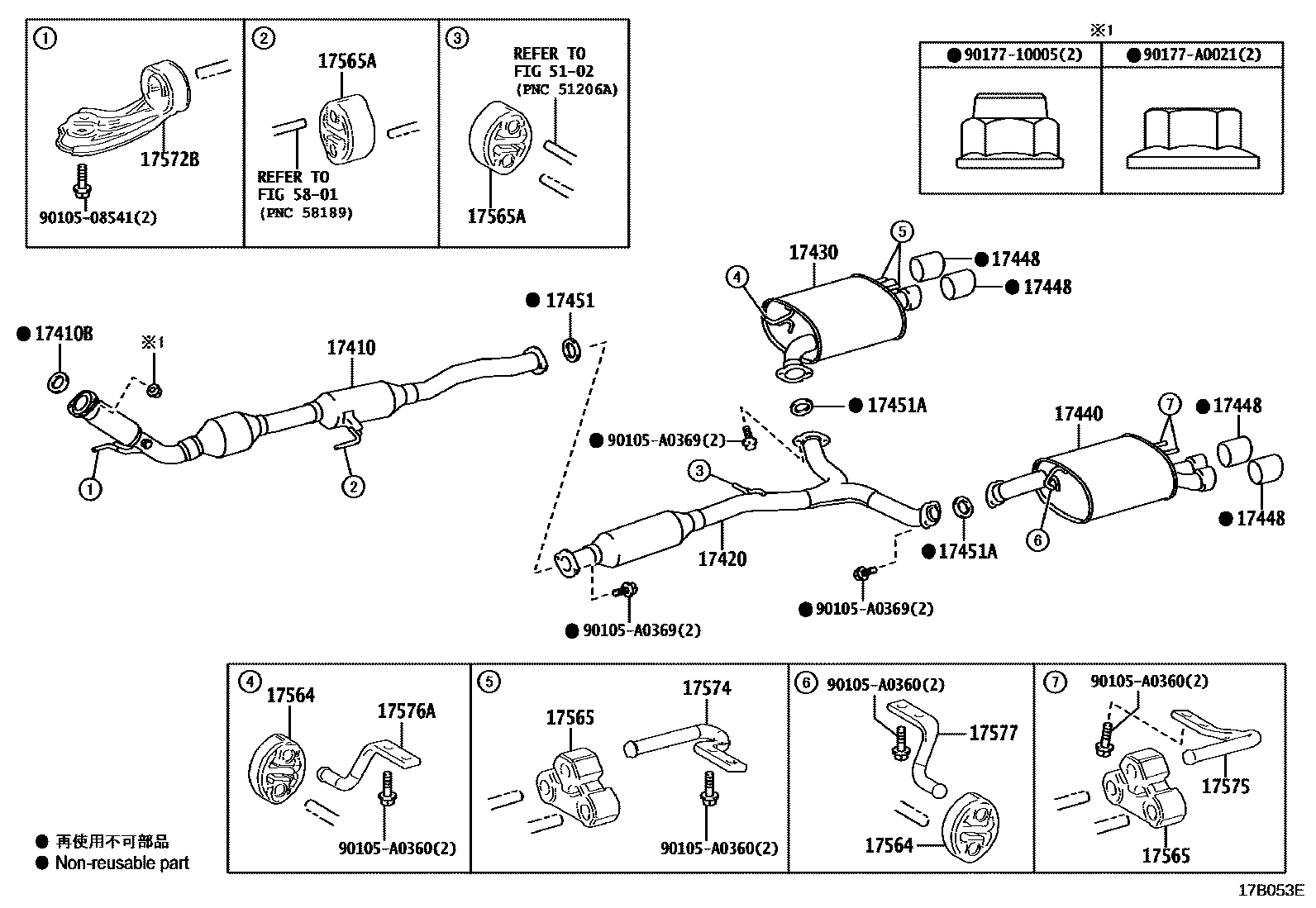

Toyota CAMRY Exhaust Pipe EPC diagram — 17B053E — Exhaust Pipe — 17B053E (202003 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17408	Exhaust pipe tail throat sub-assembly	17408-0V010
17410	Front exhaust pipe assembly	17410-0P380 · 17410-0P650 · 17410-F0020 · 17410-F0021 · 17410-F0131 · 17410-F0440 · 17410-F0441
17410B	Exhaust pipe gasket	90917-A6002
17420	Central exhaust pipe assembly	17420-0P330 · 17420-0P331 · 17420-F0010 · 17420-F0020 · 17420-F0021 · 17420-F0022 · 17420-F0100 · 17420-F0110 · 17420-F0160
17430	Exhaust tailpipe assembly	17430-0P490 · 17430-0P491 · 17430-0P492 · 17430-0P560 · 17430-0P561 · 17430-0P562 · 17430-F0010 · 17430-F0011 · 17430-F0012 · 17430-F0020 · 17430-F0021 · 17430-F0022 · 17430-F0090 · 17430-F0091 · 17430-F0092 · 17430-F0101 · 17430-F0110 · 17430-F0111 · 17430-F0112 · 17430-F0331 · 17430-F0341 · 17430-F0351
17440	Left exhaust tailpipe	17440-0P140 · 17440-0P141 · 17440-0P142 · 17440-0P160 · 17440-0P161 · 17440-0P162 · 17440-F0010 · 17440-F0011 · 17440-F0012 · 17440-F0020 · 17440-F0021 · 17440-F0022 · 17440-F0100 · 17440-F0101 · 17440-F0102 · 17440-F0110 · 17440-F0111 · 17440-F0112 · 17440-F0161
17448	Exhaust pipe tail throat	17448-31160
17451	Exhaust pipe gasket	90080-43036 · 90917-06089 · 90917-A6003 · 90917-A6004
17451A	No. 2 exhaust pipe gasket	90917-A6003 · 90917-A6004
17451C	No. 3 exhaust pipe gasket	90917-A6003
17451D	No. 4 exhaust pipe gasket	90917-A6004
17564	No. 4 exhaust pipe lifting lug	17565-0P051
17565	No. 5 exhaust pipe lifting lug	17566-F0010
17565A	No. 4 exhaust pipe lifting lug	17565-0P041 · 17565-0P051 · 17566-F0010
17571	No. 1 exhaust pipe bracket	17571-0P250
17572B	No. 2 exhaust pipe bracket	17572-0P170
17573A	No. 3 exhaust pipe bracket	17573-0P160
17574	No. 4 exhaust pipe bracket	17574-0P140
17575	No. 5 exhaust pipe bracket	17575-0P200
17576A	No. 6 exhaust pipe bracket	17576-0P110
17577	No. 7 exhaust pipe bracket	17577-0P050
17584B	No. 1 exhaust pipe bracket	17584-0P150 · 17584-31050
