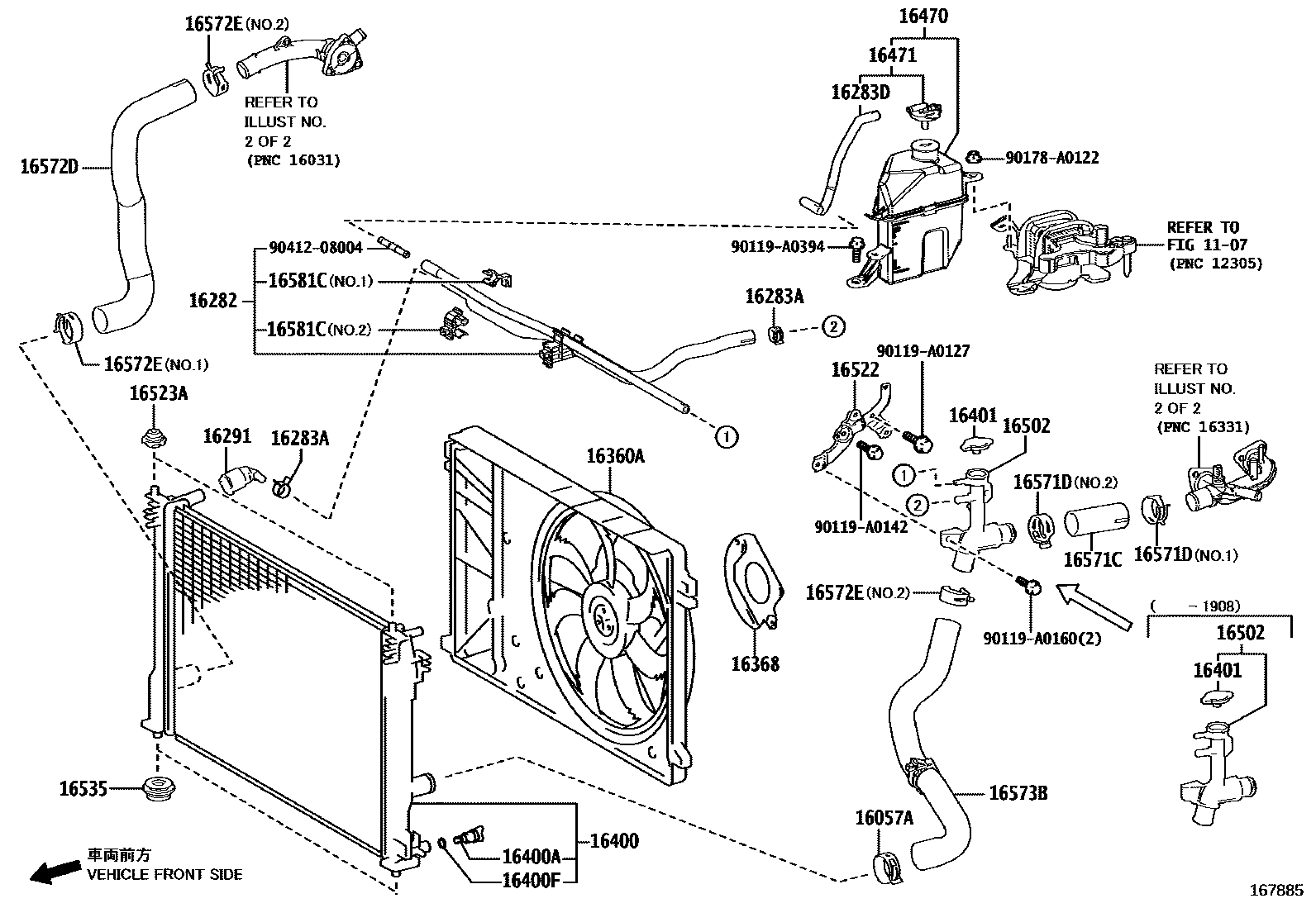

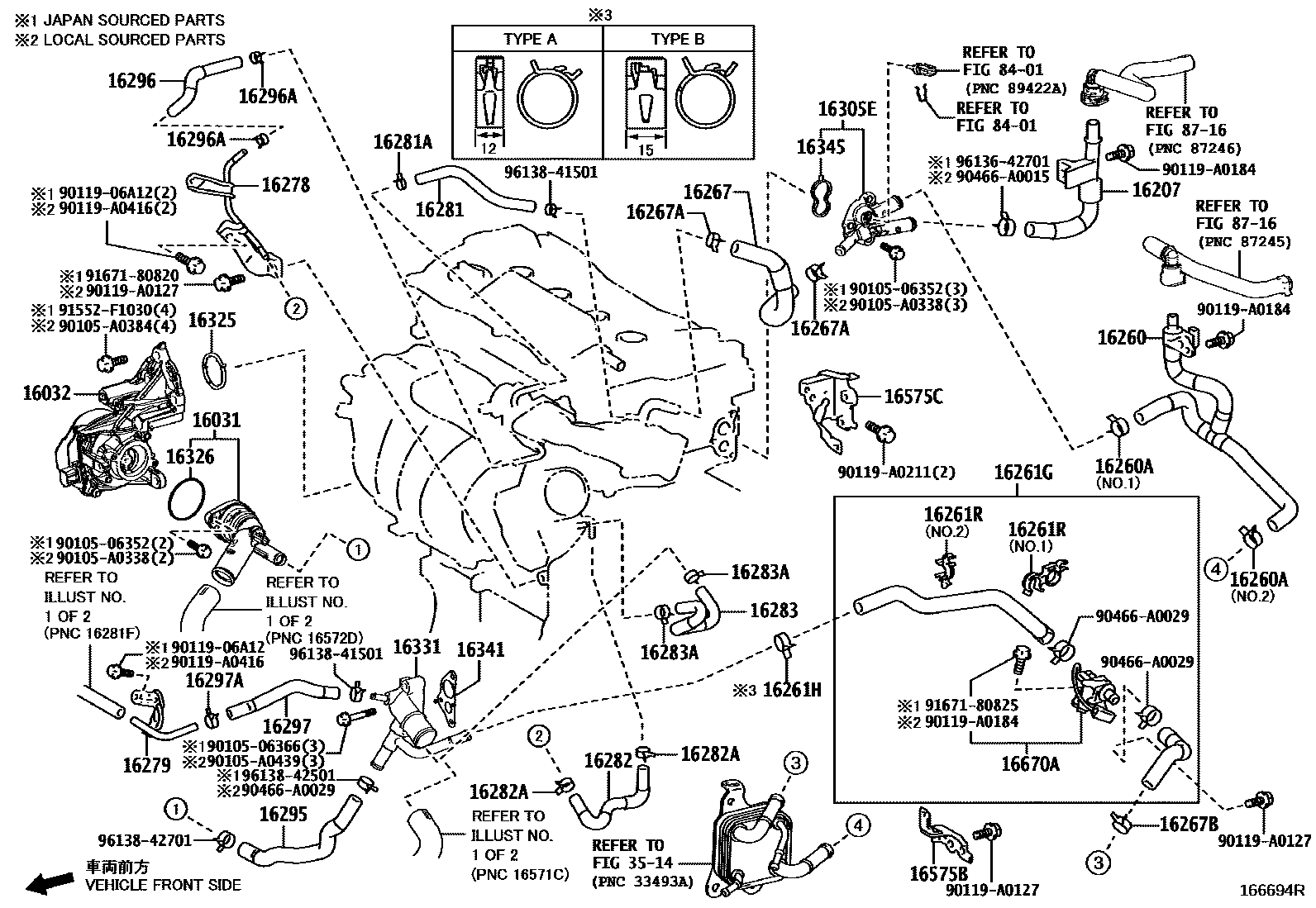

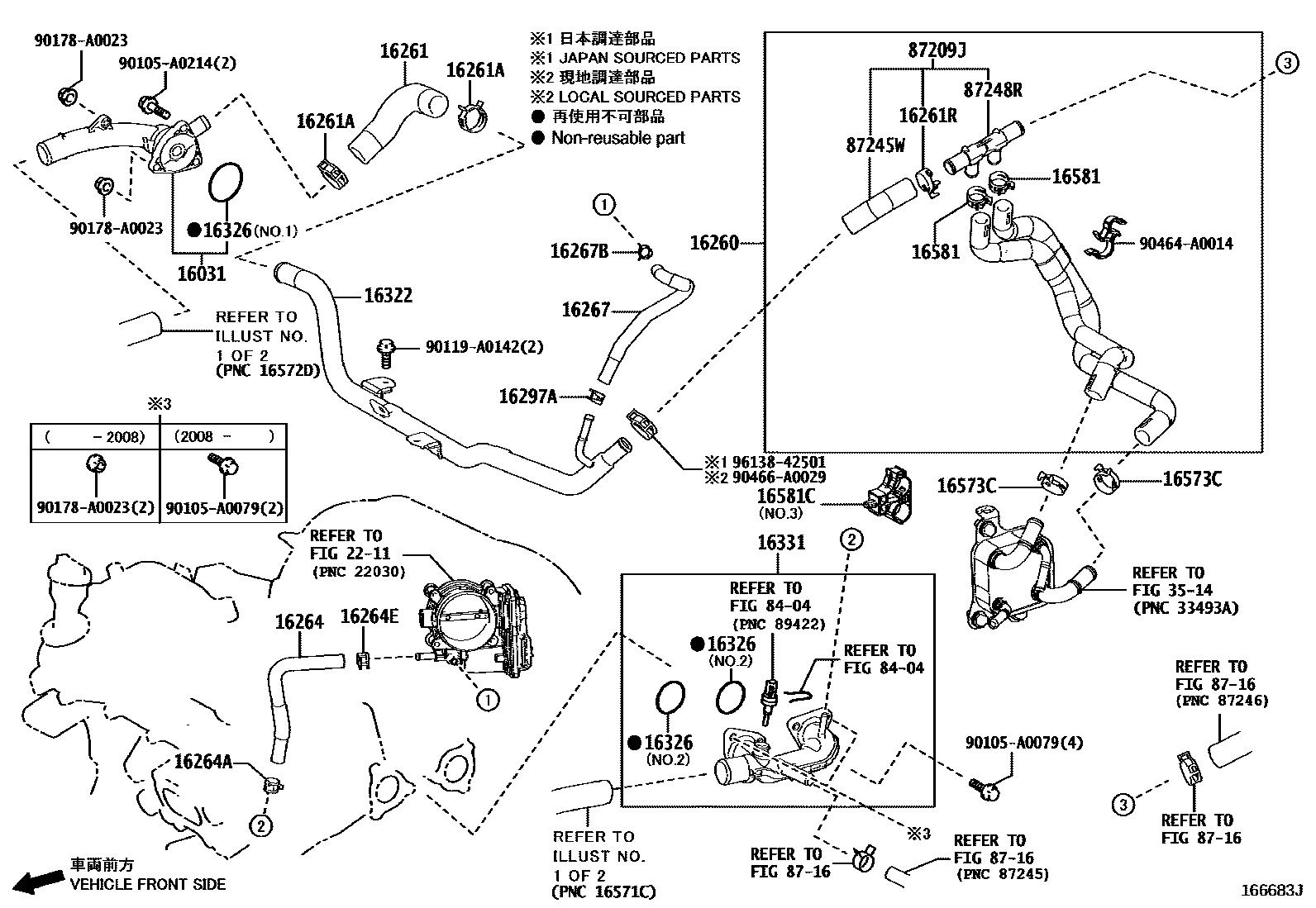

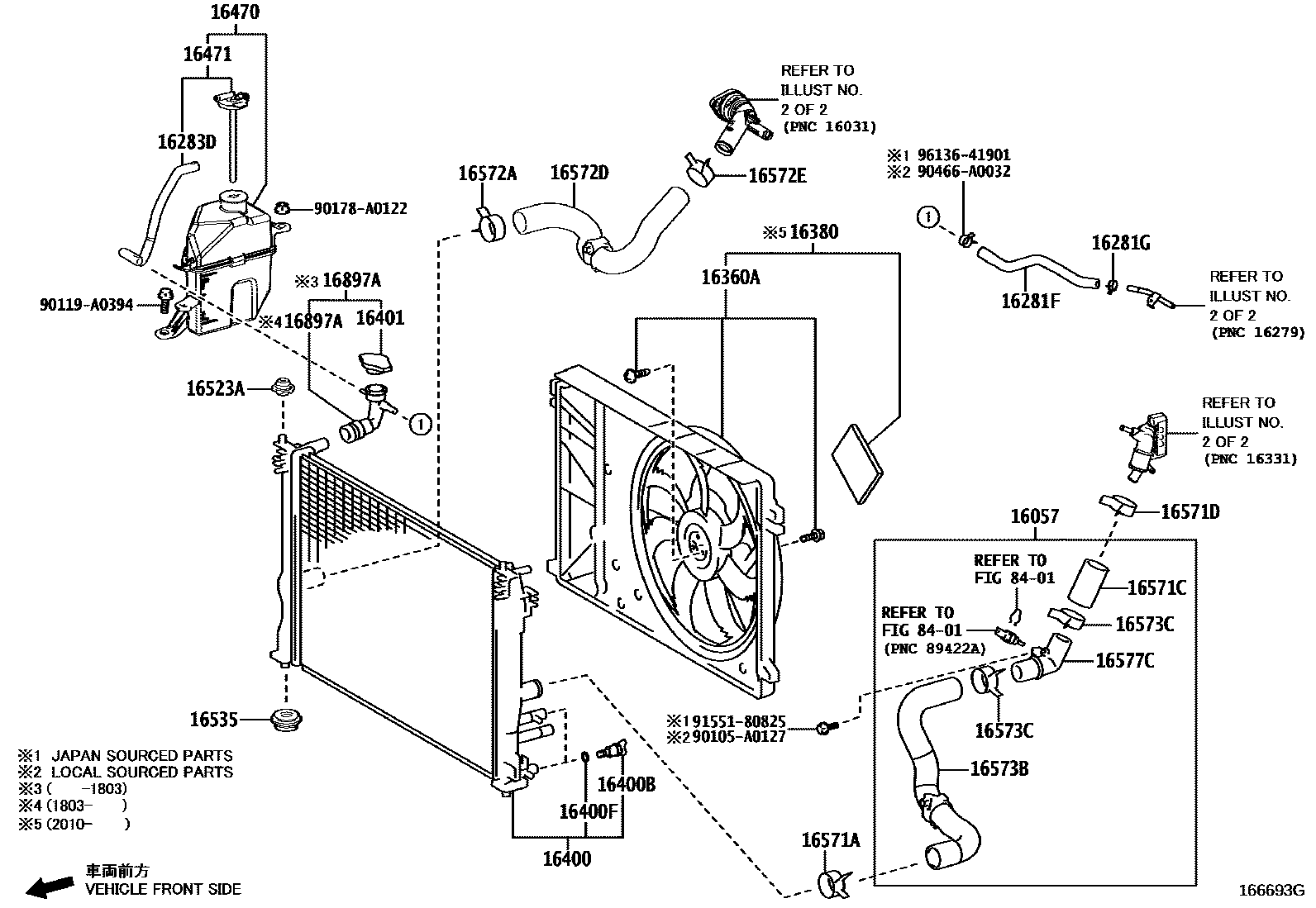

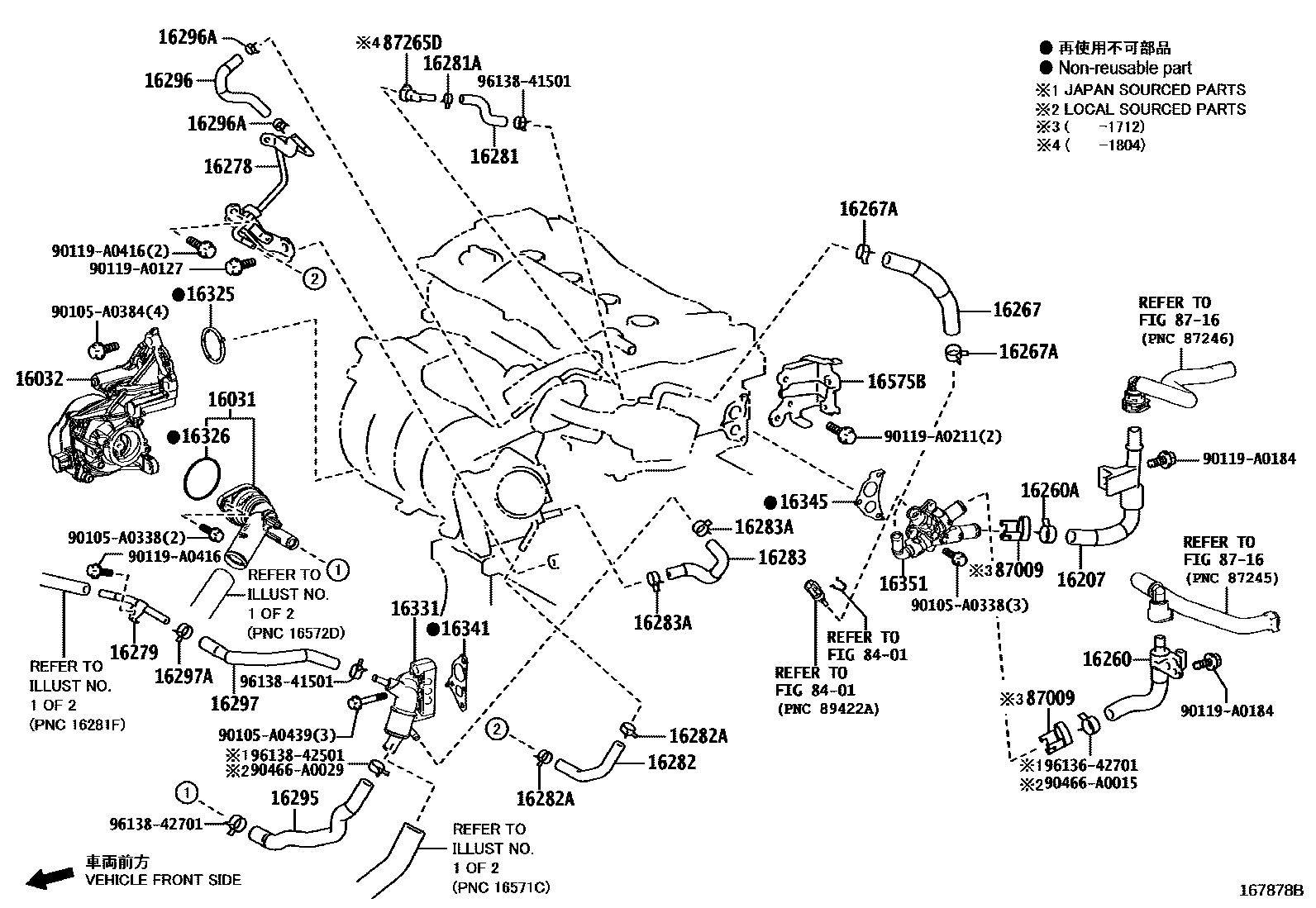

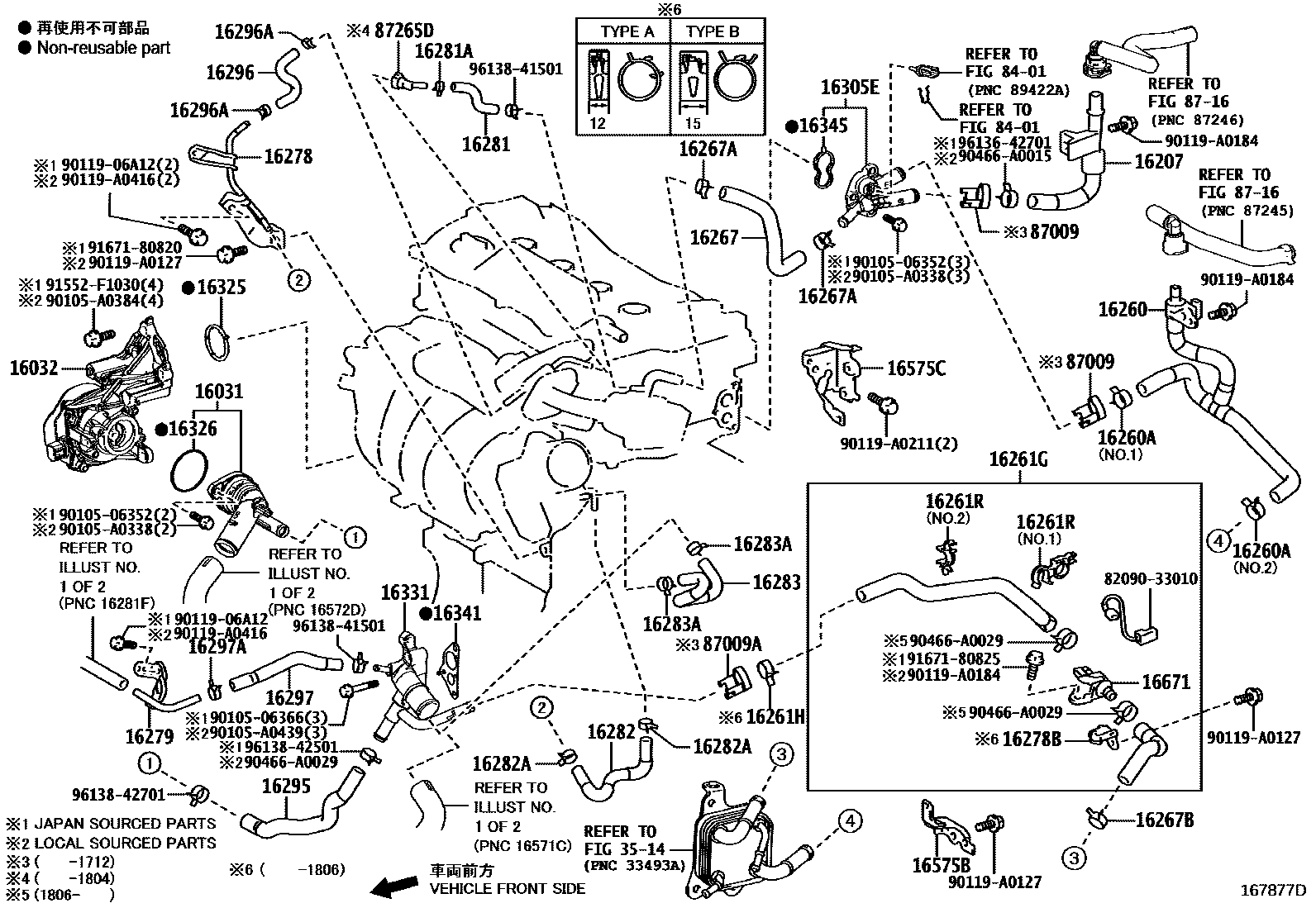

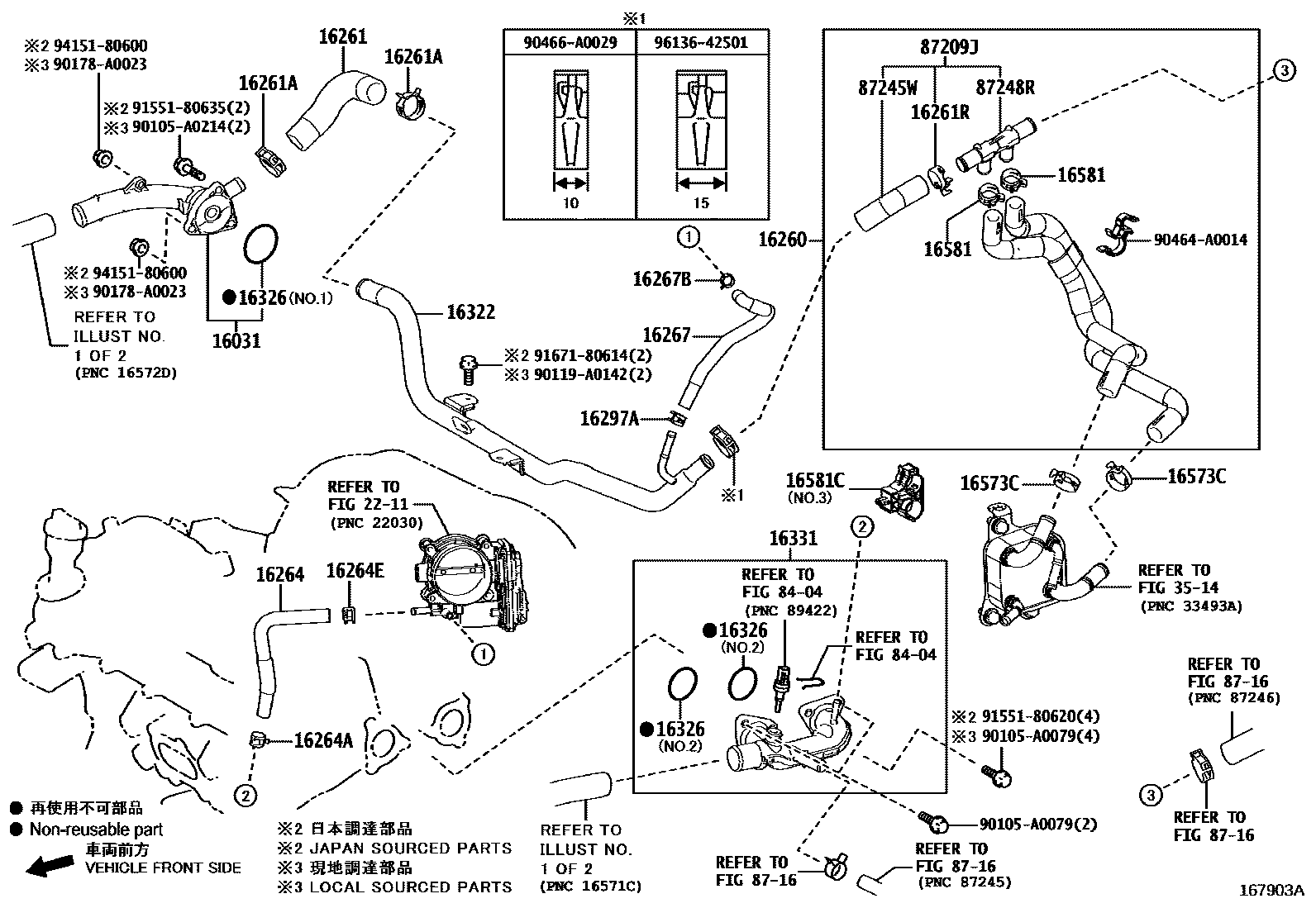

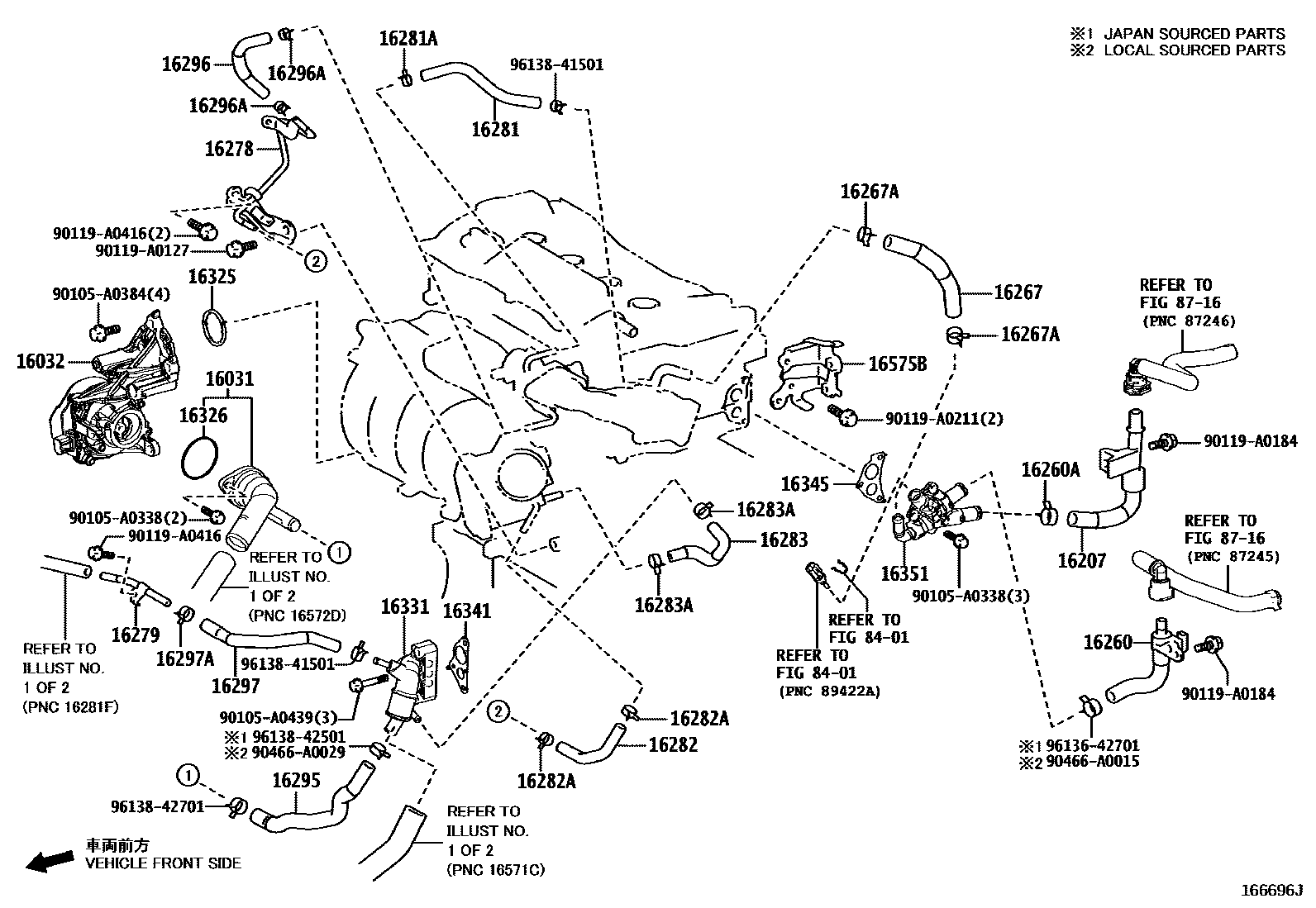

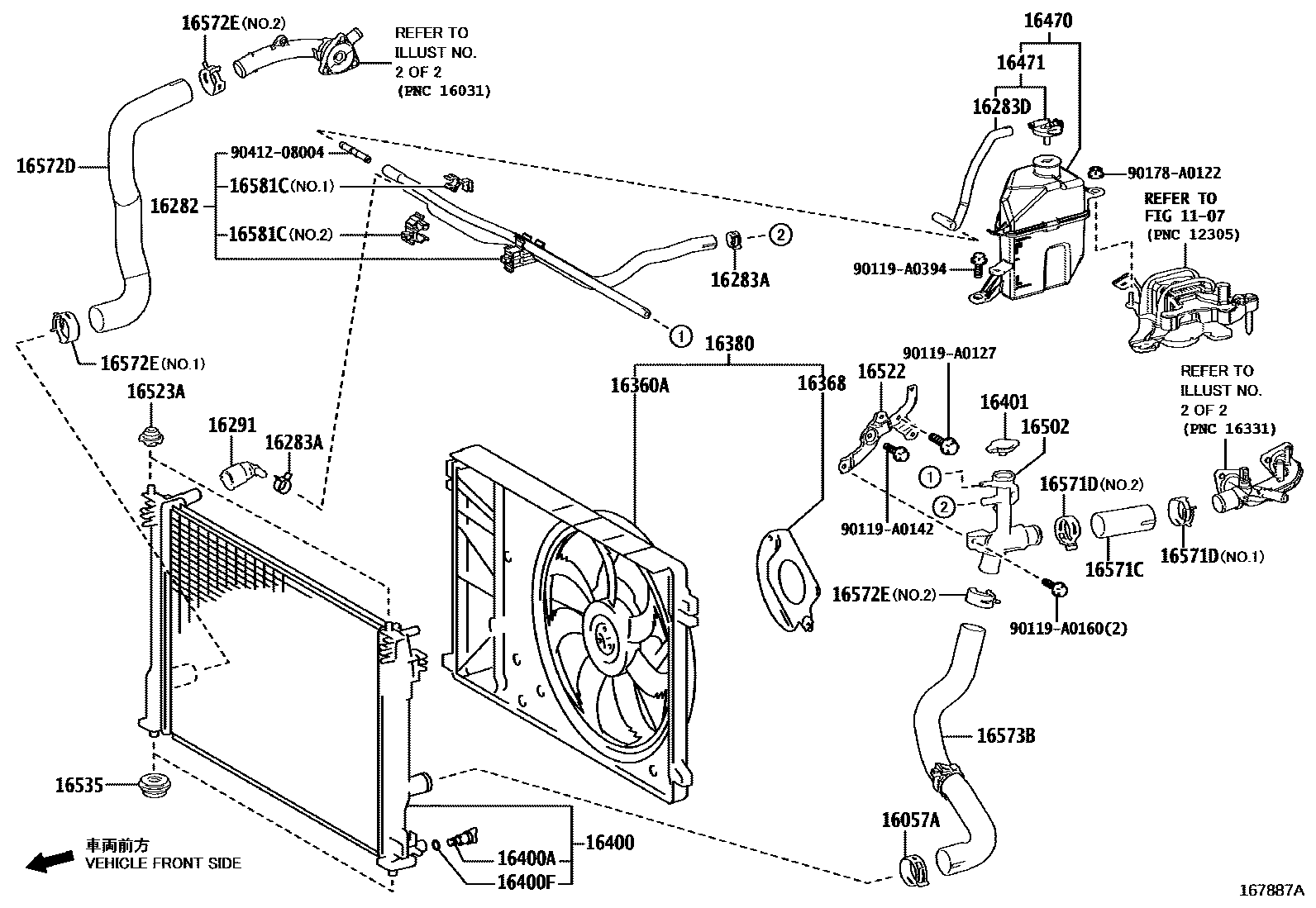

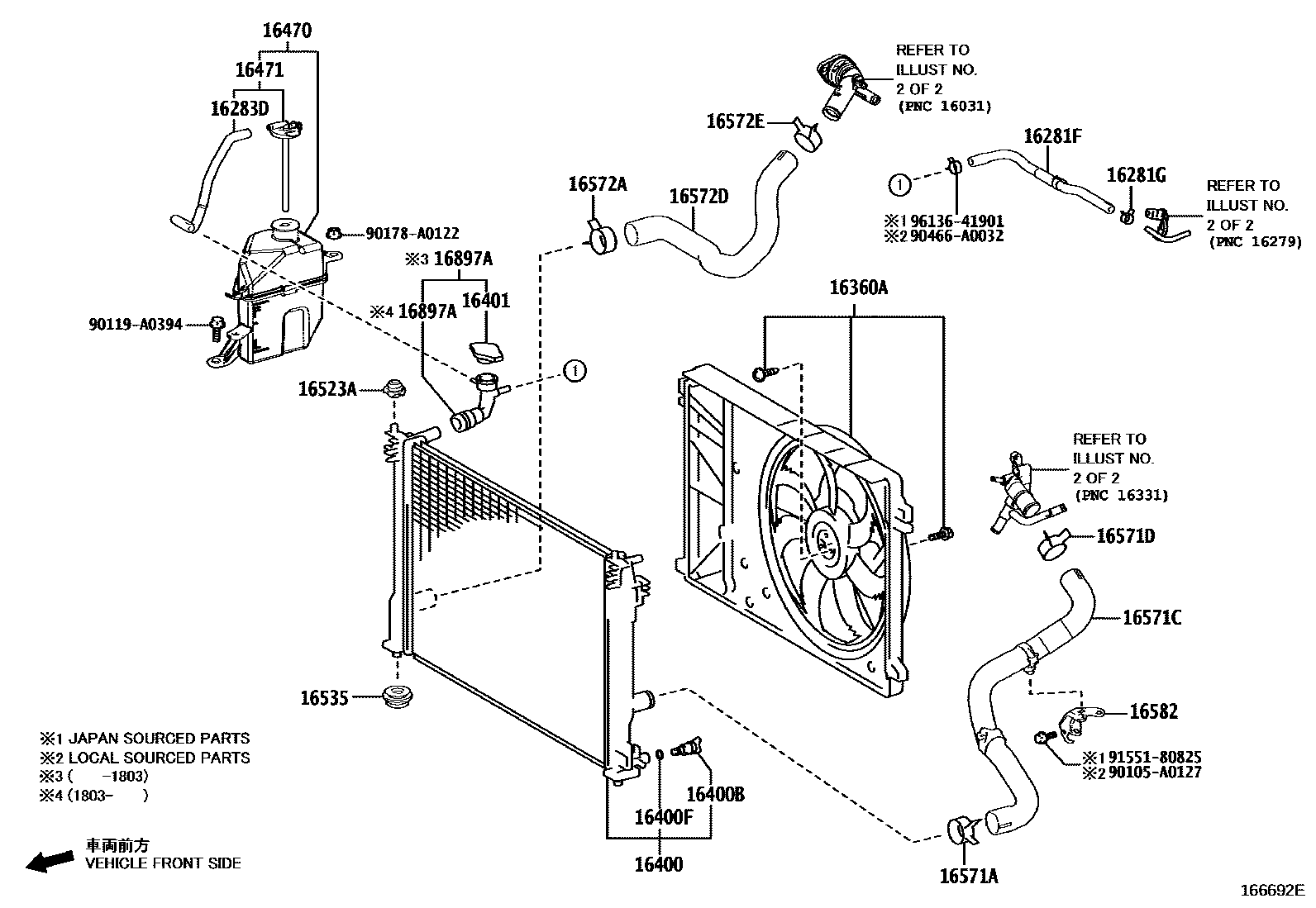

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 10 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-25010 · 16031-25011 · 16031-25040 · 16031-31030 · 16031-31031 |
| 16032 | SOUS-ENS. LOGEMENT, ENTREE EAU AV POMPE EAU | 16032-25010 · 16032-F0010 · 16032-F0011 |
| 16057 | Radiator hose sub-assembly | 16057-F0010 |
| 16057A | ATTACHE, FLEXIBLE(POUR SOUS-ENS. FLEXIBLE RADIATEUR) | 90466-39002 · 90466-A0038 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F0010 |
| 16260 | Water bypass hose assembly | 16260-0P100 · 16260-F0010 · 16260-F0020 · 16260-F0021 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-A0015 · 90466-A0023 · 90466-A0029 · 96136-42701 · 96138-42501 |
| 16261 | HOSE, WATER BY-PASS | 16261-0P020 · 16261-31061 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-27001 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-F0010 · 16261-F0012 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-A0018 · 96136-42201 |
| 16261R | Clip or clip (for water bypass hose) | 16581-25081 · 16581-F0070 · 16581-F0080 · 96134-42100 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0P020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0P050 · 16267-25010 · 16267-25020 · 16267-25060 · 16267-F0140 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16267B | Clip (for water bypass hose) | 90466-A0017 · 90466-A0023 · 90466-A0029 · 96138-42501 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25020 · 16278-25030 |
| 16278B | Water bypass pipe bracket | 16575-25070 |
| 16279 | No. 3 water bypass pipe | 16279-25010 · 16279-25020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-25020 · 16281-25021 · 99555-10200 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-F0010 · 16282-F0021 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 · 96138-51701 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0P040 · 16282-25030 · 16282-25040 · 16282-F0390 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-25010 · 16283-25020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-A0032 · 96136-41901 · 96138-41501 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-F0030 · 16283-F0031 |
| 16291 | water hose connector | 16291-0P010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-25010 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-25010 · 16296-25020 · 16296-25050 · 16296-25060 · 16296-F0020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-25010 · 16297-25020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-A0017 · 90467-15022 |
| 16305E | Water bypass outlet sub-assembly | 16305-25030 · 16305-F0010 |
| 16322 | PIPE, WATER INLET | 16322-0P040 · 16322-31090 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-25010 · 16326-31040 · 16326-31050 · 16326-47020 |
| 16331 | Water outlet | 16331-25020 · 16331-25021 · 16331-25030 · 16331-25050 · 16331-31230 · 16331-F0010 · 16331-F0011 · 16331-F0050 |
| 16341 | GASKET, WATER OUTLET | 16341-25010 · 16341-F0010 |
| 16345 | Outlet pipe gasket | 16345-25020 · 16345-F0010 · 16345-F0020 |
| 16351 | water bypass outlet | 16351-25040 |
| 16360A | Fan assembly with motor | 16360-0P170 · 16360-F0010 · 16360-F0020 |
| 16368 | Cooling fan motor bracket | 16366-0P010 |
| 16380 | Fan bracket assembly | 16380-0P010 · 16380-0P020 |
| 16400 | Radiator assembly | 16400-F0010 · 16400-F0020 · 16400-F0021 |
| 16400A | Radiator drain switch sub-assembly | 16417-0C180 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31830 · 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-F0010 · 16470-F0011 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F0010 · 16405-F0011 |
| 16502 | Water injection port sub-assembly | 16502-0P030 · 16502-0P031 |
| 16522 | Water injection port bracket | 16522-0P010 · 16522-31010 |
| 16523A | Radiator bracket cushion | 16523-F0020 |
| 16535 | Radiator lower support | 16535-20010 · 16535-36010 · 16535-F0010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 · 90466-A0038 |
| 16571C | Radiator hose No. 1 | 16571-0P370 · 16571-F0010 · 16571-F0090 |
| 16571D | No. 1 radiator hose clip | 90466-43002 · 90466-A0037 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 · 90466-A0038 |
| 16572D | Radiator hose No. 2 | 16572-0P380 · 16572-F0010 · 16572-F0020 |
| 16572E | No. 2 radiator hose clip | 90466-39002 · 90466-43002 · 90466-A0037 · 90466-A0038 |
| 16573B | Radiator hose No. 3 | 16573-0P020 · 16573-F0070 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-43002 · 90466-A0023 |
| 16575B | No. 2 water hose clamp bracket | 16575-25040 · 16575-25050 · 16575-F0080 · 16575-F0090 |
| 16575C | No. 1 water hose clamp bracket | 16575-25010 · 16575-F0010 |
| 16577C | radiator pipe | 16577-F0010 |
| 16581 | Hose clamp (for water hose) | 16581-36040 · 96138-42101 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-0P050 · 16581-0P090 · 16581-0P100 |
| 16582 | Radiator bracket No. 1 | 16582-F0010 |
| 16670A | Water valve assembly with bracket | 16670-25040 · 16670-F0030 |
| 16671 | water valve | 16671-24020 · 16671-25030 · 16671-F2020 |
| 16897A | Filling port neck | 16897-F0010 · 16897-F0011 · 16897-F0050 · 16897-F0051 |
| 87009 | No. 1 water hose assembly | 87009-30040 |
| 87009A | No. 2 water hose assembly | 87009-33010 |
| 87209J | SOUS-ENS DE FLEXIBLE, EAU | 87209-06100 |
| 87245W | CONDUITE FLEXIBLE EAU | 87245-06D80 |
| 87248R | TUYAU, EAU | 87248-42041 |
| 87265D | Heater water hose connector | 87265-33020 |
