Toyota CAMRY Camshaft & Valve — Figure 1302

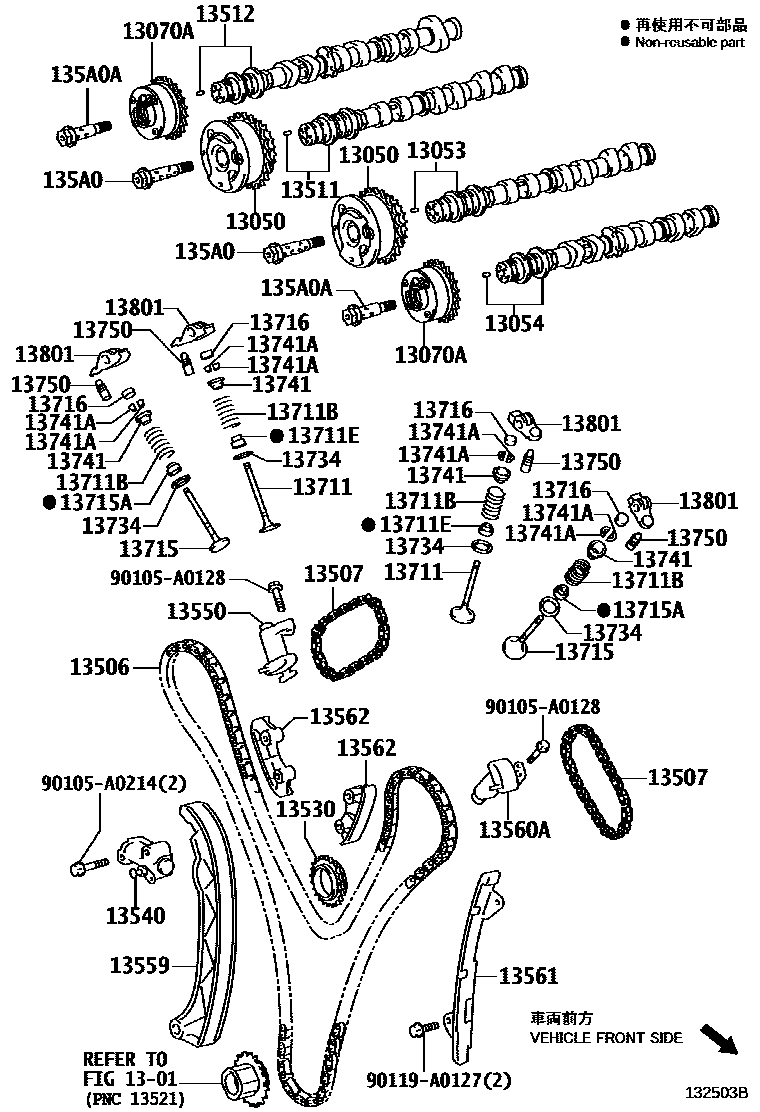

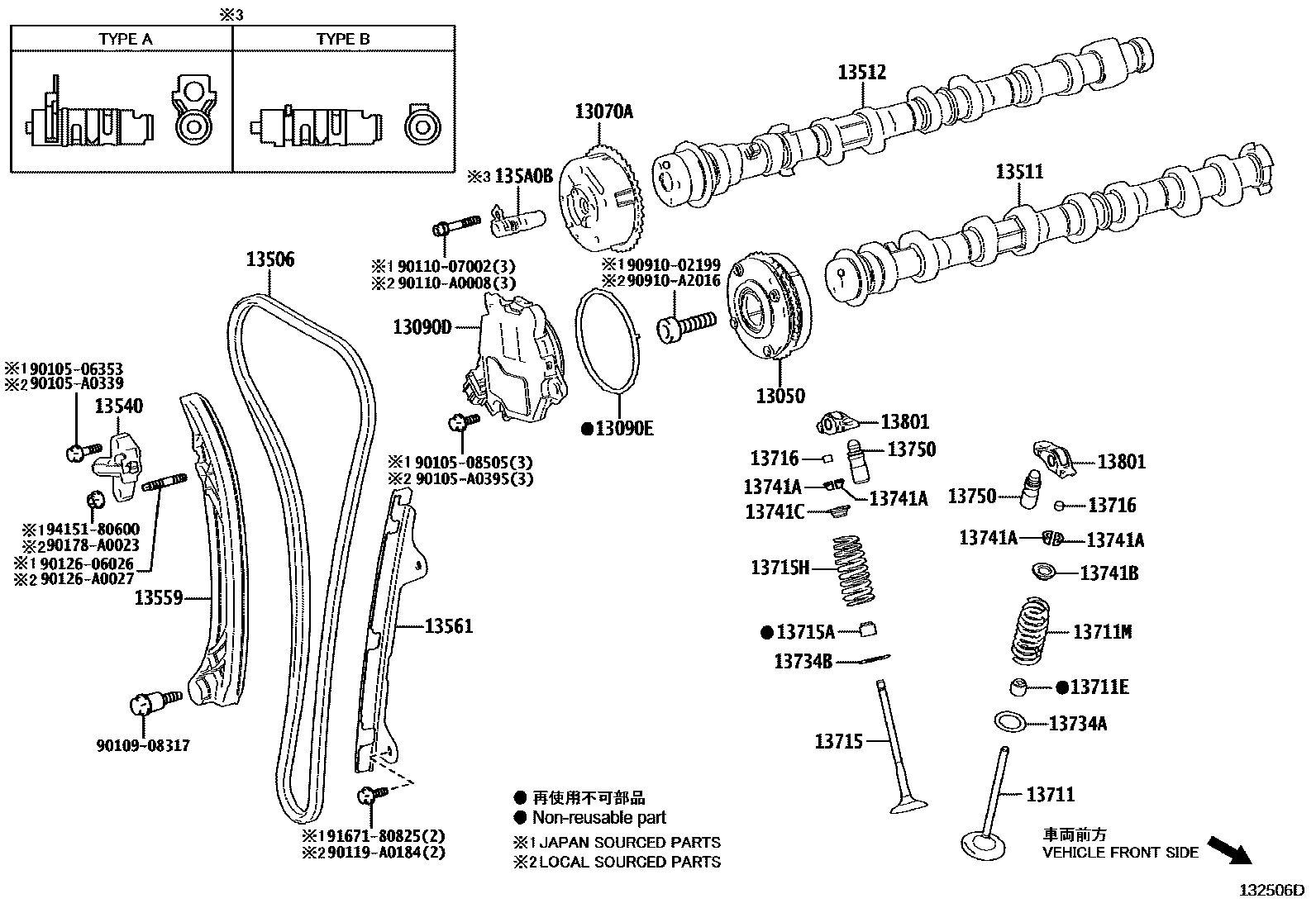

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0P081 · 13050-25010 · 13050-F0010 |
| 13053 | No. 3 camshaft sub-assembly | 13053-0P030 |
| 13054 | No. 4 camshaft sub-assembly | 13054-0P030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0P011 · 13070-25020 · 13070-25030 · 13070-F0020 · 13070-F0030 |
| 13090D | ENS. MOTEUR, COM. AVAN. ALLUM. CAME AVEC EDU | 13090-25010 · 13090-F0010 |
| 13090E | JOINT TOR. (DE MOTEUR COM. AVAN. ALLUM. CAME) | 90301-92005 |
| 13506 | Chain sub-assembly | 13506-0P030 · 13506-25020 · 13506-F0010 |
| 13507 | No. 2 chain sub-assembly | 13507-0P010 |
| 13511 | camshaft | 13501-0P030 · 13501-25010 · 13501-F0010 · 13501-F0030 |
| 13512 | Camshaft No. 2 | 13502-0P030 · 13502-25010 · 13502-F0010 · 13502-F0020 |
| 13530 | Idle sprocket assembly | 13530-31040 · 13530-31050 |
| 13540 | No. 1 chain tensioner assembly | 13540-0P030 · 13540-25020 · 13540-F0010 |
| 13550 | No. 2 chain tensioner assembly | 13550-0P030 |
| 13559 | chain tensioner guide plate | 13559-0P030 · 13559-25010 · 13559-F0010 |
| 13560A | No. 3 chain tensioner assembly | 13560-0P030 |
| 13561 | No. 1 chain shock absorber | 13561-0P030 · 13561-25020 · 13561-25021 · 13561-F0010 · 13561-F0011 |
| 13562 | No. 2 chain shock absorber | 13562-0P030 |
| 135A0 | ENS. BOULON, PIGN CALAGE ARBRE CAMES, CENTR(POUR ADMIS) | 135A0-0P031 |
| 135A0A | ENS. BOULON, PIGN CALAGE ARBRE CAMES, CENTR(POUR ECHAPP) | 135A0-0P041 |
| 135A0B | ENS. SOUPAPE, DISTRIB ARBRE A CAMES | 135A0-25010 · 135A0-25020 · 135A0-F0010 · 135A0-F0020 |
| 13711 | intake valve | 13711-0P030 · 13711-25020 · 13711-F0010 |
| 13711B | Compression spring (for inner side) | 90501-A0138 |
| 13711E | Intake valve stem oil seal | 90080-31043 · 90913-02101 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-32074 · 90501-33034 · 90501-A0140 · 90501-A0141 |
| 13715 | exhaust valve | 13715-0P030 · 13715-25020 · 13715-31150 · 13715-F0010 · 13715-F0050 |
| 13715A | Exhaust valve stem oil seal | 90080-31101 · 90913-02112 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-32073 · 90501-33035 · 90501-A0139 · 90501-A0143 |
| 13716 | valve stem cover | 13716-25010 · 13716-75020 · 13716-F0010 |
| 13734 | Valve spring seat | 13734-0P010 · 13734-62020 |
| 13734A | Intake valve spring seat | 13734-0P010 · 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-0P010 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0P020 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-A3001 |
| 13741B | Intake valve spring seat ring | 13741-0P020 · 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-0P020 · 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-0P020 · 13750-0P040 · 13750-25010 · 13750-36020 · 13750-F0010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P030 · 13801-25010 · 13801-F0010 |
