Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 7 PNC and OE references.

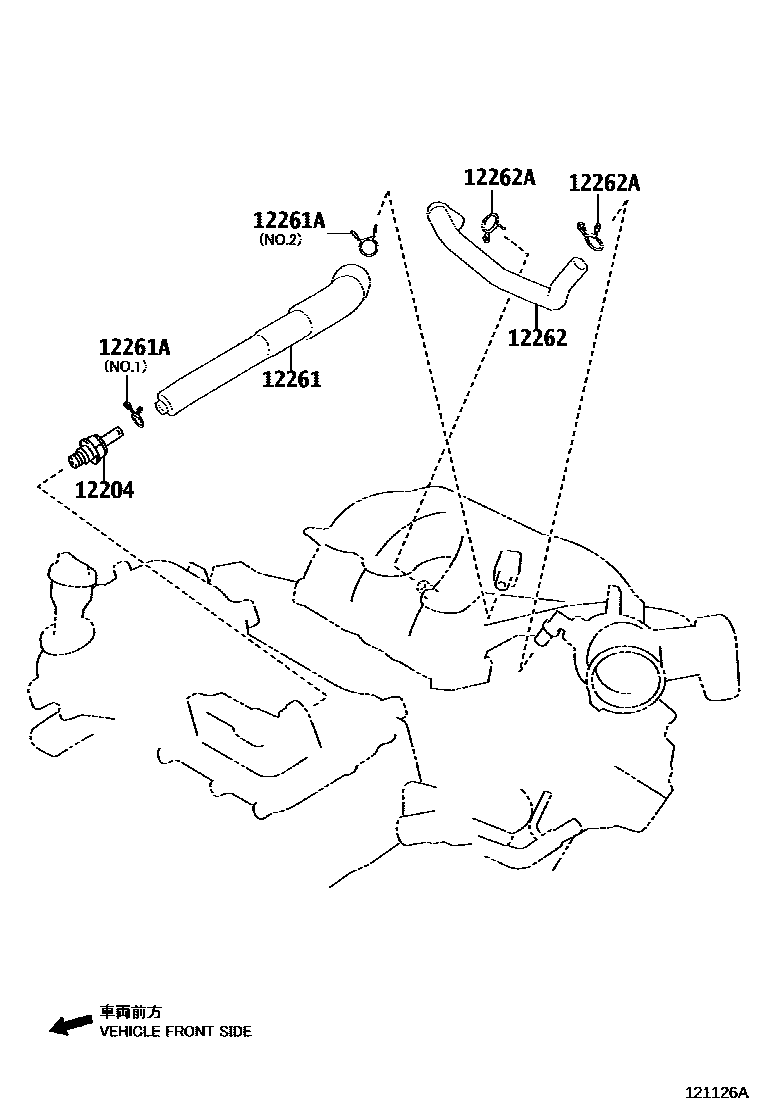

Toyota CAMRY Ventilation Hose EPC diagram — 121126A
Ventilation Hose — 121126A (201706 – 999999)

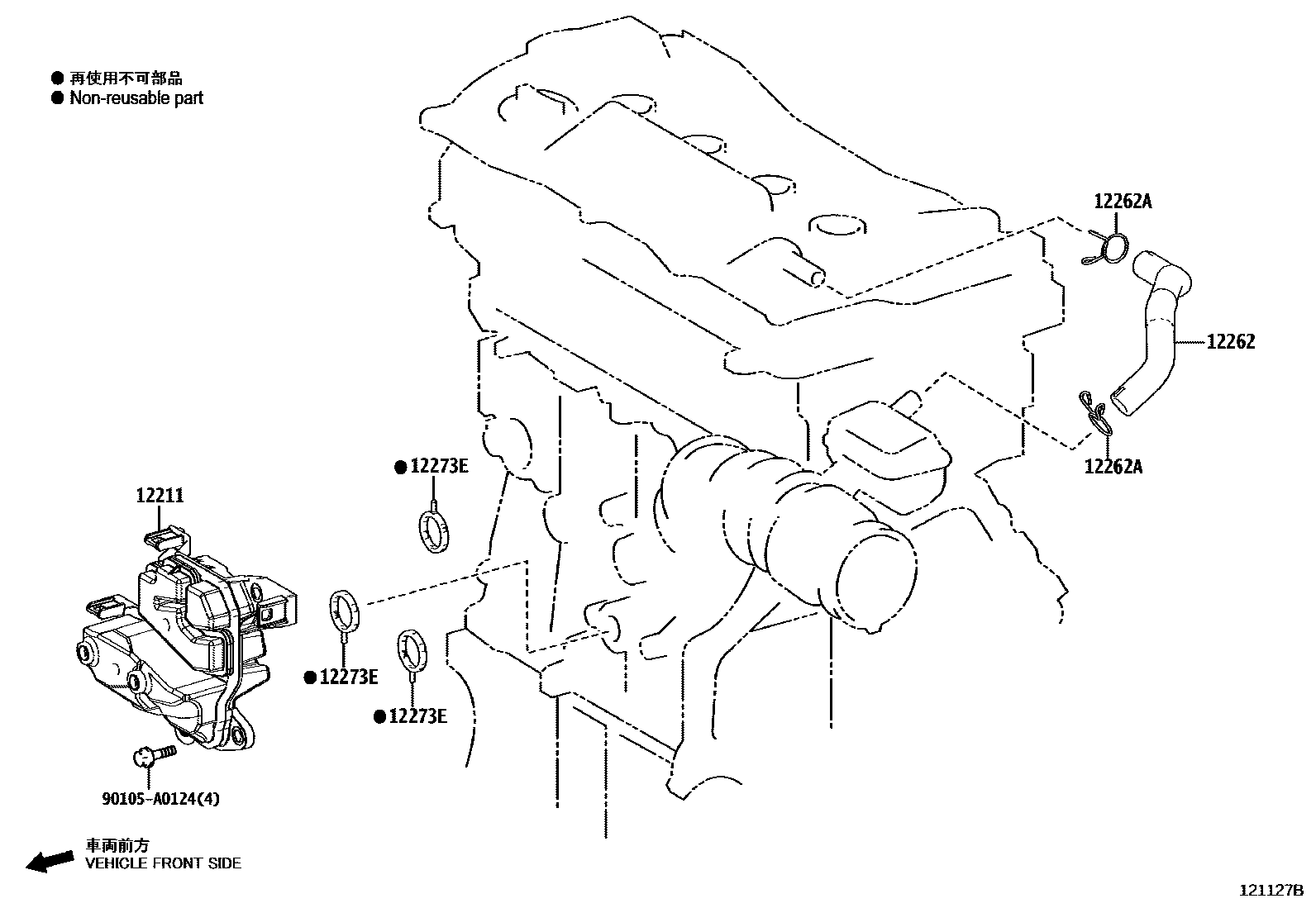

Toyota CAMRY Ventilation Hose EPC diagram — 121127B
Ventilation Hose — 121127B (201706 – 999999)

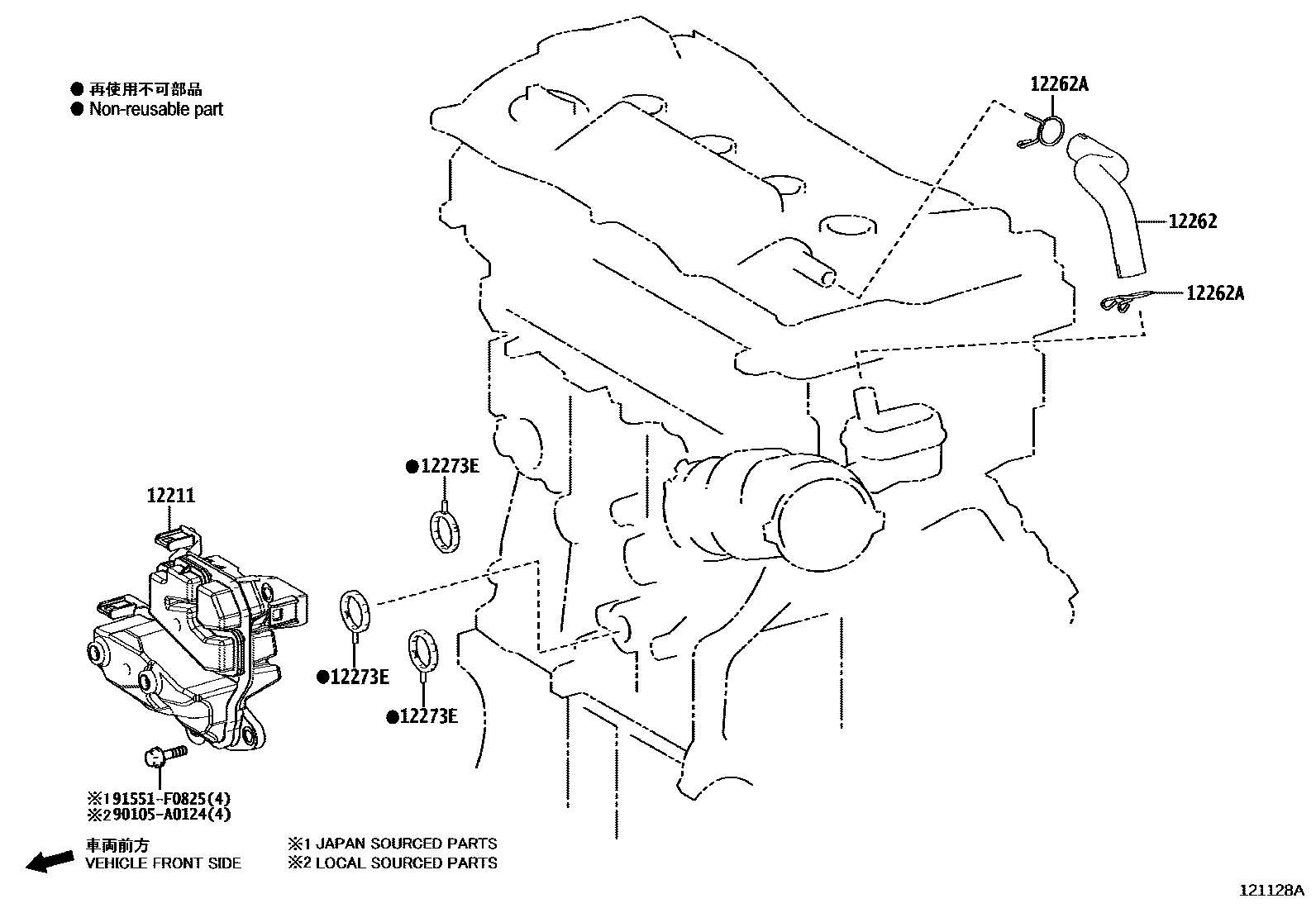

Toyota CAMRY Ventilation Hose EPC diagram — 121128A
Ventilation Hose — 121128A (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0P020 · 12204-31150
12211Ventilation box No. 112211-25010 · 12211-25011 · 12211-F0010 · 12211-F0011
12261Ventilation Hose12261-31200
12261AClip or clip (for vent hose)90467-15120 · 90467-19003
12262Ventilation hose No. 212262-25030 · 12262-25040 · 12262-31190
12262AClamp (for vent hose No. 2)90466-A0028
12273EJOINT(POUR CARTER VENTILATION)12273-24010 · 12273-25010
